Asus Prime Z890M Plus Wifi Motherboard

0 جنيه

Model: Prime Z890M Plus Wifi
Chipset Manufacturer: INTEL
CPU Socket: LGA 1851
Motherboard Chipset: Z890
Motherboard Type: m-ATX
CPU Series: Core Ultra (Series 2)
Technology: DDR5
Memory Speed: 1600 MHz to 8600MHZ (Various speeds listed)
Max Memory Size: 256GB
Memory Slot: 4
PCI-E X16: YES
PCI-E GEN: PCIe 4.0, PCIe 5.0
PCI-E Slots (M.2): 3
SATAIII: 6x SATA 6G
Communication module: Bluetooth, Wireless
رقم القطعة: PRIME Z890M-PLUS WIFI
الضمان: 3 Years

Out Of Stock.

رمز المنتج: 214654010 التصنيفات: لوحات أم Intel, اللوحة الأم الوسوم: ASUS PRIME, pc-motherboard, micro-ATX motherboard, Technology: DDR5, PCI-E GEN: PCIe 4.0, Motherboard Type: m-ATX, 2800 MHz, 3600 MHz, 4300 MHz, CHIPSET MANUFACTURERS: INTEL, PRIME, Plus, 6600Mhz, PC Parts, 5000 MHZ, Motherboard Chipset: Z890, Memory Speed: 1600 MHz, 2933 MHz, 3666 MHz, 4400 MHz, CPU SERIES: Core Ultra (Series 2), motherboard, 5600 Mhz, DIY PC, LGA 1851 Motherboard, 5200 MHZ, 4866 MHz, Max Memory Size: 256GB, 3000 MHz, 3733 MHz, 4466 MHz, 8200MHz, MODEL: Prime Z890M Plus Wifi, 7400Mhz, 7000 MHz, 4933 MHz, PCI-E Slots (M.2): 3, 3200 MHz, 3800 MHz, 4500 MHz, 8266MHz, SATAIII: 6x SATA 6G, PCIe 5.0, 6400Mhz, 4800 Mhz, Computer Components, Intel Motherboard, 5400MHz, Memory Slot: 4, 5066 MHz, 2133 MHz, 3300 MHz, 3866 MHz, 4600 MHz, 8400 MHZ, Part Number: PRIME Z890M-PLUS WIFI, WIFI, 6000MHZ, 7800Mhz, 6800MHZ, 6666MHz, PCI-E X16: YES, 5133 MHz, 2400 MHz, 3333 MHz, 4000 MHz, 4700 MHz, 8600MHZ, ASUS, 8000Mhz, 7200MHZ, Communication module: Bluetooth, 5333 MHz, 2666 MHz, 3400 MHz, 4133 MHz, 7900MHZ, 8666 MHZ, WIRELESS, 6200MHZ, 7600MHZ, Z890M, Computer Motherboard, Warranty: 3 Years, 5800, 2667 MHz, 3466 MHz, 4266 MHz, 7950MHZ, CPU SOCKET: LGA 1851 العلامة التجارية: ASUS

Asus Prime Z890M Plus Wifi اللوحات الأم

Step into the future of computing with the Prime Z890M Plus Motherboard. Designed for the latest Intel® Core™ Ultra Processors (Series 2) on the LGA1851 socket, this Micro-ATX board delivers a balanced blend of performance, connectivity, and reliability. Furthermore, it features PCIe 5.0 support, high-speed DDR5 compatibility, and integrated Wi-Fi 7. Consequently, it’s an excellent choice for building powerful yet compact PCs for gaming, content creation, and productivity.

Discover the Features of the Prime Z890M Plus Motherboard

This motherboard unlocks the capabilities of Intel’s Z890 chipset and new Core Ultra processors. It supports blazing-fast DDR5 memory up to 8666+ MT/s (OC), optimized with ASUS AEMP III for easy setup. Additionally, the primary PCIe 5.0 x16 slot provides maximum bandwidth for the latest graphics cards. Storage options are robust, featuring three M.2 slots, including one that supports cutting-edge PCIe 5.0 x4 speeds for incredibly fast SSD performance, plus six SATA 6Gb/s ports.

Connectivity is thoroughly modern on the Prime Z890M Plus Motherboard. Enjoy next-generation wireless speeds with onboard Wi-Fi 7 and reliable wired connections via the Realtek 2.5Gb Ethernet port. Moreover, the rear panel includes high-speed USB options like a USB 20Gbps Type-C® port (with DisplayPort Alt mode) and multiple USB 10Gbps/5Gbps ports. ASUS 5X Protection III ensures hardware longevity, while Q-Design features like Q-Antenna and Q-LED Core simplify building and diagnostics. Finally, comprehensive cooling options, including VRM heatsinks and Fan Xpert 4 controls, maintain stability under load.

Key Specifications

Model: PRIME Z890M-PLUS WIFI
CPU Socket: LGA1851 (Intel® Core™ Ultra Series 2)
Chipset: Intel® Z890
Memory: 4x DDR5 DIMM, Max. 256GB, up to 8666MHz+ (OC), AEMP III
Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode), 2x PCIe 4.0 x1
Storage: 1x M.2 PCIe 5.0 x4, 2x M.2 PCIe 4.0 x4, 6x SATA 6Gb/s
Networking: Realtek 2.5Gb Ethernet, Wi-Fi 7 (802.11be), Bluetooth 5.4

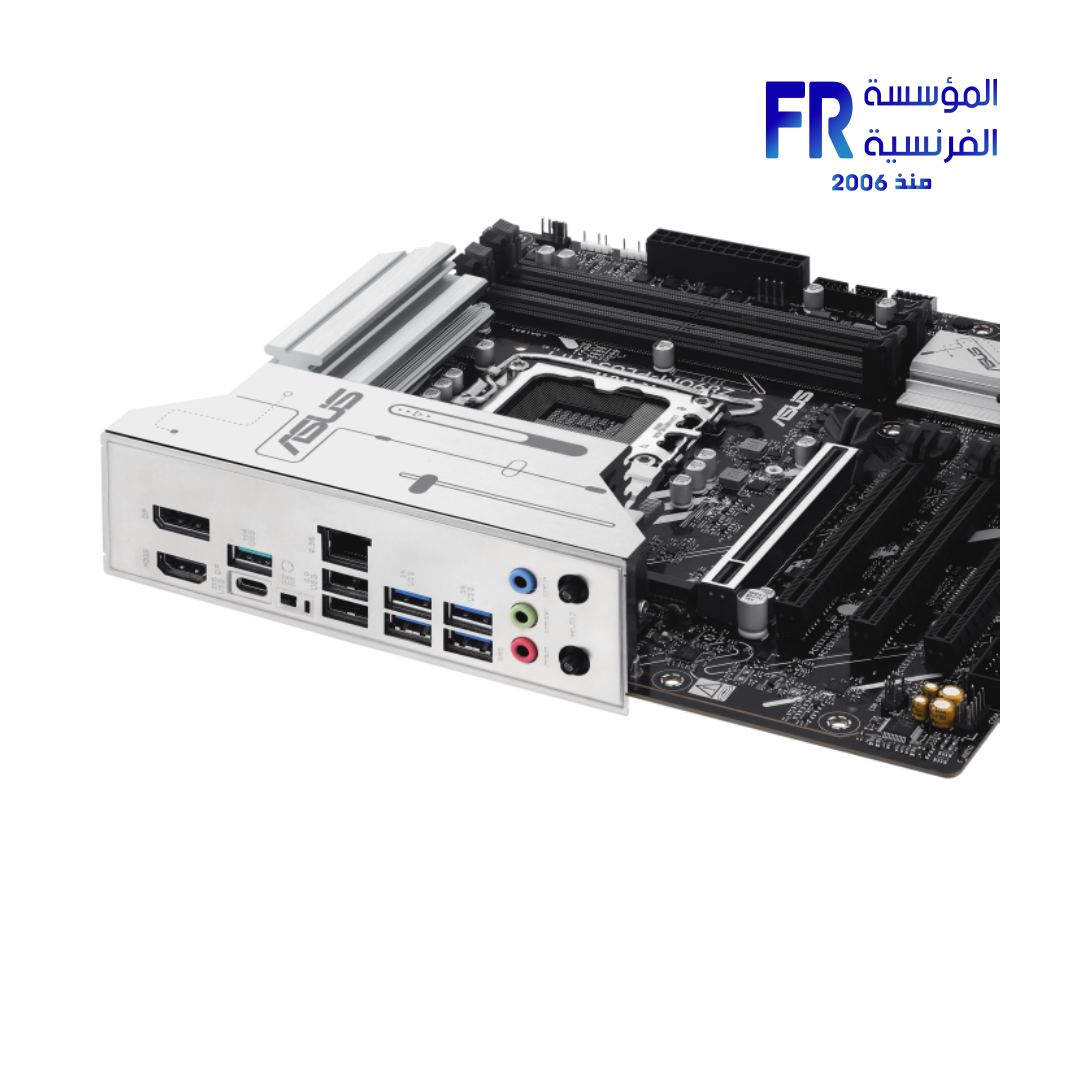

Rear USB: 1x USB 20Gbps (Type-C® w/ DP Alt), 1x USB 10Gbps (Type-A), 4x USB 5Gbps (Type-A), 2x USB 2.0 (Type-A)
Audio: Realtek 7.1 Surround Sound CODEC
Form Factor: Micro-ATX
Special Features: 5X Protection III, Q-Design (Q-Antenna, Q-LED Core), VRM Heatsink, EZ DIY (BIOS FlashBack™), Aura Sync, Thunderbolt™ (USB4®) Header

Questions & Answers

Who is this Motherboard for?

This motherboard is well-suited for mainstream gamers, content creators, and power users building a compact Micro-ATX system with the latest Intel Core Ultra Series 2 processors. Specifically, it appeals to those who want the performance benefits of the Z890 chipset, including memory overclocking and PCIe 5.0, along with modern connectivity like Wi-Fi 7, without needing the extreme features of higher-end ROG models.

Why Choose the Prime Z890M Plus Motherboard?

Choose the Prime Z890M Plus Motherboard for its strong combination of next-gen features, Z890 chipset capabilities, and Prime series reliability in a Micro-ATX form factor. It offers crucial advancements like PCIe 5.0 for both graphics and storage, very high-speed DDR5 support, Wi-Fi 7, and fast USB connectivity (including 20Gbps Type-C). Therefore, it provides a future-proof platform with excellent performance potential for compact, powerful builds.

What are the Pros?

Pros: Supports latest Intel Core Ultra CPUs; Z890 chipset allows memory overclocking; PCIe 5.0 x16 and M.2 slots; very fast DDR5 support (8666+ MT/s OC); integrated Wi-Fi 7 and 2.5Gb Ethernet; USB 20Gbps Type-C port; three M.2 slots total; reliable 5X Protection III features; useful Q-Design elements.

What are the Cons?

Cons: Fewer high-speed rear USB ports compared to premium boards; basic Realtek audio codec; VRM cooling might be less robust than ROG/TUF models for extreme overclocking; only one PCIe 5.0 M.2 slot.

The Verdict

The Prime Z890M Plus Motherboard strikes an excellent balance between next-generation features and practical design for the new Intel platform. It brings key Z890 advantages like high-speed memory support and PCIe 5.0 to the Micro-ATX space, complemented by Wi-Fi 7 and fast USB ports. While it may not have every bell and whistle of its ROG counterparts, it offers a compelling, feature-rich foundation for users building high-performance, compact systems with Intel Core Ultra processors. It’s a strong contender among mainstream Z890 Micro-ATX motherboards.

Find more details on the official ASUS Prime product page.

Pair it with compatible Intel Core Ultra processors or explore our DDR5 memory options.

اللوحة الأم

MODEL	Prime Z890M Plus Wifi
CHIPSET MANUFACTURERS	INTEL
سوكت المعالج	LGA 1851
شريحة اللوحة الأم	Z890
Motherboard Type	m-ATX
CPU SERIES	Core Ultra (Series 2)
Technology	DDR5
Memory Speed	1600 MHz, 2133 MHz, 2400 MHz, 2666 MHz, 2667 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3300 MHz, 3333 MHz, 3400 MHz, 3466 MHz, 3600 MHz, 3666 MHz, 3733 MHz, 3800 MHz, 3866 MHz, 4000 MHz, 4133 MHz, 4266 MHz, 4300 MHz, 4400 MHz, 4466 MHz, 4500 MHz, 4600 MHz, 4700 MHz, 4800 MHZ, 4866 MHz, 4933 MHz, 5000 MHz, 5066, 5066 MHz, 5133 MHz, 5200 MHz, 5200MHZ, 5333, 5333 MHz, 5400Mhz, 5600 MHz, 5800, 6000MHz, 6200MHZ, 6400Mhz, 6600Mhz, 6666MHZ, 6800Mhz, 7000 MHz, 7200MHZ, 7400MHZ, 7600MHZ, 7800MHZ, 7900MHZ, 7950MHZ, 8000MHZ, 8200MHz, 8266MHz, 8400 MHZ, 8600MHZ, 8666 MHZ
Max Memory Size	256GB
Memory Slot	4
PCI-E X16	YES
PCI-E GEN	PCIe 4.0, PCIe 5.0
PCI-E Slots (M.2)	3
SATAIII	6x SATA 6G
Communication module	Bluetooth, Wireless
Part Number	PRIME Z890M-PLUS WIFI
الضمان	3 Years
