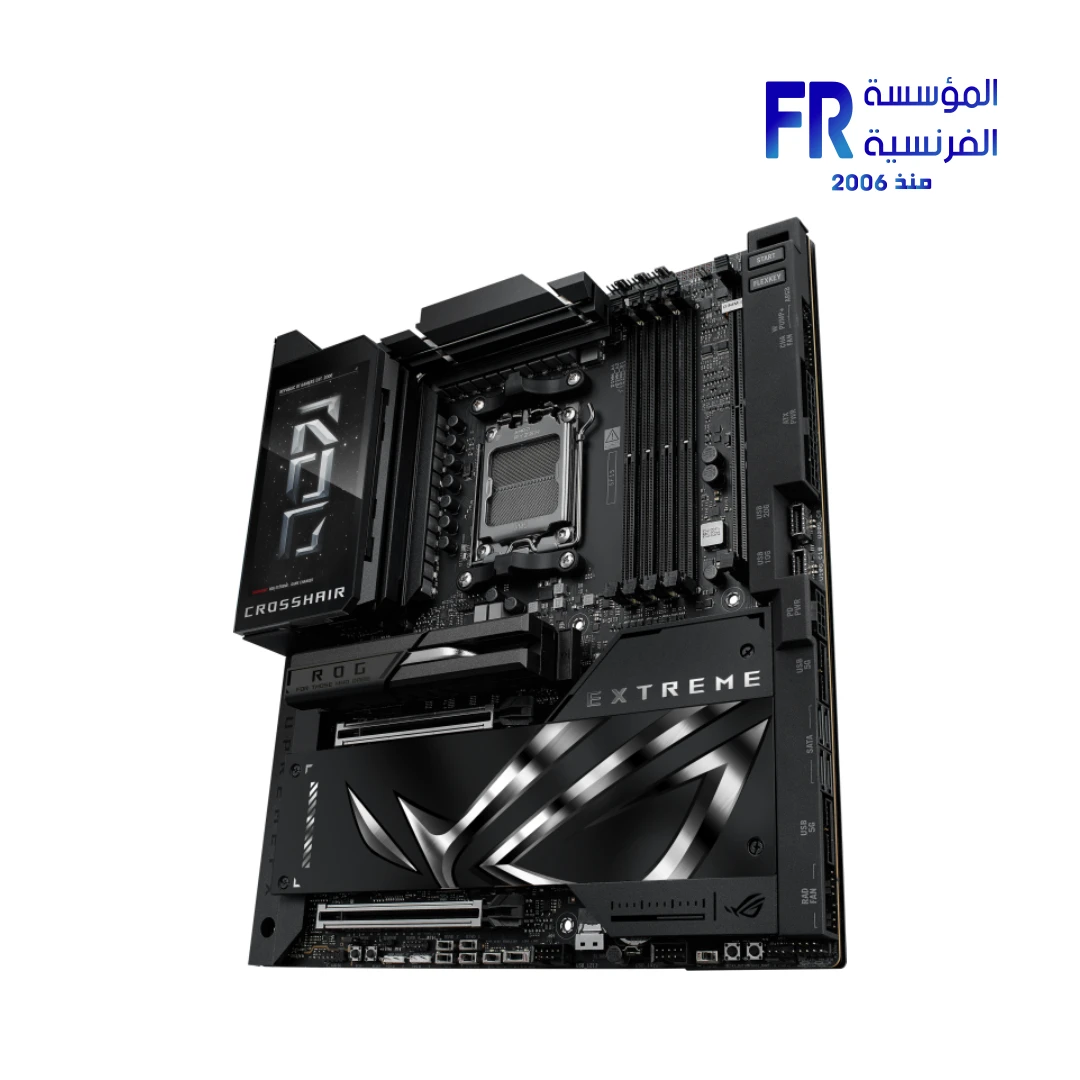

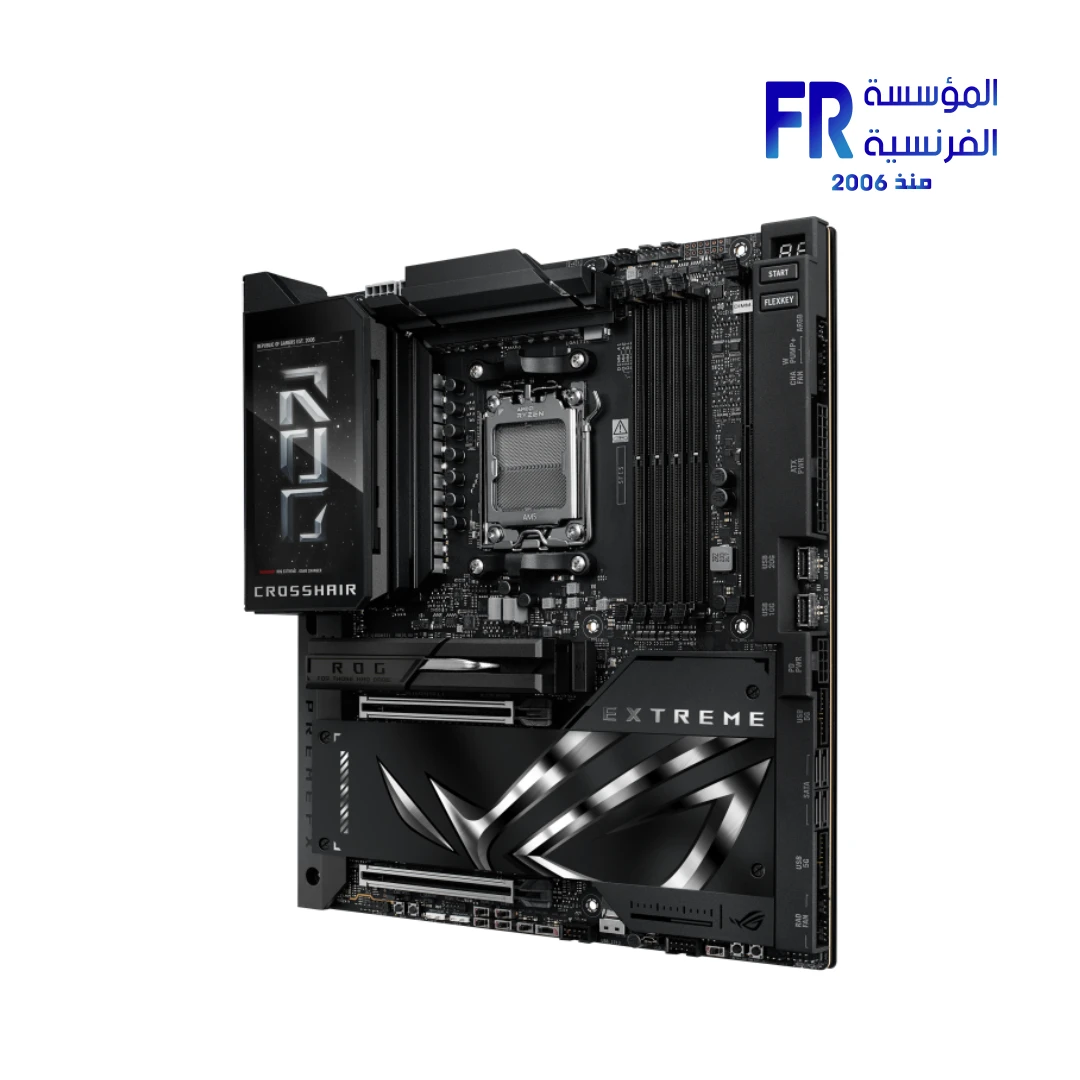

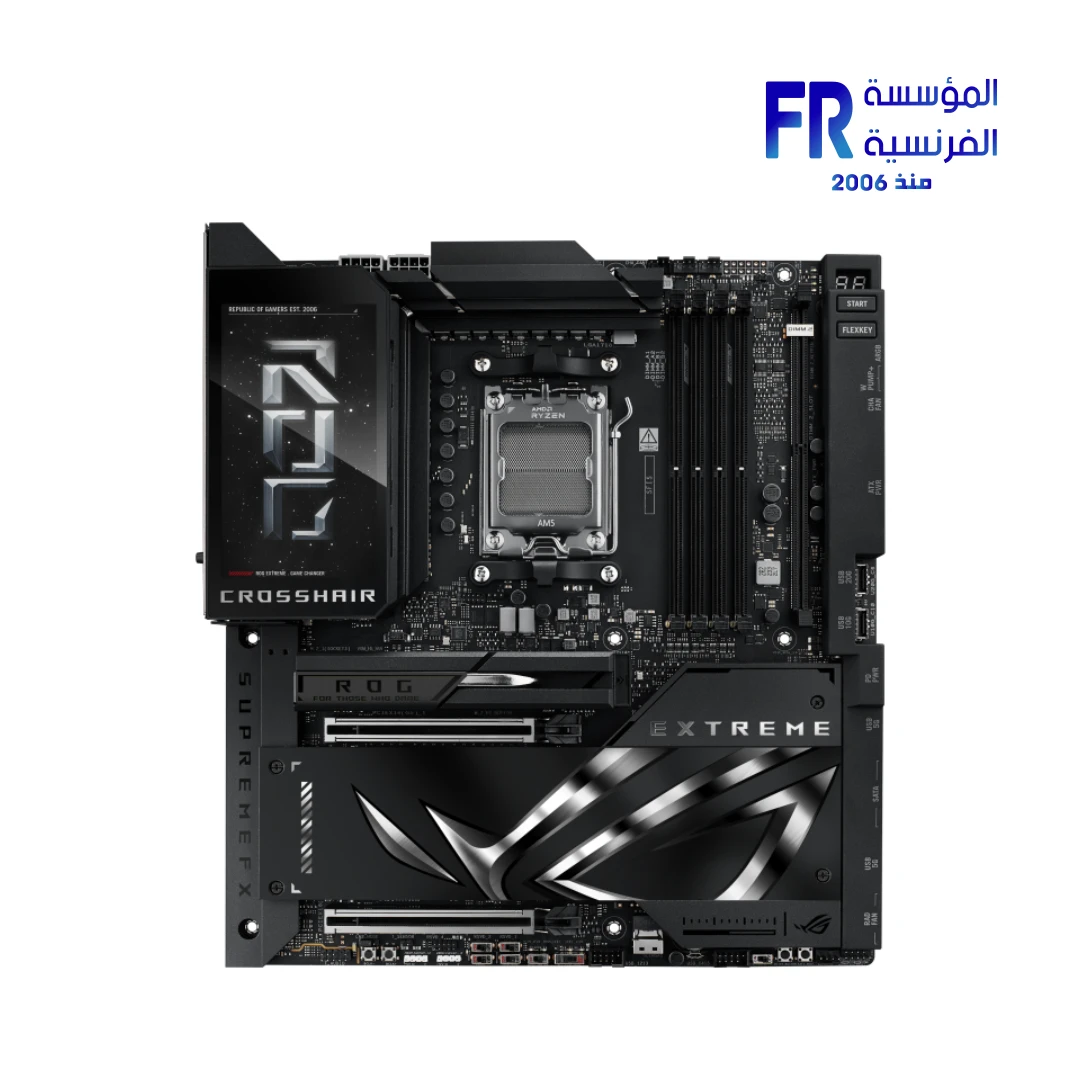

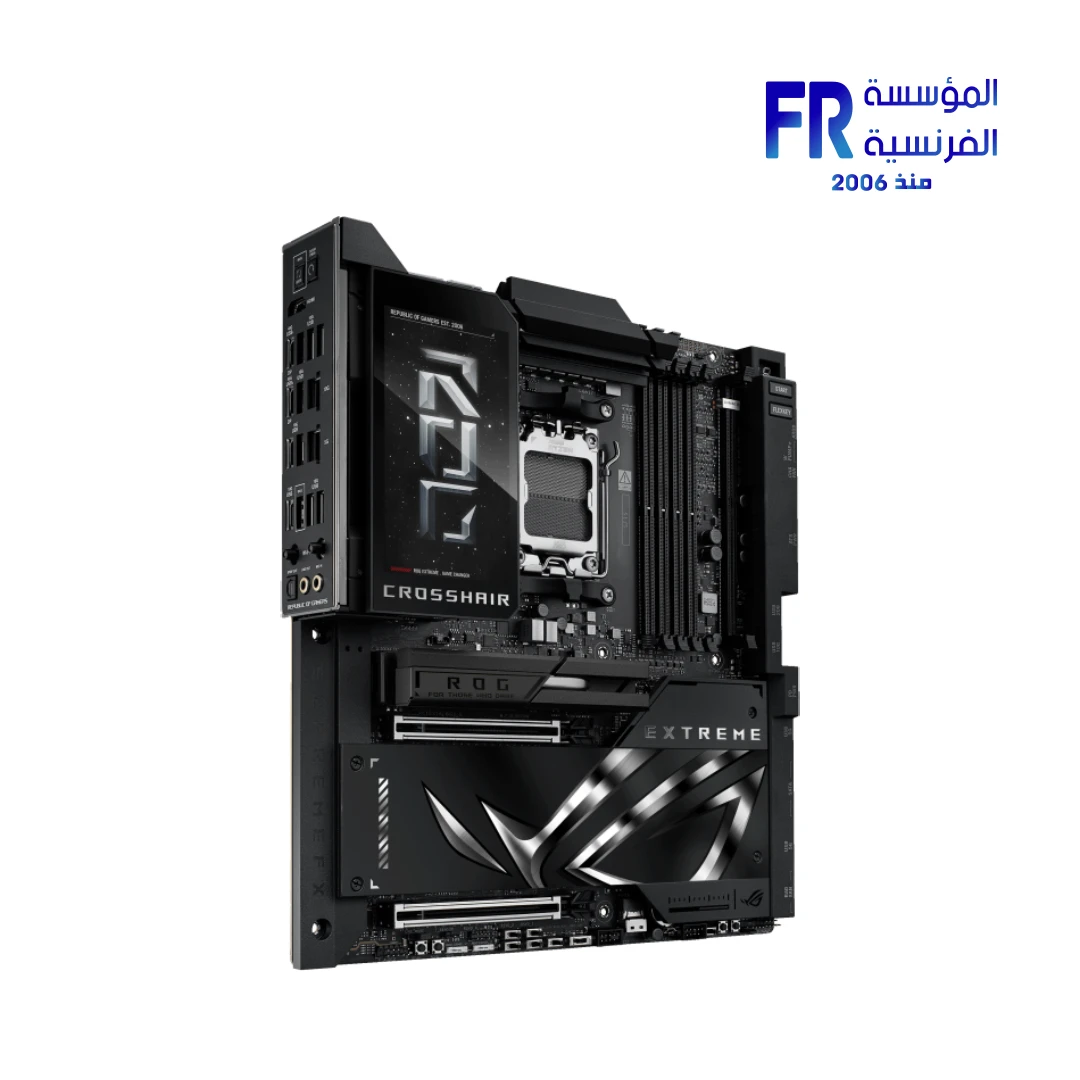

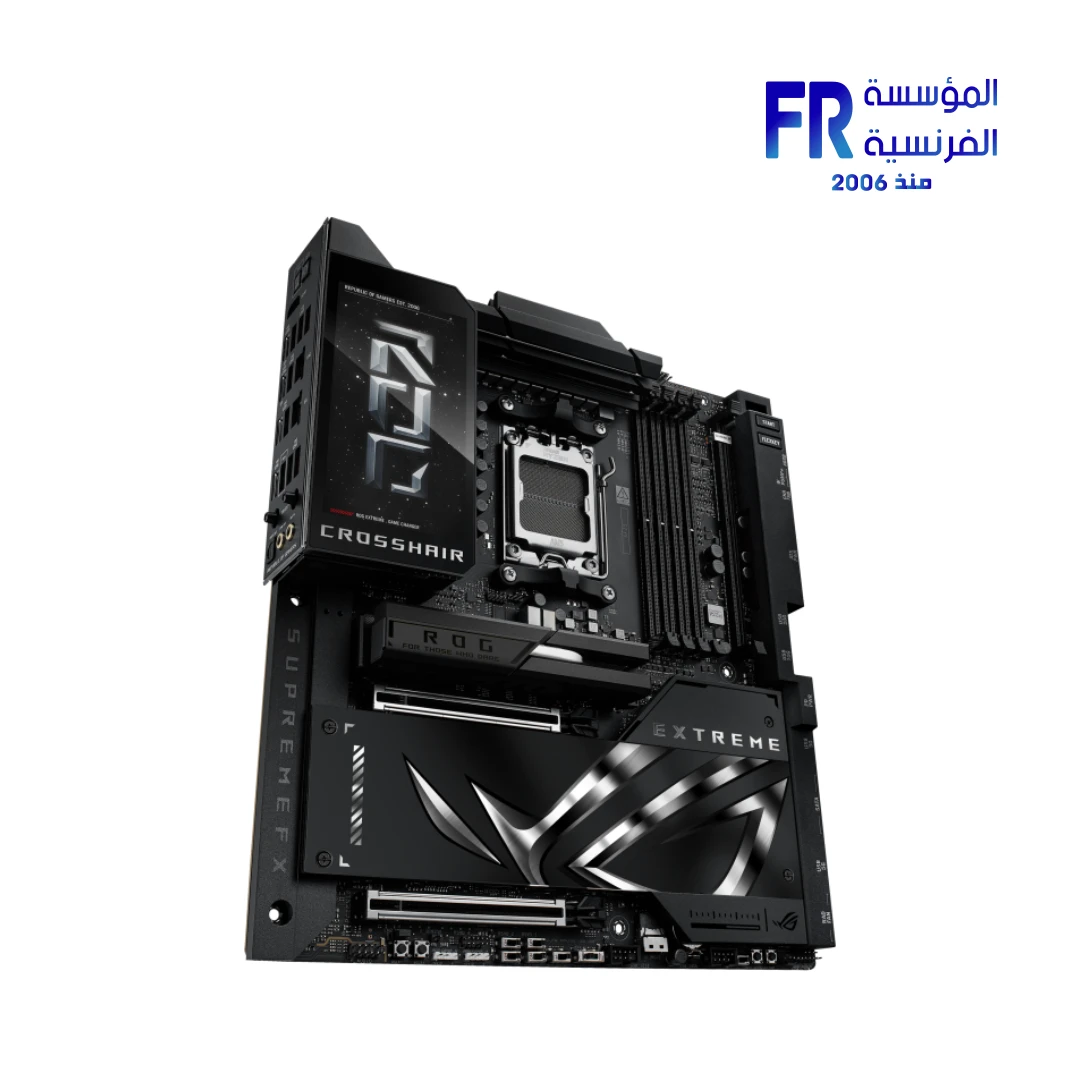

Asus Rog Crosshair X870E Extreme AM5 Motherboard

Asus Rog Crosshair X870E Extreme AM5 Motherboard

57500 EGP

Part Number 90MB1LB0-M0EAY0
Socket / Chipset AM5 (Ryzen 9000/8000/7000) / AMD X870E
Memory Support 4x DIMM slots, Max 256GB DDR5 (NitroPath Technology)
Expansion Slots 2x PCIe 5.0 x16 (Supports x16 or x8/x8)
Storage 5x M.2 Slots (3x PCIe 5.0 x4, 2x PCIe 4.0 x4)
Networking Wi-Fi 7, 10Gb & 5Gb Dual Ethernet
Connectivity 2x USB4® (40Gbps Type-C), Front USB 20Gbps (60W PD)
Special Feature Integrated 5-inch Full Color LCD Display
Warranty 3 Years

المتوفر في المخزون 2 فقط

Price Match Guarantee

رمز المنتج: 197105984967 التصنيفات: MOTHERBOARD, AMD Motherboards الوسوم: Extreme, Asus ROG series, Asus Crosshair series, gaming, PCIe 5.0, 10GbE LAN, 5 Inch LCD, USB4, Flagship, Crosshair, AI Overclocking, DDR5 9000, ASUS, X870E, X870E Chipset, E-ATX, 90MB1LB0-M0EAY0, AM5, AM5 Socket, 197105984967, motherboard, ROG, Wifi 7, ROG Crosshair X870E Extreme العلامة التجارية: ASUS

Asus Rog Crosshair X870E Extreme AM5 Motherboard

The Asus Rog Crosshair X870E Extreme (Situation) represents the absolute pinnacle of the AM5 ecosystem, designed as the flagship foundation for AMD Ryzen™ 9000, 8000, and 7000 series processors. While extreme users demand maximum throughput for PCIe 5.0 graphics and ultra-high-density storage, traditional motherboard designs often encounter electrical interference or thermal throttling during sustained high-performance excursions (Complication). The challenge is to deliver a board that technically facilitates industrial-grade stability while offering next-generation connectivity like Wi-Fi 7 and dual USB4. The Crosshair X870E Extreme answers with a massive 20+2+2 teamed power solution and revolutionary NitroPath DRAM technology, allowing memory speeds to reach an unprecedented 9000+ MT/s (Answer). Consequently, this E-ATX powerhouse ensure your technical presence remains elite, providing a unique 5-inch color LCD for real-time telemetry and a 10Gb Marvell Ethernet controller for zero-latency network excursions (Action).

10Gb + 5Gb

Dual LAN

9000+ MT/s

DDR5 (OC)

5″ LCD

Full Color Screen

3 Years

Official Warranty

Unrivaled Power and AI Intelligence

NitroPath DRAM Technology

Specifically, the motherboard architecture technically facilitates NitroPath DRAM technology, which optimizes signal routing and enhances slot retention force by 57%. Furthermore, this facilitate elite workstation excursions by allowing enthusiast-grade kits to be driven far beyond the 9 GT/s mark, ensuring industrial-grade memory stability.

USB Wattage Watcher

Furthermore, the board utilizes the USB Wattage Watcher hardware logic to facilitate real-time monitoring of power delivery (up to 60W PD/QC4+). This ensure your technical presence remains transparent near-instantaneously, allowing for precise control over high-performance peripheral charging excursions.

Comprehensive Technical Specifications

Feature	Detailed Specification
Model Name	ROG CROSSHAIR X870E EXTREME (90MB1LB0-M0EAY0)
CPU Support	AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series
Chipset	AMD X870E
Memory Capacity	4 x DIMM, Max. 256GB, DDR5 (Dual Channel)
Memory OC Support	8200+ (9000 Series), 9000+ (8000 Series), 8000+ (7000 Series) MT/s
Memory Technologies	NitroPath DRAM, EXPO™, AEMP, On-Die ECC
Graphics Outputs	1 x HDMI 2.1 (4K@60Hz), 2 x USB4® Type-C (DP 1.4a 4K@60Hz)
Expansion Slots	2 x PCIe 5.0 x16 (Supports x16 or x8/x8 or x8/x4/x4 modes)
Storage M.2 (Onboard)	3 x M.2 PCIe 5.0 x4 slots (Type 2242/2260/2280/22110)
Additional Storage	2 x M.2 via ROG DIMM.2 (PCIe 4.0 x4), 1 x SlimSAS (PCIe 4.0 x4)
SATA Ports	4 x SATA 6Gb/s ports
RAID Support	Ryzen 9000: RAID 0/1/5/10; Ryzen 7000/8000 variants
Ethernet (Dual)	1 x Marvell® AQtion 10Gb, 1 x Realtek 5Gb, ASUS LANGuard
Wireless & BT	Wi-Fi 7 (802.11be) 2×2, 320MHz BW, 6.5Gbps; BT v5.4

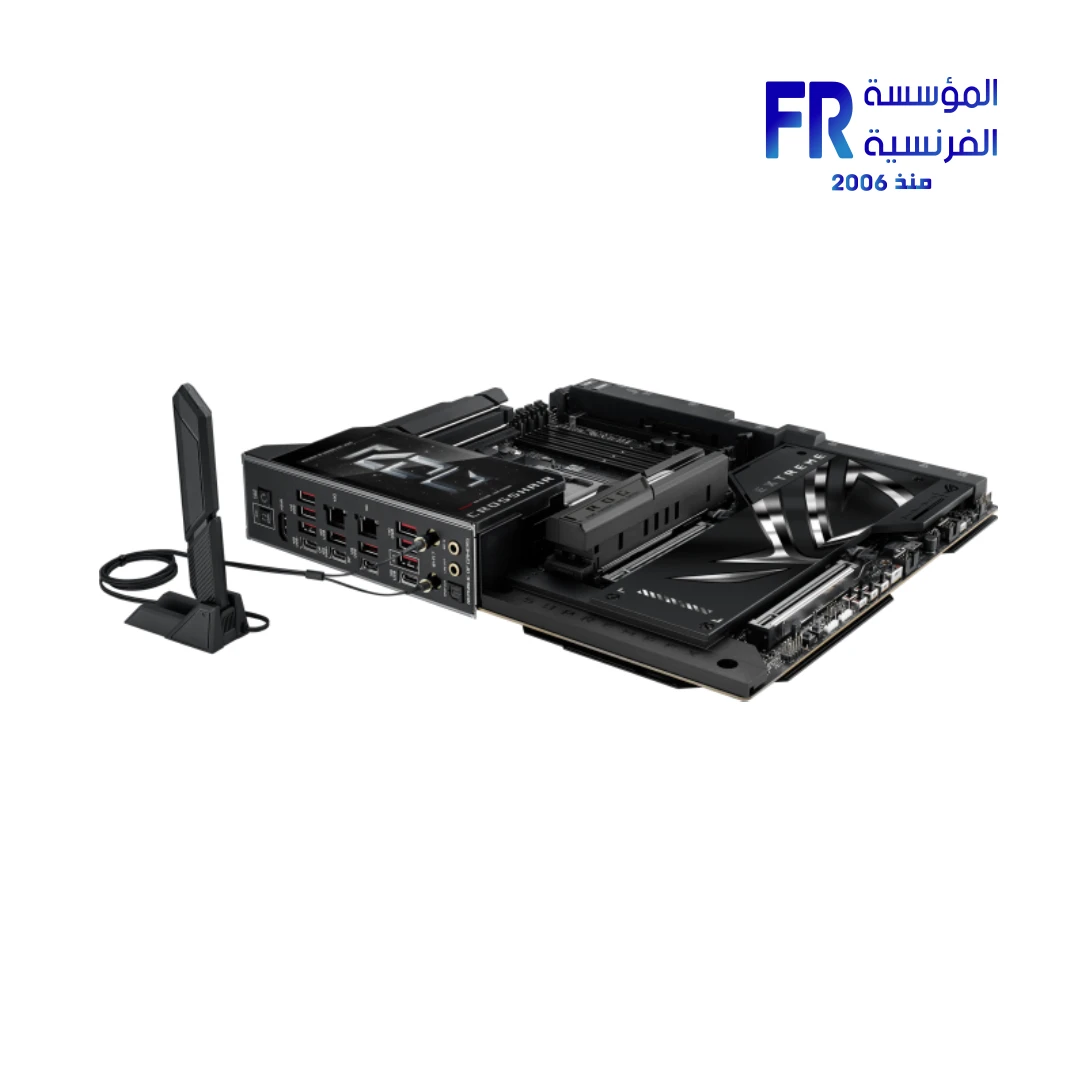

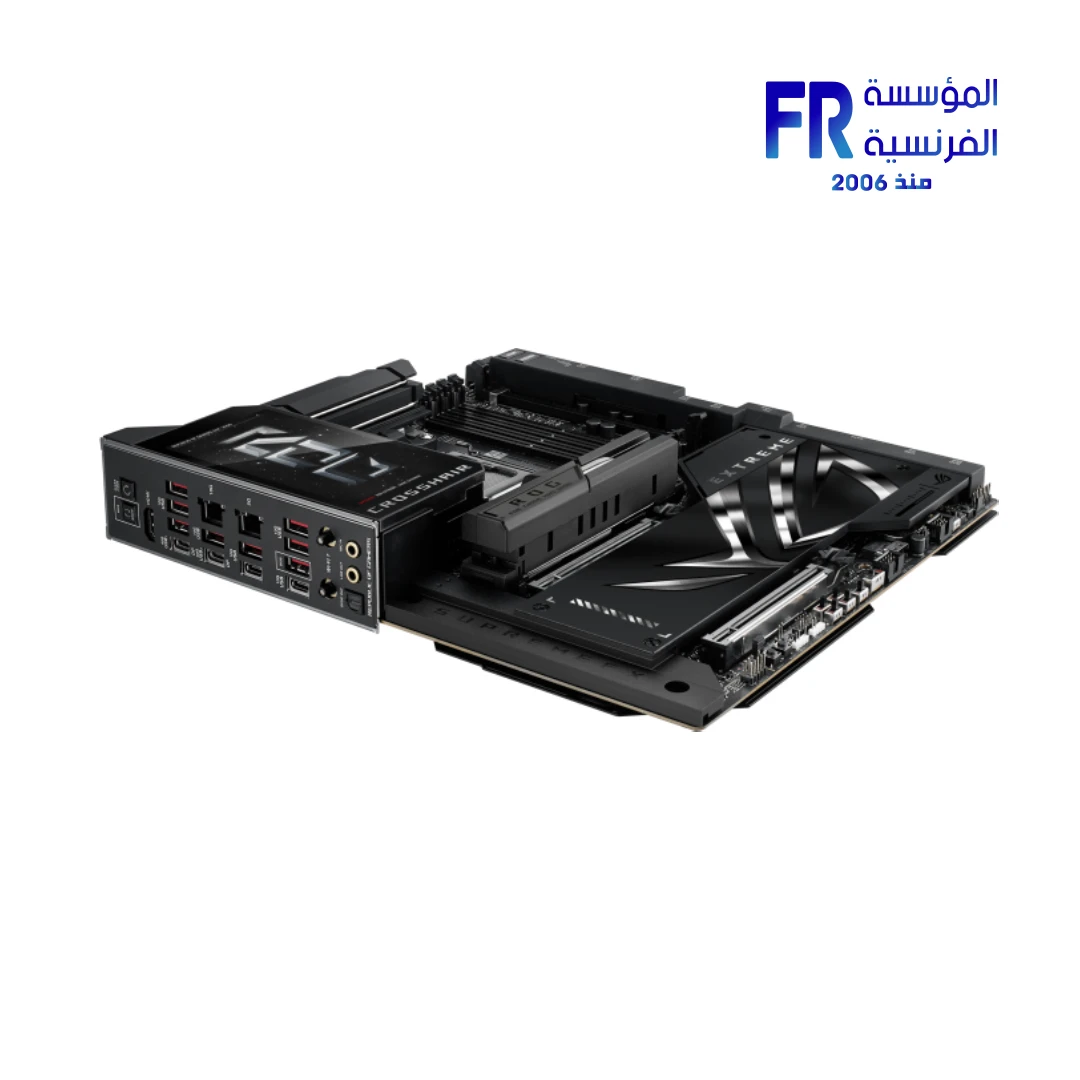

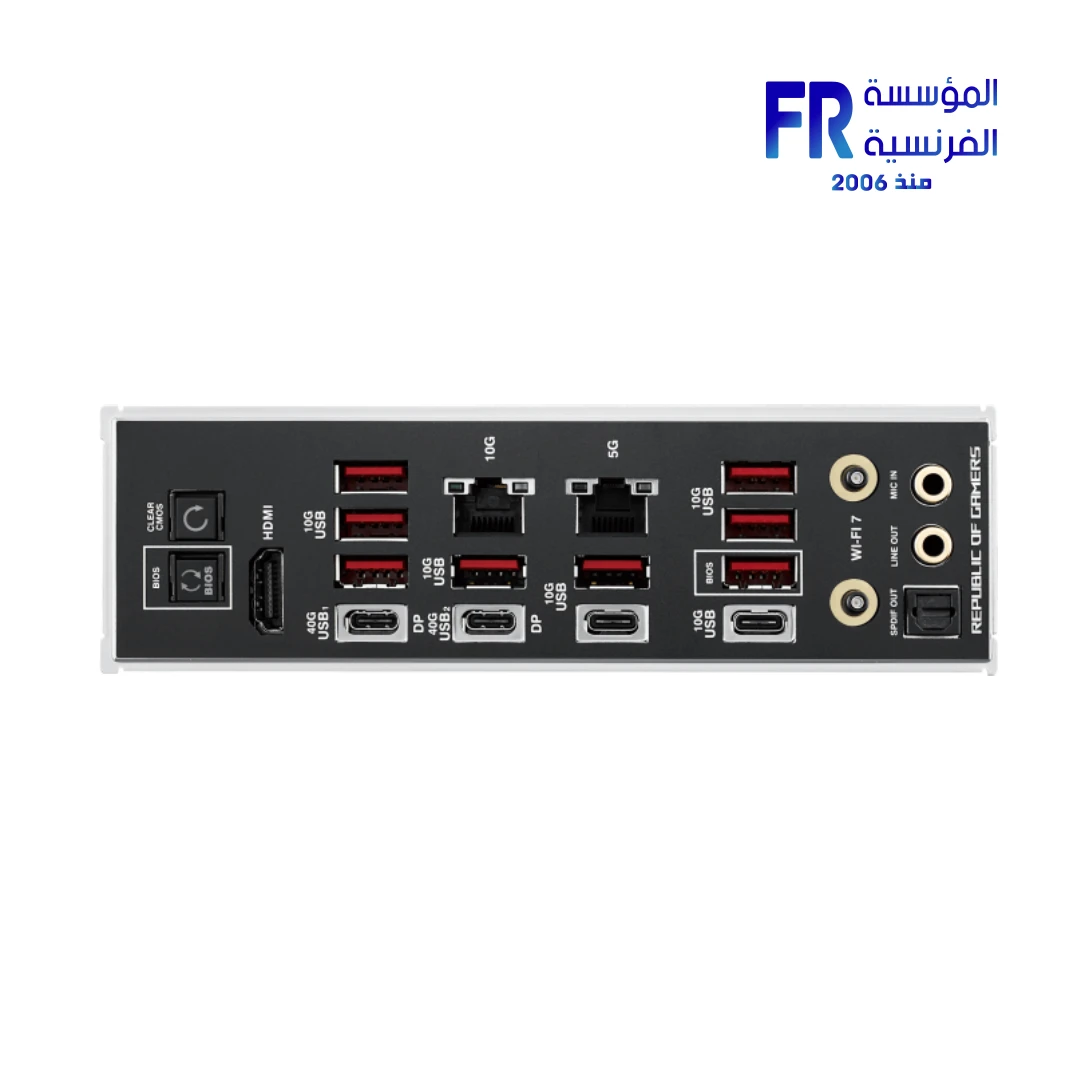

Rear USB (Total 12)	2 x USB4 (40Gbps), 10 x USB 10Gbps (8 x Type-A, 2 x Type-C)
Front USB (Total 10)	1 x 20Gbps (Type-C, 60W PD/QC4+), 1 x 10Gbps, 4 x 5Gbps, 4 x 2.0
Audio System	SupremeFX ALC4082 7.1 HD, ESS® ES9219 QUAD DAC
Audio Fidelity	120 dB SNR Playback, 32-Bit/384 kHz Support
Power Stages	20(110A)+2(110A)+2(80A) Teamed Stages
AI Intelligence	AI Overclocking, AI Cooling II, AI Networking II, AI Cache Boost
Extreme OC Kit	BCLK Button, Safe Boot, LN2 Mode, ProbeIt points, Slow Mode
Q-Design Features	Q-Release Slim, M.2 Q-Latch, Q-Antenna, Q-Code, Q-Dashboard

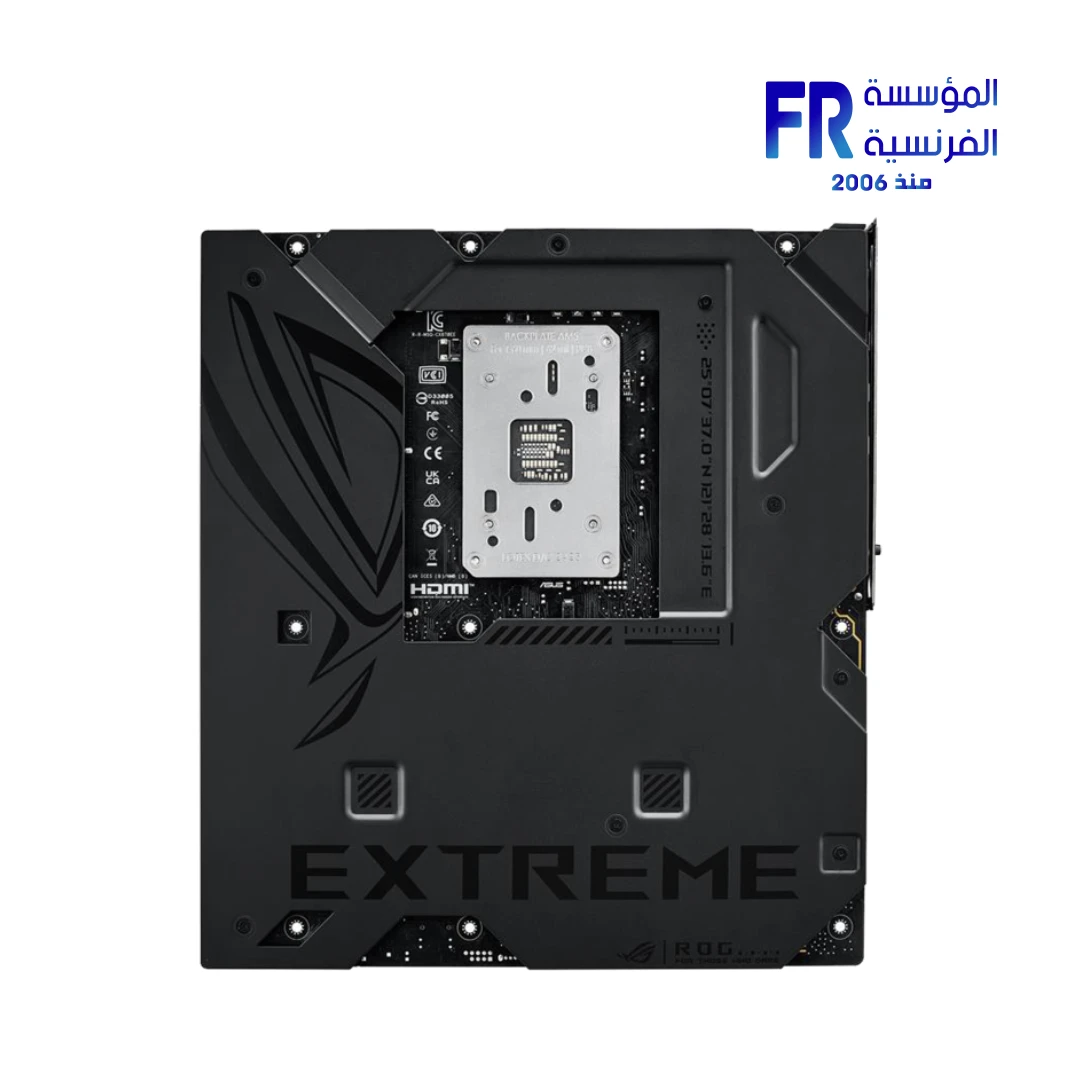

Thermal Solution	3D VC M.2 Heatsink, VRM Fan, Metal Backplate, Fan Bracket
LCD Display	Full Color 5″ LCD for Telemetry & Animations
Form Factor	E-ATX (12 inch x 10.9 inch / 30.5 cm x 27.7 cm)
Warranty	3 Years

Frequently Asked Questions

What are the specific benefits of NitroPath DRAM Technology?

Specifically, the NitroPath DRAM architecture technically facilitates ultra-short signal paths and enhanced slot retention by 57%. Furthermore, this facilitate elite visual excursions by enabling DDR5 speeds far beyond 9000 MT/s, ensuring your high-bandwidth memory transitions remain industrially stable.

Does the 60W front panel charging require extra power?

Yes, to technically facilitate the 60W Power Delivery (PD3.0/QC4+) on the front panel Type-C connector, you utilize the onboard 8-pin PCIe power connector. Furthermore, without this dedicated hardware synchronization, the board will technically facilitate only 27W for connected peripherals.

How does AI Cache Boost improve LLM performance?

The motherboard architecture technically facilitates AI Cache Boost to optimize CPU cache and memory pathways specifically for Large Language Models. Consequently, users utilizing Ryzen™ 9000 series CPUs can facilitate elite performance gains of up to 29% in local AI workflows near-instantaneously.

💡 Pro Tip: Extreme Overclocking Toolkit

To facilitate elite industrial excursions, utilize the onboard ProbeIt measurement points. Specifically, this hardware logic technically facilitate the use of an external voltmeter to monitor real-time voltages for the CPU and chipset near-instantaneously. This ensure your technical presence remains dominant during high-frequency overclocking iterations, bypassing the latency of software-based telemetry.

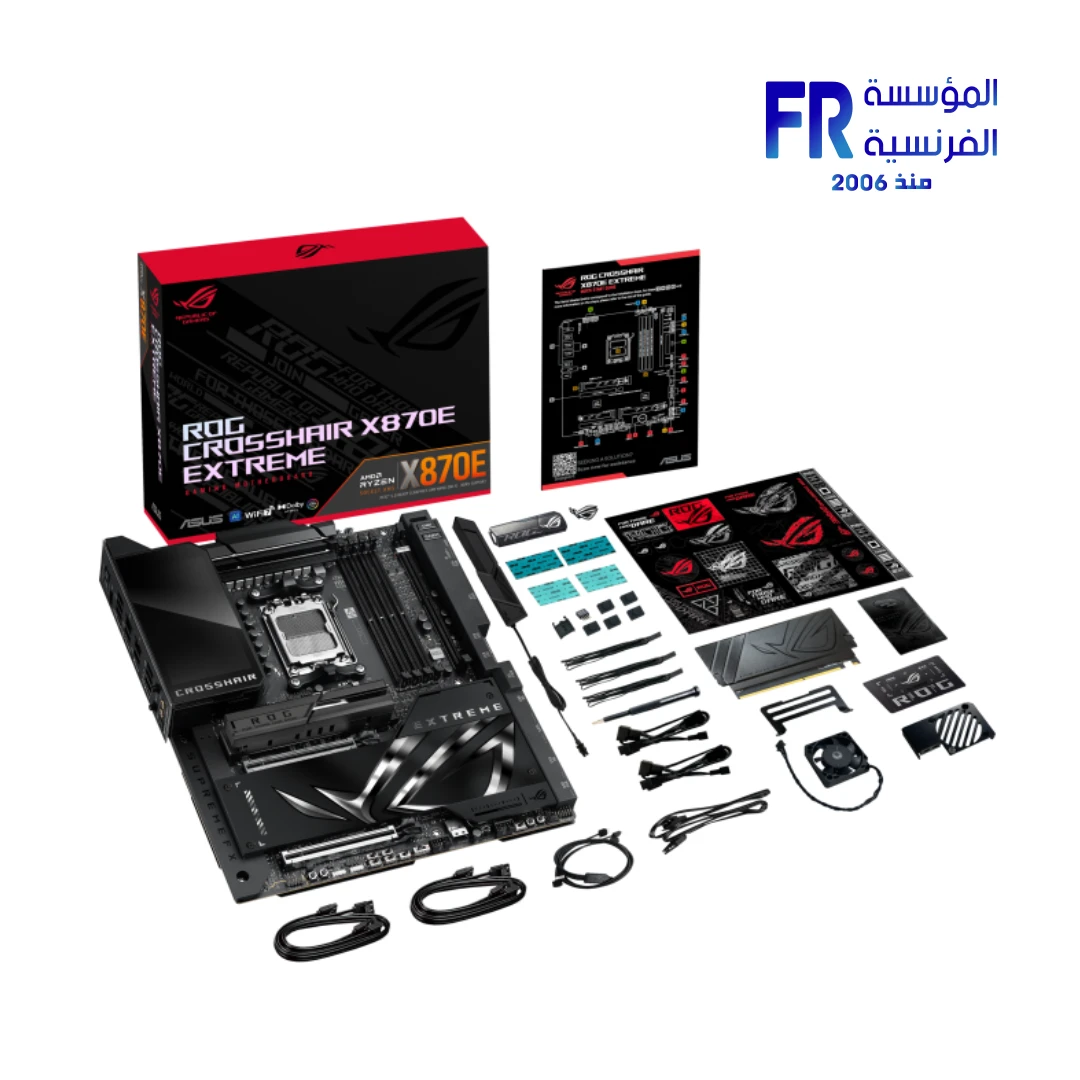

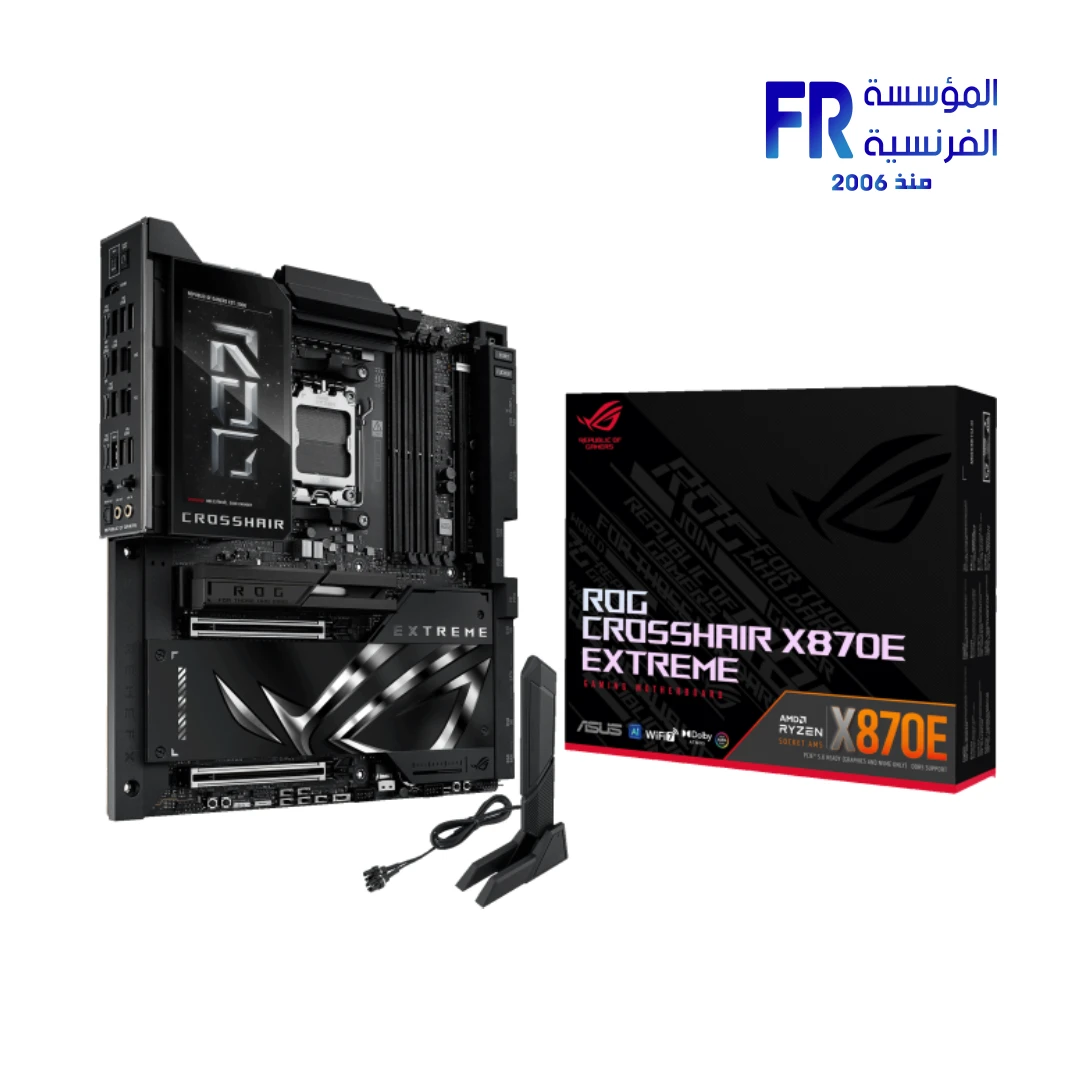

What is Included in the Box?

1x ROG CROSSHAIR X870E EXTREME Motherboard
1x ROG Q-DIMM.2 with Heatsink & Thermal Pads
1x ASUS WiFi Q-Antenna & ROG Fan Kit
1x DDR5 Fan Holder & ROG Screwdriver
2x ROG Weave SATA 6G Cable Packages
Multiple ARGB, Fan, and Thermistor Splitter Cables
1x USB Drive with Utilities and Drivers
1x ROG Bottle Opener & Sticker Set
1x Quick Start Guide & ROG VIP Card

Help us improve our product data accuracy. If you notice any error in this draft, please report it via our official feedback form:
Alfrensia.com – Website Feedback & Report Form.

MOTHERBOARD

MODEL	ROG CROSSHAIR X870E EXTREME
CHIPSET MANUFACTURERS	AMD
CPU Socket	AM5
Motherboard Chipset	AMD X870E
Motherboard Type	E-ATX
CPU SERIES	AMD Ryzen 7000 Series & Ryzen 8000 & Ryzen 9000 Series Processors
Technology	DDR5
Memory Speed	8200+ MT/s (OC)
Max Memory Size	256GB
Memory Slot	4
PCI-E X16	2
PCI-E GEN	PCIe 5.0, Gen 5
PCI-E Slots (M.2)	5
SATAIII	4x SATA 6.0 Gb/s
Communication module	10GbE LAN, 5GbE LAN, Bluetooth 5.4, Wi-Fi 7
Part Number	90MB1LB0-M0EAY0
Warranty	3 Years
