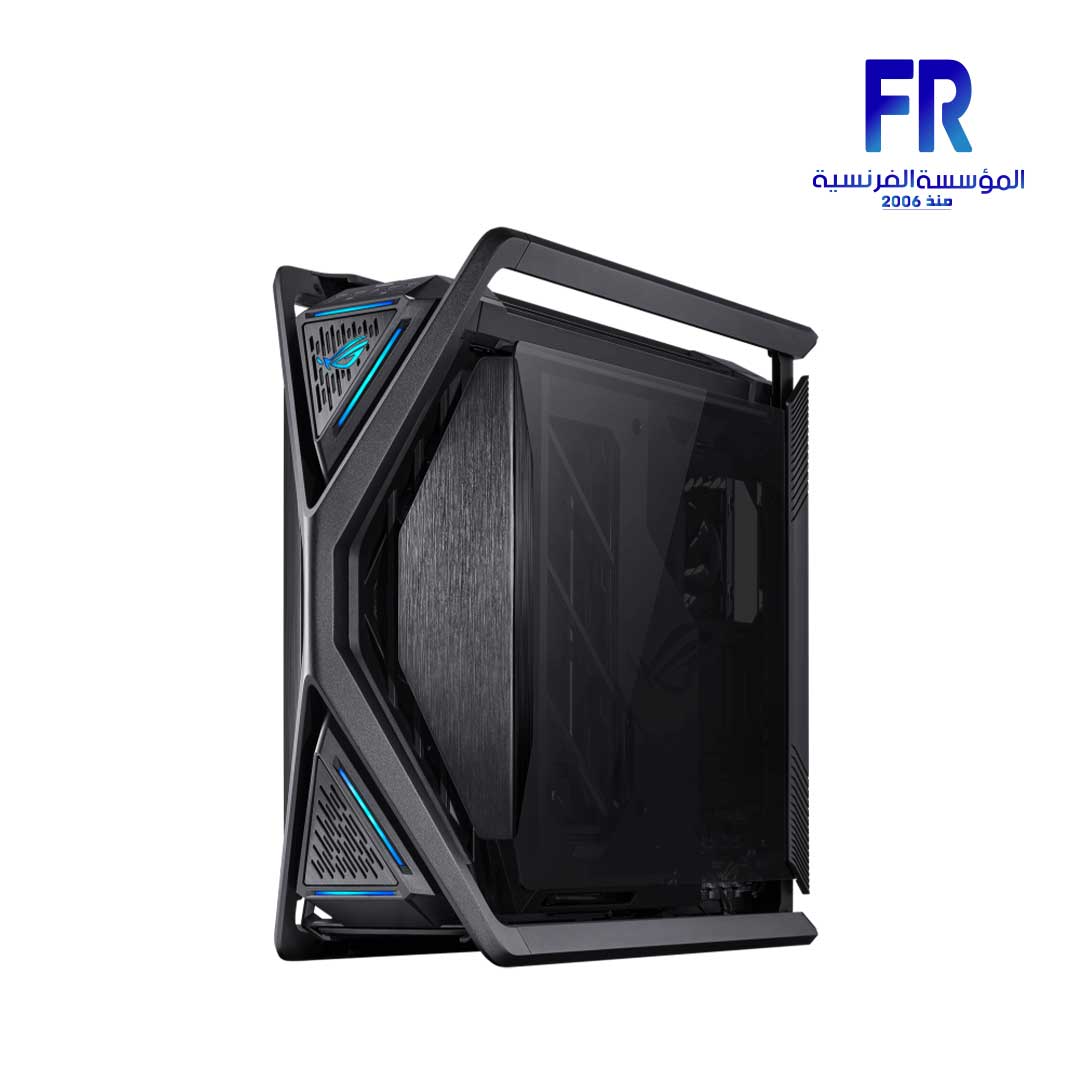

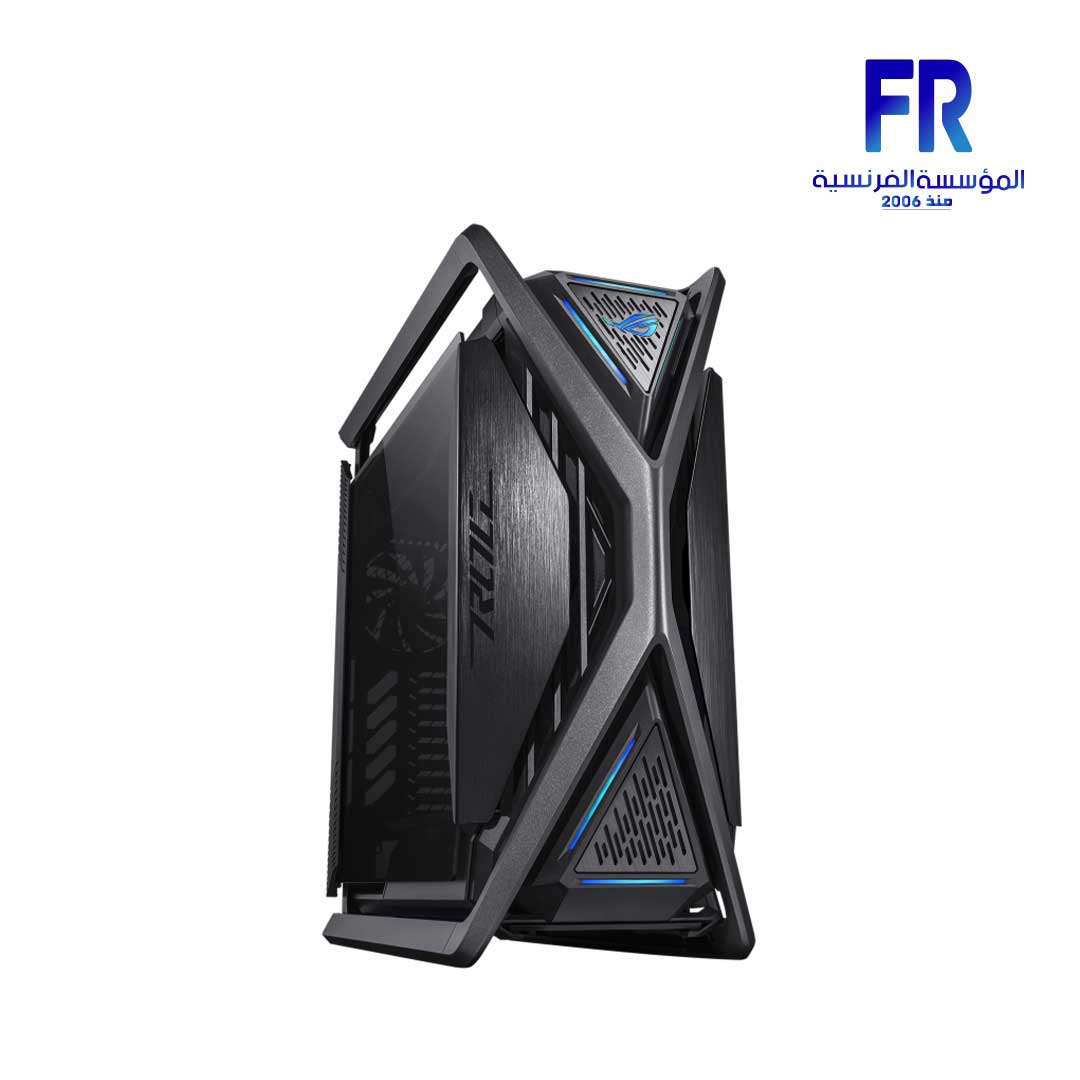

اسوس ROG Hyperion GR701 EATX Black Full Tower Case

• Motherboard Support

  EATX (12″x10.9″)

  ATX

  Micro-ATX

  Mini-ITX

• Drive Bays

  5 x 2.5″ Bay

  2 x 2.5″/3.5″ Combo Bay

• Expansion Slots

  9

  3 (additional vertical)

• Front I/O Port

  1 x headphone / Microphone

  4 x USB 3.2Gen1

  1 x USB 3.2 Gen2 Type C

  LED Control Button

  Reset Button

  1 x USB 4.0 Type C or 1 x USB 3.2 Gen 2×2 Type C this spec might vary by region

• Tempered Glass

  Left Side

  Right Side

• Radiator Support (Front)

  120 mm

  140 mm

  240 mm

  280 mm

  360 mm

  420 mm

• Radiator Support (Top)

  120 mm

  140 mm

  240 mm

  280 mm

  360 mm

  420 mm

• Radiator Support (Rear)

  120 mm

  140 mm

• Cooling Support (Front)

  3 x 120 mm

  3 x 140 mm

• Cooling Support (Top)

  3 x 120 mm

  3 x 140 mm

• Cooling Support (Rear)

  1 x 120 mm

  1 x 140 mm

• Pre-installed Fans (Front)

  3 x 140 mm

  PWM

• Pre-installed Fans (Rear)

  1 x 140 mm

  PWM

• Maximum CPU Cooler Height

  190 mm

• Maximum GPU Length

  460 mm

• Maximum PSU Length

  240 mm

• Removable Dust Filters

  Front

  Top

  Bottom

• Maximum Cable Management Space

  34 mm

• Dimensions

  268 * 639 * 659 mm

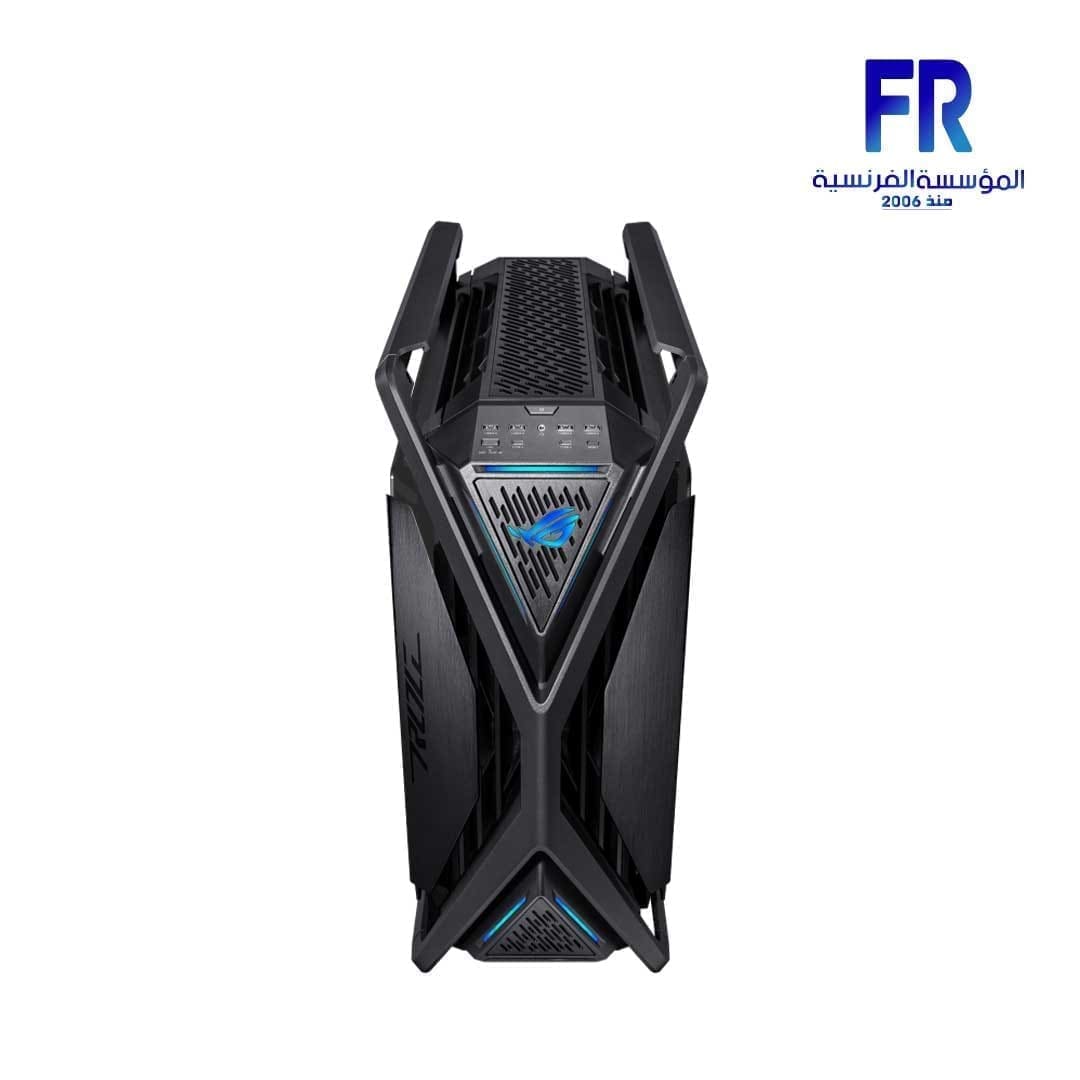

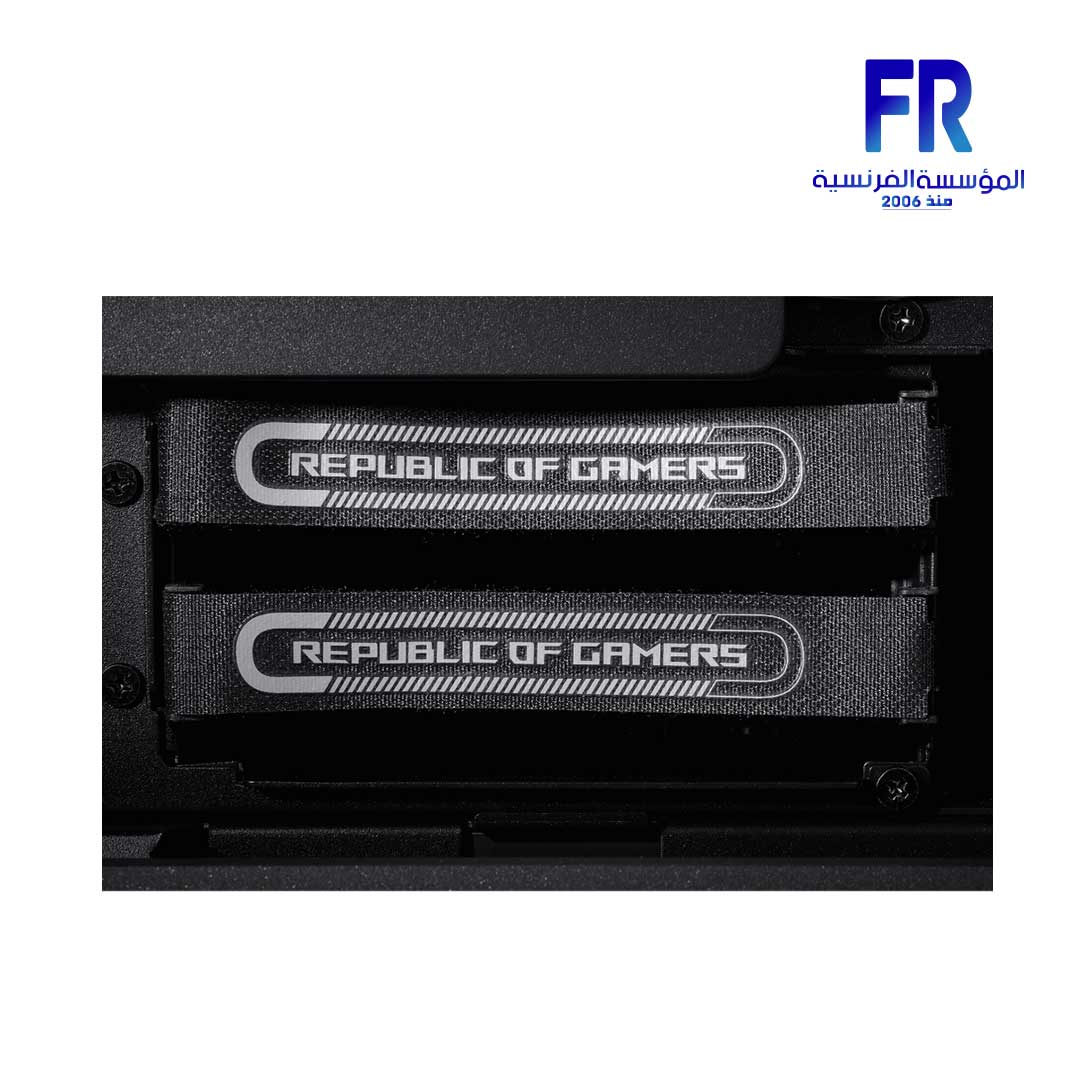

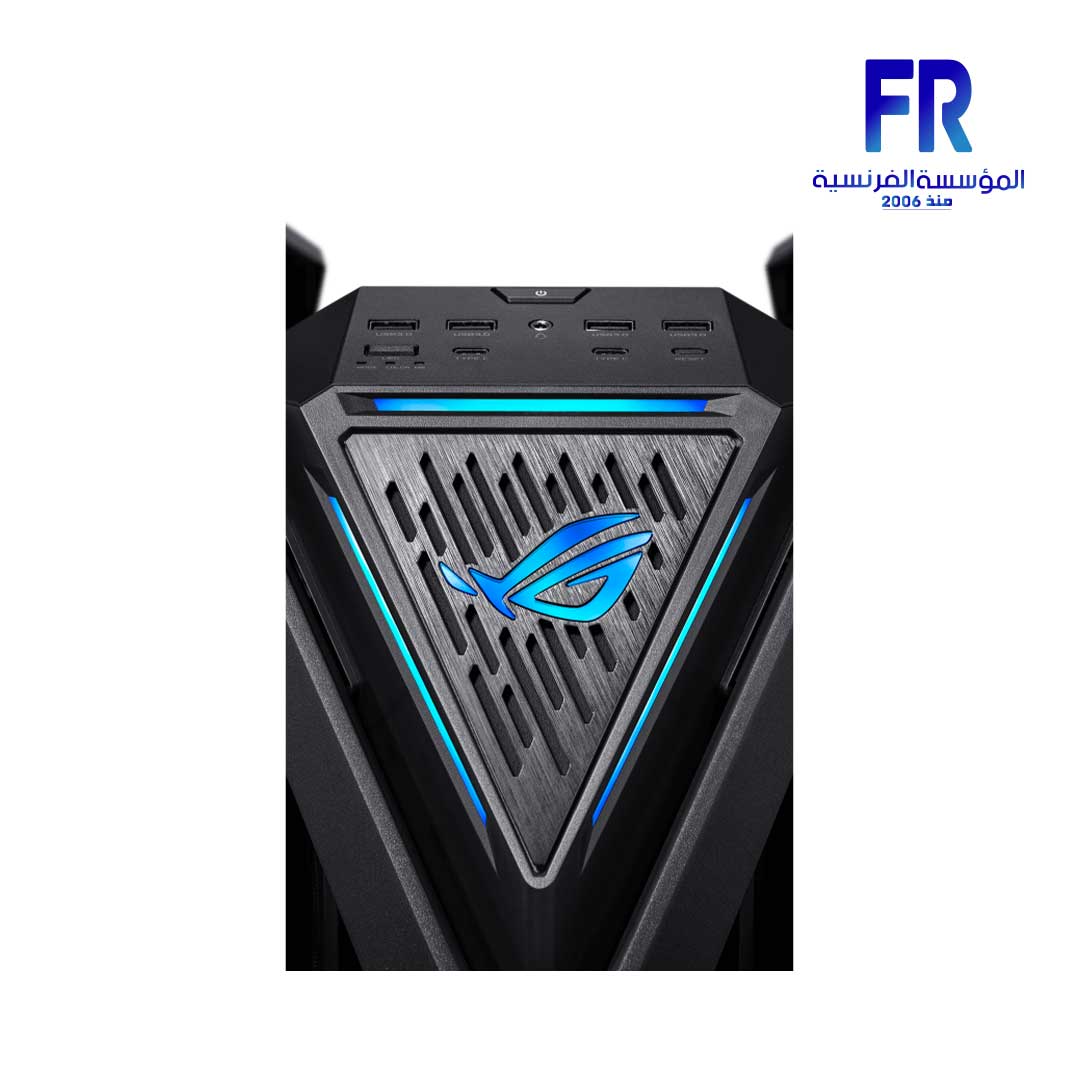

• STRUCTURE AND STYLE A front side air intake can provide ample ventilation to get just the right balance of temperatures for your system and graphics cards. This integrates tightly into a bold new look with features like the distinctive diamond-shaped badge on the front, stamped with the famous ROG logo and surrounded by diagonal slashes.	BUILT FOR HIGH AIRFLOW The Republic of Gamers is populated by builders who demand the best, and the Hyperion GR701 delivers top-tier cooling potential with support for 420 mm radiators on the top and in the front of the chassis, while four 140 mm PWM fans come pre-connected to an Aura Sync ARGB fan hub.   Support For 2 x 420 mm Radiators Pre-installed 4 x 140 mm PWM Fans	AMPLE CABLE MANAGEMENT AND ROUTING Underneath the motherboard tray area, builders will find a chamber 34 mm deep for their cable management needs, and a cable routing channel that’s 46 mm wide and secured by several ROG-branded Velcro straps to keep things looking tidy for the transparent side panel. This chassis also offers a translucent cable cover that can obscure unsightly wiring while letting your RGB style shine through. 1. WIDTH: 46 mm for cable routing 2. DEPTH: 34 mm for cable management

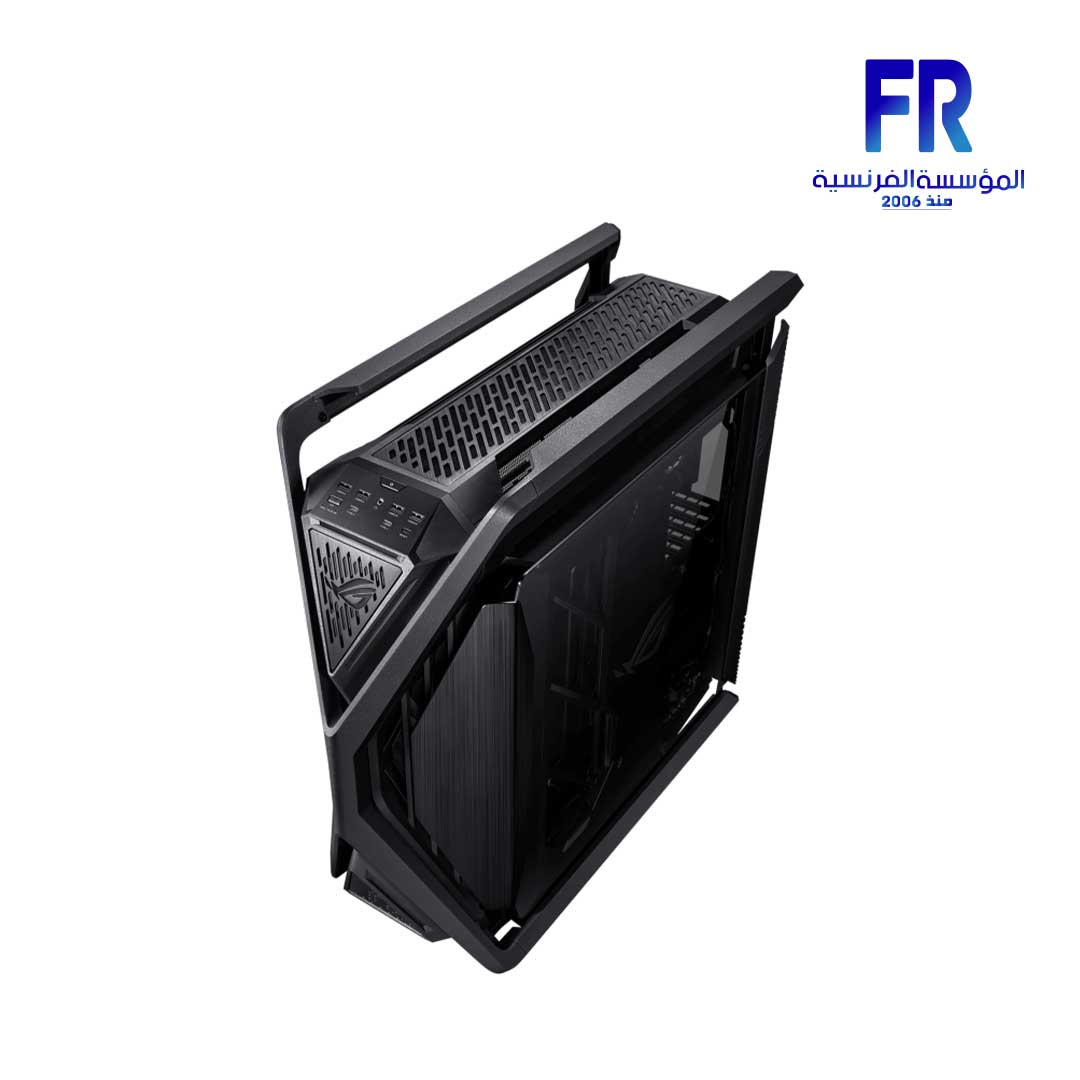

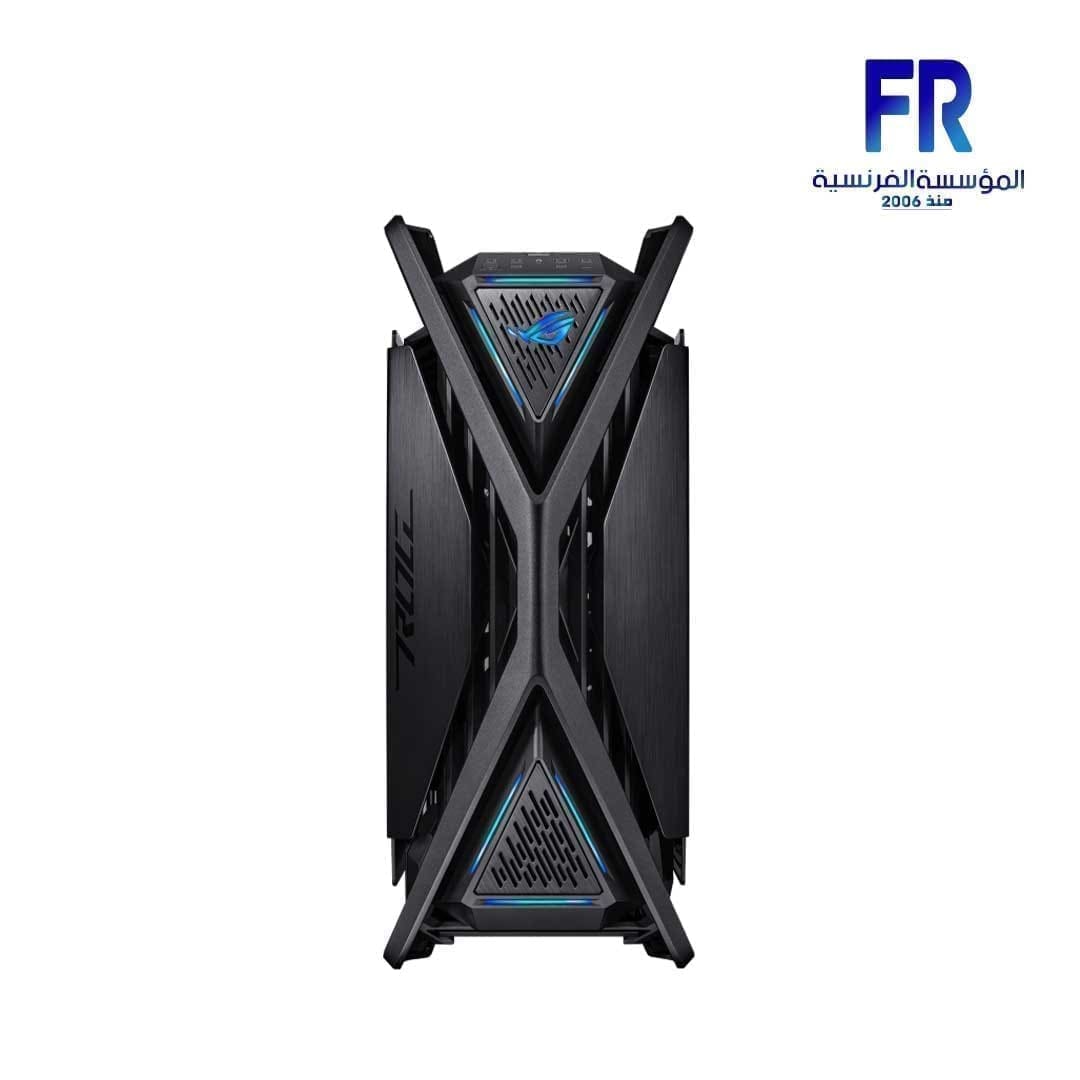

• DUAL TYPE-C FAST CHARGING The front of any ROG chassis has to offer a host of connectors, and the ROG Hyperion adds to the tradition with two USB Type-C connectors that can offer up to 20 Gbps of data transfer and up to 60 watts of fast charging with a compatible motherboard.	DIE-CAST ALUMINUM ALLOY FRAME The ROG Hyperion frame is constructed of rugged aluminum alloys forged into a distinctive X that extends from the center of the chassis all the way out to its perimeter. Its rigid structure doubles up as carry handles capable of bearing up to 80 kg of hardware.	A ROG-THEMED LIGHTING PANEL This chassis features an internal ARGB lighting panel that communicates the ROG identity to anyone who gazes within, and it can be displayed on the outside if builders want to make room in that spot for fans or SSDs.

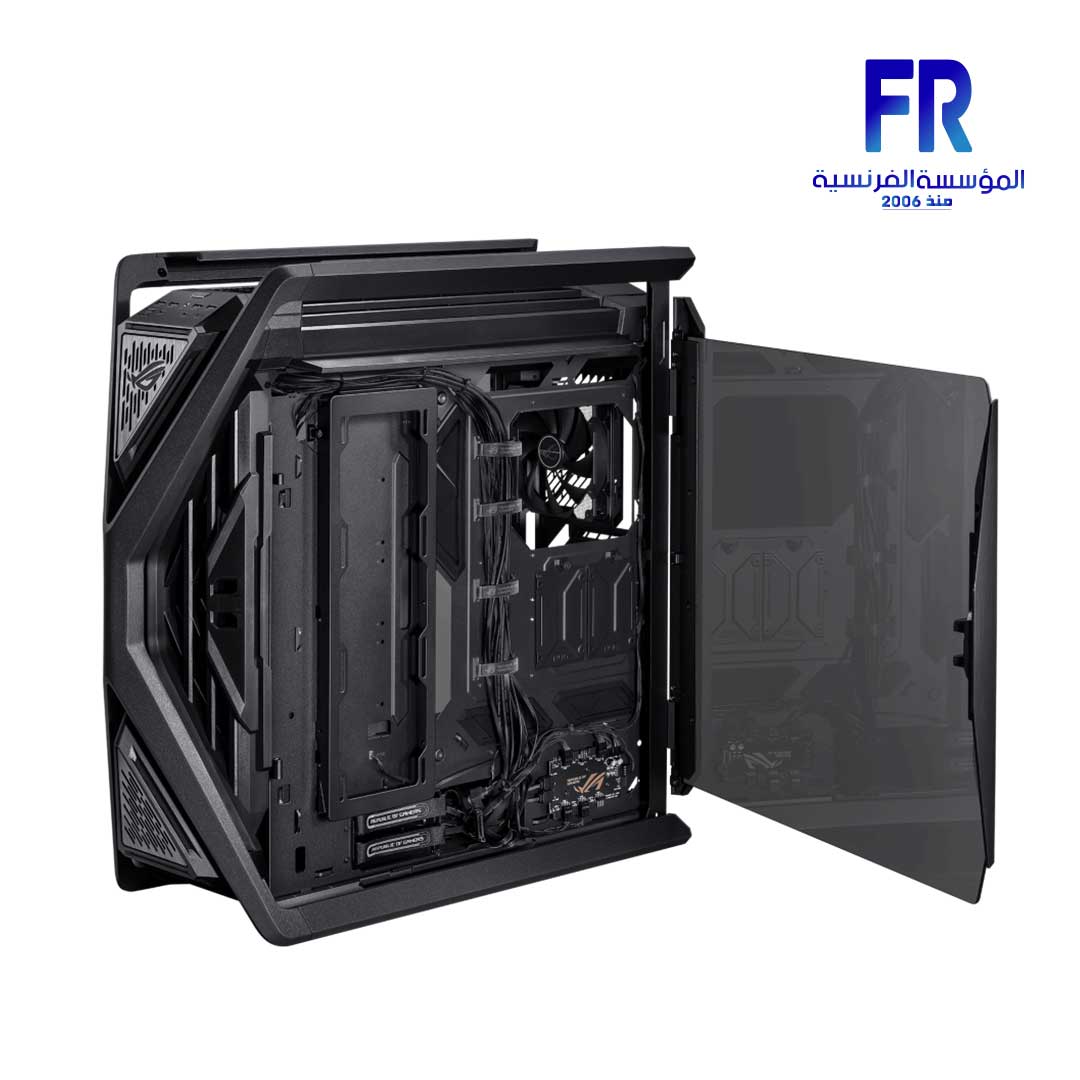

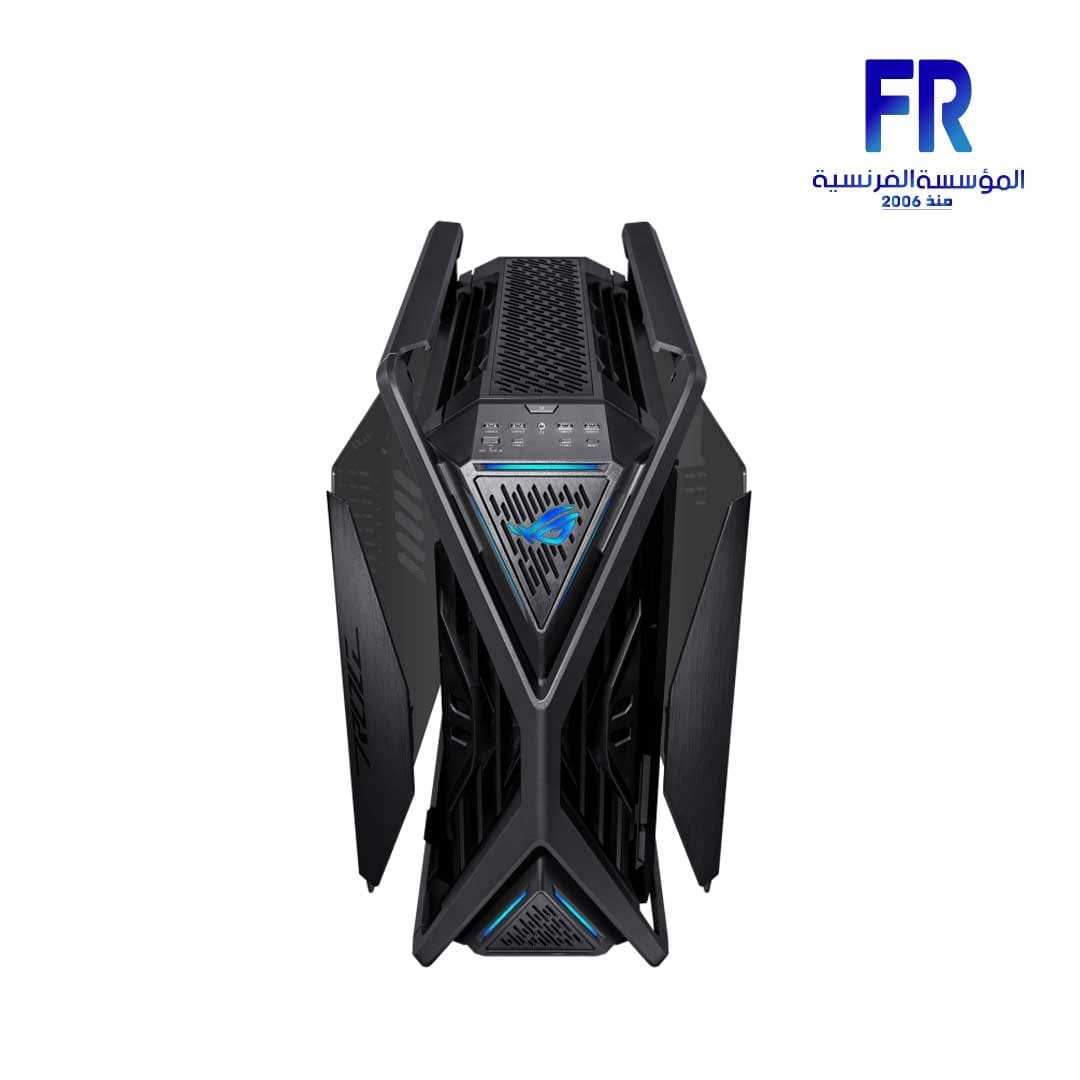

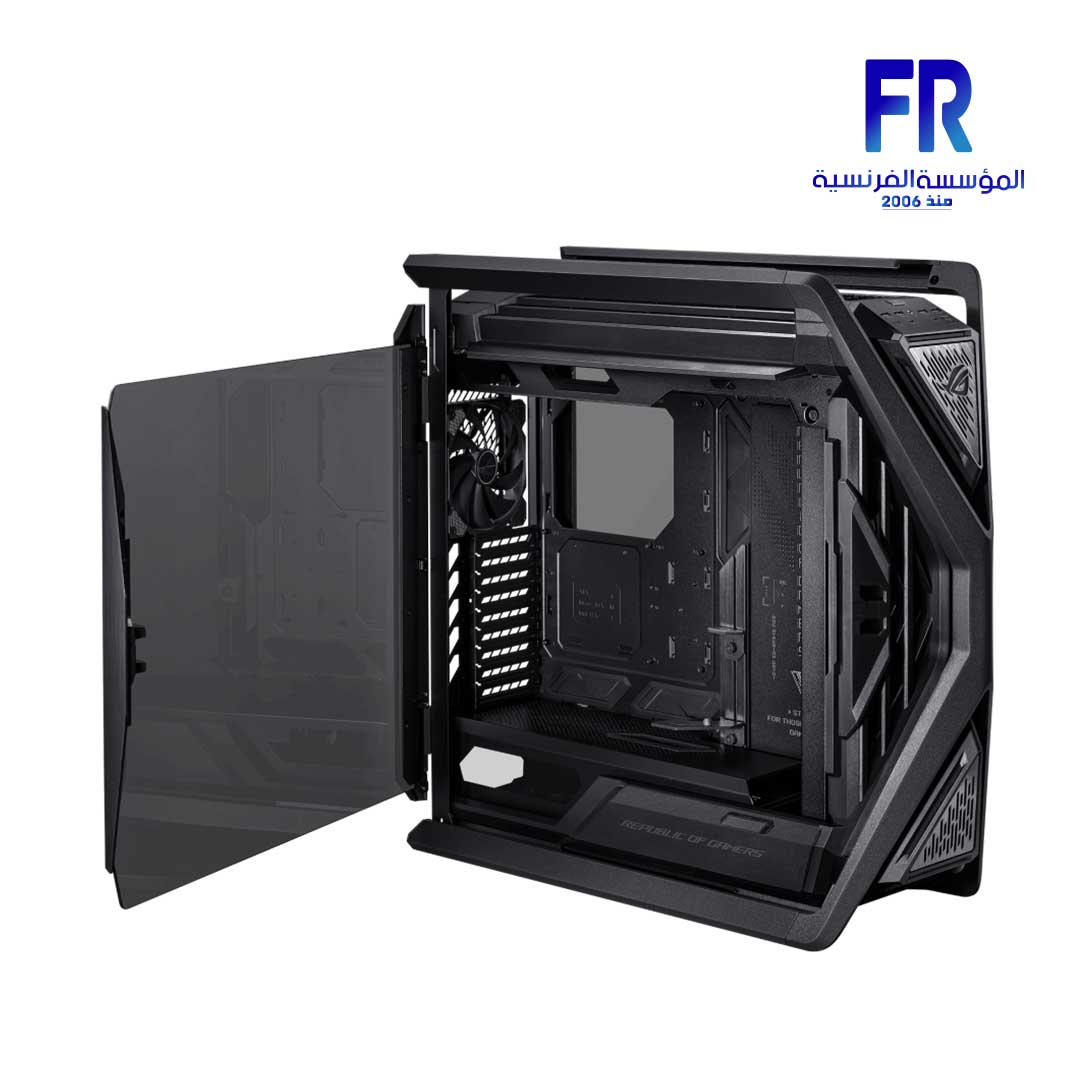

• TOOL-FREE HINGED SIDE PANELS To maximize the ease of accessing the interior any time you want, this chassis features a hinged side panel made of tinted glass that simply swings open without requiring any tools, at which point the panel can be lifted up and out of the way if desired.	HIDDEN DRAWER To make system maintenance easier, this chassis features a small integrated storage compartment for things like PCIe slot brackets, screws and cable fasteners, so your frequently used widgets are always within easy reach.	BUILT-IN GRAPHICS CARD HOLDER The ROG Hyperion GR701 features a highly refined integrated graphics card holder, whose lightweight anodized aluminum components can be used vertically or horizontally to keep long graphics cards from sagging, and it offers additional compatibility with the ROG Herculx card holder.
