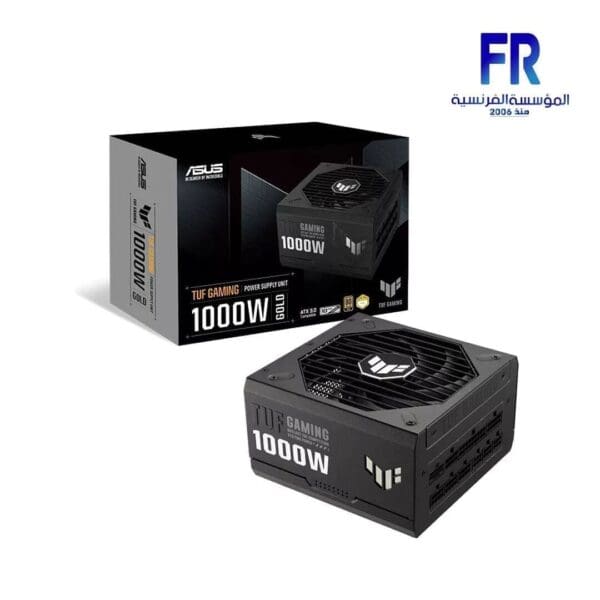

Asus Tuf Gaming 1000W Gold 80 Plus Gold Fully Modular Power Supply
8000 EGP
- 1000W Single +12V Rail
- 135mm Cooling Fan
- ATX12V Version 3.0 Intel Form Factor
- 600W 16-Pin PCIe Connector
- Modular Cable Design
- 80 PLUS Gold Certification
- Protective PCB Coating
- 105°C Rated Capacitors
Out Of Stock.
Asus Tuf Gaming 1000W 80 Plus Gold Fully Modular Power Supply
Asus Tuf Gaming 1000W 80 Plus Gold Fully Modular Power Supply
-
Model
- TUF Gaming 1000W Gold
-
Intel Form Factor
- ATX12V
-
PFC Type
- Active PFC
-
ATX Standard
- ATX 3.0
-
Dimensions
- 150 x 150 x 86 mm
-
Efficiency
- 80Plus Gold
-
MTBF
- >120,000 hrs @ 40°C
-
Protection Features
- OPP/OVP/UVP/SCP/OCP/OTP
-
Hazardous Materials
- ROHS
-
AC Input Range
- 100-240Vac
-
DC Output Voltage
- +3.3V +5V +12V -12V +5Vsb
-
Maximum Load
- 25A25A83.3A 0.8A 3A
-
Combined Load
- 130W 130W 1000W 9.6W 15W
-
Total Output
- 1000W
-
Cable Connectors
- MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 4
SATA x 5
PERIPHERAL x 4
-
Package Contents
- Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 2 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1
-
Weight
- 2.48kg (single PSU)
-
0dB Technology
- Supported. The fan shuts off entirely when the PSU is under certain load
-
0dB Fan Button
- No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.
- 1000W Single +12V Rail
- 135mm Cooling Fan
- ATX12V Version 3.0 Intel Form Factor
- 600W 16-Pin PCIe Connector
- Modular Cable Design
- 80 PLUS Gold Certification
- Protective PCB Coating
- 105°C Rated Capacitors
POWER SUPPLY
| MODEL | |
|---|---|
| Psu-Cable-Type | |
| PSU WATT | |
| ENERGY EFFICIENT | |
| Protection | |
| PSU Capacitors | |
| DC to DC | |
| Part Number | |
| Warranty |
| Fan Size (mm) |
|---|
