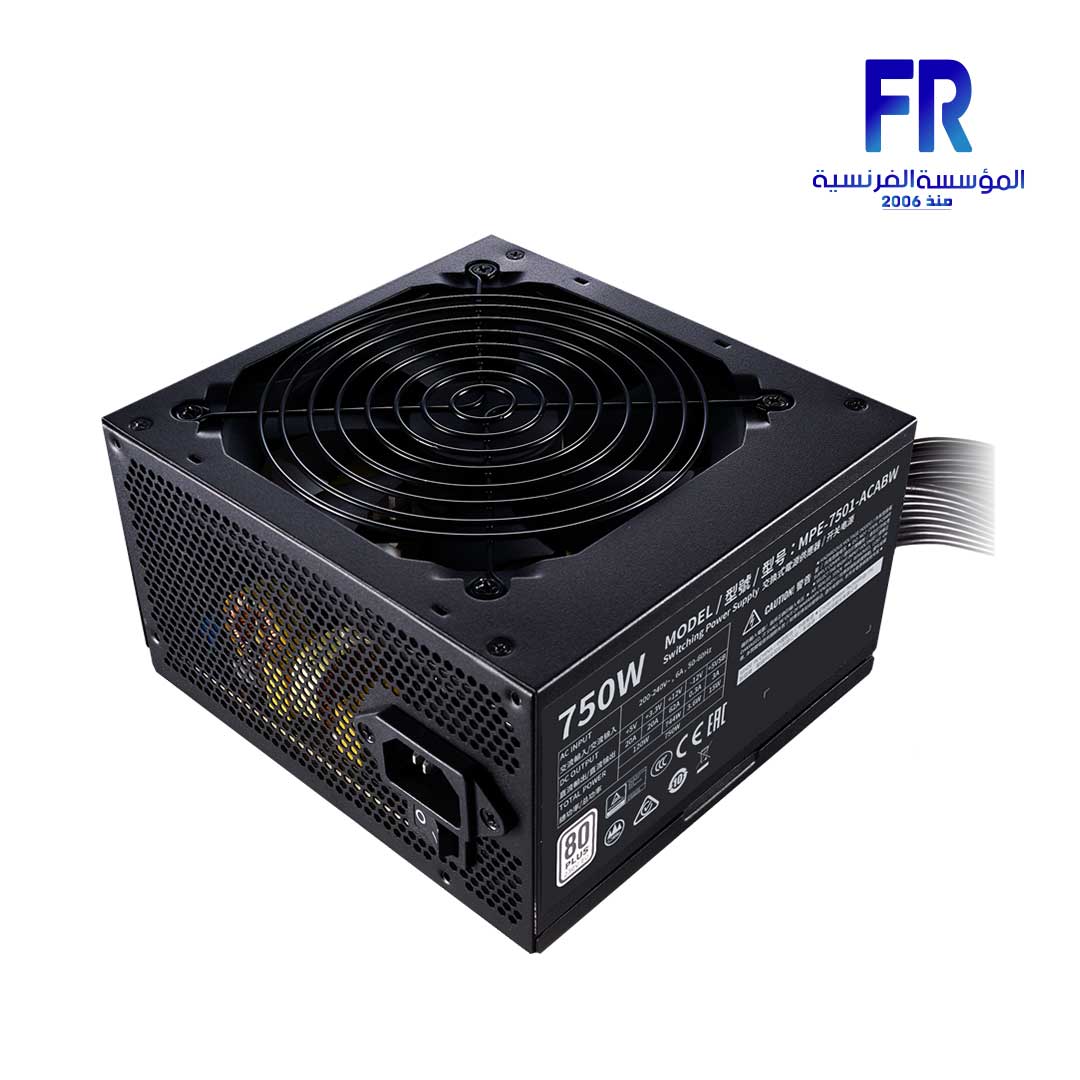

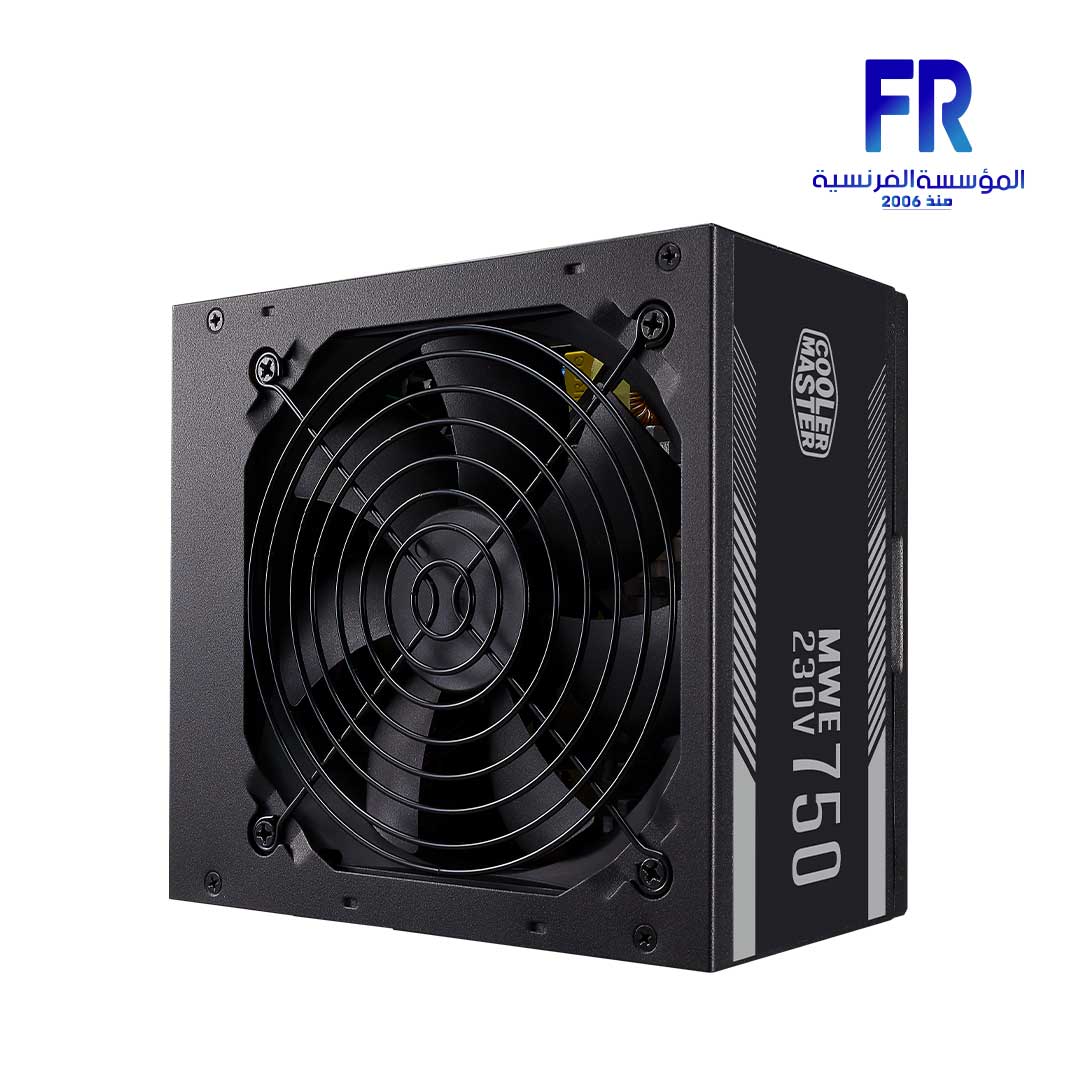

Cooler Master Mwe750 White 230V V2 750W 80 Supply White Power Supply
3476 جنية
- 80 PLUS Standard 230V EU Certified
- 120mm HDB Fan
- DC-to-DC Technology
- Single +12V Rail
- Flat Black Cables
Cooler Master Mwe750 White 230V V2 750W 80 PLUS White مزود الطاقة
-
Model
- MPE-7501-ACABW
-
ATX Version
- ATX 12V V2.52
-
PFC
- Active PFC
-
Input Voltage
- 200-240Vac
-
Input Current
- 6A
-
Input Frequency
- 50-60Hz
-
Dimensions (L x W x H)
- 140 x 150 x 86 mm
-
Fan Size
- 120mm
-
Fan Bearing
- HDB
-
Fan Speed
- 2400 RPM
-
Noise Level @ 20%
- 11.12 dBA
-
Noise Level @ 50%
- 20.3 dBA
-
Noise Level @ 100%
- 39.5 dBA
-
Efficiency
- 85% Typically
-
80 PLUS Rating
- 80 PLUS Standard 230V EU
-
ErP 2014 Lot 3
- Yes
-
Operating Temperature
- 40°C
-
Power Good Signal
- 100 – 500 ms
-
Hold Up Time
- >14ms at 100% Full Load@230Vac
-
MTBF
- >100,000 Hours
-
Protections
- OVP, OPP, SCP, UVP, OTP
-
Regulatory
- CCC, CE, TUV-RH, EAC, RCM, cTUVus, FCC, BSMI, KC, CB
-
ATX 24 Pin Connectors
- 1
-
EPS 4+4 Pin Connectors
- 1
-
EPS 8 Pin Connector
- 1
-
SATA Connectors
- 6
-
Peripheral 4 Pin Connectors
- 3
-
PCI-e 6+2 Pin Connectors
- 4
-
80 Plus
- Standard
-
Modular
- Non Modular
-
Wattage
- 500 to 750W
-
Series
- MWE White Series
-
Cooler Master Mwe750 White 230V V2 750W 80 PLUS White Power Supply
|
|
|
|
|---|---|---|
Performing well above the 80 Plus 230 V EU energy efficiency benchmarks, the MWE 750 White 230V – V2 even outclasses competitors in the 80 Plus Bronze range under medium loading. |

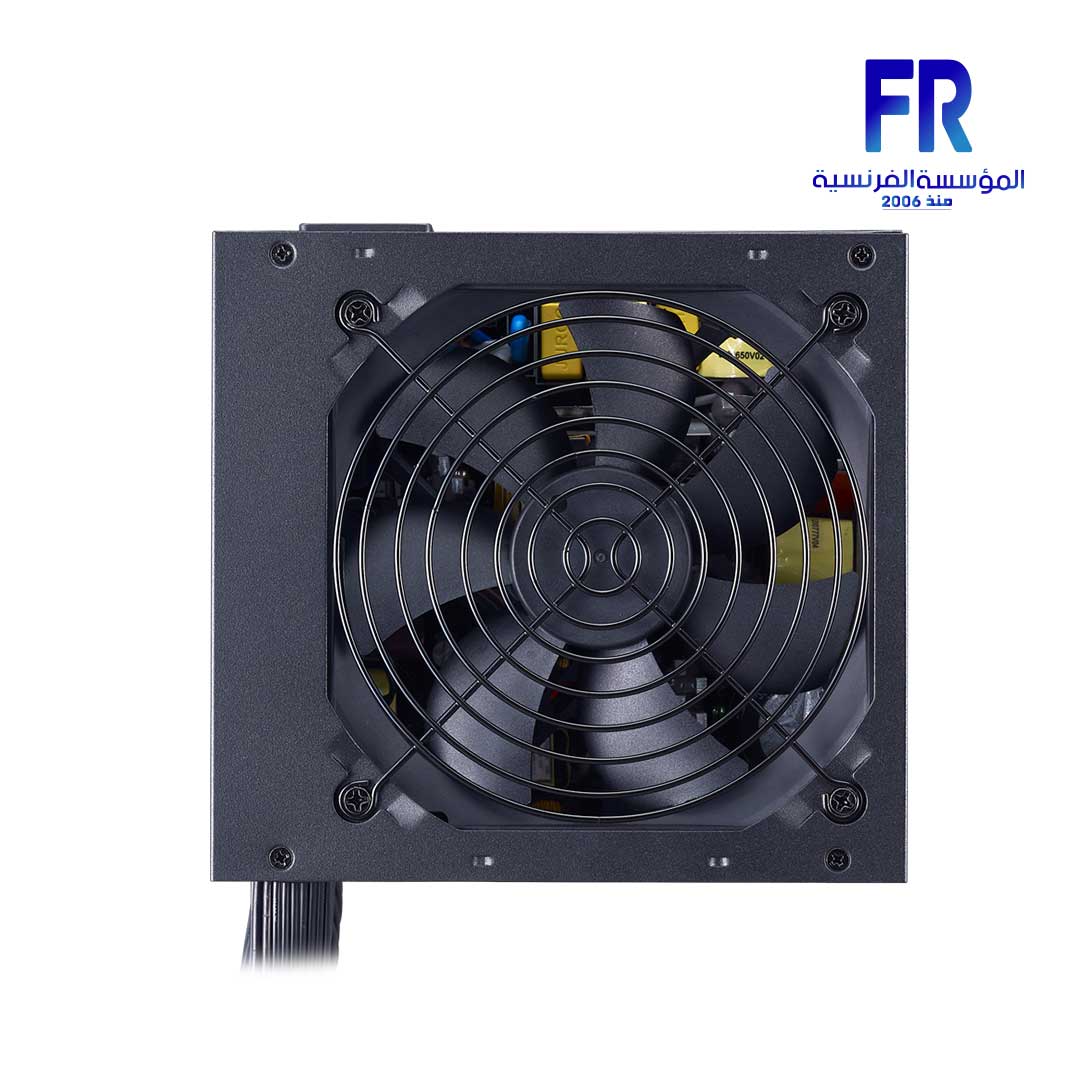

The 120 mm housing fan employs superior Hydro-Dynamic Bearings (HDB) which help keep noise to a minimum (<39.5 dBA at 2400 RPM max.) as the speed automatically adjusts to variable loading demands. |
Fully supports Intel PC motherboard low-power states to better protect against the risk of a complete PSU hardware failure. Internally, the DC-to-DC circuit with LLC converts 12V power to 3V and 5V levels with minimal ripple noise or energy loss. |
|
|
|
|
|---|---|---|
Ensures all system components receive a constant power feed from the same source across all connections. The 750W also includes an EPS 8 Pin Connector. |
Flat black cables take up less space and are highly flexible – ideal for smaller cases and preserving internal airflow. |
Cooler Master now reports Cybenetics noise and efficiency ratings for current power supply units where applicable. |
