DarkFlash L285 Atx Curved Tempered Glass Back Connect Support Argb Type C with 4x DM20 Fans Black Mid Tower Case
5980 EGP
- Part Number 4711527007484 / L285 Type C
- Motherboard Support ATX / M-ATX / ITX (Back-Connect Ready)
- Included Fans 4x DM20 Fans (Pre-installed)
- Max GPU Length 445 mm
- Max CPU Cooler Height 160 mm
- Radiator Support Top/Bottom: 360 mm | Side: 280 mm
- Warranty 1 Year
المتوفر في المخزون 2 فقط
Price Match Guarantee

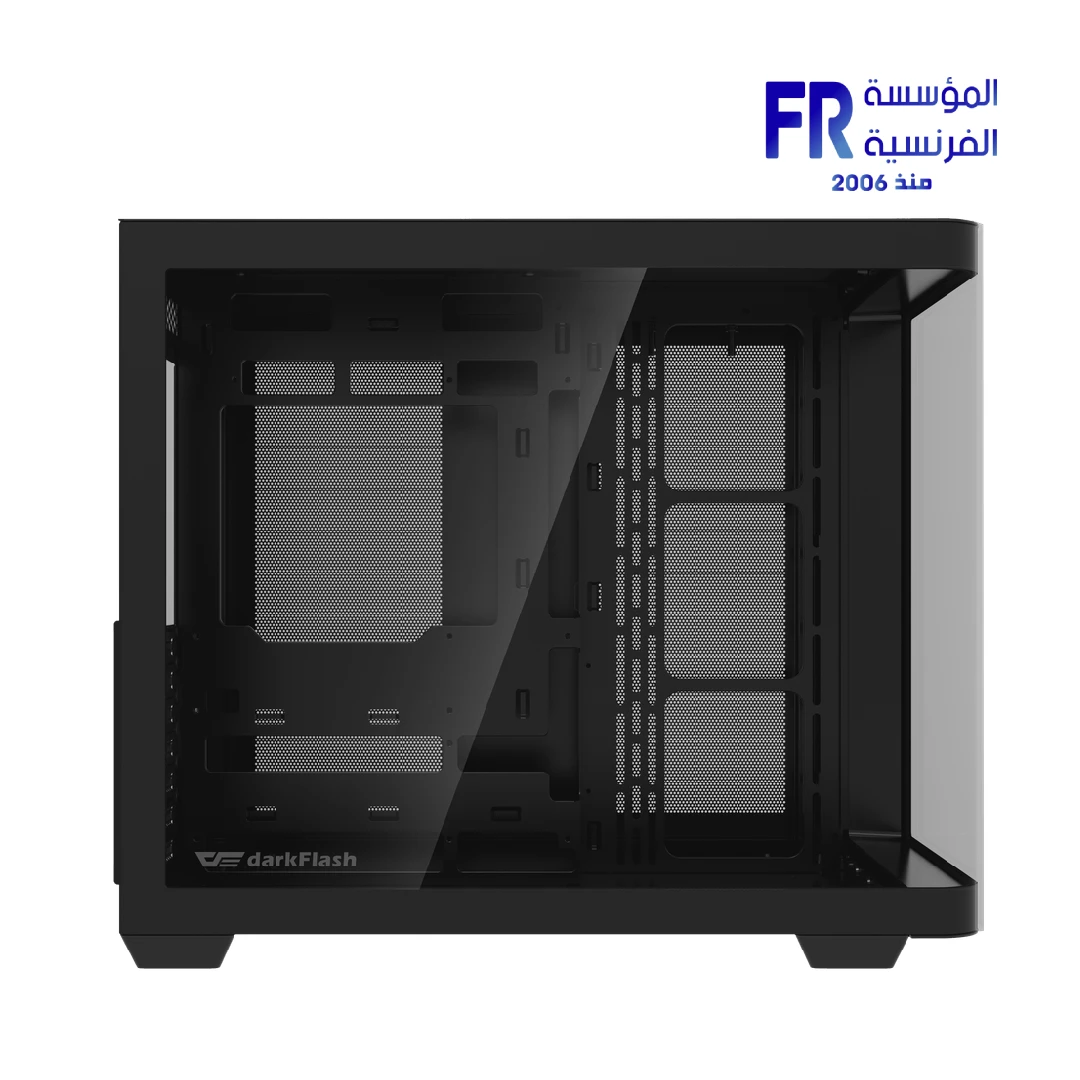

DarkFlash L285 ATX: Panoramic Curved Glass & Back-Connect Engineering
In short, the darkFlash L285 technically facilitates a seamless visual presentation through its unique curved tempered glass panel and support for back-connect motherboards. Since this architecture eliminates visible internal cabling, it effectively showcases your hardware with absolute clarity. Notably, the inclusion of four pre-installed DM20 ARGB fans specifically maximizes airflow while maintaining a sophisticated light profile across the chassis.
Furthermore, the architectural layout is specifically positioned for extreme cooling performance, utilizing modular shunting to effectively direct air across critical components. Because the unit features a high-grade 0.7mm SPCC steel frame, it technically ensures structural rigidity for heavy triple-fan GPUs up to 445mm. Consequently, the L285 delivers a disciplined performance presence that blends “fishtank” aesthetics with modern I/O convenience. As a result, you receive a highly efficient and visually stunning foundation for your high-end PC build.
Advanced Structural & Thermal Integration
Modular Cooling Shunts
Notably, the cooling system specifically utilizes modular shunting to effectively isolate airflow paths. This technically allows for targeted intake through the bottom and side panels, resulting in a dramatic reduction in ambient internal temperatures for both the CPU and GPU zones.
0.7mm Industrial Build
Moreover, the chassis specifically features 0.7mm SPCC steel construction that effectively provides superior anti-vibration properties. Consequently, your build remains stable and quiet, even when the 10-fan array is operating at full capacity during heavy productivity tasks.
Additionally, the inclusion of an ARGB lighting strip on the side effectively accentuates the curved glass transitions. Unlike conventional cases, the L285 incorporates dual 360mm radiator support to ensure your technical presence is optimized for high-performance liquid cooling. As a result, you receive a technically superior unit that balances aggressive cooling with a pristine, exhibition-ready look.
💡 Pro-Builder Tip: The Back-Connect Advantage

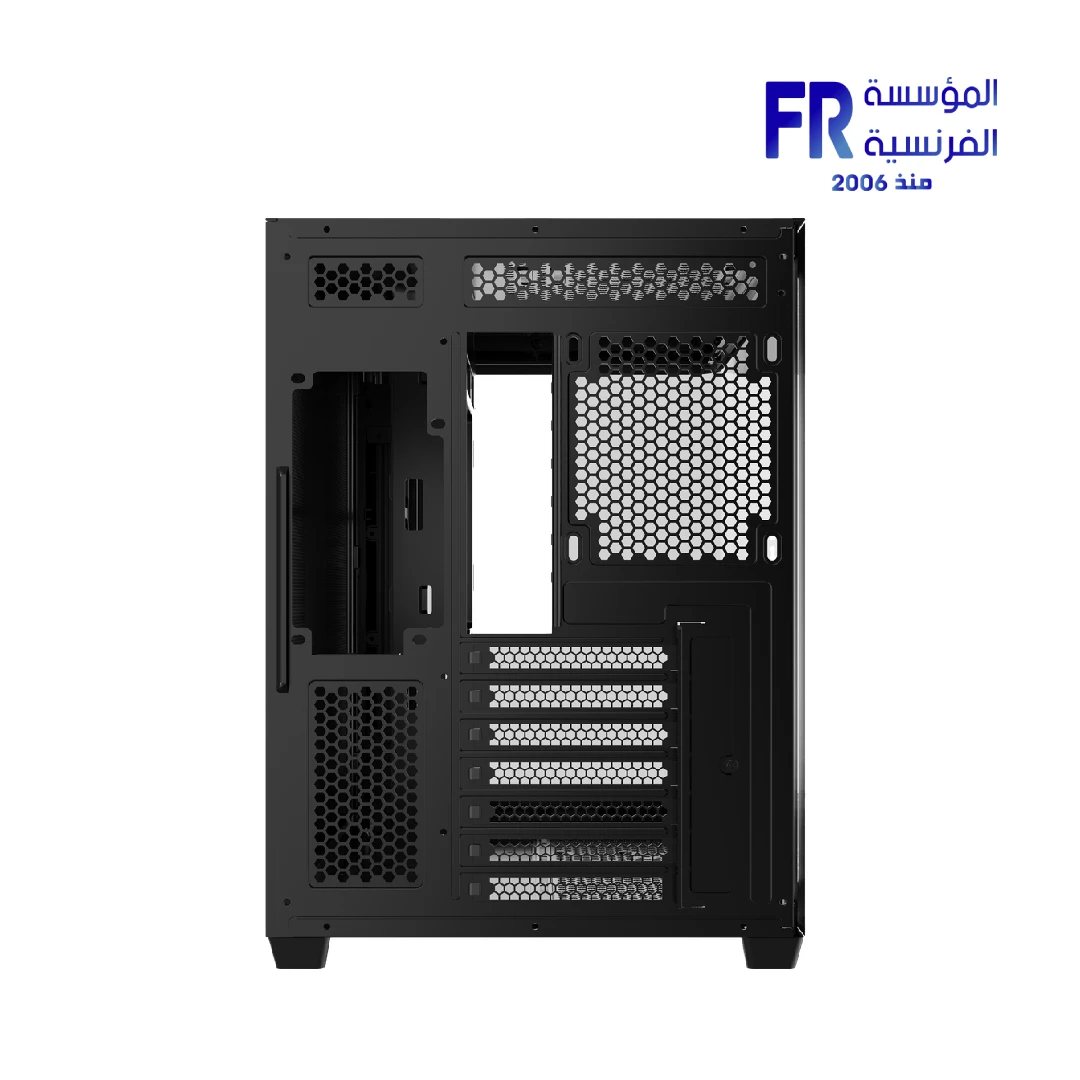

To clarify, the back-connect motherboard support technically allows you to plug all power cables into the rear of the board to effectively hide them from view. Specifically, ensure you use a compatible “Project Zero” or “BTF” motherboard to maximize this feature. Furthermore, the 285mm width technically facilitates extra space behind the motherboard tray, allowing for effortless management of complex ARGB controller wiring.
Technical Specifications
| Hardware Feature | Detailed Specification |
|---|---|
| Motherboard Support | ATX, M-ATX, ITX (Supports Back-Connect) |
| Case Material | 0.7mm SPCC Steel |
| Dimensions | 460 x 285 x 398 mm (LxWxH) |
| Max GPU Clearance | 445 mm |
| PCIE Slot | 7 Standard Slots |
| Max CPU Cooler Clearance | 160 mm |
| Drive Bays | SSD: 2 / HDD: 3 |
| Fan Support | Top: 120mm*3/140mm*2 | Side: 120mm*3/140mm*2 | Rear: 120mm*1 | Bottom: 120mm*3 |
| Radiator Support | Top: 240/280/360mm | Side: 240/280mm | Bottom: 240/360mm |
| Front I/O | USB 3.0 x1, USB 2.0 x2, Power, Reset, HD Audio, LED Control (Type-C included) |
| Model Name | darkFlash L285 ATX PC Case |
| Part Number | L285 Type C + DM20 x4 Line x7 + OC2 Black |
| UPC / EAN | 4711527007484 |
| Warranty | 1 Year Local Warranty |
What’s In The Box
*darkFlash, L285, and DM20 are registered trademarks of darkFlash Infotech Co., Ltd. All other brands are property of their respective owners. Specifications subject to change without notice.
