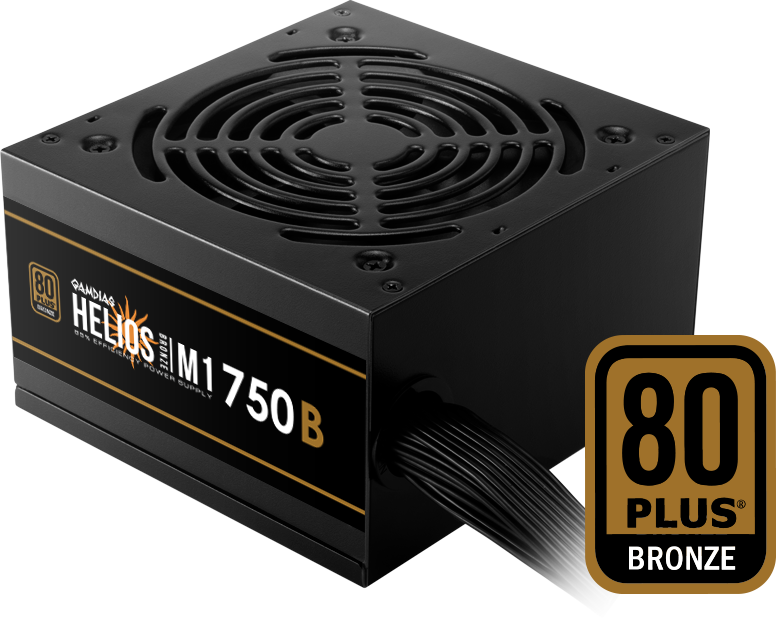

Gamdias Helios M1 750B 750W 80 Plus Bronze Power Supply
3000 جنية
- 750W 80 Plus Bronze
- Deliver up to 85% Efficiency
- High Quality Capacitors Provide Superb Performance and Reliability
- Black Flat Cables
- 1 x (4+4P) EPS
- Compatible with ATX12V v2.4
- Support C6/C7 Power State
- Automatic Fan Speed Optimization
- APFC with PF Value of 0.99
- Heavy-duty Protection: OVP/UVP/OPP/SCP/OCP
غير متوفر بالمخزون
Gamdias Helios M1 750B 750W 80 Plus Bronze مزود الطاقة
-
SMART, STABLE AND RELIABLE
- The HELIOS M1-750B features an 80 PLUS Bronze certification that guarantees 85% efficiency, and flat black cables for easy installation and cable management. It is also equipped with a 120mm hydraulic bearing smart fan that can adjust the fan speed according to temperature automatically and ensure low-noise operation.
-
80 PLUS BRONZE CERTIFIED
- Certified with 80 PLUS Bronze, the HELIOS M1-750B delivers stable power output at up to 85% efficiency and reduces energy consumption.
-
SMART VENTILATION
- The power supply unit features automatic fan speed optimization, which allows the fan speed to be adjusted according to the detection of temperature and load. The 120mm hydraulic bearing fan ensures stable operation and longer lifespan.
-
BLACK FLAT CABLES
- The flexible black cables are designed for easy cable installation, avoiding clutter, and increase the airflow within the case.
-
HEAVY-DUTY PROTECTION
- The power supply unit maintains stable output voltage as well as offering multiple protections against short circuit, overload, overheating, low voltage and more.
-
connectors
Gamdias Helios M1 750B 750W 80 Plus Bronze Power Supply
-
Type
- ATX12V v2.4
-
Efficiency
- Meet 80 PLUS Bronze efficiency
-
Power Factor Correction
- APFC with PF value of 0.99
-
Support MB Sync
- No
-
Dimension (L x W x H)
- 140 x 150 x 86 mm
-
Support C6/C7 power state
- Yes
-
AC Input
- 100-240V / 5.5-11A / 47-63Hz
-
DC Output
- +3.3V / +5V / +12V / -12V / +5Vsb
-
Max. Output Current
- 18A / 18A / 56A / 0.4A / 2.5A
-
Max. Output Power
- 100W / 672W / 4.8W / 12.5W
-
Total Power
- 750W
-
Protection
- OVP / UVP / OPP / OCP / SCP
-
Main Power
- 1 (20+4 Pin)
-
CPU
- 1 (4+4 Pin)
-
PCI-E
- 4 (6+2 Pin)
-
SATA
- 5 (5 Pin)
-
Molex
- 3 (4 Pin)
-
Modular
- Non Modular
-
Flat Cable
- Yes
-
Cooling System
- 120mm hydraulic bearing fan
-
Silent Mode
- No
مزود طاقة
| الموديل | |
|---|---|
| Psu-Cable-Type | |
| PSU WATT | |
| ENERGY EFFICIENT | |
| Protection | |
| PSU Capacitors | |
| DC to DC | |
| Fan Size | |
| Part Number | |
| الضمان |
