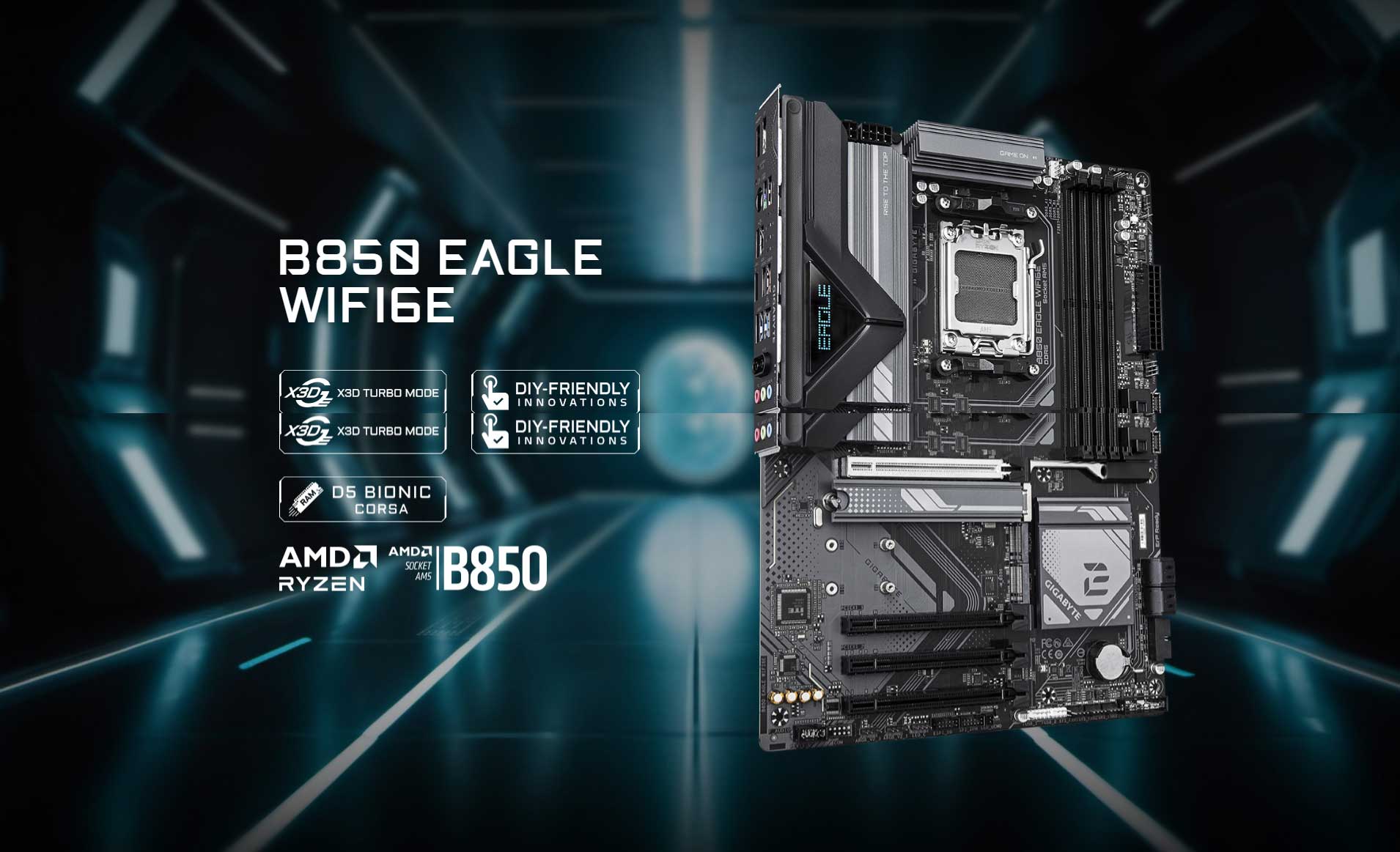

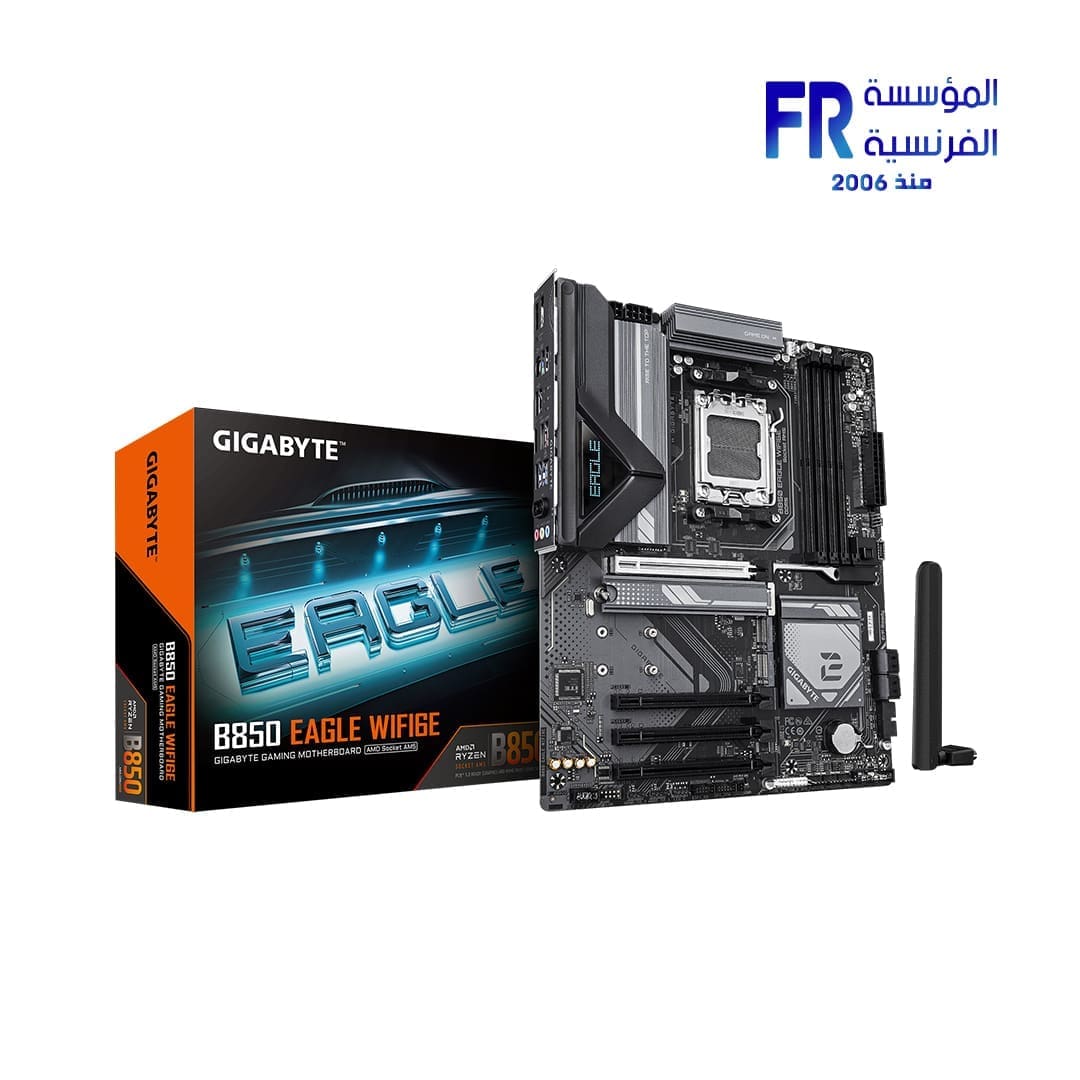

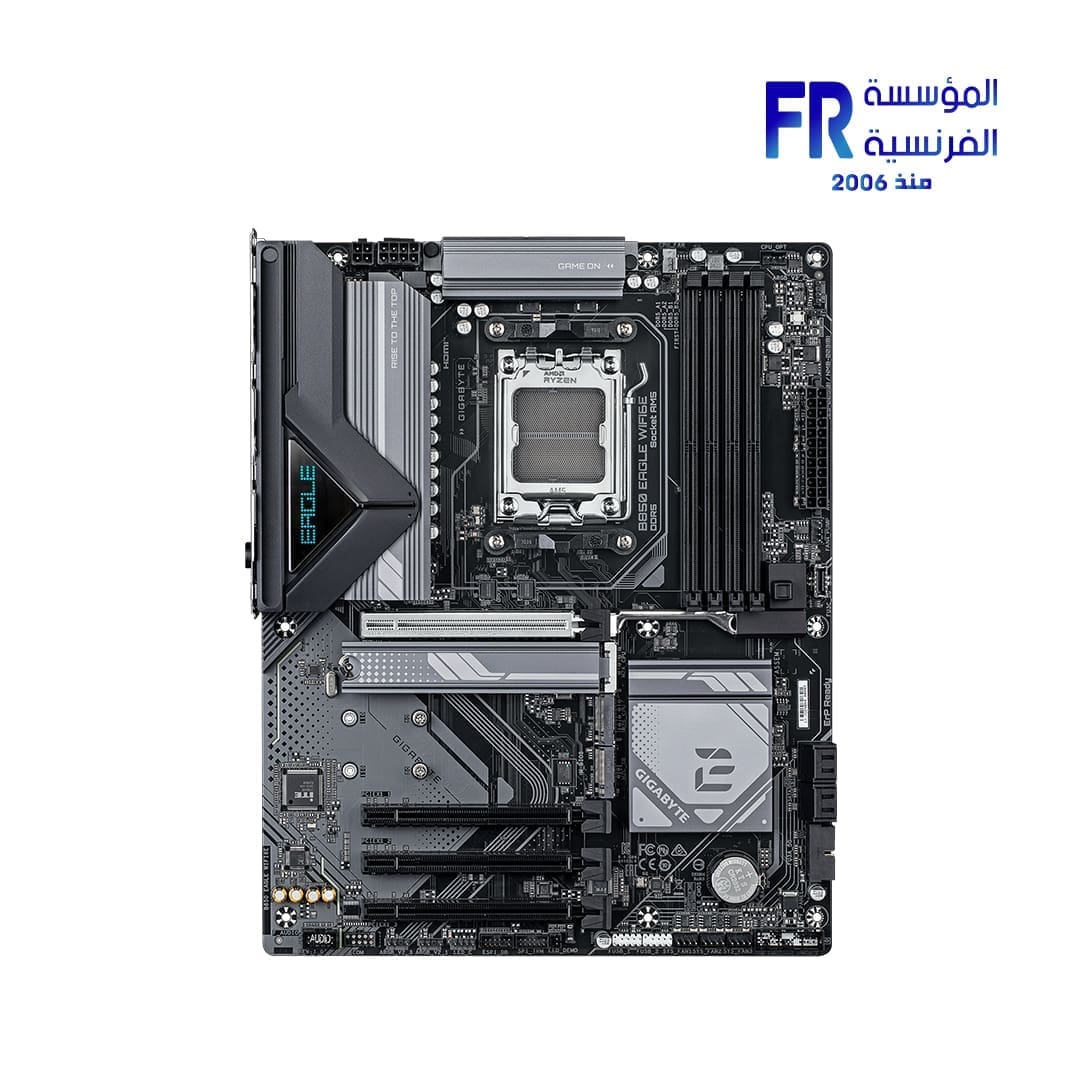

Gigabyte B850 Eagle WIFI6E AM5 Gaming Motherboard

Gigabyte B850 Eagle WIFI6E AM5 Gaming اللوحات الأم

Gigabyte B850 Eagle WIFI6E AM5 Gaming Motherboard SPECIFICATIONS:

• • CPU Support:
    • AMD Ryzen™ 9000 Series Processors
    • AMD Ryzen™ 8000 Series Processors
    • AMD Ryzen™ 7000 Series Processors (Socket AM5)
  • Chipset: AMD B850

  • Memory:

    • DDR5 DIMM sockets supporting up to 256 GB (64 GB per DIMM)
    • Dual channel memory architecture
    • Supports speeds up to 8200 MT/s (O.C.)
    • Supports AMD EXPO™ and XMP memory modules
  • Onboard Graphics:
    • Integrated AMD Radeon™ Graphics
    • 1 x DisplayPort (DisplayPort 1.4, 4K@144Hz, HDR)
    • 1 x HDMI port (HDMI 2.1, 4K@60Hz, HDCP 2.3, HDR)

  • Audio:

    • Realtek® Audio CODEC
    • High-Definition Audio
    • 2/4/5.1/7.1-channel support
  • Networking:
    • Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
    • Wireless:
      • Intel® Wi-Fi 6E AX210 (WIFI a/b/g/n/ac/ax, Bluetooth 5.3)
      • Realtek® Wi-Fi 6E RTL8852CE (WIFI a/b/g/n/ac/ax, Bluetooth 5.3)
  • Expansion Slots:
    • CPU:
      • 1 x PCI Express x16 slot (PCIEX16):
        • PCIe 5.0 x16 for Ryzen 9000/7000 Series
        • PCIe 4.0 x8 for Ryzen 8000 Series-Phoenix 1
        • PCIe 4.0 x4 for Ryzen 8000 Series-Phoenix 2
    • Chipset:
      • 3 x PCI Express x16 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3) running at x1

  • Storage Interfaces:

    • CPU:
      • 2 x M.2 connectors (M2A_CPU, M2B_CPU) supporting PCIe 5.0/4.0 x4/x2 SSDs
    • Chipset:
      • 1 x M.2 connector (M2C_SB) supporting PCIe 4.0 x2 SSDs
      • 4 x SATA 6Gb/s connectors
    • RAID support:
      • NVMe SSD: RAID 0, RAID 1, RAID 5, RAID 10 (RAID 5 only on Ryzen 9000 Series)
      • SATA: RAID 0, RAID 1, RAID 10
  • USB Ports:

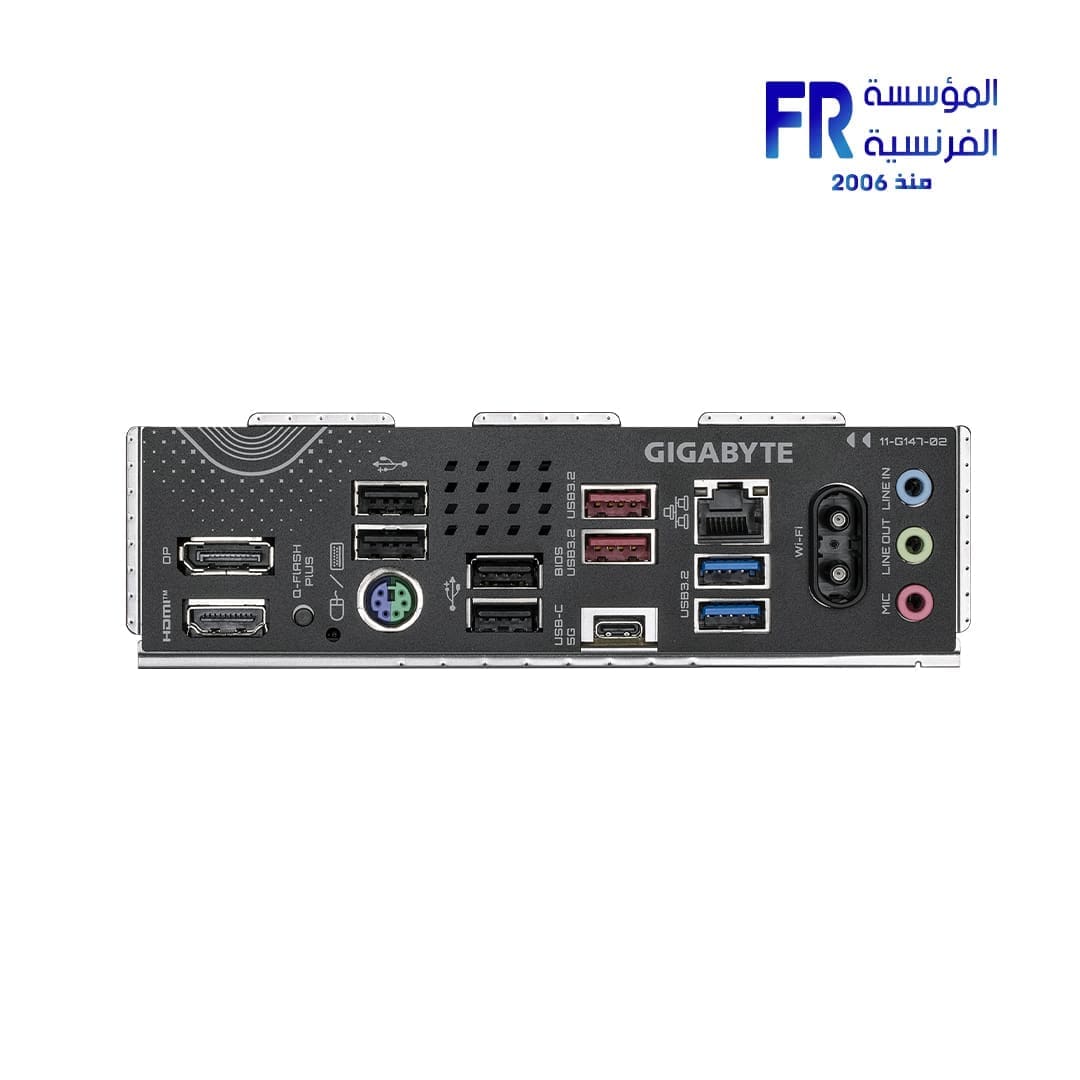

    • Back Panel:
      • 2 x USB 3.2 Gen 2 Type-A ports (red)
      • 1 x USB Type-C® (USB 3.2 Gen 1)
      • 2 x USB 3.2 Gen 1 ports
      • 4 x USB 2.0/1.1 ports
    • Internal Headers:
      • 1 x USB Type-C® (USB 3.2 Gen 1)
      • 4 x USB 3.2 Gen 1 ports
      • 4 x USB 2.0/1.1 ports

  • Internal I/O Connectors:

    • Power connectors (24-pin ATX, 8-pin ATX 12V, 4-pin ATX 12V)
    • Fan headers (CPU, system, water cooling pump)
    • RGB LED headers
    • SATA connectors, front panel headers
  • BIOS:
    • 256 Mbit flash
    • AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features:
    • GIGABYTE Control Center (GCC)
    • Q-Flash, Q-Flash Plus, Smart Backup

  • Bundled Software:

    • Norton® Internet Security (OEM version)
    • LAN bandwidth management software
  • Operating System Support:
    • Windows 11 64-bit
    • Windows 10 64-bit

  • Form Factor:

    • ATX; 30.5cm x 24.4cm

• X3D Turbo Mode : Unleash new era gaming performance
• DDR5 OC up to 8200MT/s
• AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 8+2+2 phases VRM solution
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking : GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
• Extended Connectivity : HDMI, Displayport
• PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
