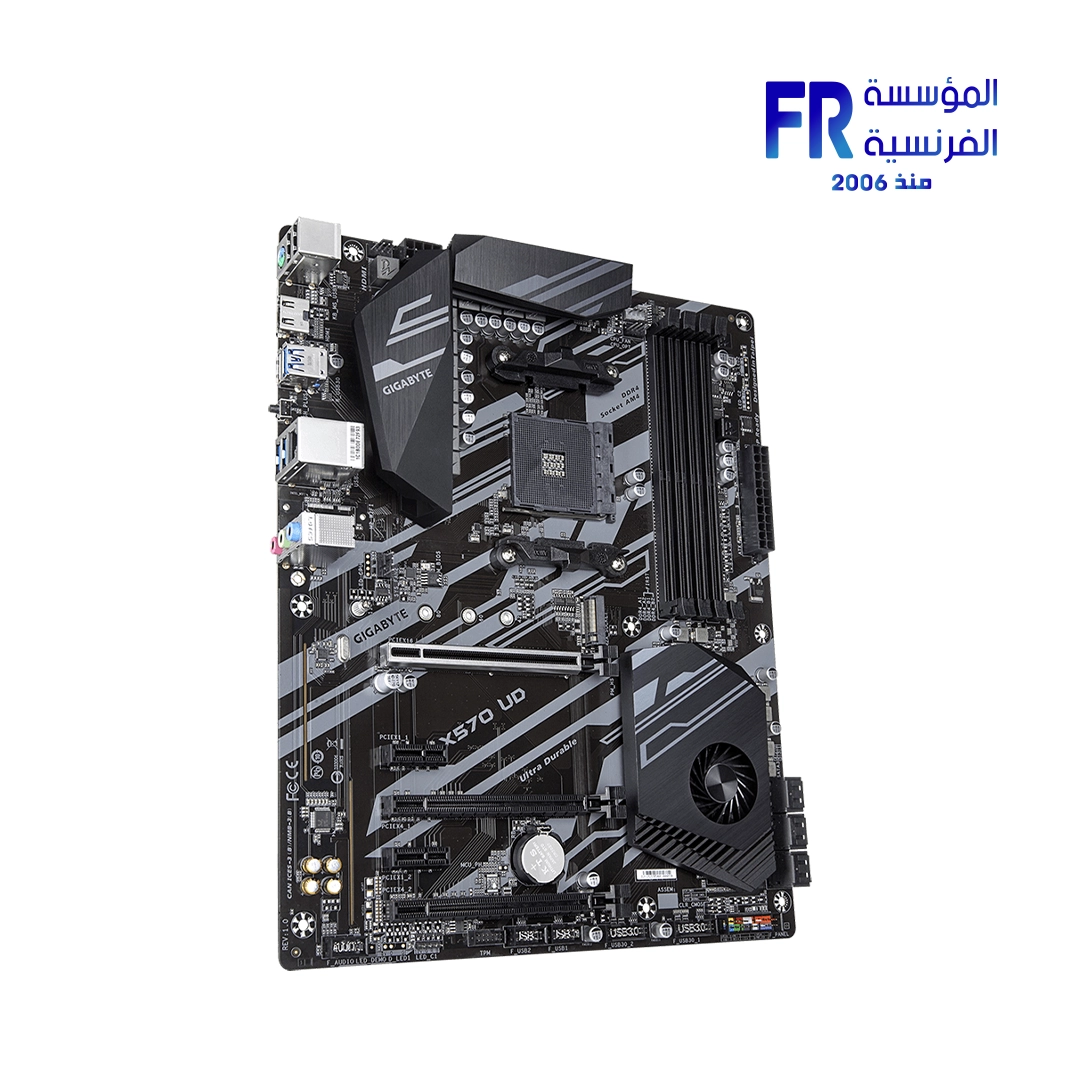

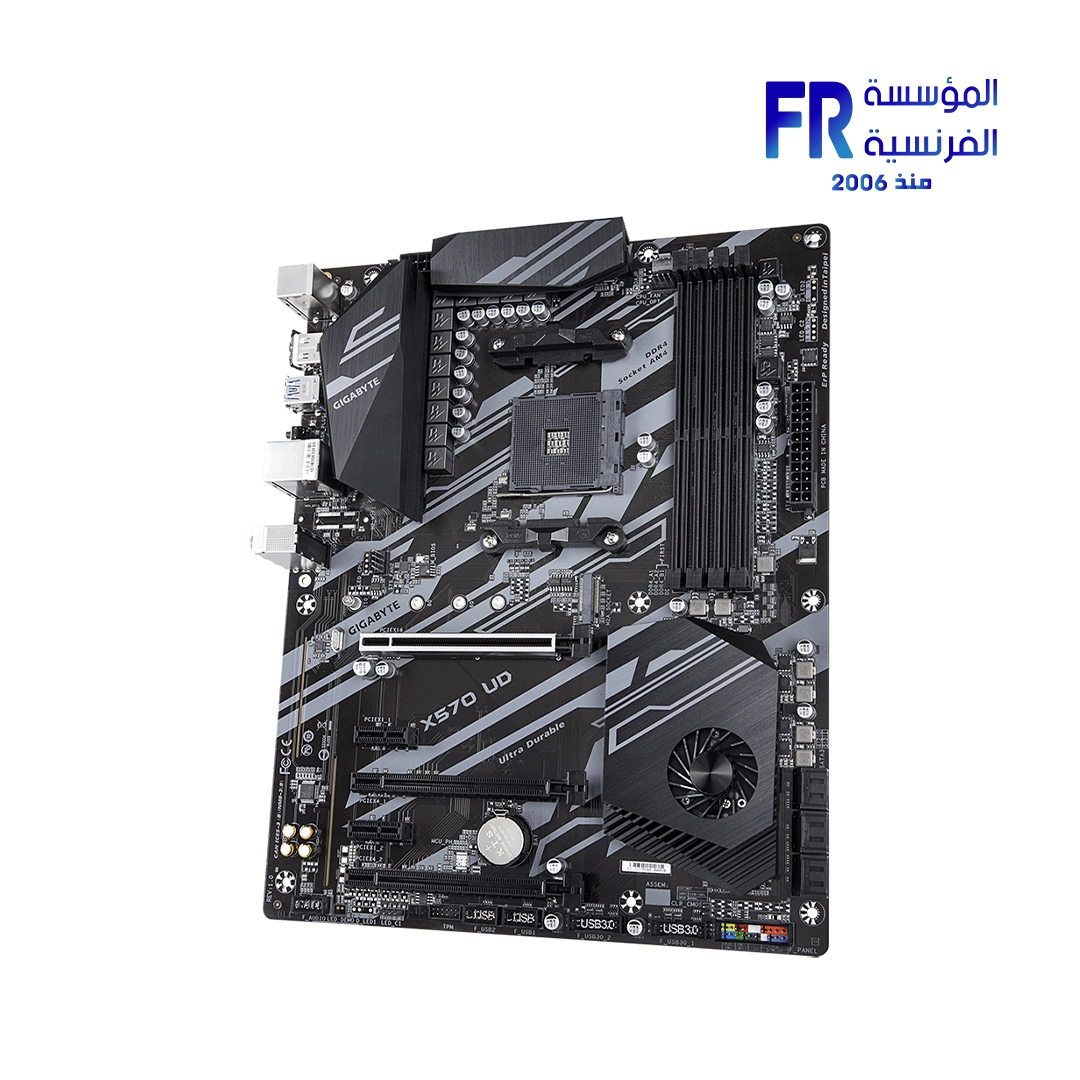

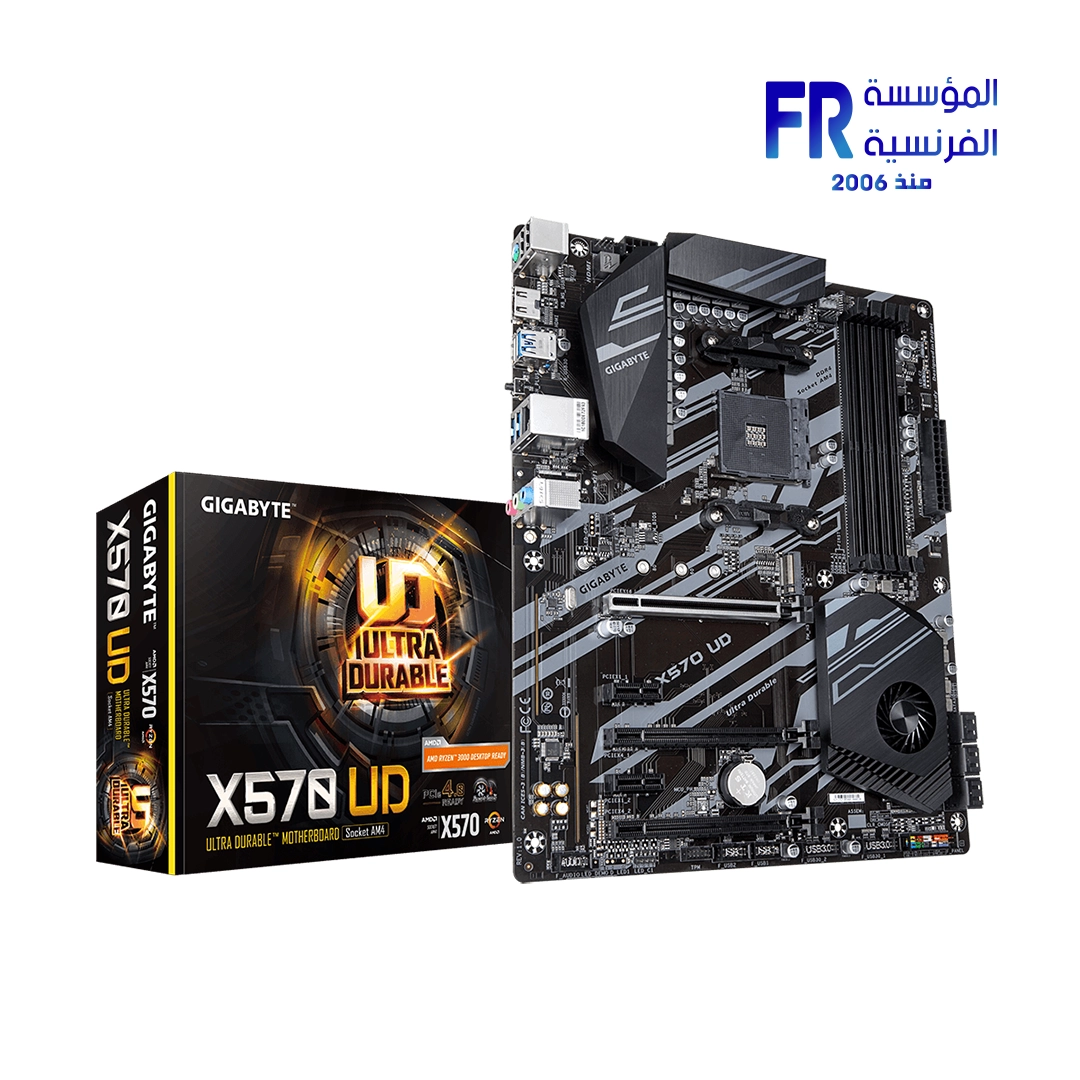

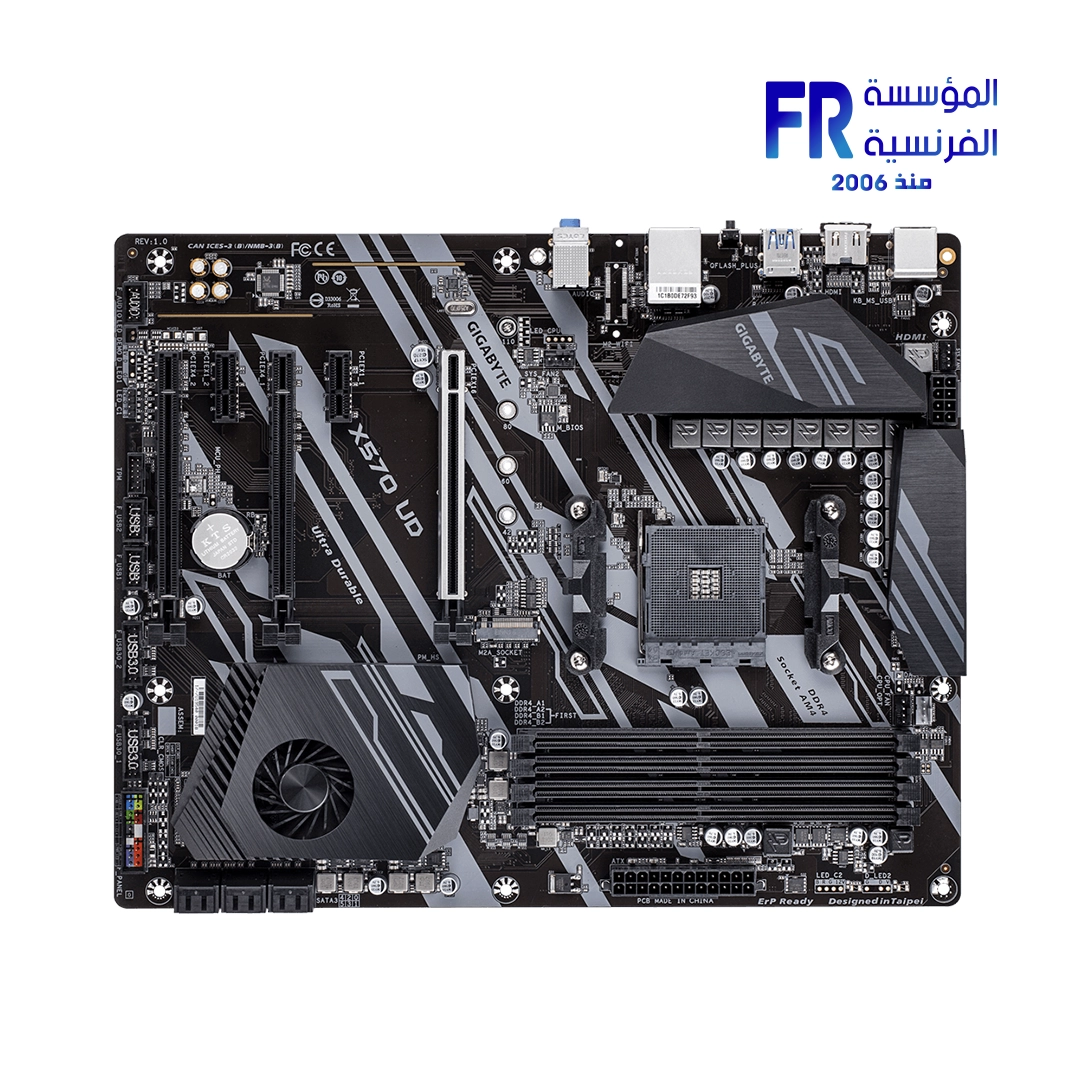

Gigabyte X570 UD Motherboard

Gigabyte X570 UD اللوحه الام:

The Gigabyte X570 UD Motherboard is engineered to maximize your PC’s potential, providing robust features for AMD Ryzen™ processors. This Gigabyte X570 UD motherboard offers full support for the latest AMD Ryzen™ 5000 Series, 4000 G-Series, 3rd Gen, and 2nd Gen Ryzen™ processors on its AM4 socket. It features a 10+2 Phases Digital VRM Solution and an Advanced Thermal Design with an Enlarge Heatsink. Furthermore, with PCIe 4.0 support and Ultra Durable™ Design, this X570 motherboard ensures incredible precision in power delivery and enhanced system performance.

Advanced Performance and Thermal Design of the Gigabyte X570 UD Motherboard:

This Gigabyte X570 UD motherboard utilizes the AMD X570 Chipset. It supports up to 128 GB of dual-channel DDR4 system memory across four DIMM sockets, with overclocking speeds up to 4733MHz. This provides ample bandwidth for demanding applications and games. The 10+2 Phases Digital VRM Solution with Lower RDS(on) MOSFETs ensures stable power delivery to the CPU, even under heavy loads. This aggressive VRM design, combined with solid pin power connectors, guarantees enhanced system performance and ultimate stability.

An Advanced Thermal Design with an Enlarge Heatsink effectively dissipates heat from the MOSFETs. This maintains optimal temperatures under full loading. The motherboard features full PCIe 4.0 Design, including PCIe 4.0 slots and M.2 connectors. This delivers superior bandwidth for graphics cards and NVMe SSDs. For 3rd Gen Ryzen™ processors, the CPU-integrated PCI Express x16 slot supports PCIe 4.0. For other compatible Ryzen processors, it supports PCIe 3.0. A single M.2 connector supports both SATA and PCIe 4.0/3.0 x4/x2 SSDs.

Connectivity and Audio Excellence of the Gigabyte X570 UD Motherboard:

The Gigabyte X570 UD motherboard offers comprehensive connectivity. It includes six SATA 6Gb/s connectors with RAID 0, 1, and 10 support. This provides versatile storage options. USB connectivity is extensive, with four USB 3.2 Gen 1 ports on the back panel and four more available through internal headers. Additionally, six USB 2.0/1.1 ports (two rear, four front via headers) ensure ample peripheral connections.

Integrated Graphics Processor with HDMI 2.0 support allows for a maximum resolution of 4096×2160@60 Hz. This includes HDCP 2.2 and HDR. Realtek® GbE LAN chip (10/100/1000 Mbit) with Bandwidth Management ensures high-speed and reliable network performance. For audio, the Realtek® ALC887 codec delivers High Definition Audio in 2/4/5.1-channel configurations. High-quality audio capacitors and an Audio Noise Guard provide ultimate audio quality. Smart Fan 5 features multiple temperature sensors and hybrid fan headers with FAN STOP. This ensures optimal cooling and quiet operation. Q-Flash Plus allows BIOS updates without installing CPU, memory, or graphics card.

Explore compatible AMD Motherboards or other اللوحه الام options. You might also find compatible AMD Processors and DDR4 RAM. Check Gigabyte Products for more options. Find full details on the official Gigabyte X570 UD Motherboard product page.

Specifications:

• Chipset: AMD X570
• CPU Support: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors (Socket AM4)
• Memory: 4 x DDR4 DIMM sockets, Max. 128 GB, Dual Channel, up to 4733(O.C.) MHz
• Onboard Graphics: Integrated AMD Radeon™ Graphics (1 x HDMI 2.0, 4096×2160@60 Hz max. resolution)
• Audio: Realtek® ALC887 codec, High Definition Audio, 2/4/5.1-channel
• LAN: Realtek® GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots (CPU): 1 x PCI Express x16 (PCIe 4.0/3.0, x16/x8)
• Expansion Slots (Chipset): 2 x PCI Express x16 (PCIe 4.0/3.0, x4), 2 x PCI Express x1 (PCIe 4.0/3.0)
• Multi-Graphics: AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
• Storage (CPU): 1 x M.2 connector (SATA and PCIe 4.0/3.0 x4/x2 SSD support)
• Storage (Chipset): 6 x SATA 6Gb/s connectors (RAID 0, 1, 10 support)

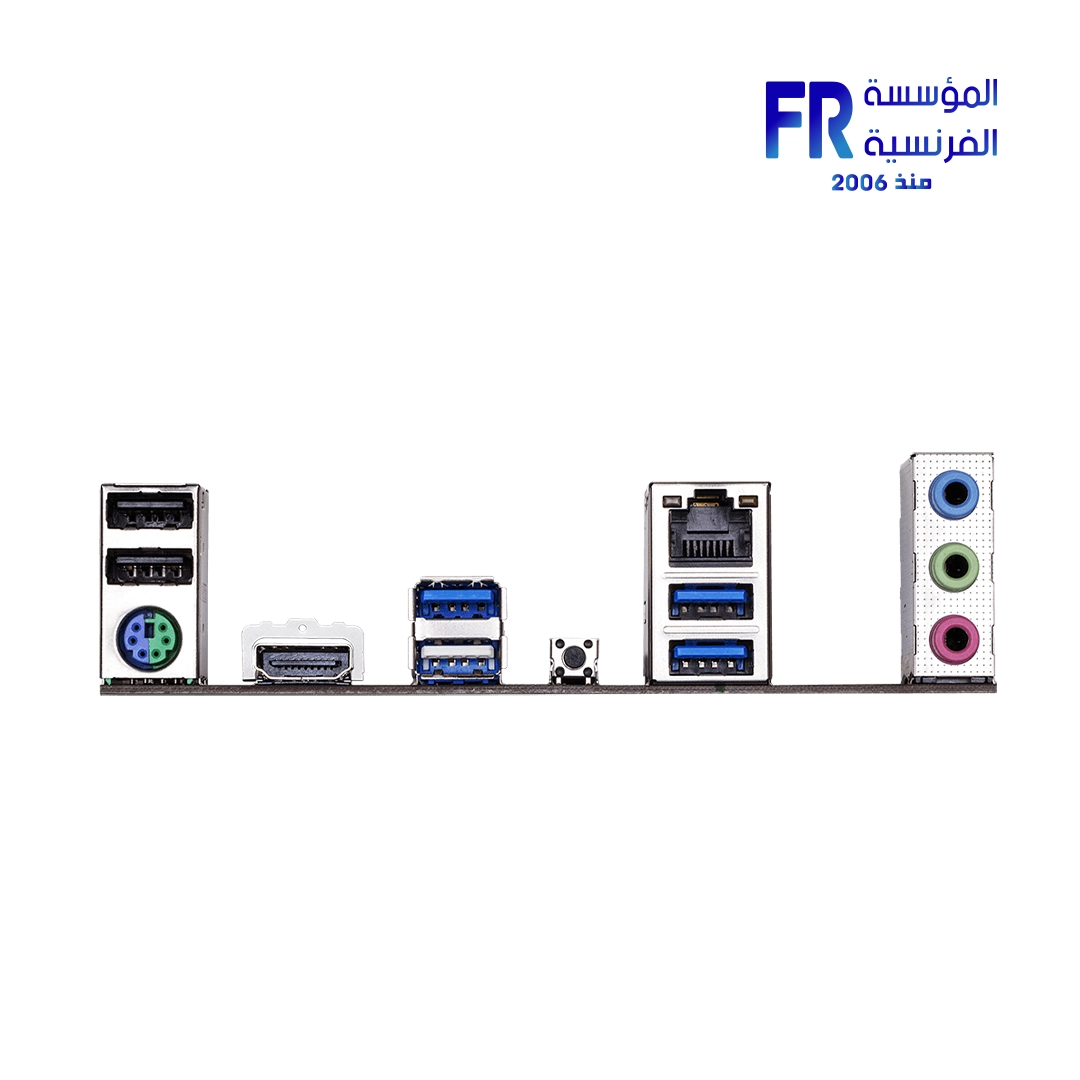

• USB (Rear): 4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, 1 x PS/2 keyboard/mouse port
• USB (Front Headers): 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1
• Internal I/O: 24-pin ATX, 8-pin ATX 12V, CPU fan, water cooling CPU fan, system fan headers, RGB LED strip header, front panel headers, TPM header, Clear CMOS jumper
• Back Panel Features: Q-Flash Plus button, RJ-45 port, 3 x audio jacks
• Form Factor: ATX Form Factor (30.5cm x 24.4cm)
• Operating System: Windows 11 64-bit, Windows 10 64-bit
• Model Number/SKU: X570-UD
• EAN/UPC: 889523019023
