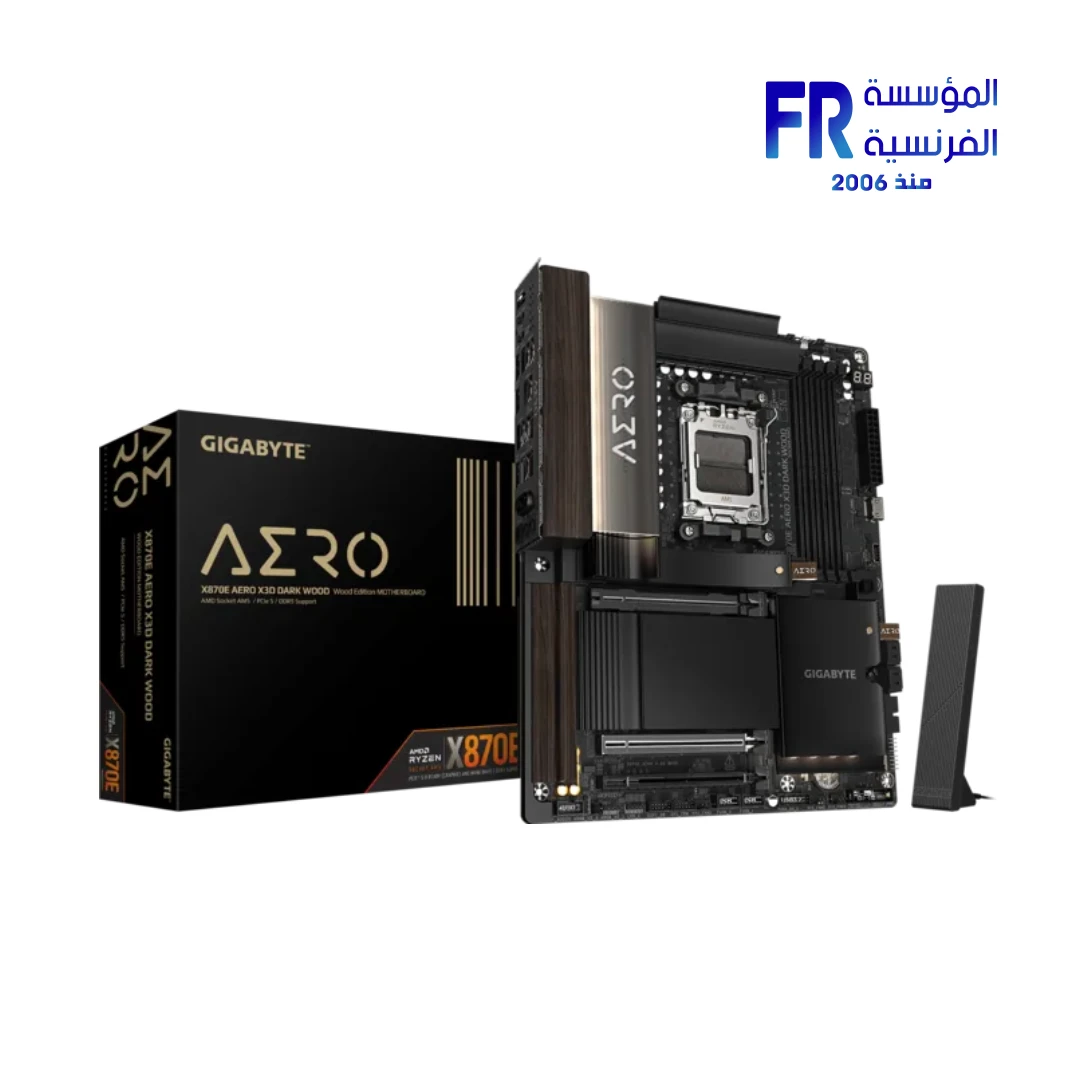

Gigabyte X870E Aero X3D Dark Wood Socket AM5 DDR5 ATX Motherboard
21999 جنيه
- رقم القطعة: 9MX87AX3D-00-G10
- Form Factor & Socket: ATX | AMD AM5 | AMD X870E Chipset | Supports Ryzen 9000 / 8000 / 7000 Series
- Memory & Storage: 4x DDR5 DIMM (Up to 256GB, 9000+ MT/s OC, EXPO/XMP) | 4x M.2 (2x PCIe 5.0, 2x PCIe 4.0) | 4x SATA 6Gb/s | RAID 0/1/5/10
- Expansion & Networking: 1x PCIe 5.0 x16 | 1x PCIe 5.0 x8 | 1x PCIe 4.0 x4 | Dual Realtek 5GbE LAN | Wi-Fi 7 | Bluetooth 5.4
- Connectivity & Audio: 2x USB4 Type-C (40Gbps, DP 1.4) | 1x USB 3.2 Gen 2×2 Type-C | Realtek ALC1220 | S/PDIF Out
- الضمان: 3 Years
المتوفر في المخزون 1 فقط
ضمان مطابقة السعر✅ Authorized Gigabyte Partner in Egypt | Official Warranty Coverage | Expert PC Building Consultation Available
Gigabyte X870E Aero X3D Dark Wood Socket AM5 DDR5 ATX Motherboard

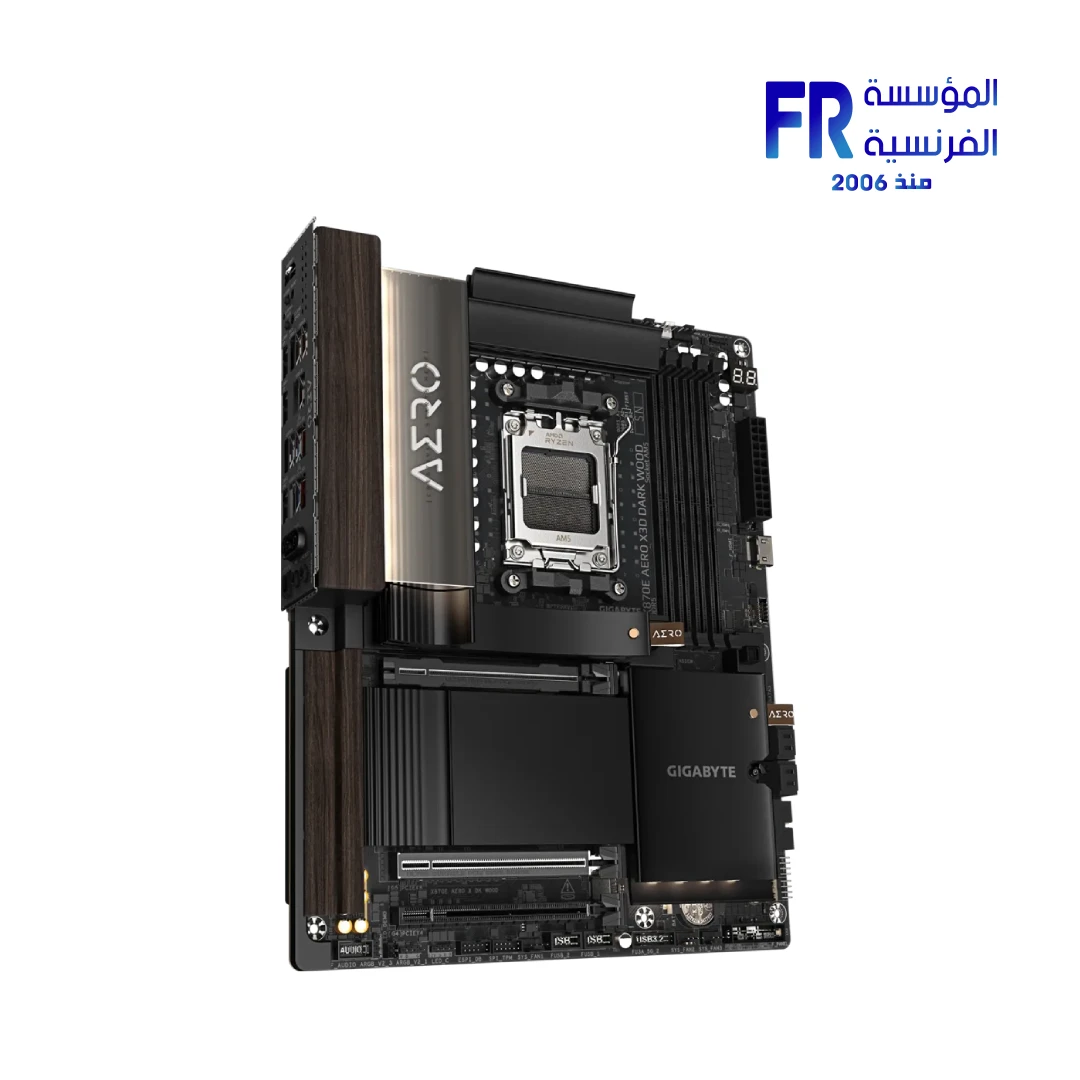

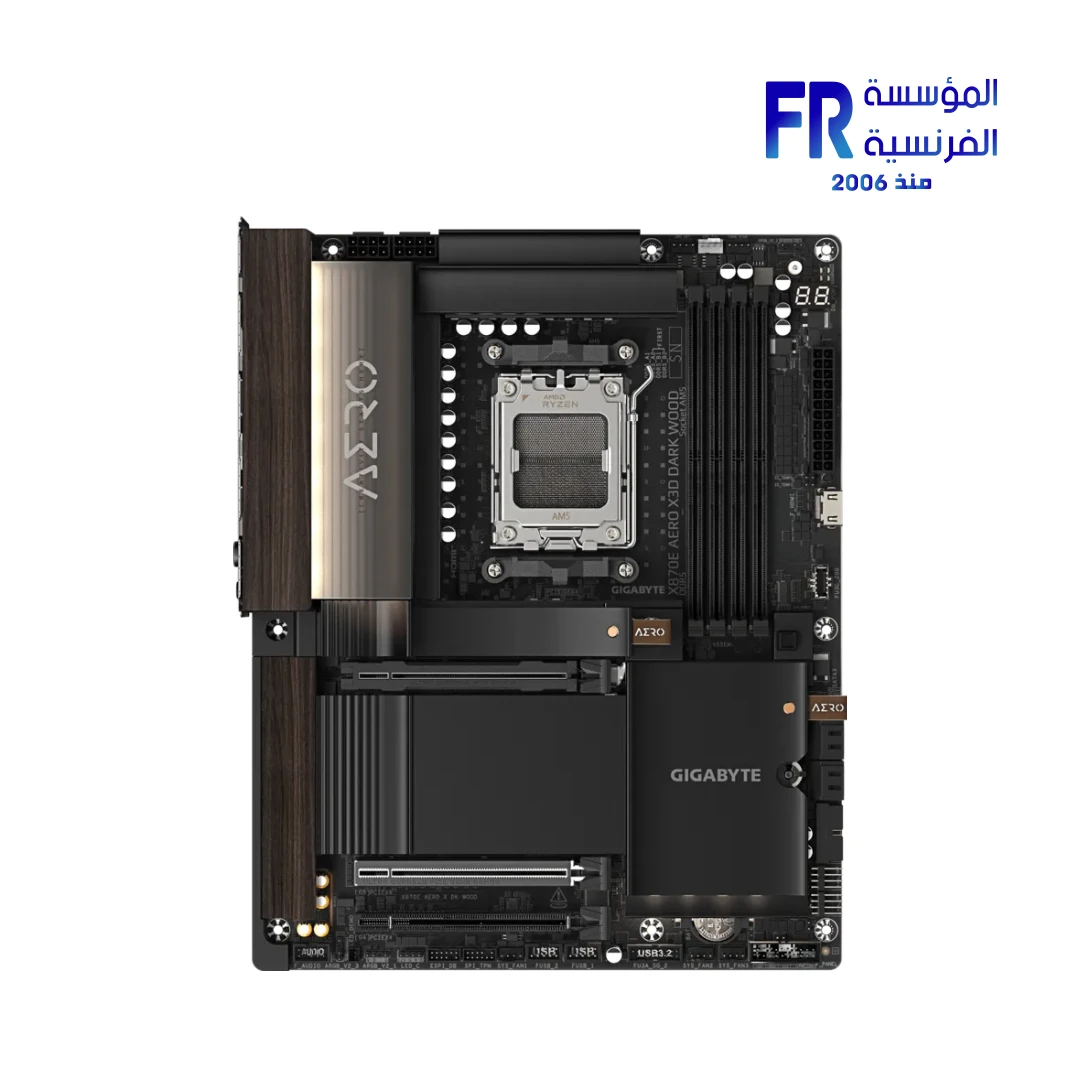

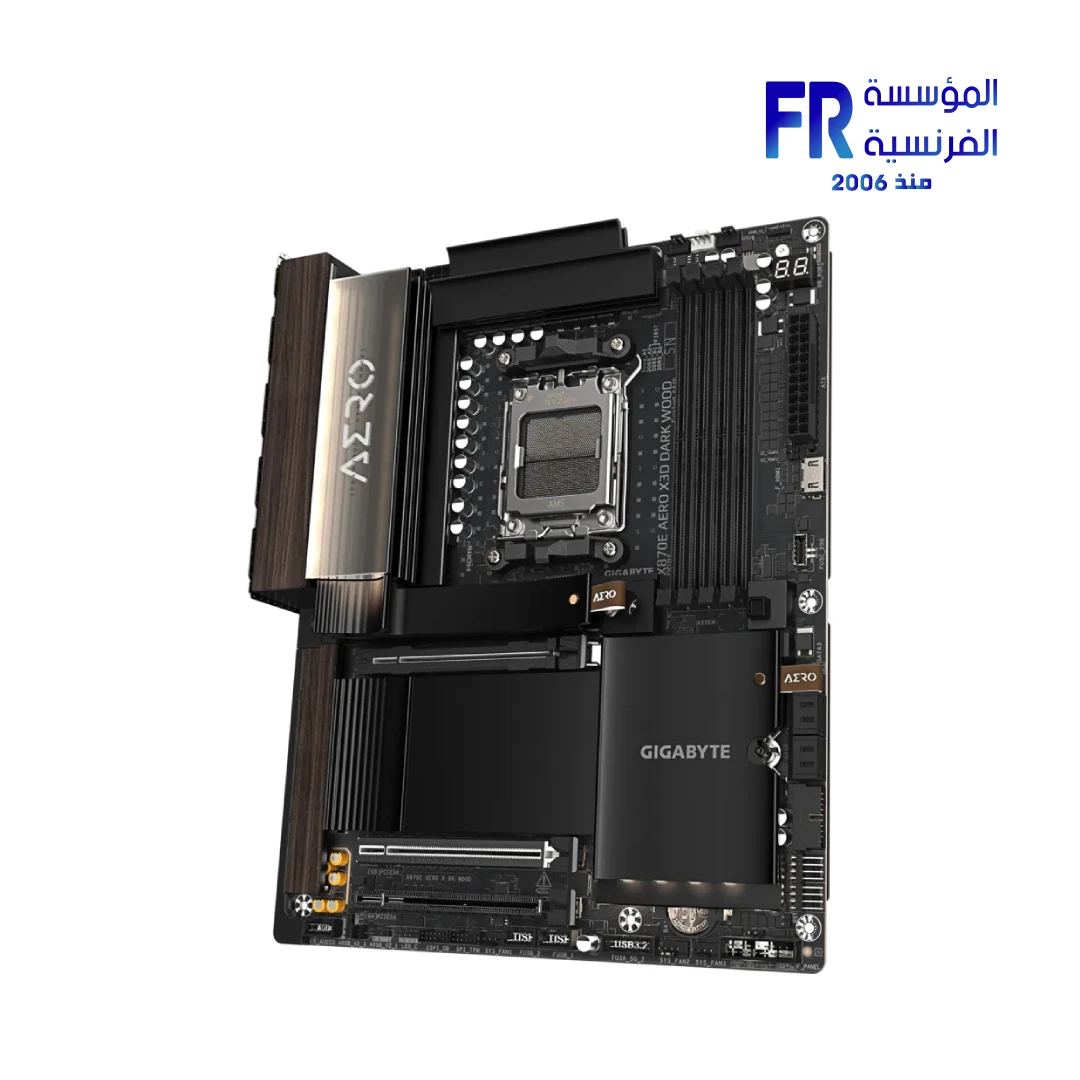

GIGABYTE X870E AERO X3D DARK WOOD is an ATX motherboard for AMD Socket AM5 with the AMD X870E chipset. It features a distinctive dark wood texture finish and leather pull tab. The board includes a 16+2+2 phase digital VRM and supports DDR5 up to 9000 MT/s (OC). In addition, it offers dual PCIe 5.0 slots, four M.2 slots, dual 5GbE LAN, Wi-Fi 7, and dual USB4 Type-C ports. Available at Alfrensia for 21,999 EGP.
⚡ Engineering Highlights at a Glance:
- Dark Wood Texture Design: The board features a deep-grain dark wood finish, leather pull tab, and dark metal tones for a furniture-like aesthetic .
- 16+2+2 Twin Digital VRM: 16 Vcore phases at 60A each, two SoC phases, and two miscellaneous phases with an 8-layer PCB and 2X Copper .
- DDR5 Support up to 9000 MT/s (OC): Four DIMM slots support up to 256GB with AMD EXPO and XMP profiles .
- Dual PCIe 5.0 Slots: One PCIe 5.0 x16 slot with UD Slot X reinforcement plus a second PCIe 5.0 slot running at x8 .
- Four M.2 Slots: Two PCIe 5.0 x4 slots and two PCIe 4.0 x4 slots, with M.2 Thermal Guard L and EZ-Flex designs .
- Dual 5GbE LAN + Wi-Fi 7: Two Realtek 5GbE ports and MediaTek Wi-Fi 7 with Bluetooth 5.4 .
- Dual USB4 Type-C: Two USB4 ports support 40Gbps data transfer and DisplayPort video output .
Design That Stands Apart
The X870E AERO X3D DARK WOOD targets builders who want high-end performance without the typical gaming aesthetic. The deep-grain dark wood texture pairs with dark metal tones and a leather pull tab. As a result, the board looks more at home in a living room than a LAN party . Reviewers note that it delivers the full X870E feature set while offering a restrained look . The design also ties into the Lian Li Lancool 217 Dark case, which shares a similar color scheme .
Power Delivery and Thermal Design

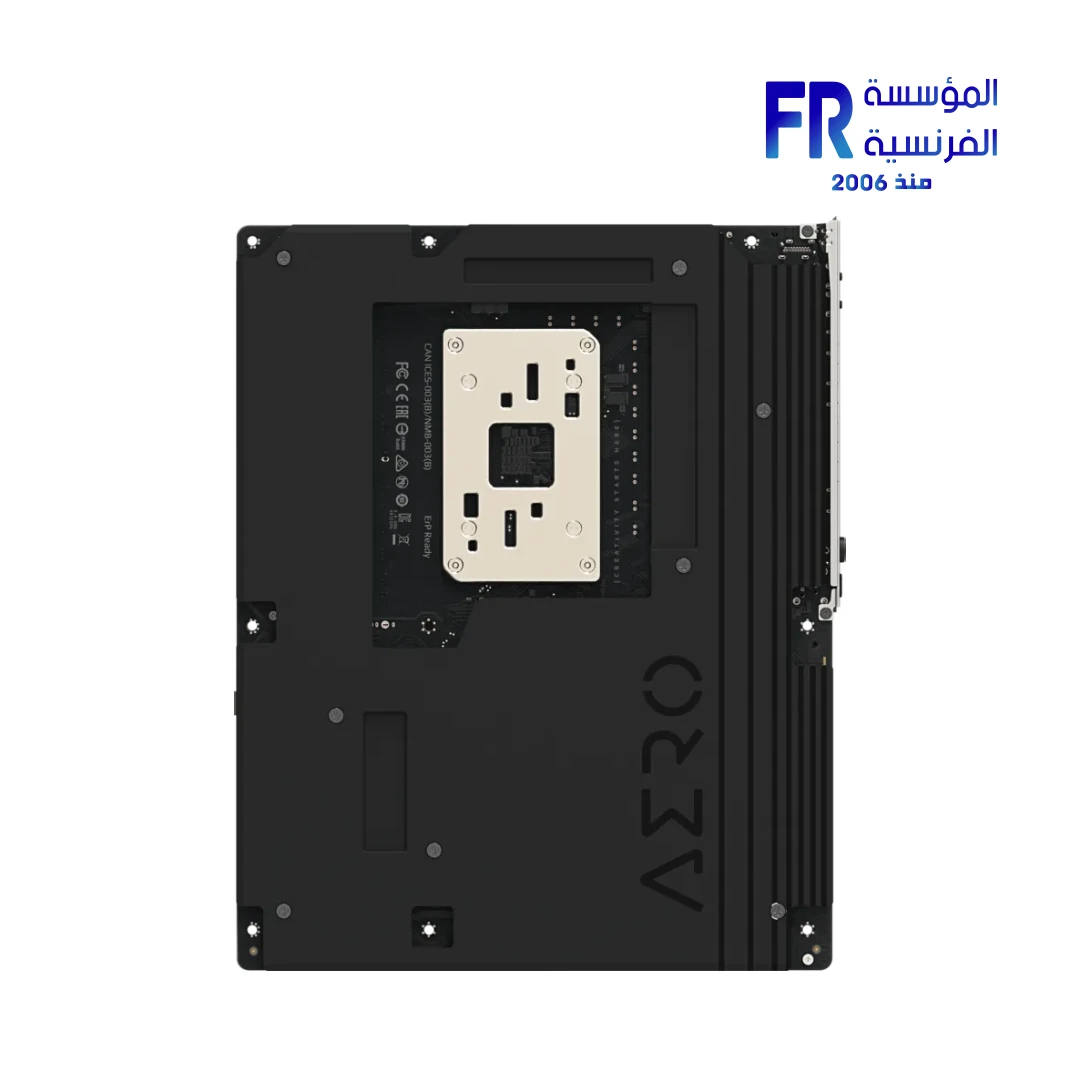

The board uses a 16+2+2 twin digital VRM design with 60A power stages . An 8-layer PCB with 2X Copper and an 8+8 parallel power design maintain stable power delivery during sustained loads. The VRM cooling uses Thermal Armor Advanced with a direct-touch heatpipe and a 7 W/mK thermal pad. In addition, the PCB thermal plate improves thermal performance by 14% . The M.2 slots are covered by Thermal Guard L and Thermal Guard Ext. The M.2 EZ-Flex design provides a flexible baseplate that improves contact between the SSD and heatsink .
Connectivity and Expansion

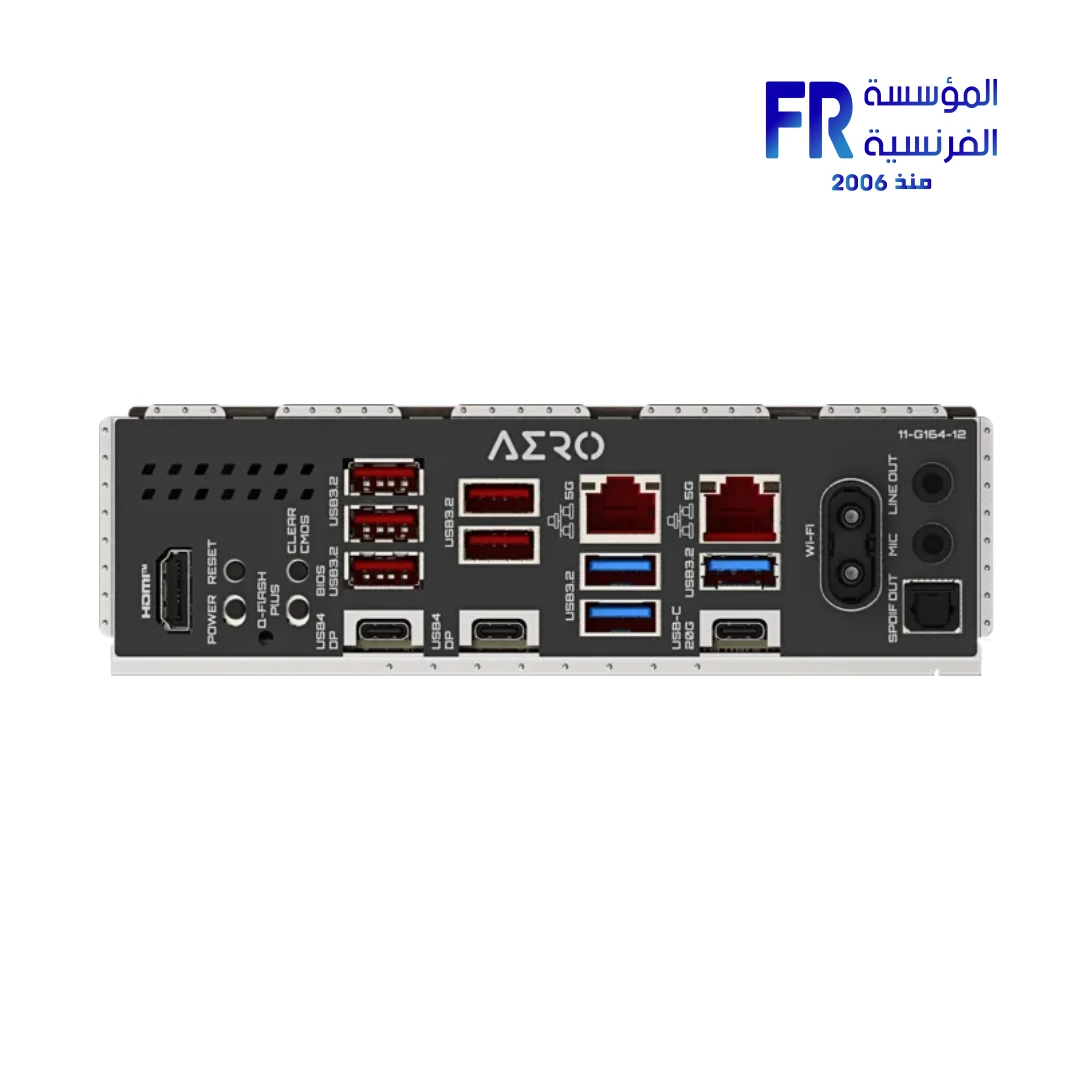

The X870E AERO X3D DARK WOOD offers extensive connectivity. Networking is handled by two Realtek 5GbE LAN chips and MediaTek Wi-Fi 7 with Bluetooth 5.4 . The rear I/O includes two USB4 Type-C ports (40Gbps with DisplayPort Alt Mode), one USB 3.2 Gen 2×2 Type-C port, five USB 3.2 Gen 2 Type-A ports, and three USB 3.2 Gen 1 ports . For storage, the board provides four SATA 6Gb/s ports and four M.2 slots. The expansion slots include one PCIe 5.0 x16 slot with UD Slot X, a second PCIe 5.0 slot running at x8, and a PCIe 4.0 x16 slot running at x4 .
Who is the X870E AERO X3D DARK WOOD For?
Expert Advice & Build Considerations
PCIe Lane Sharing and M.2 Bandwidth
The M2B_CPU slot shares bandwidth with the ASMedia USB4 controller. When a device is installed in M2B_CPU, both the M.2 slot and the USB4 port operate at up to x2 bandwidth . Therefore, avoid populating M2B_CPU if you need full USB4 bandwidth. In addition, the second PCIe 5.0 slot runs at x8 and shares bandwidth with the primary x16 slot . As a result, installing a card in the second slot will drop the primary slot to x8 mode .
Memory Overclocking Requires EXPO or XMP
To reach the advertised DDR5-9000 (OC) speeds, you need memory modules with AMD EXPO or Intel XMP profiles. Because the memory controller is integrated into the CPU, actual supported speeds depend on your processor and the number of DIMMs installed .
📐 Case and Cooling Compatibility
The ATX form factor measures 30.5cm x 24.4cm, so confirm your case supports standard ATX. The board includes eight fan headers and three addressable RGB Gen2 headers plus one RGB LED header . If you plan to use the leather pull tab for cable management, note that it is a design accent rather than a structural component.
المواصفات الفنية
| الموديل | X870E AERO X3D DARK WOOD |
| العلامات التجارية | Gigabyte |
| SKU / MPN | 9MX87AX3D-00-G10 |
| EAN | 889523058398 |
| سوكت المعالج | AMD Socket AM5 |
| Chipset | AMD X870E |
| CPU Support | AMD Ryzen 9000, 8000, and 7000 Series Processors |
| Memory | 4x DDR5 DIMM, up to 256GB, DDR5-9000 (OC) |
| VRM | 16+2+2 Twin Digital VRM, 60A per phase |
| PCIe Slots | 1x PCIe 5.0 x16 (UD Slot X), 1x PCIe 5.0 x8, 1x PCIe 4.0 x4 |
| M.2 Slots | 2x PCIe 5.0 x4, 2x PCIe 4.0 x4 |
| SATA | 4x SATA 6Gb/s |
| LAN | 2x Realtek 5GbE LAN |
| Wireless | Wi-Fi 7 (MediaTek MT7927), Bluetooth 5.4 |
| USB | 2x USB4 Type-C (40Gbps), 1x USB 3.2 Gen 2×2 Type-C, 5x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1 |
| Audio | Realtek ALC1220 CODEC, 7.1-channel, S/PDIF Out |
| Form Factor | ATX (30.5cm x 24.4cm) |
| الضمان | 3 Years Local Alfrensia Warranty |
Expert Recommendation: Getting the Most from Your X870E AERO X3D DARK WOOD
Before installing components, plan your M.2 and PCIe layout carefully. The M2B_CPU slot shares bandwidth with the ASMedia USB4 controller. Therefore, leave that slot empty if you need full USB4 bandwidth . In addition, the primary x16 slot drops to x8 mode when you install a card in the second PCIe 5.0 slot . For memory, enable AMD EXPO in the BIOS to reach your kit’s rated speed. The board supports up to DDR5-9000 (OC), but actual stable speeds depend on your CPU and memory modules . Update to the latest BIOS from Gigabyte’s website for best compatibility with Ryzen 9000 series processors. Because the board includes Q-Flash Plus, you can update the BIOS without a CPU installed. For storage, the M.2 EZ-Latch Click and Plus designs allow tool-free SSD installation, and the M.2 Thermal Guard covers help manage SSD temperatures .
Frequently Asked Questions
What is the difference between the Dark Wood and the standard Wood version?
The Dark Wood variant features a dark wood texture finish with black PCB and dark metal tones. In contrast, the standard X870E AERO X3D WOOD uses a lighter silver and wood design. Both boards share the same core specifications and feature set .
Does the X870E AERO X3D DARK WOOD support Ryzen 9000 series processors?
Yes. The board supports AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket. For the latest CPU support list, check Gigabyte’s website. In addition, update to the latest BIOS for best compatibility .
How many M.2 slots does this motherboard have?
The board has four M.2 slots. Two are PCIe 5.0 x4 slots (M2A_CPU and M2B_CPU), and two are PCIe 4.0 x4 slots (M2C_SB and M2D_SB). The M2B_CPU slot shares bandwidth with the ASMedia USB4 controller .
Does the board have Wi-Fi 7?

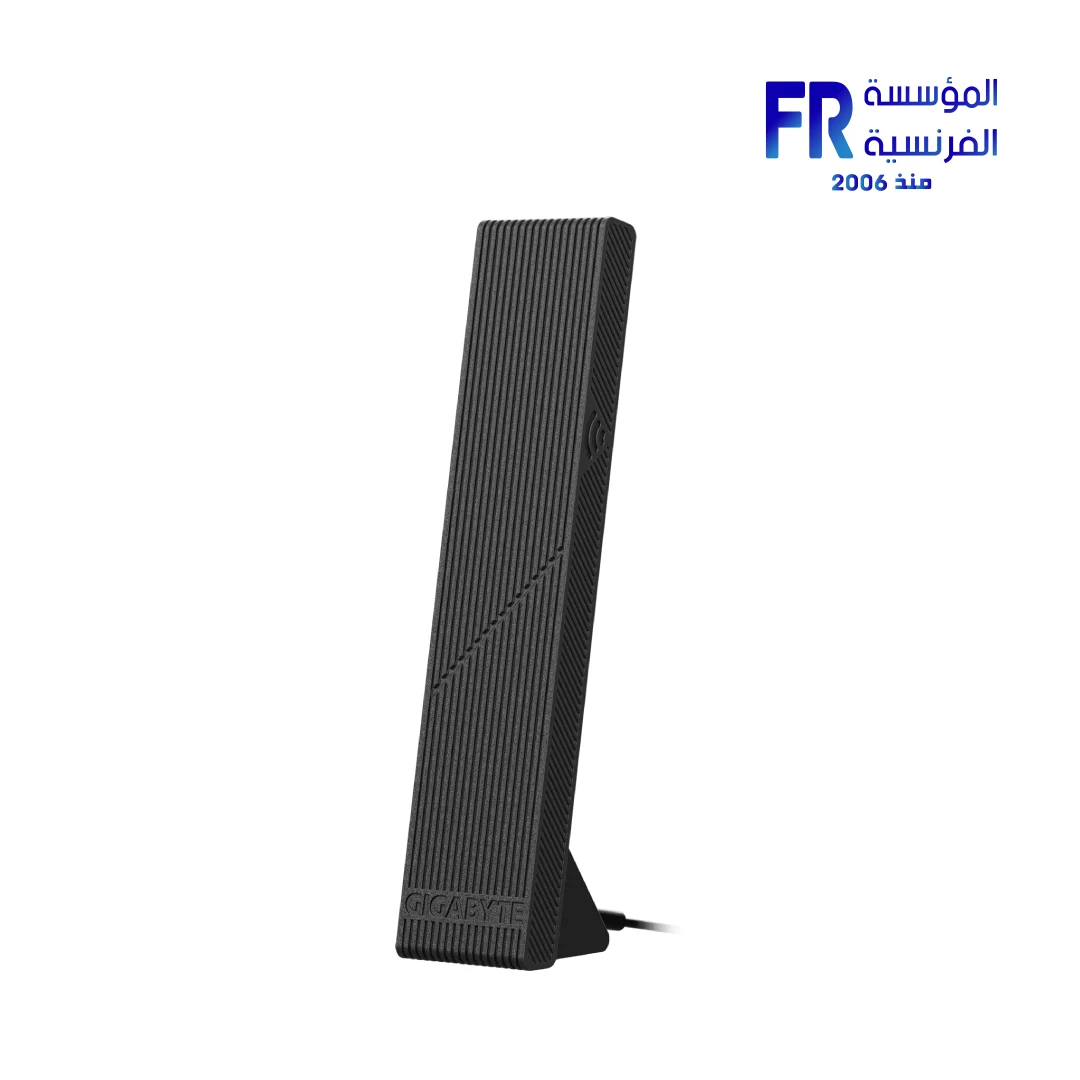

Yes. The X870E AERO X3D DARK WOOD includes MediaTek Wi-Fi 7 (MT7927) with support for 2.4/5/6 GHz bands and Bluetooth 5.4. Wi-Fi 7 features require Windows 11 SV3 to function properly .
What warranty does this motherboard come with?
Alfrensia provides a 3-year local warranty on the GIGABYTE X870E AERO X3D DARK WOOD. Keep your purchase invoice for warranty claims, because it is required for service.
