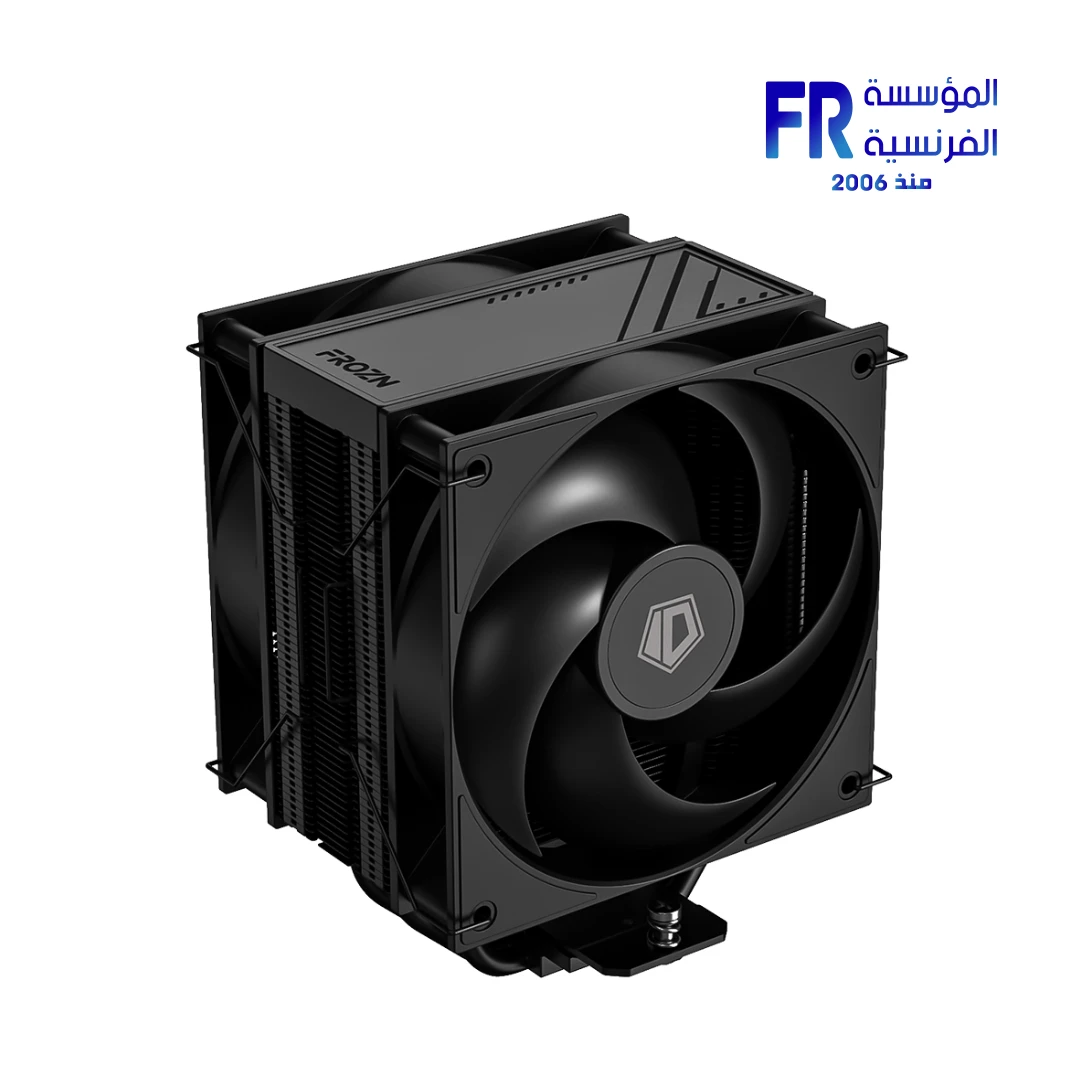

ID-COOLING FROZN A410 XE DK 4 Heatpipe Direct Touch With 2 120mm Hydraulic Bearing Fan Air Cpu Cooler
1450 جنيه
- رقم القطعة: FROZN A410 XE DK / 6931393308654
- Form Factor & Compatibility: Intel LGA1954/1851/1700/1200/115x Series | AMD AM5/AM4
- Cooling Performance: 230W TDP Support | 4× Ф6mm Direct-Touch Copper Heat Pipes | Aluminum Fin Stack | 120 x 98 x 152 mm Dimensions | 840g Weight
- Fan Specifications: Dual 120mm XF-120S-K Hydraulic Bearing Fans | 300 ~ 2000±10% RPM | 58 CFM Max Air Flow | 1.94 mmH₂O Max Static Pressure | 27.2 dB(A) Max Noise Level
- Power & Connectivity: 12VDC Rated Voltage | 1.56W Power Input | 4-Pin PWM Connector for precise speed control
- الضمان: 3 years
متوفر في المخزون
ضمان مطابقة السعر
ID-COOLING FROZN A410 XE DK
4 Heatpipe Direct-Touch CPU Cooler
4× Φ6mm direct-touch copper heatpipes. Dual 120mm hydraulic bearing PWM fans. 230W TDP. Intel LGA1954/1851/1700 · AMD AM5/AM4.
230W TDP
Dual 120mm Fans
300–2000 RPM
230W TDP
Dual 120mm
58 CFM
27.2 dB(A)
Direct-touch cooling. Dual-fan precision.
The FROZN A410 XE DK is built around four Φ6mm copper heatpipes with direct-touch technology paired to a dense aluminum fin stack. The result is efficient heat transfer from the CPU die to the heatsink, with a 230W TDP rating suited to mainstream through high-end desktop CPUs.
Two XF-120S-K 120mm hydraulic bearing PWM fans push air at up to 2000 RPM, delivering 58 CFM and 1.94 mmH₂O static pressure while keeping noise at a maximum of 27.2 dB(A). The cooler is ready for Intel LGA1954 / 1851 / 1700 / 1200 / 115x and AMD AM5 / AM4.
230W
4× Φ6mm (Direct Touch)
2× XF-120S-K 120mm PWM
300 – 2000 ±10% RPM
2 Years

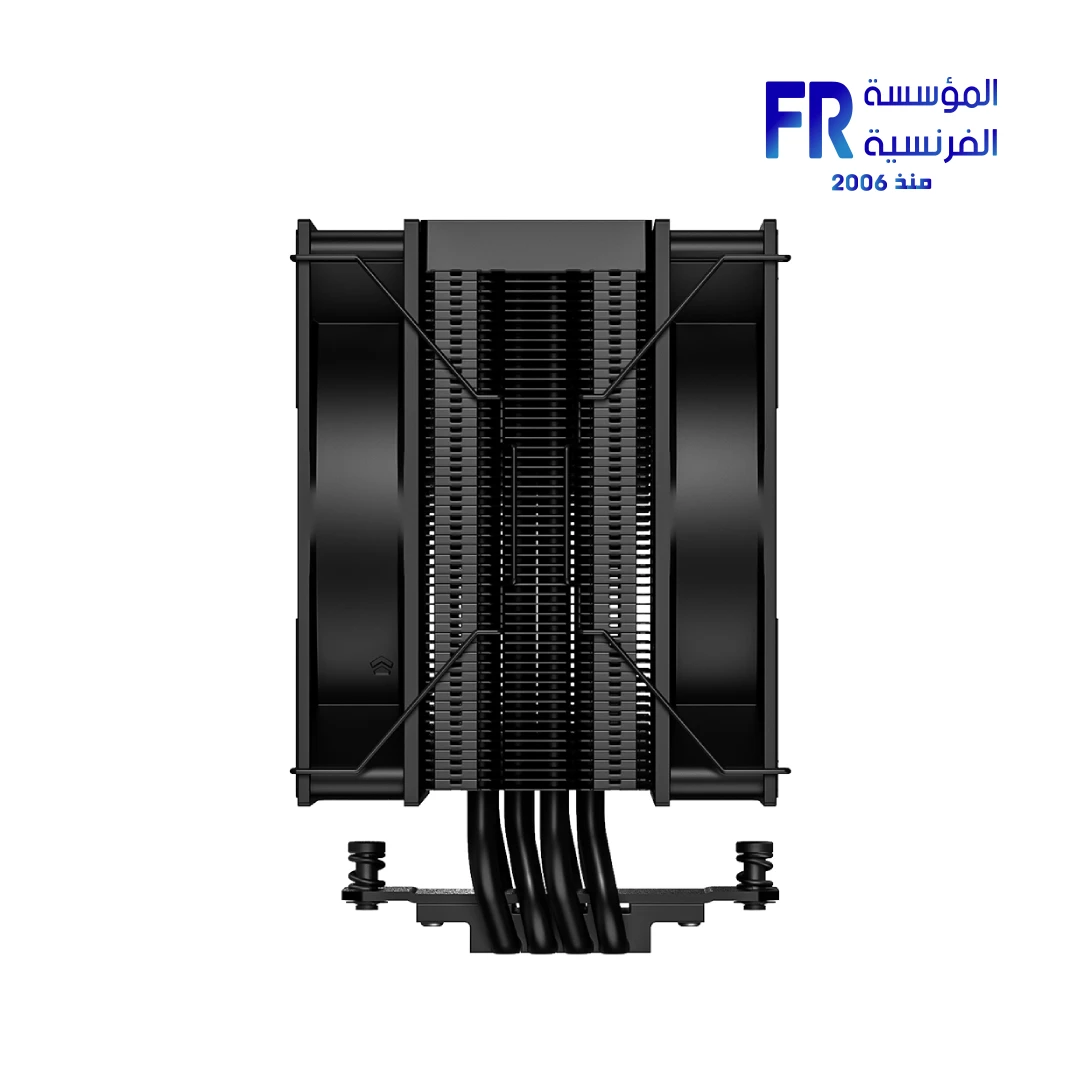

4× Φ6mm Direct-Touch Heatpipes
Direct-touch technology places the heatpipes in direct contact with the CPU surface, eliminating an extra layer of thermal impedance. Four Φ6mm copper heatpipes carry heat into a dense aluminum fin stack for a 230W TDP class of cooling performance — a meaningful step up for high-load desktop CPUs.
Engineered for Demanding CPUs
230W TDP Support
Built for demanding mainstream-to-high-end desktop CPUs.
Direct-Touch Copper Base
Heatpipes meet the CPU surface directly for efficient heat transfer.
Dual 120mm Fans
XF-120S-K hydraulic bearing PWM fans for reliable, quiet airflow.
58 CFM Airflow
Solid airflow with 1.94 mmH₂O static pressure for dense fin stacks.
27.2 dB(A) Max Noise
Quiet-class operation even at full fan speed.
4-Pin PWM Control
Speed adjusts automatically to system load via motherboard PWM.
Intel LGA1954 / 1851 / 1700 · AMD AM5 / AM4
Intel: LGA1954 · 1851 · 1700 · 1200 · 1151 · 1150 · 1155 · 1156
AMD: AM5 · AM4
Whether you’re building a current-generation LGA1954 or LGA1851 system, an AM5 rig, or refreshing an older AM4 or LGA1200 build, the FROZN A410 XE DK is designed to mount cleanly with the included hardware.
Compact Tower With Clearance
The heatsink is 120 × 98 × 152 mm and weighs 840 g with both fans installed. The single-tower layout keeps the cooler clear of RAM slots, and the dual-fan configuration works either in push-pull or push-only depending on your airflow direction and case layout.
What’s in the Box
4 direct-touch heatpipes
120mm hydraulic bearing PWM
Intel & AMD brackets
Installation guide
المواصفات الفنية
| الموديل | ID-COOLING FROZN A410 XE DK |
|---|---|
| Compatibility | Intel LGA1954/1851/1700/1200/1151/1150/1155/1156 · AMD AM5/AM4 |
| TDP | 230W |
| Overall Dimensions | 120 × 98 × 152 mm (L×W×H) |
| Heatsink Material | 4× Φ6mm Heatpipe (Direct Touch) + Aluminum Fin |
| Weight | 840 g (heatsink + fan) |
| Fan Model | XF-120S-K (2 units) |
| Fan Dimensions | 120 × 120 × 25 mm (each) |
| Fan Speed | 300 – 2000 ±10% RPM |
| Max. Air Flow | 58 CFM |
| Max. Static Pressure | 1.94 mmH₂O |
| Noise | 27.2 dB(A) Max. |
| Rated Voltage | 12 VDC (4-Pin PWM) |
| Operating Voltage | 10.8 – 13.2 VDC |
| Started Voltage | 7 VDC |
| Rated Current | 0.13 A |
| Power Input | 1.56 W |
| Bearing Type | Hydraulic Bearing |
| Connector | 4-Pin PWM |
| الضمان | 2 Years |
Frequently Asked Questions
What CPU sockets does the FROZN A410 XE DK support?
+
The FROZN A410 XE DK supports Intel LGA1954, LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, and AMD AM5, AM4 sockets.
What is direct-touch technology?
+
Direct-touch technology places the copper heatpipes in direct contact with the CPU surface, removing the extra thermal interface layer that would otherwise sit between the CPU and the heatpipes. This improves heat transfer efficiency.
What is the TDP rating of this cooler?
+
The cooler is rated for up to 230W TDP, suited to demanding mainstream to high-end desktop CPUs.
Are the fans PWM-controlled?
+
Yes. Both XF-120S-K fans use a 4-pin PWM connector, so fan speed adjusts automatically from 300 to 2000 RPM based on motherboard PWM signal.
What warranty is included?
+
The ID-COOLING FROZN A410 XE DK is covered by a 2-year warranty against manufacturing defects. Please contact your local retailer for warranty support.
Cool Your Build with Confidence
4 direct-touch heatpipes · 230W TDP · dual 120mm PWM fans · Intel LGA1954 to AMD AM4 — backed by a 2-year warranty.
✓ 2-Year Warranty
✓ 230W TDP Support
