⚡ Engineering Highlights at a Glance:

• 2.1-Inch LCD Display: 480×480 resolution, 300cd/m² brightness, and 60Hz refresh rate for custom animations and system info.
• 350W TDP Cooling Capacity: Handles high-end processors with demanding thermal loads.

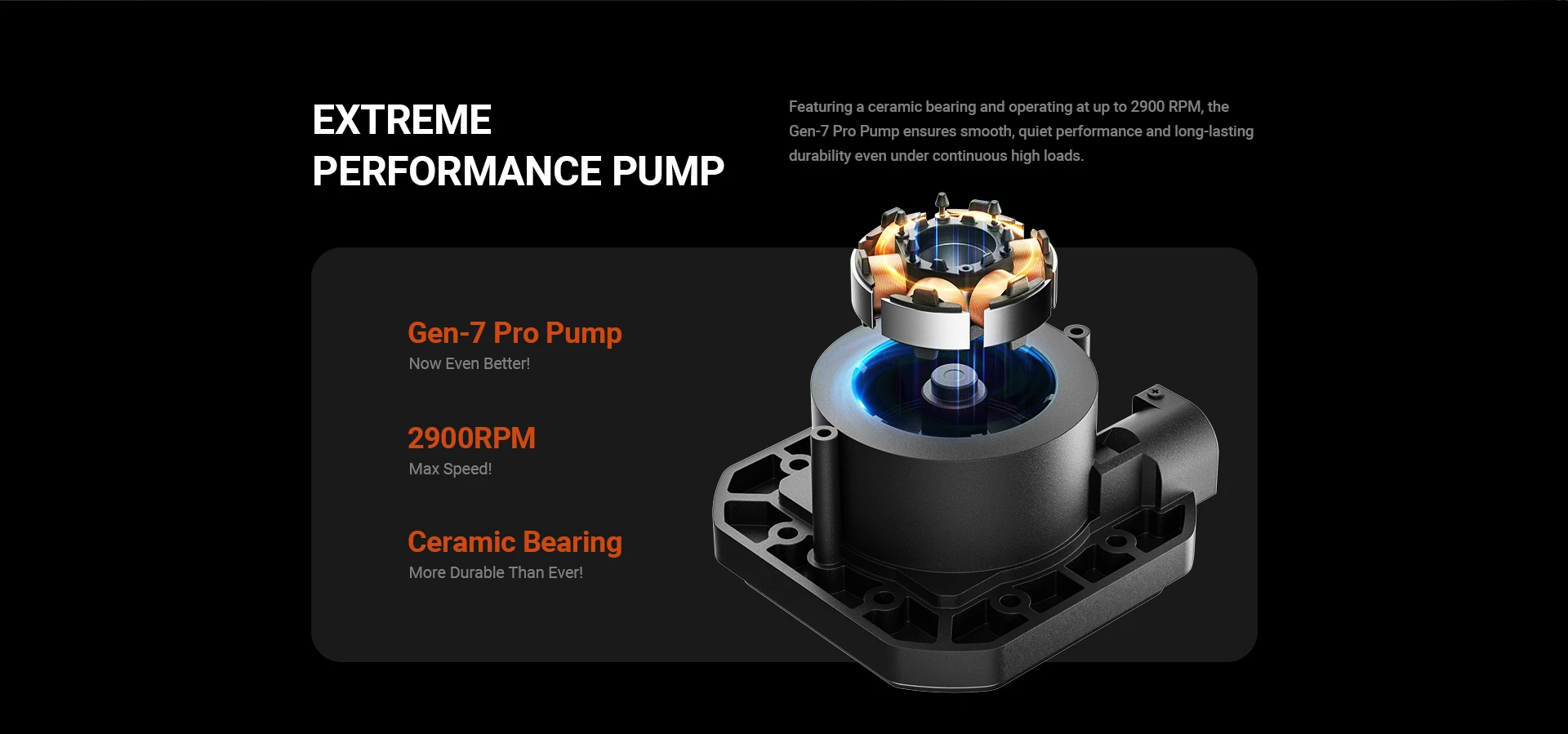

• 2900 RPM Pump: PWM-controlled pump with ceramic bearing and 50,000-hour life expectancy at 25dB(A) noise level.

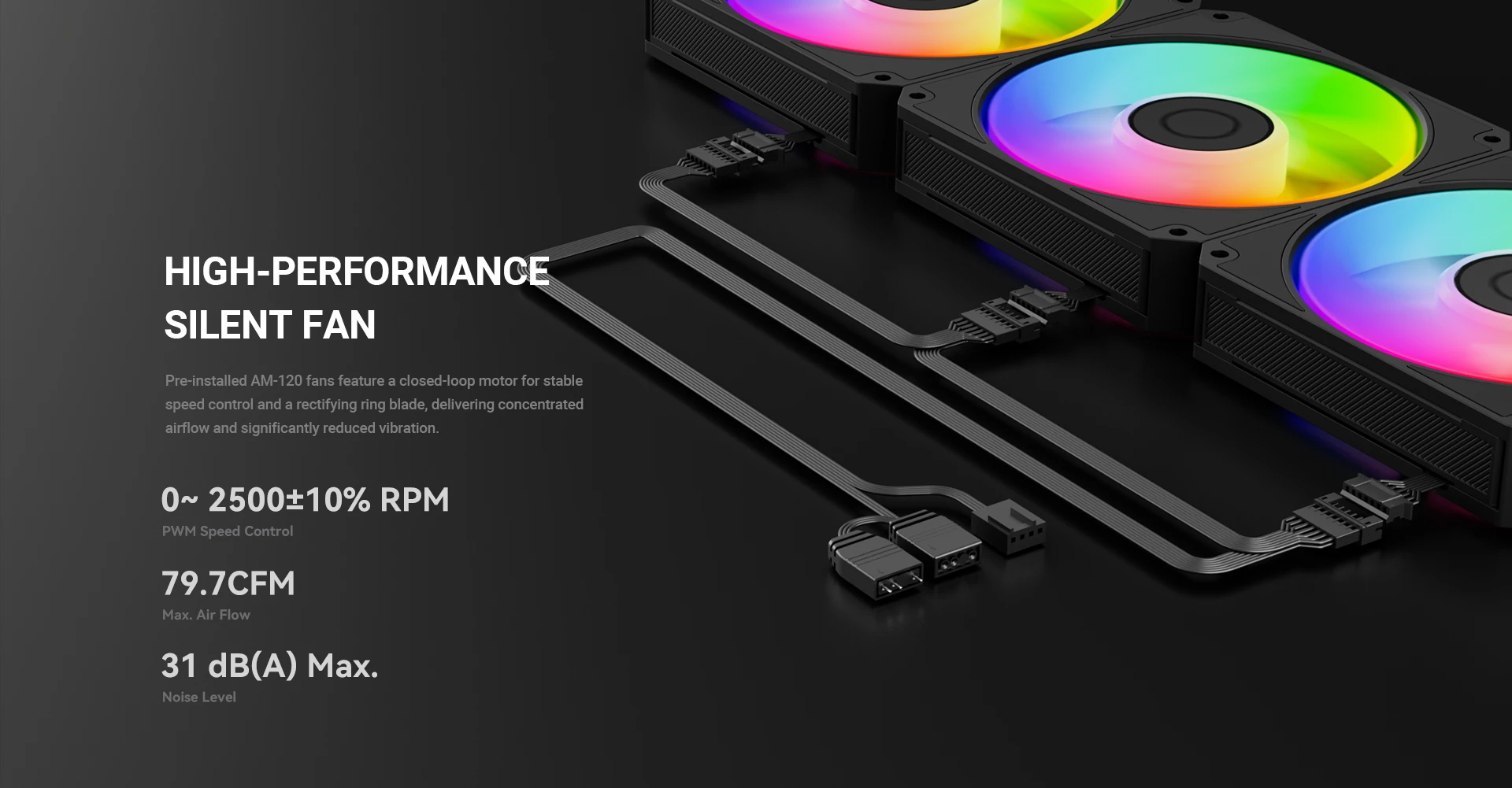

• Three 120mm ARGB Fans: Up to 2500 RPM, 79.7 CFM airflow, and 3.65 mmH2O static pressure with hydraulic bearings.
• 396mm Aluminum Radiator: Large surface area for efficient heat dissipation with premium sleeved tubing.
• Copper Cold Plate: High-conductivity copper base for rapid heat transfer from the CPU.
• Broad Socket Support: Compatible with Intel LGA1954/1851/1700/1200/115X and AMD AM5/AM4.
• ARGB Lighting: 7-pin connector (4-pin PWM + 5V 3-pin ARGB) for synchronized lighting effects.

LCD Display and Customization

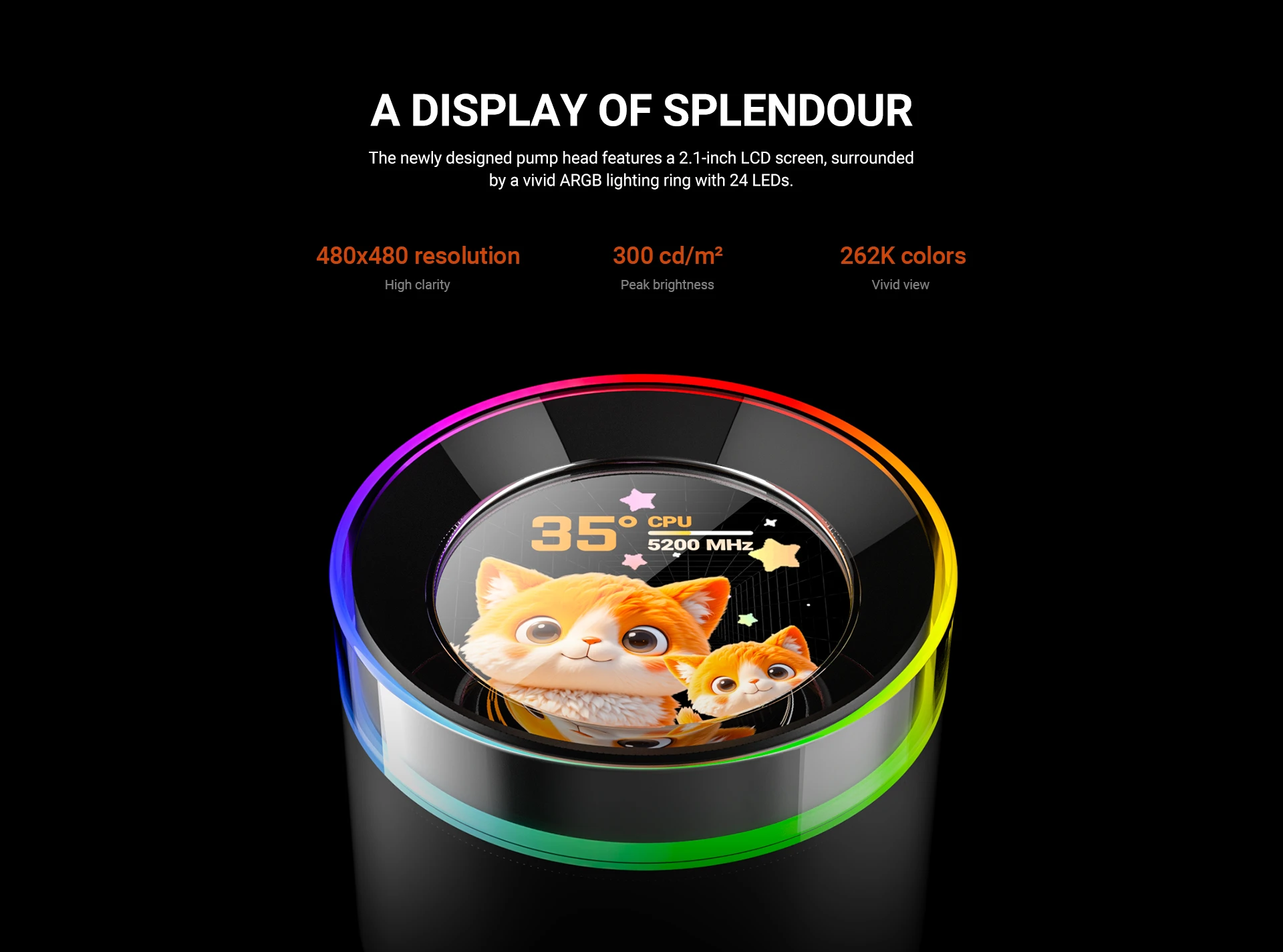

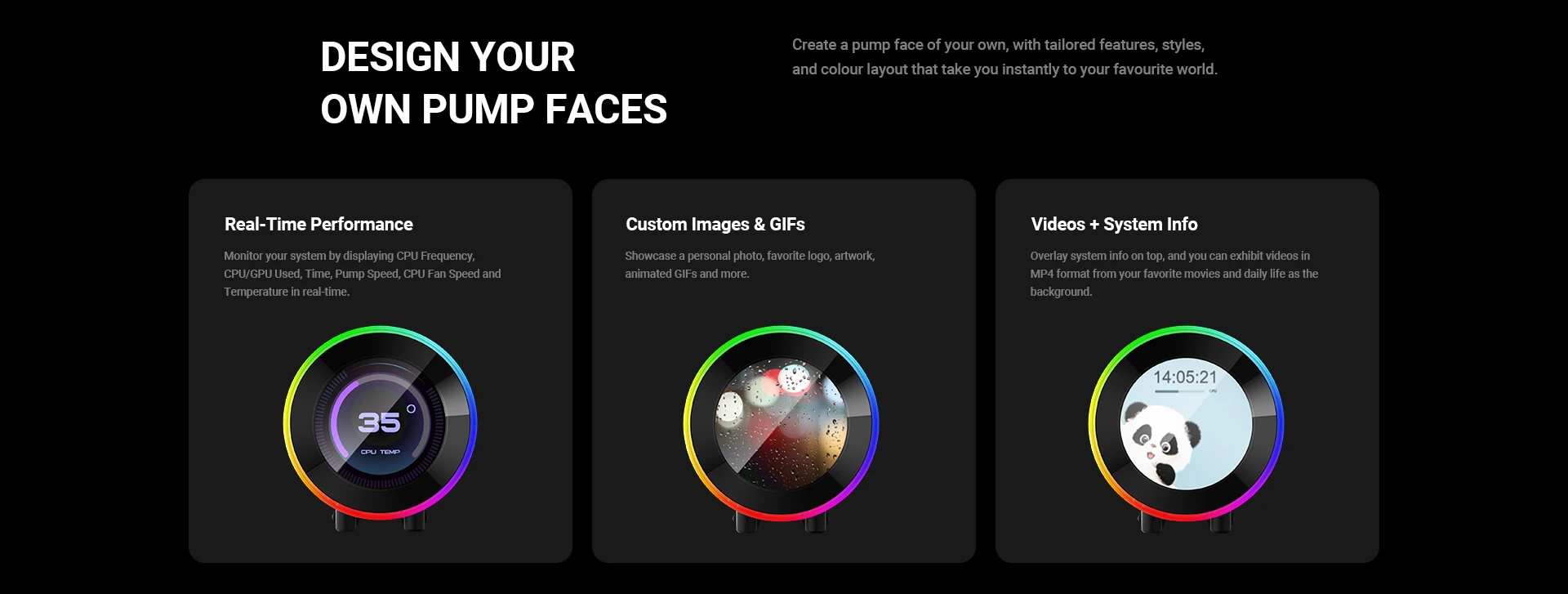

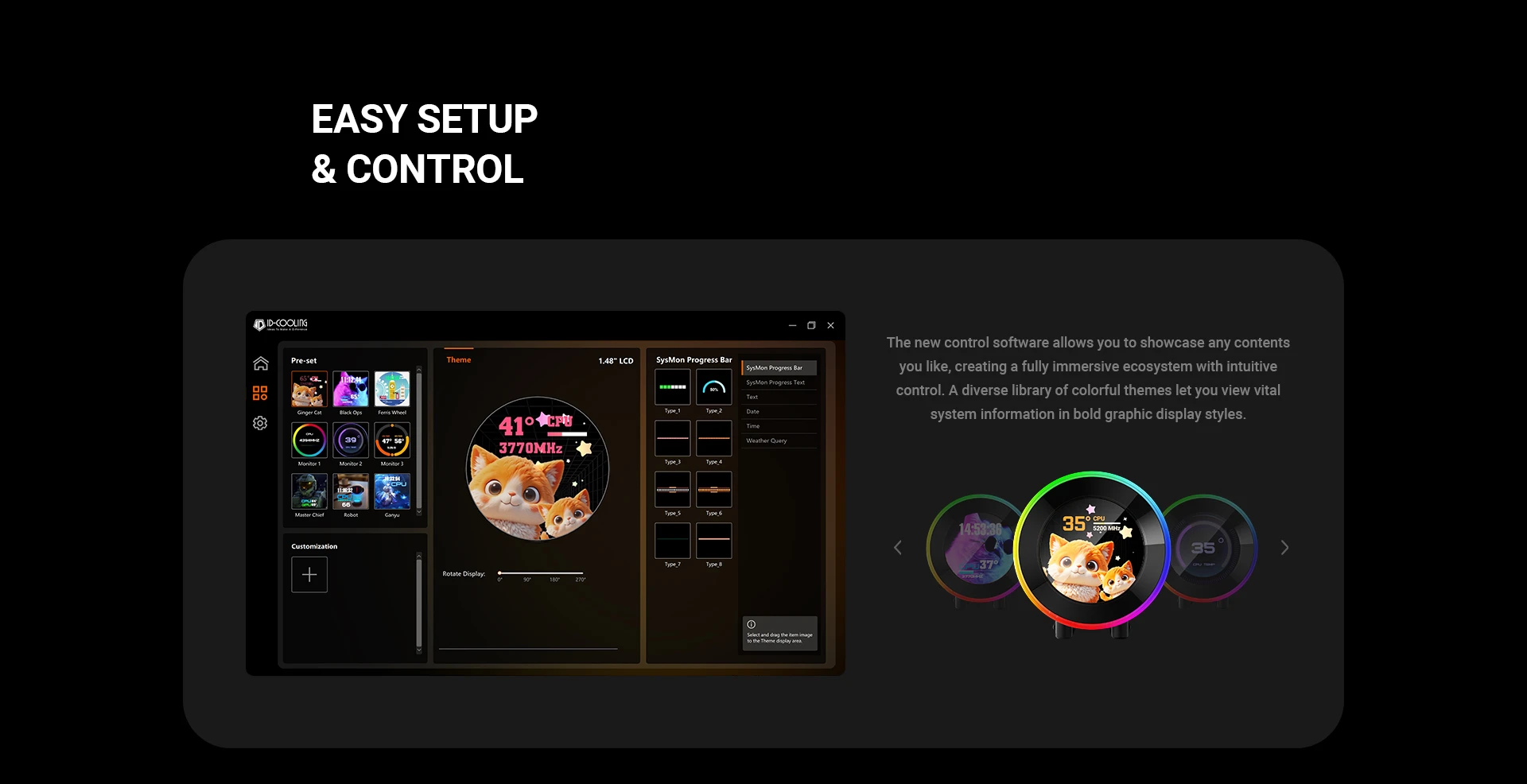

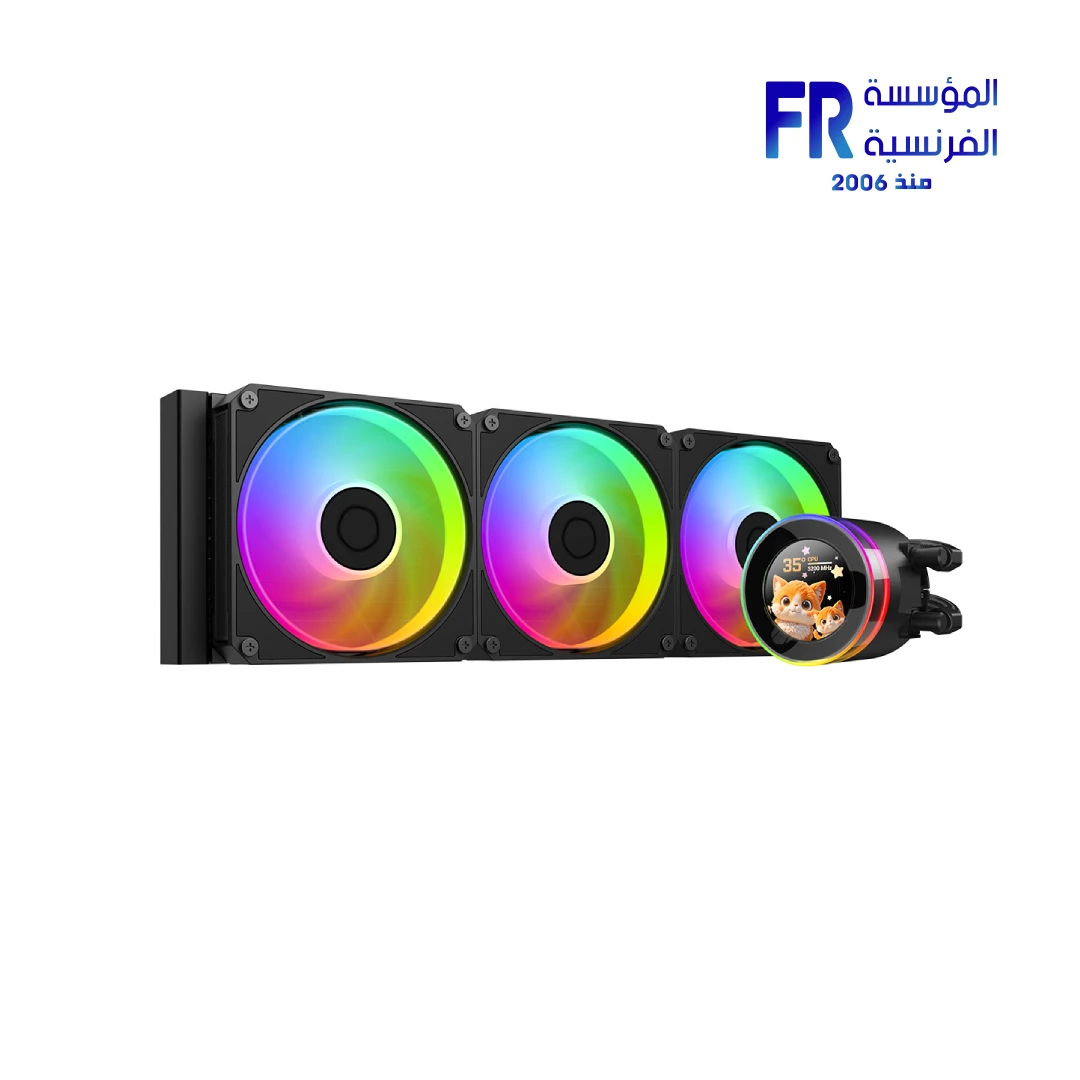

The SL360 V2 features a 2.1-inch LCD display with 480×480 resolution, 300cd/m² brightness, and 60Hz refresh rate. Use the ID-COOLING software to display system information such as CPU temperature, frequency, or usage, or upload custom images and animations. The display requires Windows 10 or Windows 11 and connects via USB. The ARGB fans can be synchronized with your motherboard’s 5V 3-pin ARGB header for system-wide lighting effects.

📐 Radiator and Case Clearance

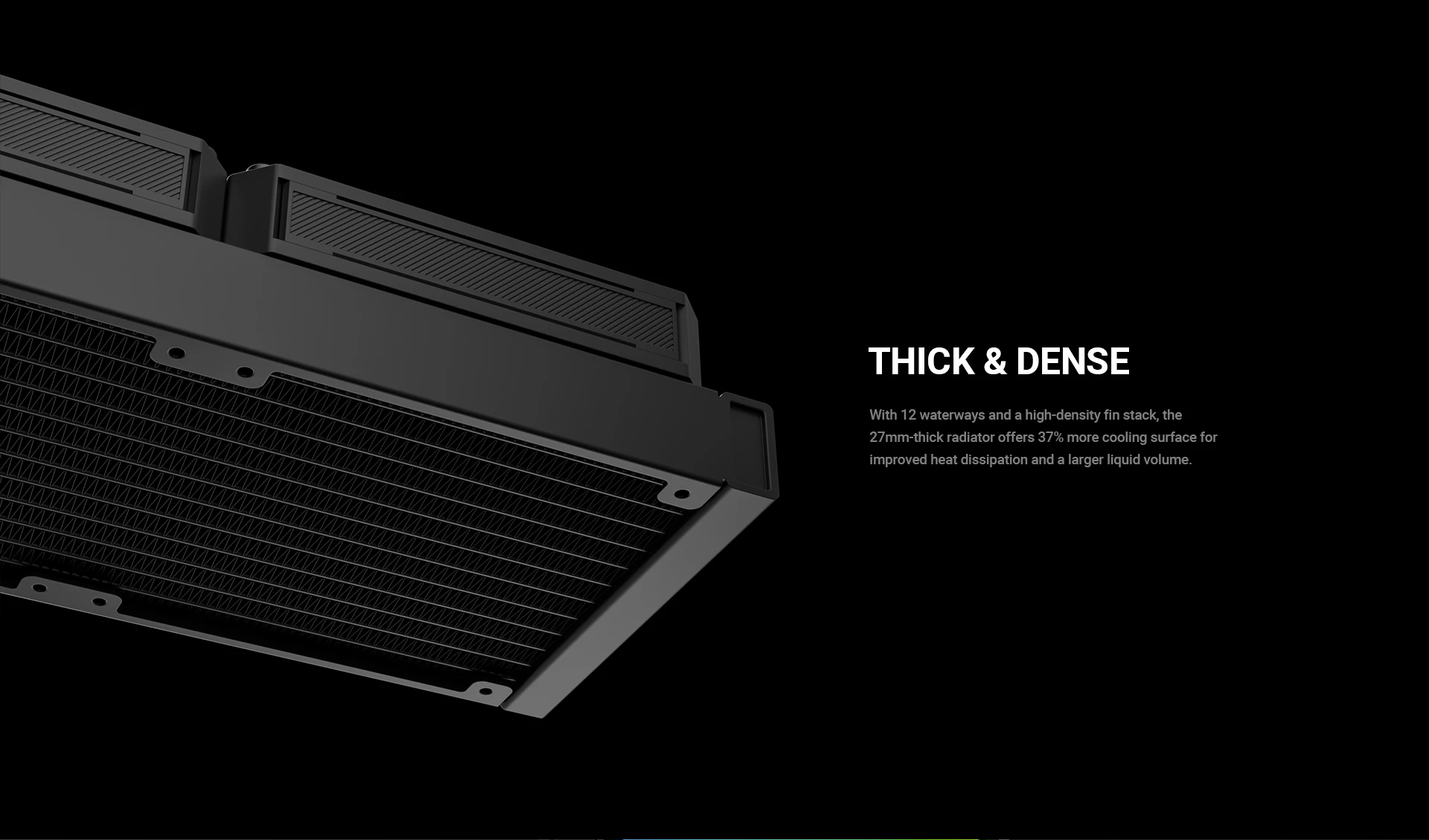

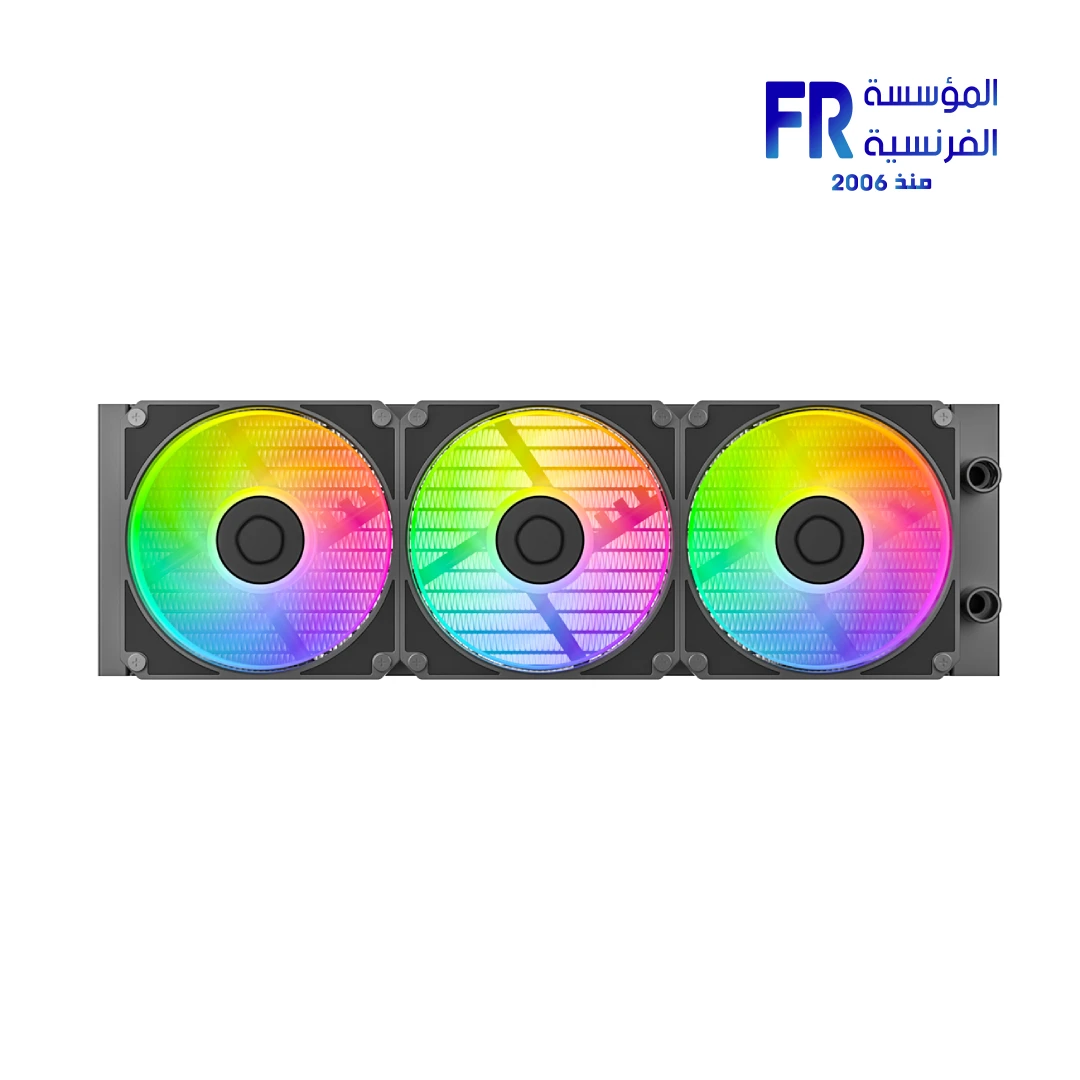

The 396 x 120 x 27mm radiator requires a case that supports 360mm radiator mounting with sufficient clearance. The 27mm thickness is standard for AIO radiators, but the 396mm length means you need a case with at least 400mm of mounting space. The 420mm sleeved tubing provides ample length for routing in most mid-tower and full-tower cases. Verify your case specifications before purchase.

🔧 Socket Compatibility and Installation

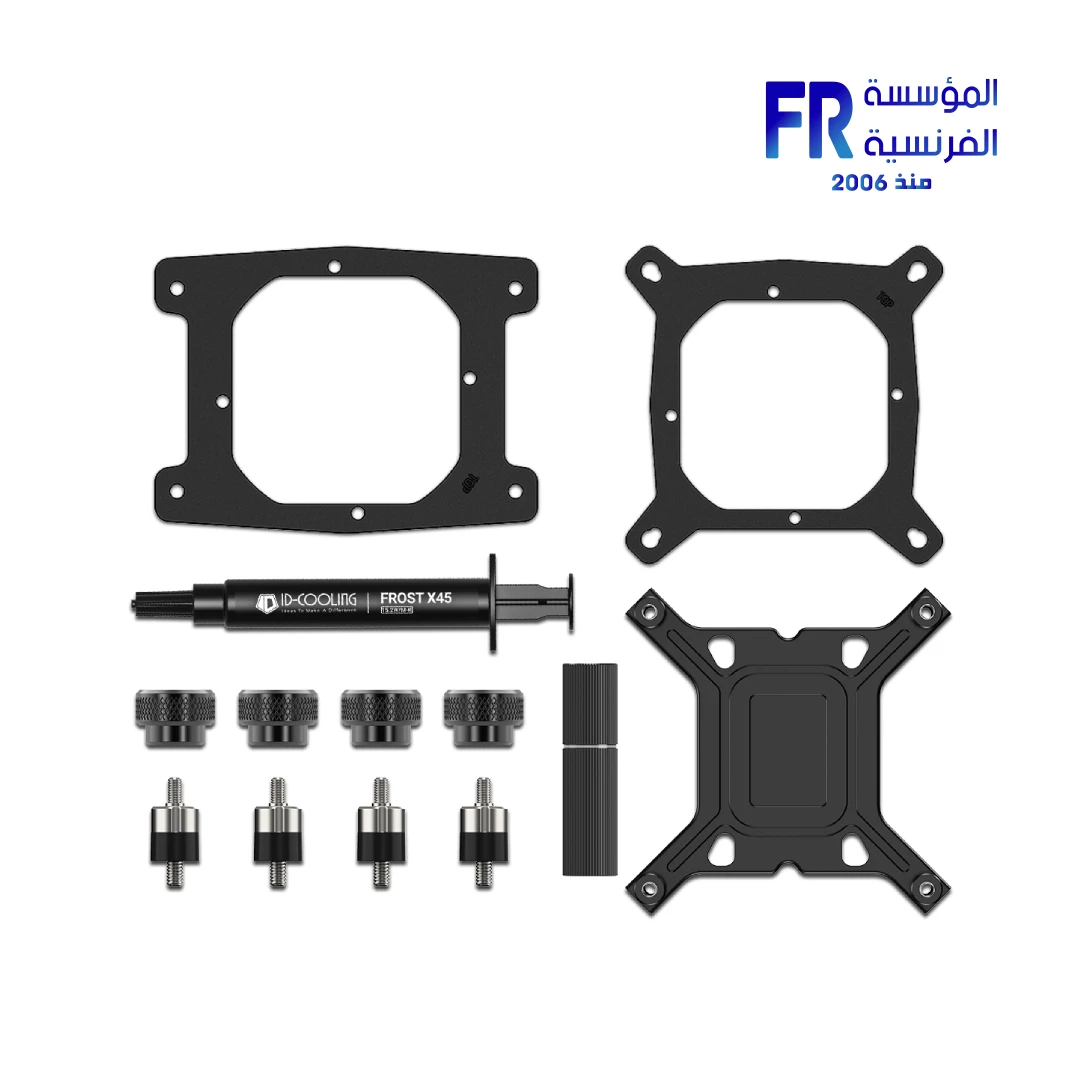

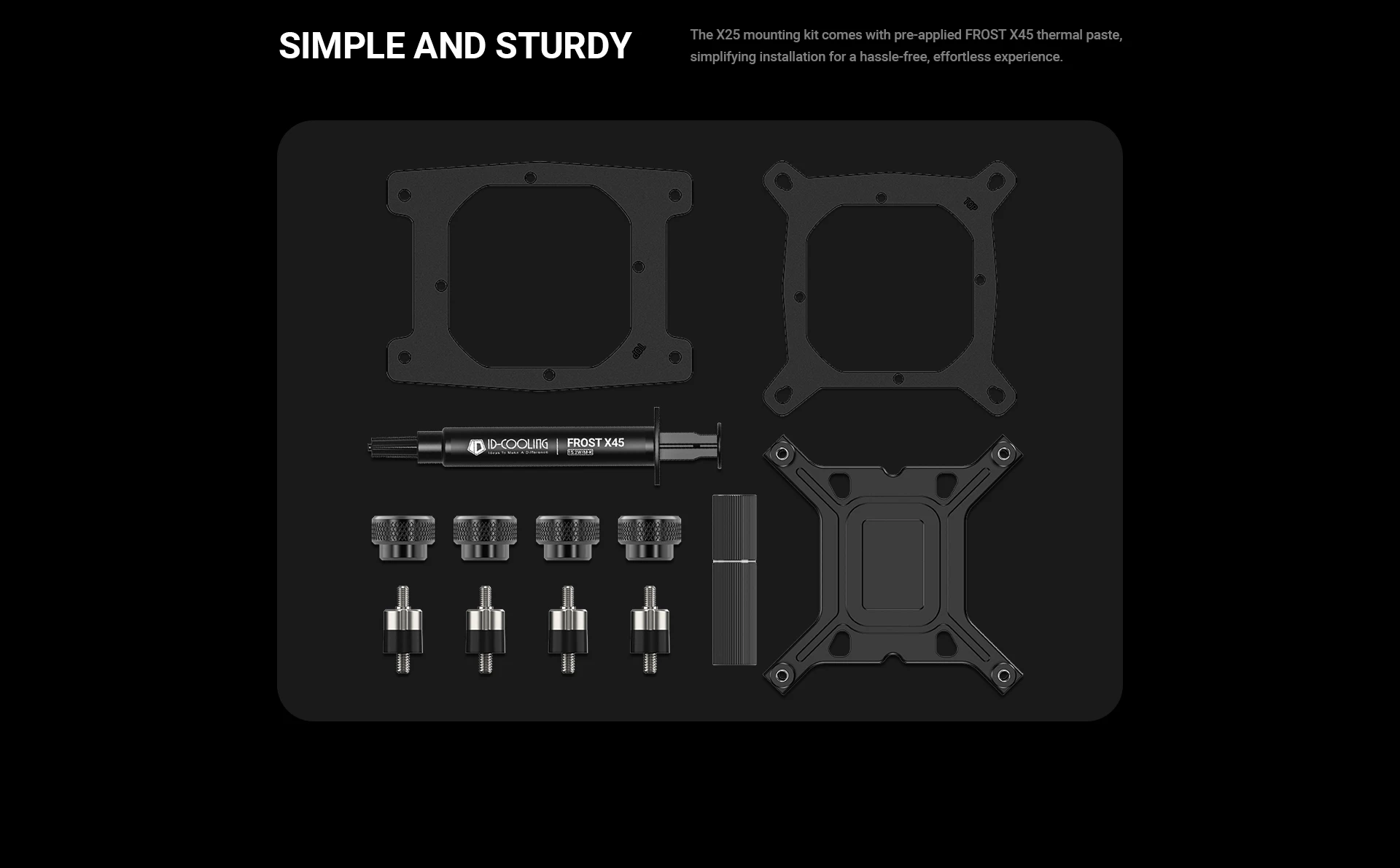

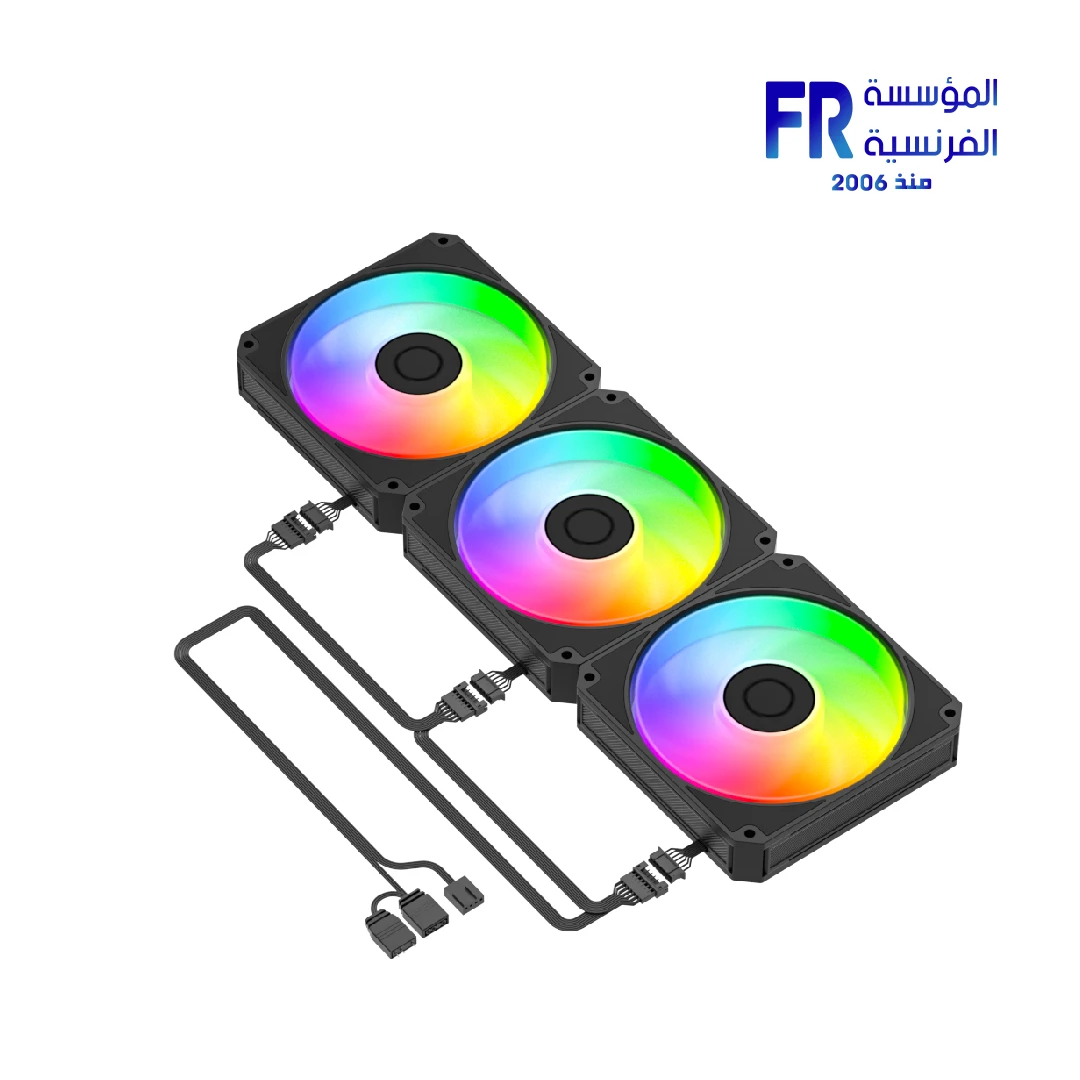

The SL360 V2 supports Intel LGA1954/1851/1700/1200/115X and AMD AM5/AM4 sockets out of the box. The copper cold plate and universal mounting kit ensure compatibility with current-generation processors. The pump operates at 2900 RPM with PWM control and a ceramic bearing rated for 50,000 hours. The three AM-120-ARGB fans feature hydraulic bearings and 7-pin connectors (4-pin PWM + 5V 3-pin ARGB) for combined power and lighting control. The fans deliver up to 79.7 CFM airflow and 3.65 mmH2O static pressure at a maximum noise level of 31.0dB(A).

For optimal cooling performance, mount the 396mm radiator at the top of your case with the fans configured as exhaust, pushing hot air out of the system. Alternatively, front mounting with intake fans is viable and often provides cooler air to the radiator. Connect the pump to the AIO_PUMP header and the fans to CPU_FAN and SYS_FAN headers. Use the ID-COOLING software to customize the 2.1-inch LCD display with system information or custom animations. Synchronize the ARGB fans with your motherboard’s 5V 3-pin header for system-wide lighting effects. The 2900 RPM pump and high-static-pressure fans deliver strong thermal performance for high-TDP processors. Clean the radiator fins periodically with compressed air to maintain airflow efficiency. The 350W TDP rating and broad socket support make this cooler suitable for flagship Intel Core i9 and AMD Ryzen 9 builds.
