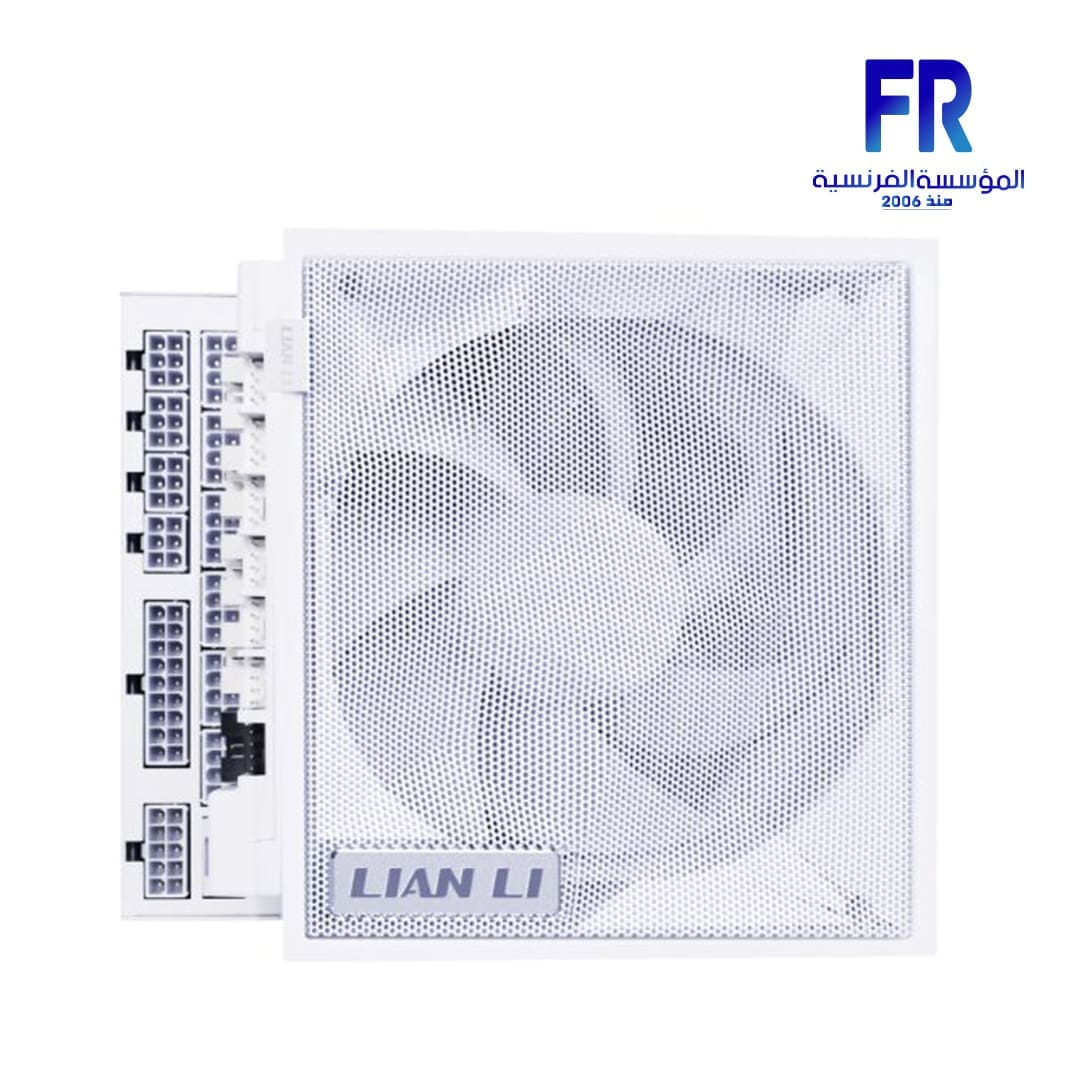

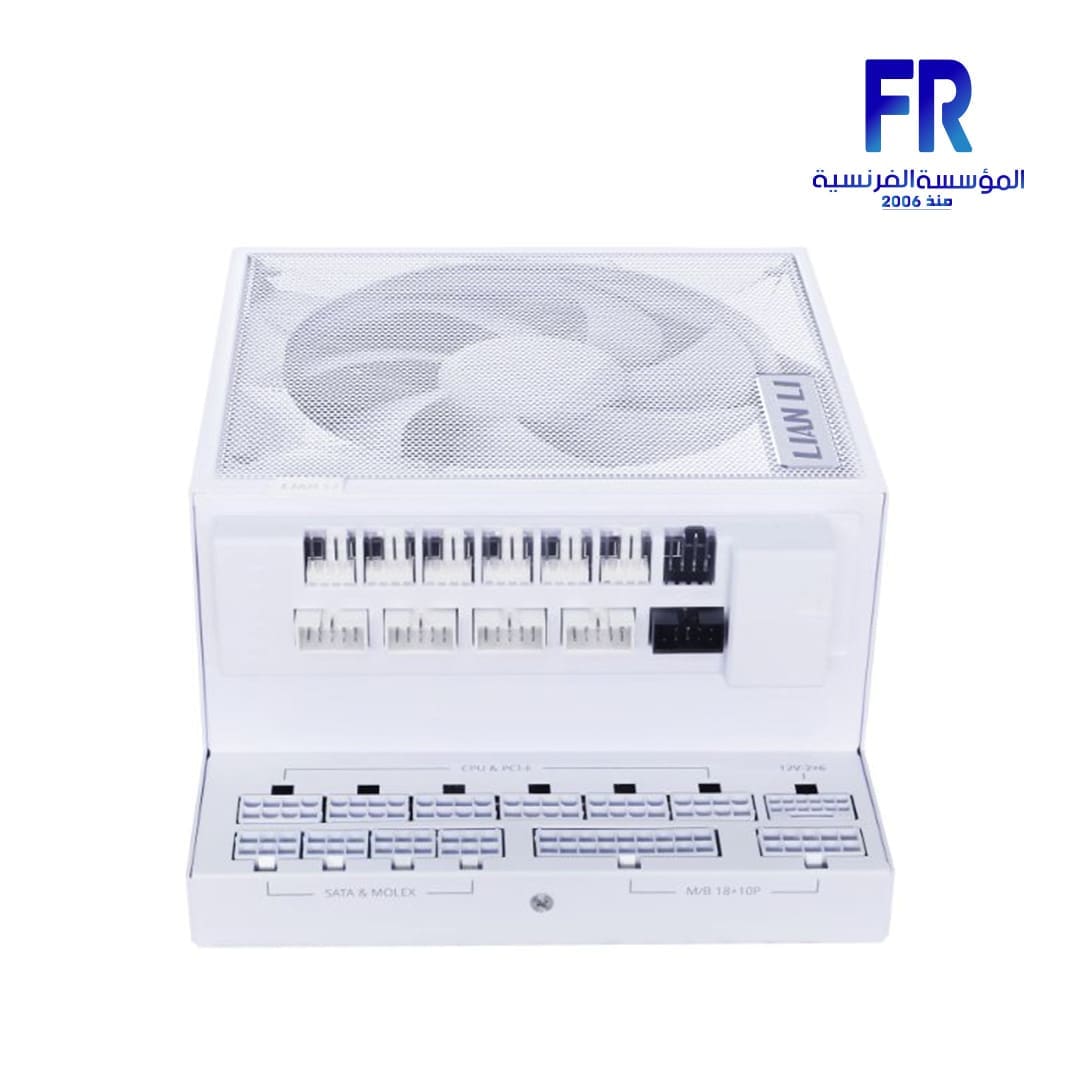

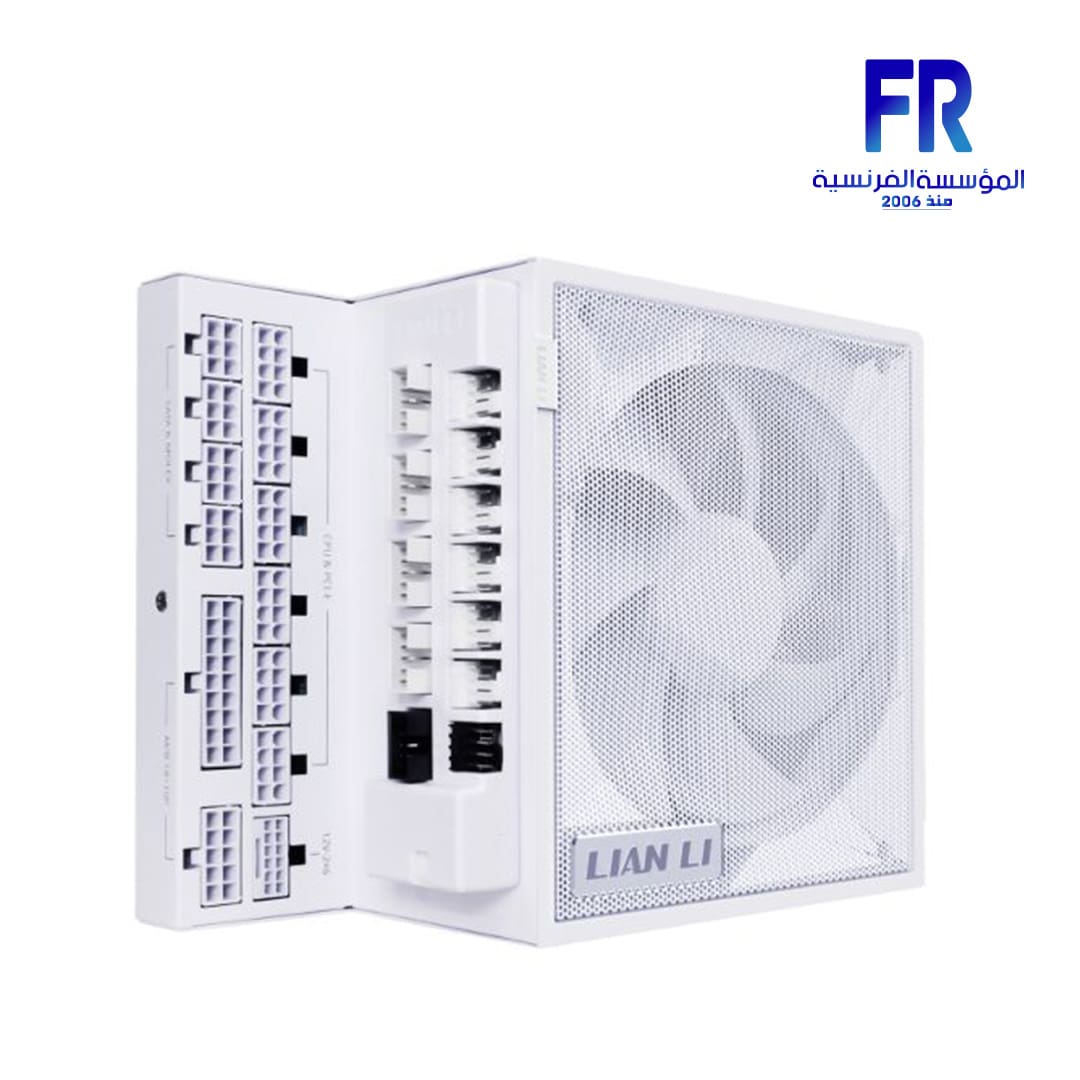

Lian Li Edge Gold EG1000G 1000W 80 Plus Gold ATX 3.1 Full Modular White Power Supply

Lian Li Edge Gold EG1000G 1000W 80 Plus Gold ATX 3.1 Full Modular White مزود الطاقة

The Lian Li Edge Gold EG1000G 1000W White Power Supply series features a unique L-shape design, ideal for dual-chamber cases, and boasts 80 PLUS Gold efficiency. It is ATX 3.1 compliant and PCIe 5.1 ready, featuring fully modular braided-texture cables for clean builds. Furthermore, this 1000W model includes a detachable USB hub with 4 internal USB 2.0 headers and 6 PWM fan headers, alongside a conveniently removable magnetic dust filter.

Innovative Design & Gold Efficiency

Engineered specifically for dual-chamber chassis like the Lian Li O11 series, the Edge Gold PSU’s L-shape design reorients connectors outward for simplified cable management. Specifically, it is fully compliant with ATX 3.1 standards and features Lian Li’s in-house R&D 12V-2×6 alloy copper soldered terminals for stable power to PCIe 5.1 devices. Additionally, the fully modular, longer braided-texture cables with pre-installed combs ensure a clean and organized build in various chassis types. The 1000W model comes with a versatile detachable USB and Fan PWM hub (Edge Hub) that can be attached to the PSU or used independently.

Achieving 80 PLUS Gold and Cybenetics Platinum (for EG1000G) certifications, the Edge Gold Series ensures top-tier energy efficiency, reducing power consumption and heat. Moreover, it is built with German top-end, industrial-grade EPCOS capacitors (or same level Japanese capacitors) for robust performance. The 120mm FDB PWM fan operates with minimal noise, featuring a fanless mode for silent operation under low loads, and is protected by an easily removable magnetic dust filter.

Explore compatible Power Supplies or check Lian Li Products for other options. Find full details on the official Lian Li Edge Gold PSU Series product page.

Specifications (EG1000G – White)

• Model Name: EDGE GOLD 1000
• Model No.: EG1000G WHITE
• Color: White
• Dimensions (DxWxH): 182mm x 86mm x 150mm
• Power Supply Design: Fully Modular
• Material: Steel
• Form Factor: ATX 3.1
• Certification: 80 PLUS GOLD / Cybenetics PLATINUM / PPLP GOLD
• Max. DC Output: 1000W
• Combined +3.3V & +5V: 120W
• Combined +12V: 996W
• Input Voltage: 100-240Vac
• Input Frequency Range: 12-6A 50-60Hz
• PFC: Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
• Efficiency: 91.24% MAX
• Protective Circuit: OCP/OVP/OTP/OPP/SCP/UVP
• Connectors:
  • 1 x 24/20-Pin Motherboard Connector (620mm)
  • 1 x 8/4+4 Pin CPU/ATX 12V Connector (750mm)
  • 1 x 4+4 Pin CPU/ATX 12V Connector (750mm)
  • 1 x 6+2 Pin PCIe Connector (daisy-chain, 650mm + 100mm)
  • 1 x 12V-2X6 600W Connector (650mm)
  • 4 x SATA Connector (300mm-15mm-15mm-15mm)
  • 4 x Y-Type SATA Connector (375mm-150mm-150mm)
  • 4 x SATA Connector (400mm-150mm-150mm-150mm)
  • 4 x 4-Pin Peripheral Connector (500mm-150mm-150mm-150mm)
  • USB 9pin – USB 9pin Connector (470mm) × 1pcs (for Edge Hub)
  • USB 9pin -Type A Connector (550mm) × 1pcs (for Edge Hub)
• Fan Type: 120mm FDB Fan (PWM, Fanless Mode)
• Fan Speed: Up to 2400RPM
• Fan Noise Level: Up to 39.3dBA
• USB & Fan PWM Hub: Included (Detachable Edge Hub with 4x USB 2.0 headers, 6x PWM fan headers)
• Cables: Full modular, premium braided-texture with pre-installed cable combs (MB/CPU/GPU)
• Warranty: 10 Years (PSU), 2 Years (Hub)
• UPC: 840353046917
