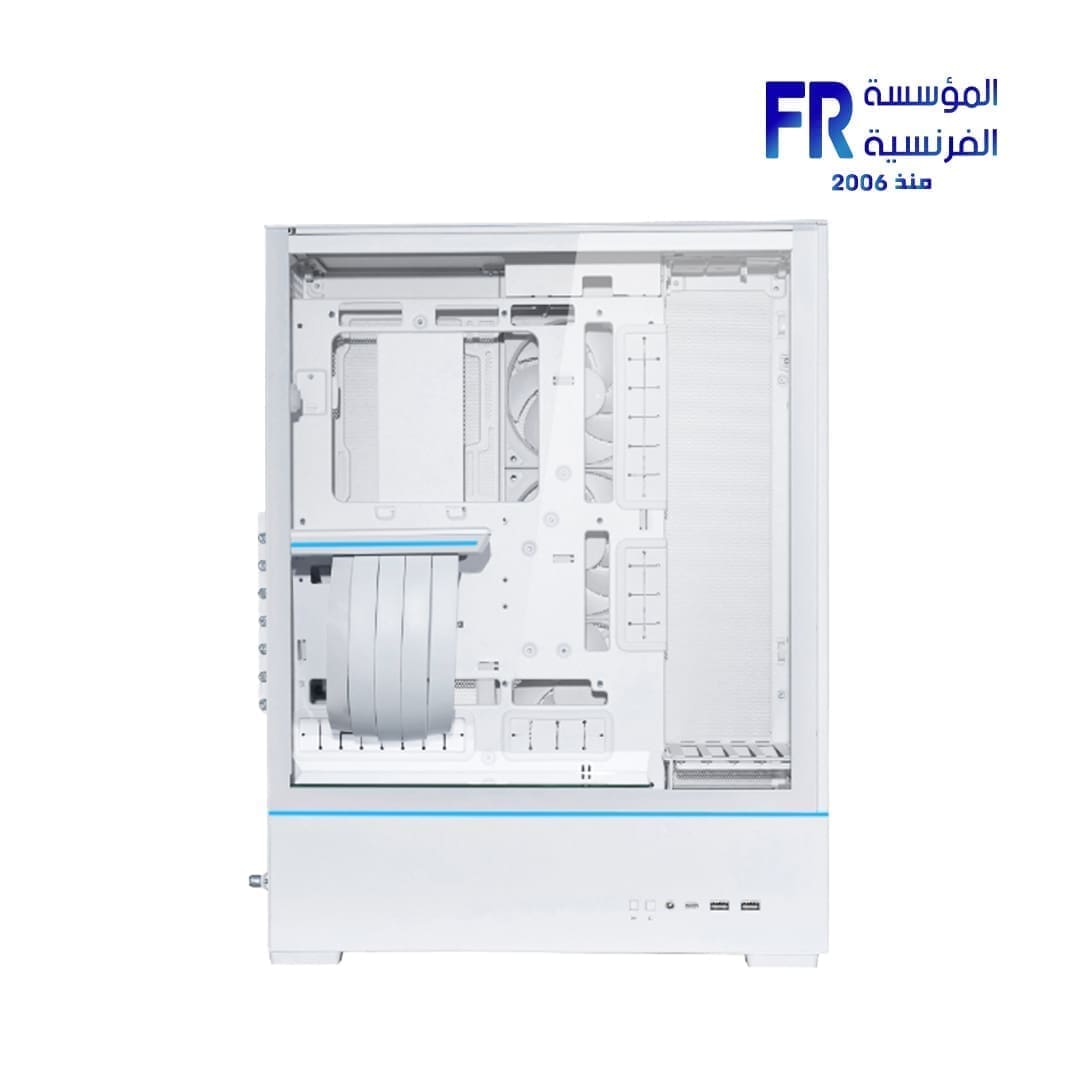

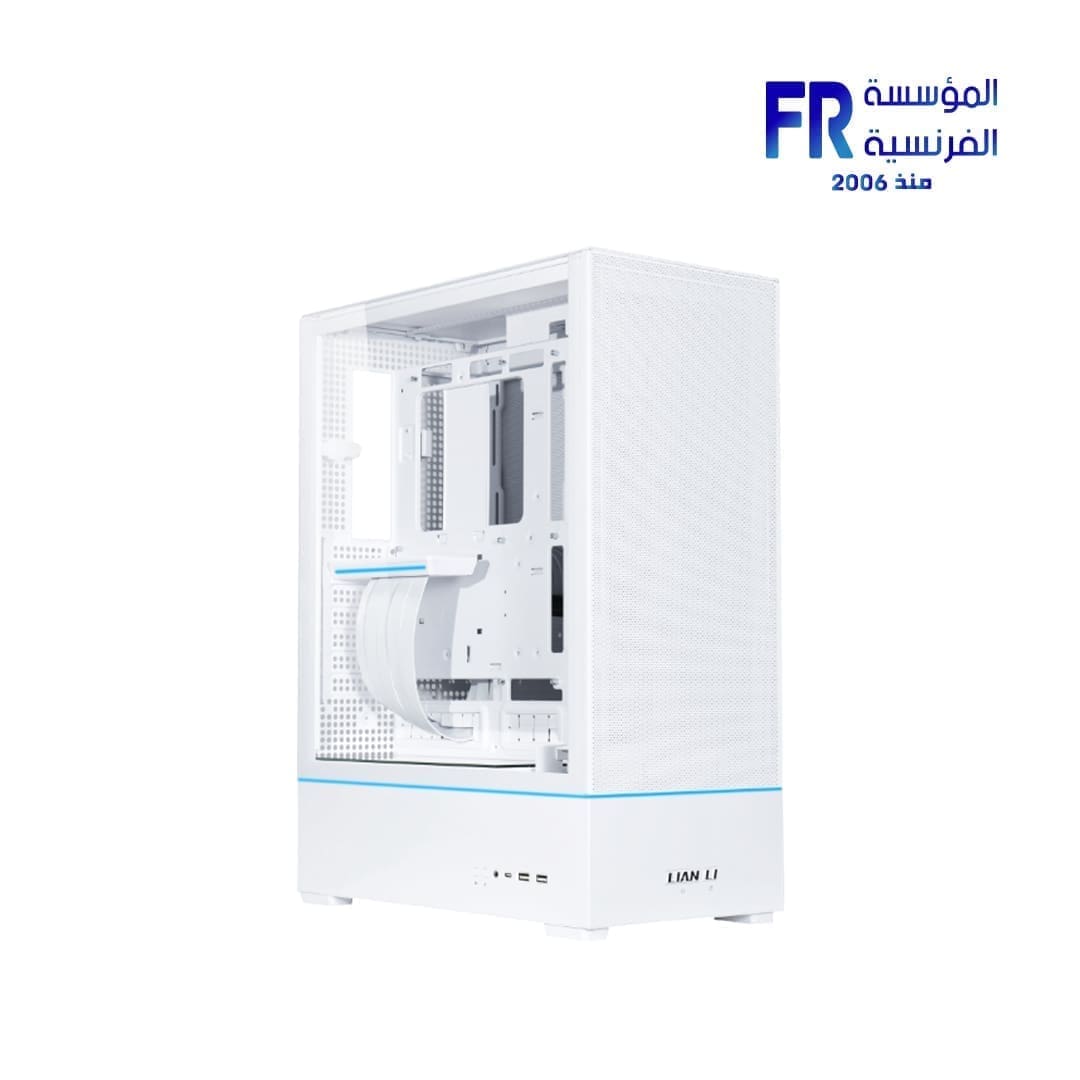

Lian Li SUP01 White Mid Tower Gaming Case

Lian Li SUP01 White Mid Tower Gaming Case

The Lian Li SUP01 White Mid Tower Gaming Case is a 45-liter stand-up platform case for a minimal footprint. It features front-facing GPU installation with adjustable mounting brackets for a unique visual and cooling approach. Furthermore, it utilizes an independent chambered direct cooling design that brings effective heat dissipation for all core components. It includes a 510mm PCIe 4.0 riser cable with an RGB lighting cover.

Stand-Up Platform Design & Cooling

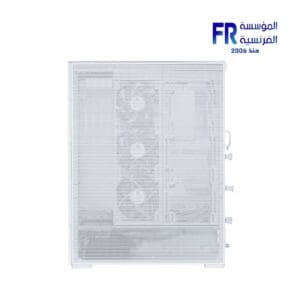

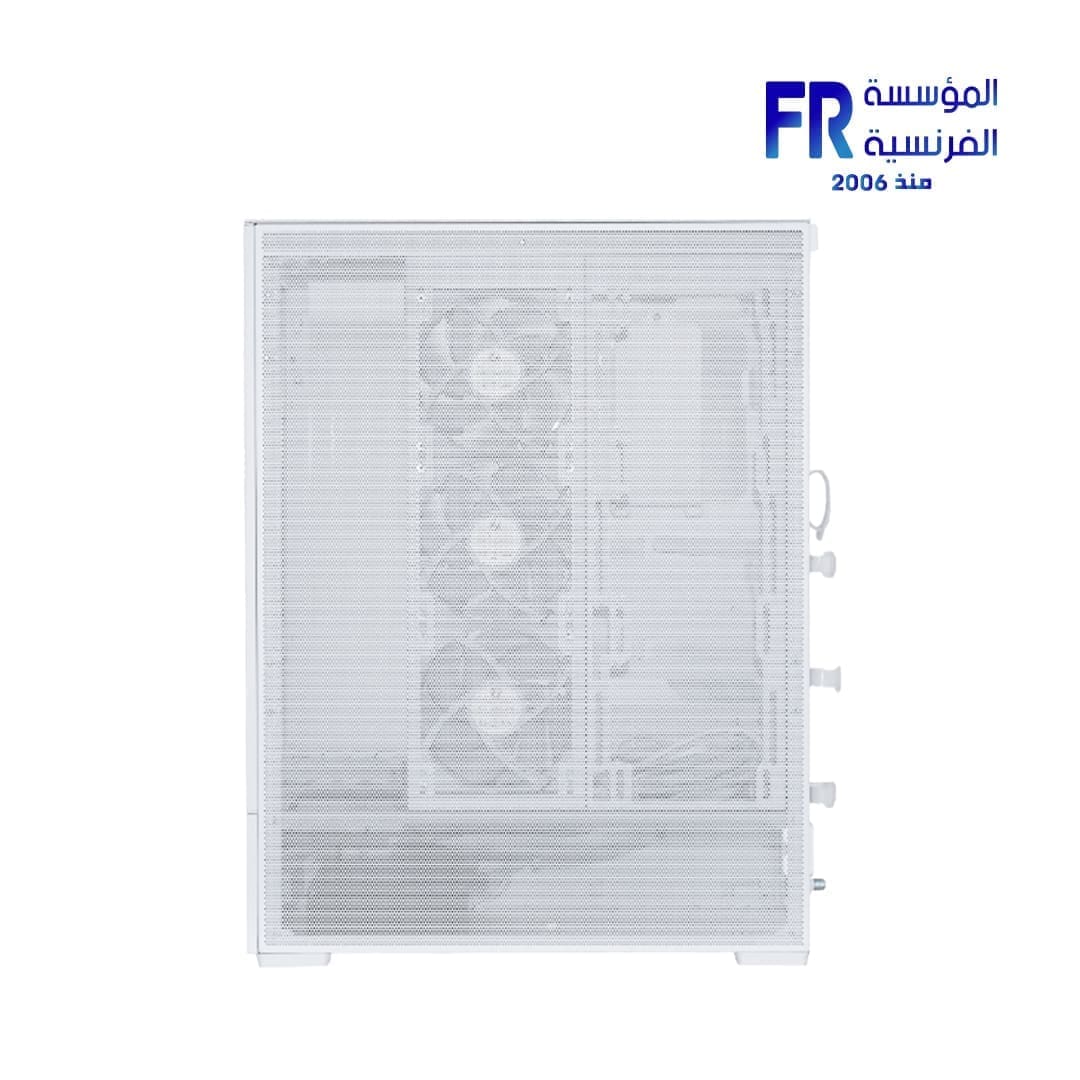

Optimize your desktop with the LIAN LI SUP01; the stand-up platform design not only minimizes footprint but also ensures impeccable hardware compatibility and superior cooling efficiency. Differing from traditional cases, the SUP01 offers independent intake and exhaust for core components. Specifically, the GPU intakes direct cool air through the front mesh panel and expels heat through the side with three pre-installed 120mm fans. Additionally, mounting a radiator (up to 360mm/280mm) on the side allows it to draw cool air directly from the rear opening.

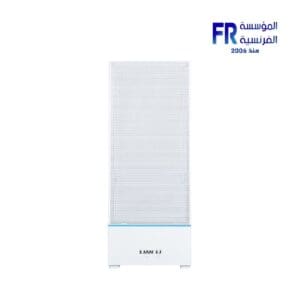

An exterior 120mm fan mounting bracket at the rear pushes fresh air into the chassis, cooling M.2 storage, VRM modules, and memory directly. Moreover, unparalleled airflow is achieved through exquisite mesh panels on the front, side, and top, equipped with three dust filters. The front-facing GPU installation is achieved with the included 510mm PCIe 4.0 riser cable and features flexible vertical and horizontal adjustment brackets.

The case supports standard motherboards up to ATX size and back-connect ATX motherboards. Explore compatible Mid Tower Cases or check Lian Li Products for other options. Find full details on the official SUP01 product page.

Specifications

• Model Name: SUP01
• Model No.: SUP01W WHITE
• Color: White
• Case Type: Small Tower Case
• Dimension: (D) 403.45mm x (W) 212mm x (H) 534mm
• Capacity: 44.8L
• Material: Steel, 4.0mm Tempered Glass
• Riser Cable Type: PCIE 4.0 (Included)
• Motherboard Support: ATX/M-ATX/ITX, ATX Back Connect
• PSU Support: ATX (Max 220mm)
• Included Fan: 3 x 120mm PWM (Side Exhaust)
• Fan Support: Side 1: 3x120mm; Side 2: 3x120mm or 2x140mm; Rear exterior: 1x120mm
• Radiator Support: Side 2: 360mm or 280mm
• Drive Support: Cage: 2×2.5” SSD or 2×3.5” HDD; Above PSU: 2×2.5” SSD
• GPU Length Clearance: Max 400mm
• CPU Height Clearance: Max 88.2mm (AIO Pump Height)
• Expansion Slots: 4 (standard profile with riser) / 7 (low profile)
• I/O Ports: 1x Power/Reset (Logo), 2x USB 3.0 A, 1x USB 3.1 C, 1x Audio, 1x Light Color (C), 1x Light Mode (M)
• Dust Filter: 1x Bottom, 1x Front, 1x Top
• الضمان: 1 year
