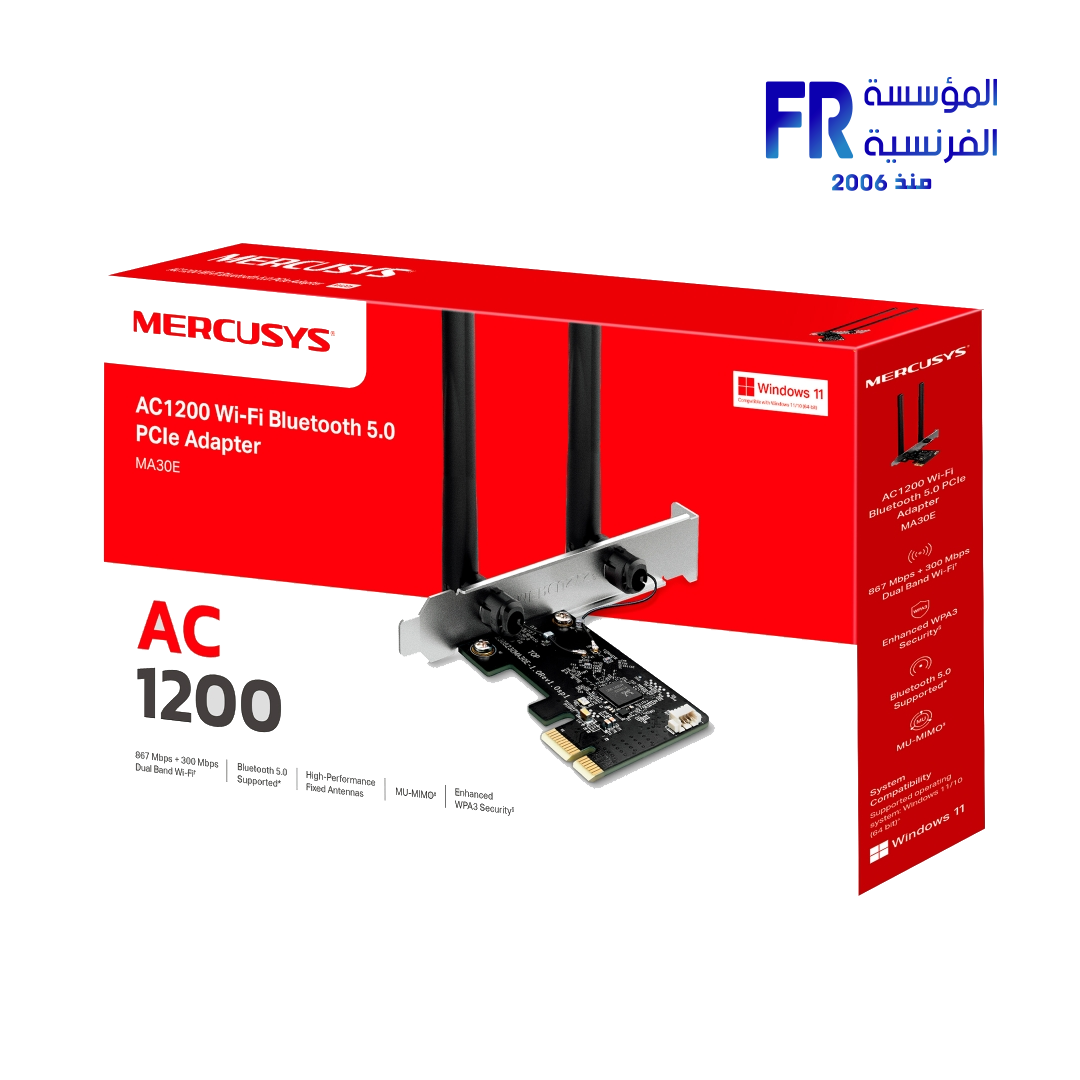

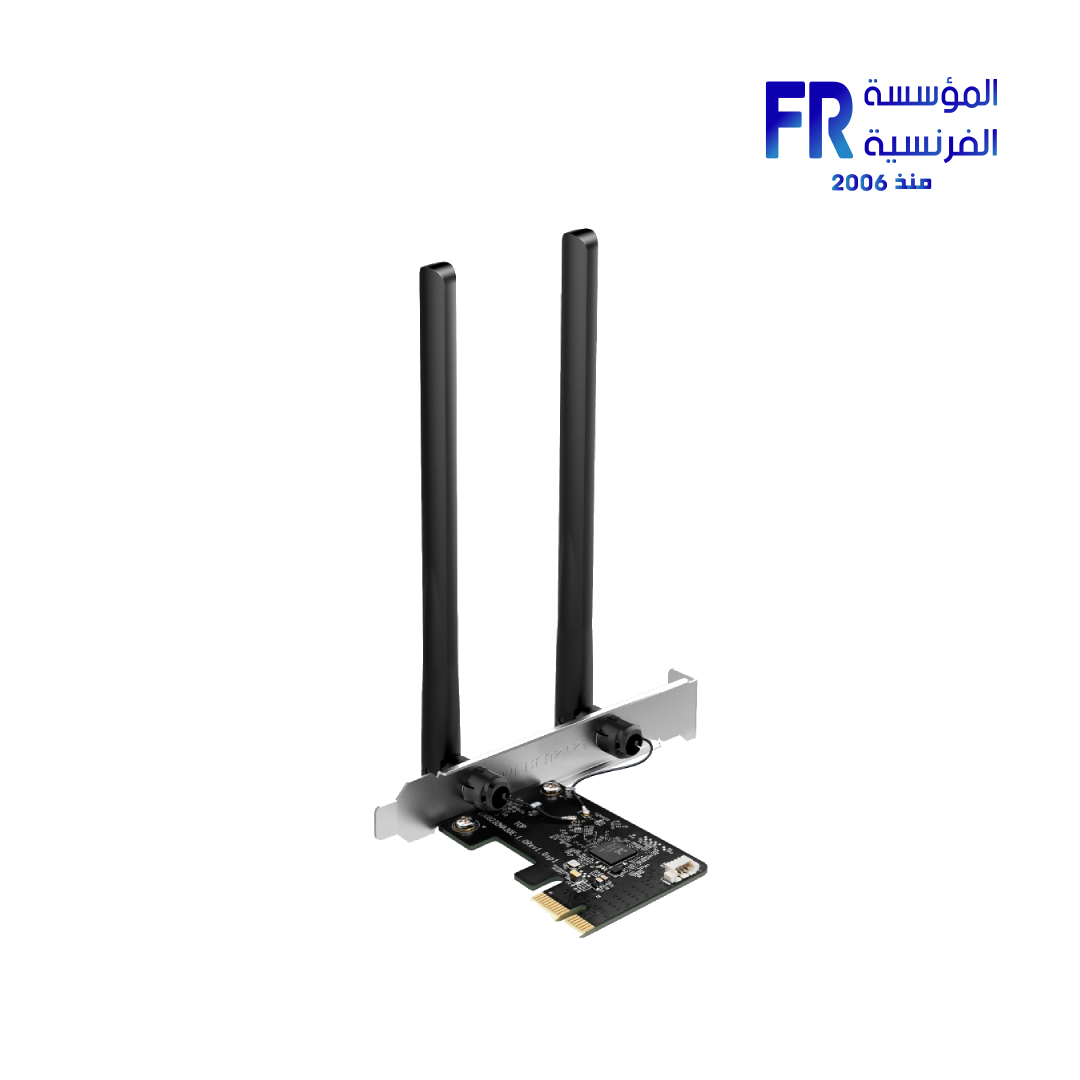

Mercusys AC1200 MA30E Wi-Fi 5 Bluetooth 5.0 Dual Band PCIe Adapter

Mercusys AC1200 MA30E Wi-Fi 5 + Bluetooth 5.0 PCIe Adapter

The Mercusys AC1200 MA30E delivers dual-band wireless connectivity with Bluetooth 5.0 support in a single PCIe card. Featuring 867Mbps (5GHz) + 300Mbps (2.4GHz) speeds and external antennas, this adapter upgrades desktop PCs to modern wireless standards.

Key Features:

Dual-Band AC1200:

5GHz band (867Mbps) for lag-free streaming and 2.4GHz band (300Mbps) for extended range. Seamless band switching via Smart Connect technology.

Bluetooth 5.0:

Low-energy connectivity for peripherals (range up to 4x better than BT 4.2). Supports simultaneous connections to multiple devices.

Technical Specifications:

• Model: MA30E
• رقم القطعة: 0852500025 – MA30E EU/1.0
• UPC: 6957939001889
• Wi-Fi Standard: 802.11ac (Wi-Fi 5)
• Speed: AC1200 (867+300 Mbps)
• Bluetooth: 5.0 (Backward compatible)
• Interface: PCIe x1 (2.0)
• Antennas: 2x external 5dBi RP-SMA
• Security: WPA3/WPA2/WPA encryption
• OS Support: Windows 10/11 (64-bit)
• Dimensions: 120 x 90 x 20mm

Package Contents:

• MA30E PCIe adapter
• 2x detachable antennas
• Low-profile bracket
• Driver CD
• Quick installation guide

Advanced Features:

Beamforming Technology:

Focuses Wi-Fi signals towards connected devices for stronger, more stable connections throughout your home.

Dual External Antennas:

Adjustable 5dBi antennas optimize signal reception. The RP-SMA connectors allow antenna upgrades if needed.
