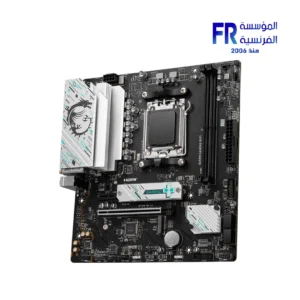

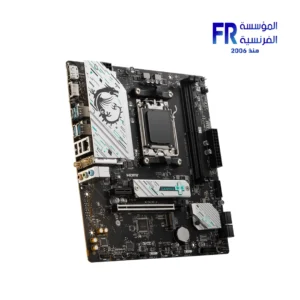

Msi B650M Gaming Wifi Motherboard

MSI B650M Gaming Wifi اللوحات الأم:

The MSI B650M Gaming Wifi Motherboard is meticulously designed for gamers who demand comprehensive connectivity, flexible tools, and a convenient Wi-Fi solution. This **MSI B650M Gaming Wifi** motherboard supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors on its AM5 socket. It also features DDR5 memory support. Furthermore, its robust hardware and optimized PCB solution ensure stable and high-performance gaming experiences.

Robust Hardware and Optimized Cooling for the MSI B650M Gaming Wifi Motherboard:

This **MSI B650M Gaming Wifi motherboard** incorporates an Extended Heatsink. This enlarges the heat dissipation surface. It ensures even high-end processors run at full speed. M.2 Shield Frozr keeps M.2 SSDs safe while preventing throttling, making them run faster. High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure all cores run in high performance. The PCB design has been optimized for higher bandwidth and faster transfer speeds. This is beneficial for reliable circuit transmission. It features 6 PCB layers with 2oz Thickened Copper.

MSI motherboards prioritize safety with embedded Overcurrent Protection (OCP). This shields crucial components like USB ports, DDR memory, PWM IC, and CPU from excessive current. This proactive defense mechanism curtails damage risk. All motherboard models are equipped with Transient Voltage Suppressors (TVS). These protect against excessive voltage. The 4-pin, 8-pin, and 24-pin power connectors feature solid pins. This allows for more stable 12V power transmission to the CPU, even under high current loads. An anti-corrosive Stainless Steel IO Shield improves static electricity and reduces electromagnetic radiation noise.

Lightning-Fast Performance and Connectivity for the MSI B650M Gaming Wifi Motherboard:

The **MSI B650M Gaming Wifi motherboard** supports the latest DDR5 memory. It features a dedicated SMT welding process and MSI Memory Boost technology. This delivers world-class memory performance, with speeds up to 7800+(OC) MHz. Easy overclocking is possible with EXPO profiles. MSI conducts thorough memory testing to ensure system stability. The Lightning Gen 4 PCI-e slot with Steel Armor provides 64GB/s bandwidth. This supports heavy graphics cards against bending and EMI.

This **MSI B650M Gaming Wifi** motherboard supports all the latest storage standards. It includes two M.2 slots (PCIe 4.0 x4) and four SATA 6G ports. This allows users to connect any ultra-fast storage device. Start games faster and load levels quicker. High-bandwidth and low-latency networking are provided by Realtek® RTL8125BG 2.5Gbps LAN and Wi-Fi 6E. Bluetooth 5.3 is also supported. The motherboard offers diverse USB connectivity: 2x USB 2.0 (Rear), 4x USB 2.0 (Front), 3x USB 5Gbps Type A (Rear), 1x USB 5Gbps Type C (Rear), and 4x USB 5Gbps Type A (Front). Audio Boost with Realtek® ALC897 Codec provides 7.1-Channel High Definition Audio.

Explore compatible لوحات أم AMD or other اللوحات الأم options. You might also find compatible AMD Processors and DDR5 RAM. Check MSI Products for more options. Find full details on the official MSI B650M Gaming Wifi Motherboard product page.

Specifications:

• Chipset: AMD B650
• CPU Support: AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors (Socket AM5)
• Memory: 2x DDR5 DIMM slots, Max. 128GB, up to 7800+(OC) MHz
• Onboard Graphics: 1x HDMI™ 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz) – *Requires integrated graphics CPU*
• PCI-E Slots: 1x PCI-E x16 slot (PCIe 4.0), 1x PCI-E x1 slot (PCIe 3.0)
• Audio: Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
• Storage: 2x M.2 (PCIe 4.0 x4), 4x SATA 6G
• RAID Support: RAID 0, 1, 10 for SATA; RAID 0, 1, 10 for M.2 NVMe

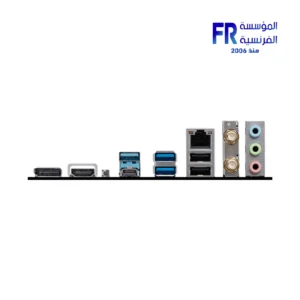

• USB (Rear): 2x USB 2.0, 3x USB 5Gbps Type A, 1x USB 5Gbps Type C
• USB (Front): 4x USB 2.0 (via header), 4x USB 5Gbps Type A (via header)
• LAN: Realtek® RTL8125BG 2.5Gbps LAN
• Wireless LAN & Bluetooth: Wi-Fi 6E, Bluetooth® 5.3 (pre-installed M.2 Key-E module)
• LED Feature: 4x EZ Debug LED
• Operating System Support: Windows® 11 64-bit, Windows® 10 64-bit
• PCB Info: mATX, 226mm x 243.84mm
• Model Number/SKU: 911-7E30-009
• EAN/UPC: 824142351284
