Msi Mag Pano M100R PZ Mid Tower Gaming Case

MSI MAG Pano M100R PZ Mid Tower Gaming Case:

The MSI MAG Pano M100R PZ Mid Tower Gaming Case redefines PC aesthetics and performance with its stunning panoramic view and optimized airflow. Designed as a Micro-ATX Tower, it supports both M-ATX (including back-connect motherboards) and ITX form factors, offering exceptional versatility for modern builds. This gaming case features a unique design that beautifully showcases your internal components and vibrant ARGB lighting. Furthermore, it comes equipped with multiple pre-installed ARGB fans, ensuring efficient cooling while creating a captivating visual experience for your gaming setup.

Panoramic Design & Superior Cooling:

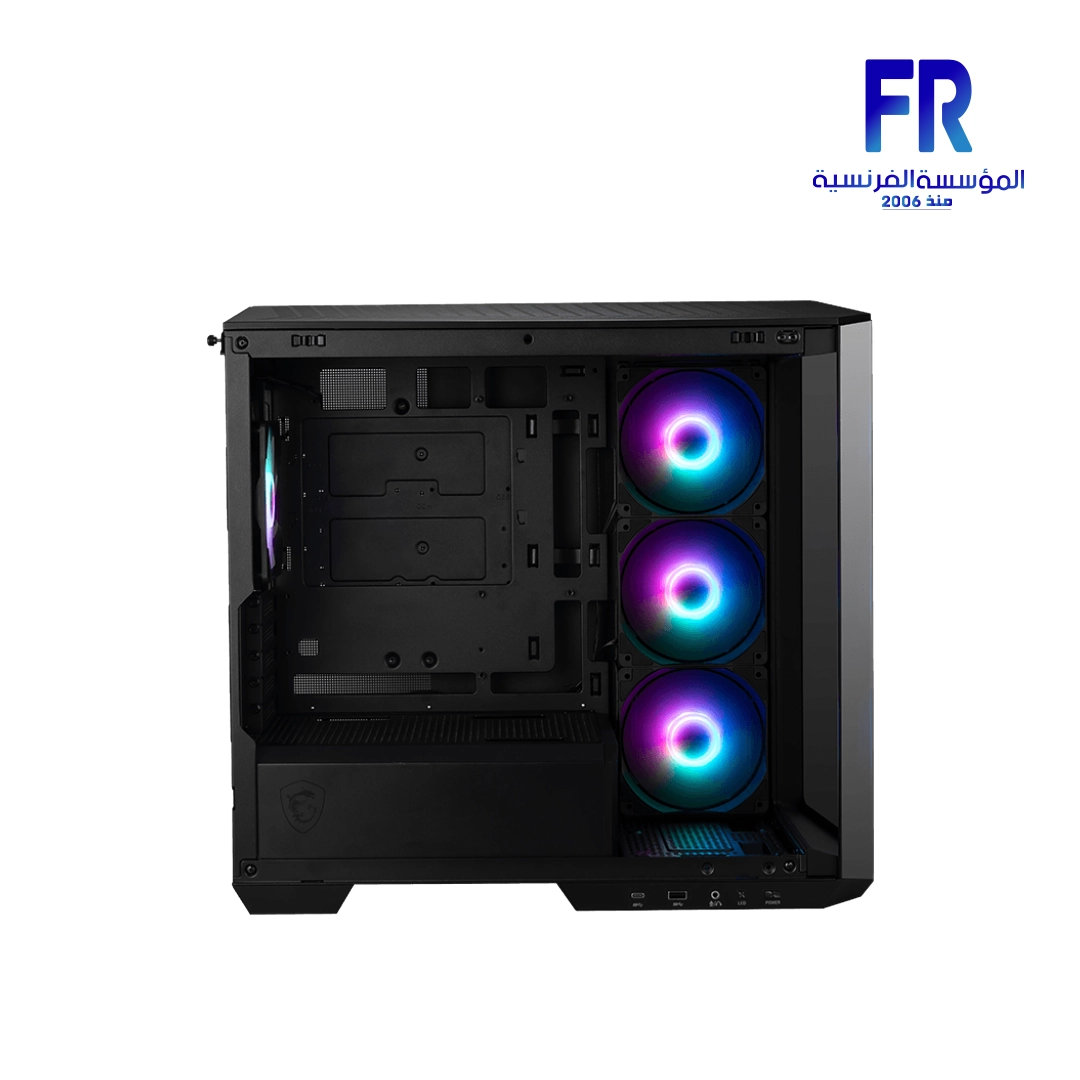

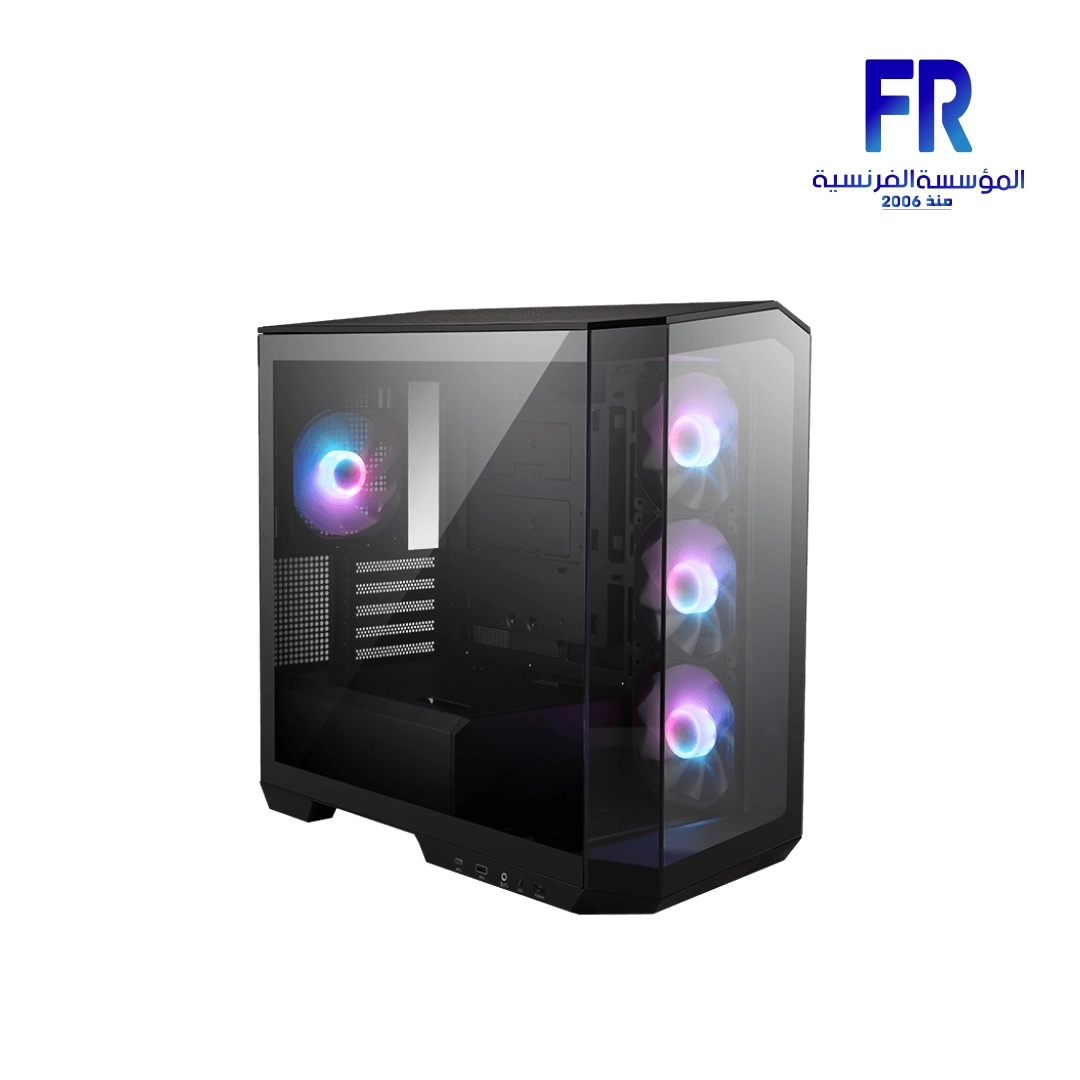

The MSI MAG Pano M100R PZ Mid Tower Gaming Case distinguishes itself with its “Pano” design, providing an unobstructed view of your gaming rig’s interior. This panoramic display is complemented by pre-installed ARGB fans, including three 120mm reverse-blade fans on the side and one 120mm ARGB fan at the rear. These reverse-blade fans efficiently pull cool air into the chassis, enhancing thermal performance while maintaining a clean aesthetic. Specifically, the case supports extensive fan configurations, with space for three 120mm or two 140mm fans on top, and dual 120mm fans on the PSU shroud.

Cooling capabilities are further extended with robust radiator support. The MSI MAG Pano M100R PZ accommodates a 360mm radiator on top and a 140mm radiator at the rear, allowing for powerful liquid cooling solutions. This ensures optimal temperatures for your CPU and GPU even during intense gaming sessions. The case provides generous clearance for components, supporting a maximum GPU length of 390mm (horizontal installation only) and a CPU cooler height of 175mm. This allows for compatibility with most high-end gaming hardware available today.

Connectivity is modern and accessible. The top I/O panel features a high-speed USB 3.2 Gen 2×2 Type-C port, delivering blazing-fast 20 Gbps data transfer speeds. It also includes a USB 3.2 Gen 1 Type-A port and audio-out/mic-in jacks. This ensures convenience for all your peripherals. The case offers flexible storage options with one 2.5” drive mount and a versatile 2.5”/3.5” combo bay, supporting up to two 2.5” SSDs or one 2.5” SSD and one 3.5” HDD. Furthermore, an integrated LED Switch Button allows for quick control over the vibrant ARGB lighting, completing the premium gaming experience.

Explore compatible PC Cases or check MSI Products for other options. Find full details on the official MSI MAG Pano M100R PZ product page.

Specifications:

• Product Name: MAG PANO M100R PZ / WHITE
• Case Form Factor: Micro-ATX Tower
• Motherboard Form Factor Support: M-ATX (Back-connect supported) / ITX
• I/O Ports: 1 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2×2 Type-C, 1 x Audio-Out / Mic-in, 1 x LED Switch Button, 1 x Power Button
• Drive Mount Support: 1 x 2.5”, 1 x 2.5”/3.5” combo (up to 2 x 2.5” or 1 x 2.5” + 1 x 3.5”)
• Expansion Slots: 5
• Maximum GPU Length: 390 mm / 15.35 inches (Horizontal installation only)
• Maximum CPU Cooler Height: 175 mm / 6.9 inches
• Power Supply Support: ATX
• Maximum PSU Length: 200 mm / 7.87 inches
• Pre-installed Fan Size (Side): 3 x 120 mm ARGB Fan (Reverse-blade)
• Pre-installed Fan Size (Rear): 1 x 120 mm ARGB Fan
• Fan Size Support (Top): 3 x 120 mm / 2 x 140 mm
• Fan Size Support (Rear): 1 x 120 mm / 1 x 140 mm
• Fan Size Support (Side): 3 x 120 mm
• Fan Size Support (Bottom): 1 x 120 mm
• Fan Size Support (PSU Shroud): 2 x 120 mm
• Radiator Size Support (Top): 120 / 240 / 360 mm
• Radiator Size Support (Rear): 120 / 140 mm
• Dimensions (DxWxH): 488 x 235 x 453 mm / 19.21 x 9.25 x 17.84 inches
• Net Weight: 8.66 kg
• Gross Weight: 11.29 kg
• Model Number/SKU: 306-7G24R25-HH9
• EAN/UPC: 824142337707
