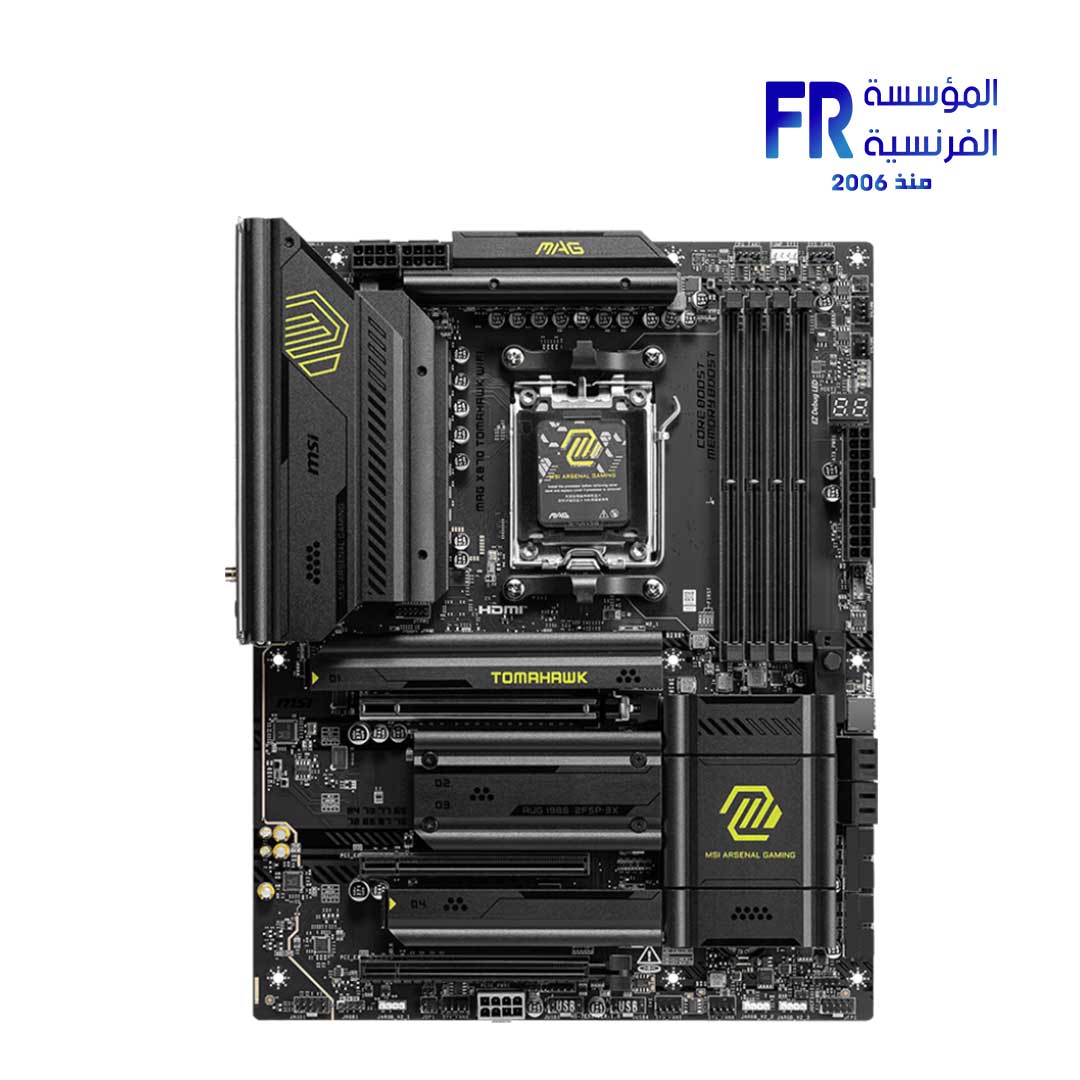

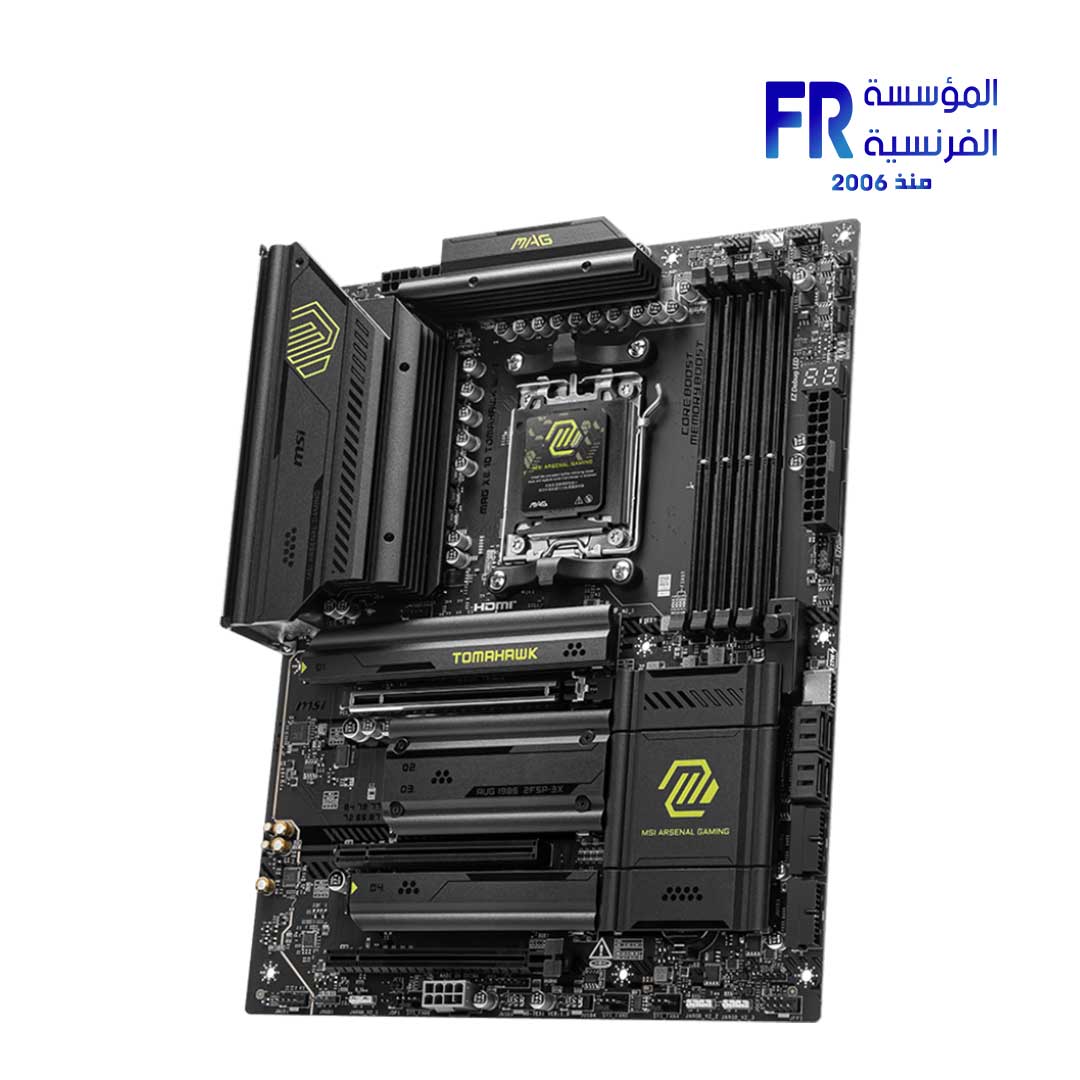

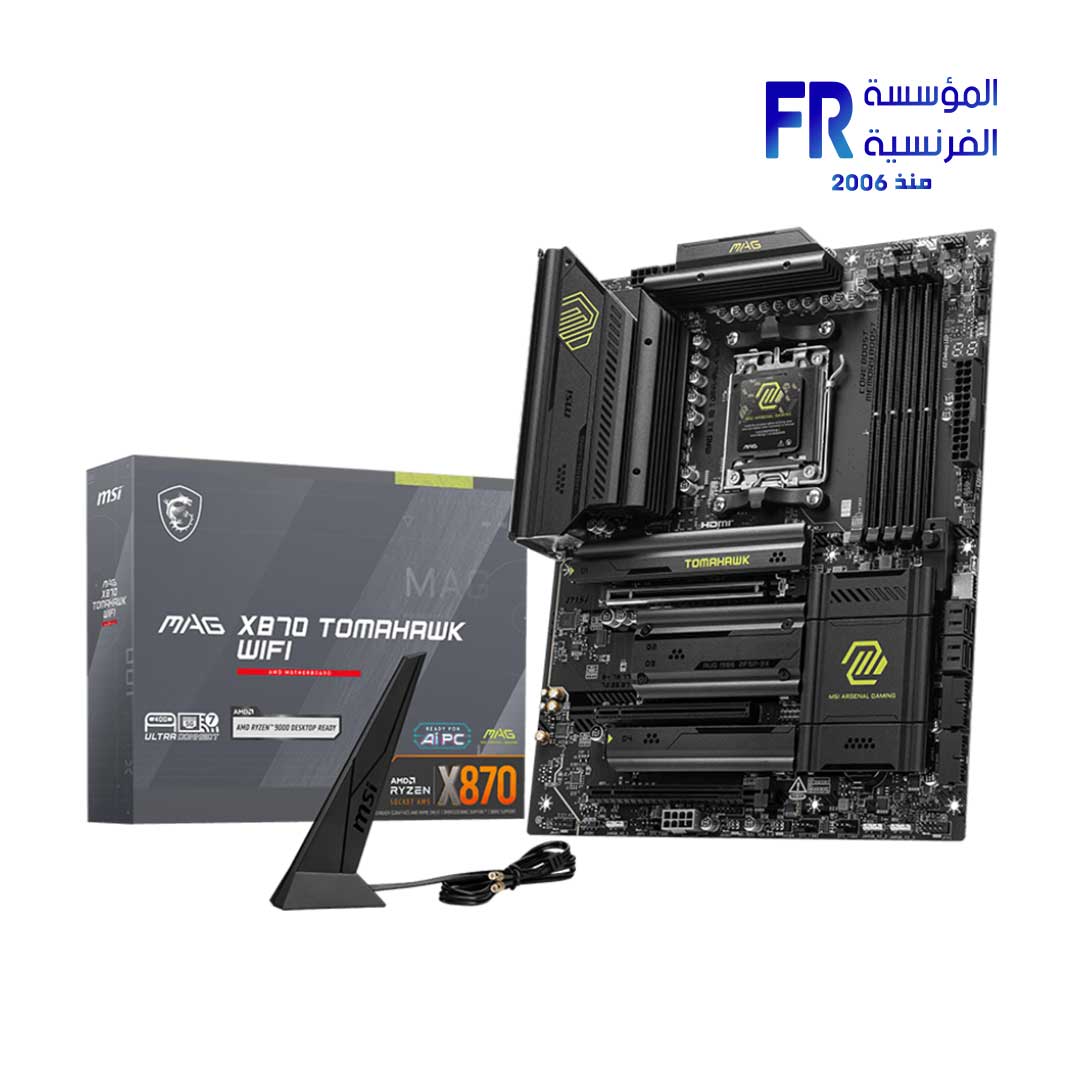

Msi Mag X870 Tomahawk Wifi Motherboard
18500 جنيه
- ATX Form Factor
- AMD X870 Chipset
- AM5 Socket
- 4 x Dual-Channel DDR5 Slots
- 2 x M.2 PCIe 5.0 | 2 x M.2 PCIe 4.0
- PCIe 5.0, 4.0 & 3.0 x16 Slots
- USB4 | USB 3.2 Gen 1 & 2 | USB 2.0
- Wi-Fi 7 | Bluetooth 5.4 | 5GbE
- Realtek 7.1-Channel Audio
- For Windows 11 (64-Bit)
Out Of Stock.
Msi Mag X870 Tomahawk Wifi اللوحات الأم
Msi Mag X870 Tomahawk Wifi اللوحات الأم
- Chipset: AMD X870
- CPU Support: AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
- Socket: AM5
- Memory:
- 4x DDR5 UDIMM slots
- Maximum Memory Capacity: 256GB
- Supports DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
- Supports Memory Overclocking and AMD EXPO™
- Supports Dual-Channel mode
- Supports Non-ECC, Un-buffered memory
- Onboard Graphics:
- 1x HDMI™ 2.1 (maximum resolution of 8K 60Hz)
- 2x Type-C DisplayPort (USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz)
- Storage:
- 4x M.2 slots
- M.2_1 & M.2_2: Up to PCIe 5.0 x4 (Gen 5) or PCIe 4.0 x4 (Gen 4)
- M.2_3 & M.2_4: Up to PCIe 4.0 x4 (Gen 4)
- 4x SATA 6G ports
- 4x M.2 slots
- Multi-GPU: AMD MULTI-GPU Support
- RAID: Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
- USB:
- Rear Panel:
- 4x USB 2.0
- 3x USB 5Gbps Type-A
- 2x USB 10Gbps Type-A
- 1x USB 10Gbps Type-C
- 2x USB 40Gbps Type-C
- Front Panel:
- 4x USB 2.0
- 4x USB 5Gbps Type-A
- 1x USB 20Gbps Type-C
- Rear Panel:
- LAN: Realtek® 8126-CG 5G LAN
- Wireless LAN & Bluetooth:
- Wi-Fi 7 pre-installed in M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps
- Supports Bluetooth® 5.4
- LED Feature:
- 4x EZ Debug LED
- 1x EZ Digit Debug LED

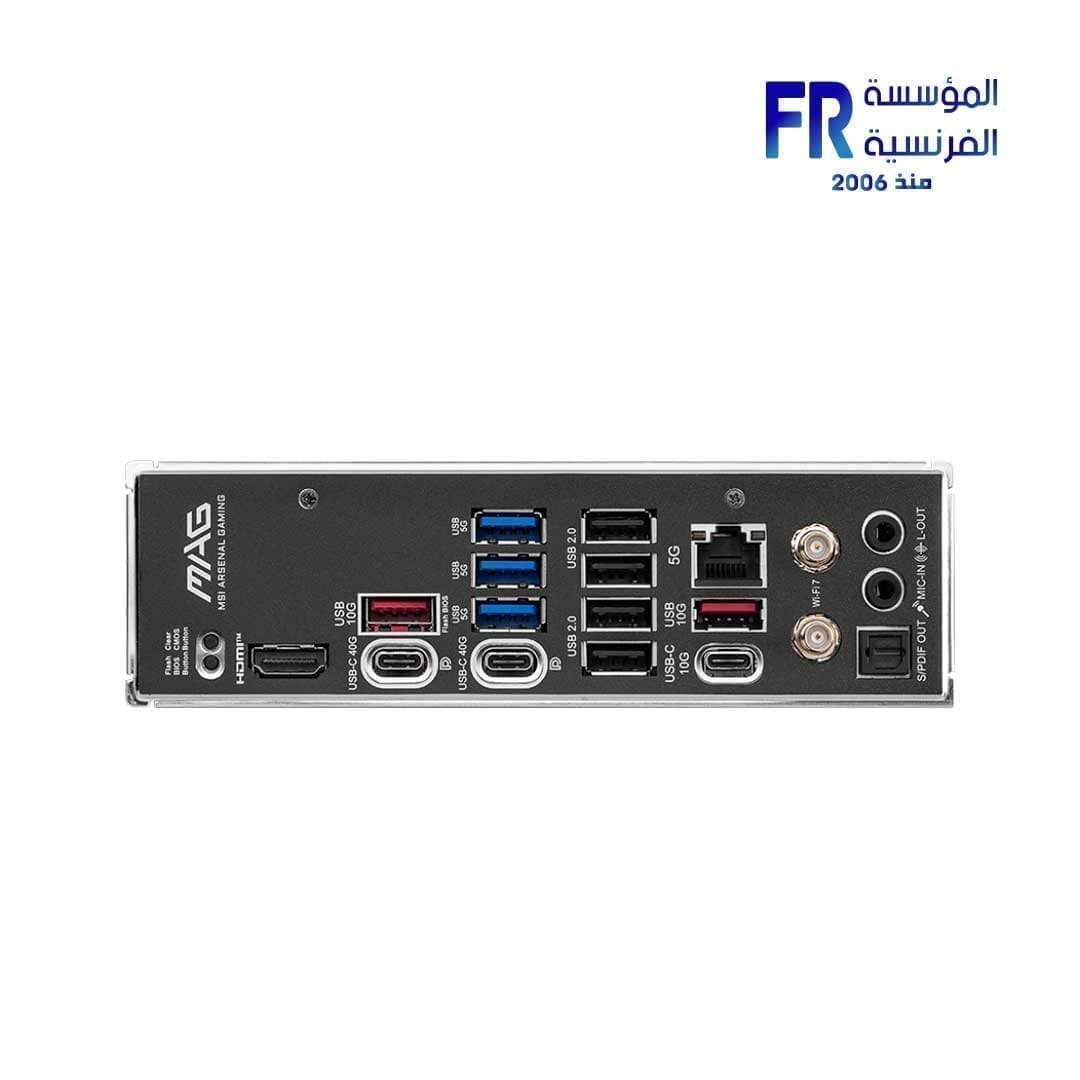

- Back Panel Ports:
- Clear CMOS Button
- USB ports (various types)
- 5G LAN
- Wi-Fi / Bluetooth connectors
- Audio connectors
- Flash BIOS Button
- HDMI™
- Operating System: Supports Windows® 11 64-bit
اللوحة الأم
| MODEL | |
|---|---|
| CHIPSET MANUFACTURERS | |
| سوكت المعالج | |
| شريحة اللوحة الأم | |
| Motherboard Type | |
| CPU SERIES | AMD Ryzen 7000 Series & Ryzen 8000 & Ryzen 9000 Series Processors |
| Technology | |
| Memory Speed | 4800 MHZ, 4866 MHz, 5000 MHz, 5066, 5066 MHz, 5200MHZ, 5333, 5333 MHz, 5400Mhz, 5600 MHz, 5800, 6000MHz, 6200MHZ, 6400Mhz, 6600Mhz, 6800Mhz, 7000 MHz, 7200MHZ, 7400MHZ, 7600MHZ, 7800MHZ, 8000MHZ, 8200MHz, 8266MHz, 8400 MHZ |
| Max Memory Size | |
| Memory Slot | |
| PCI-E X16 | |
| PCI-E GEN | PCIe 5.0 |
| PCI-E Slots (M.2) | |
| SATAIII | |
| Communication module | |
| Part Number | |
| الضمان |
