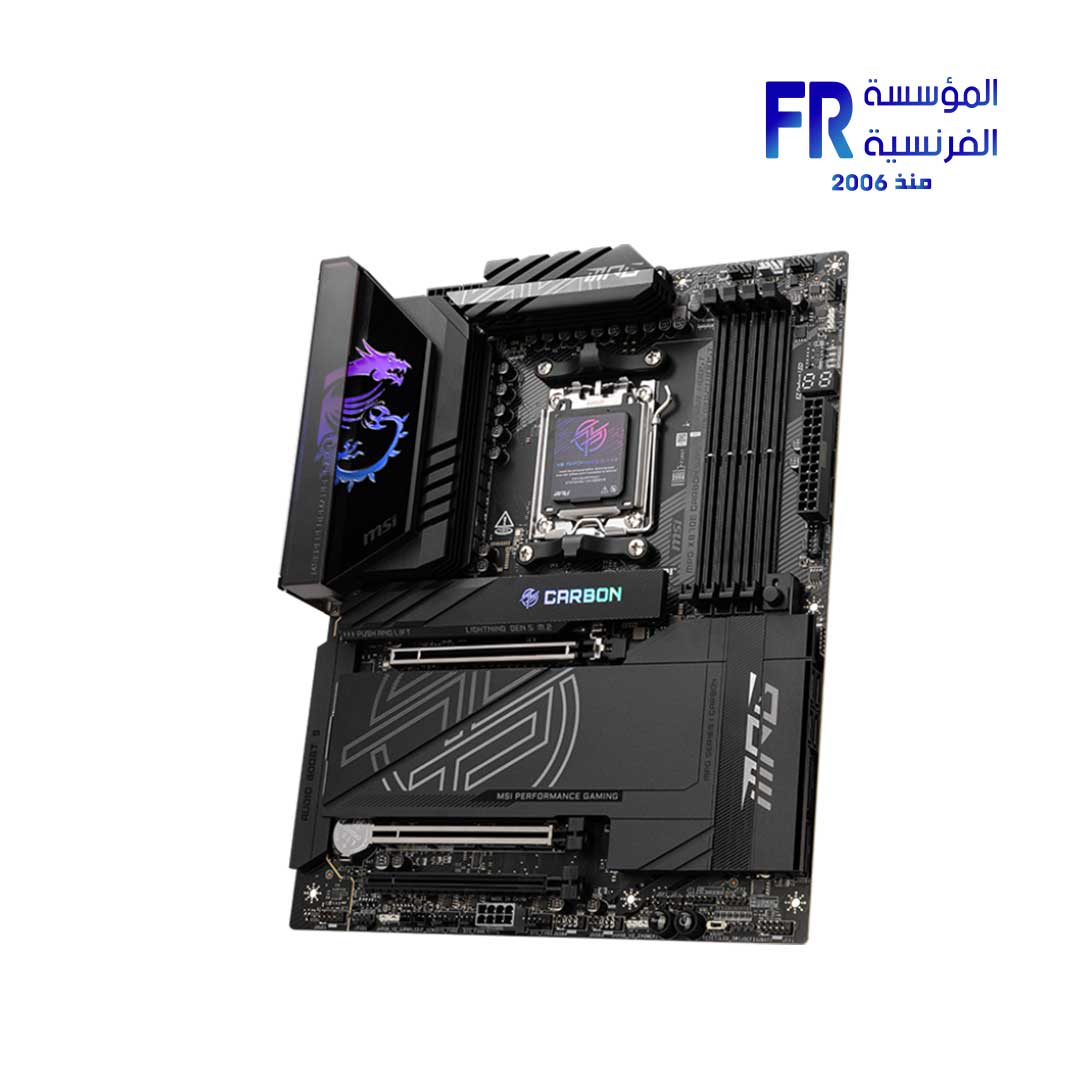

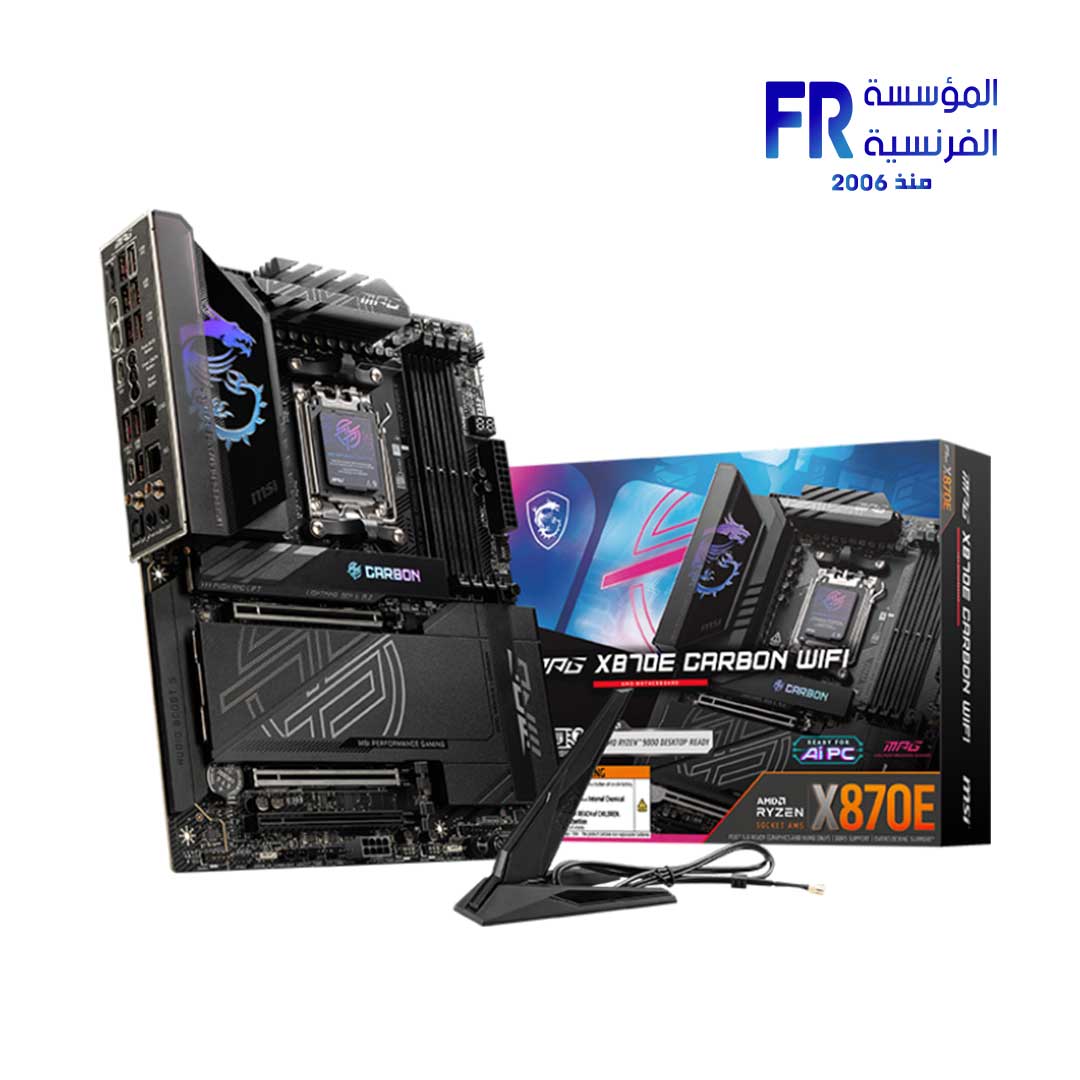

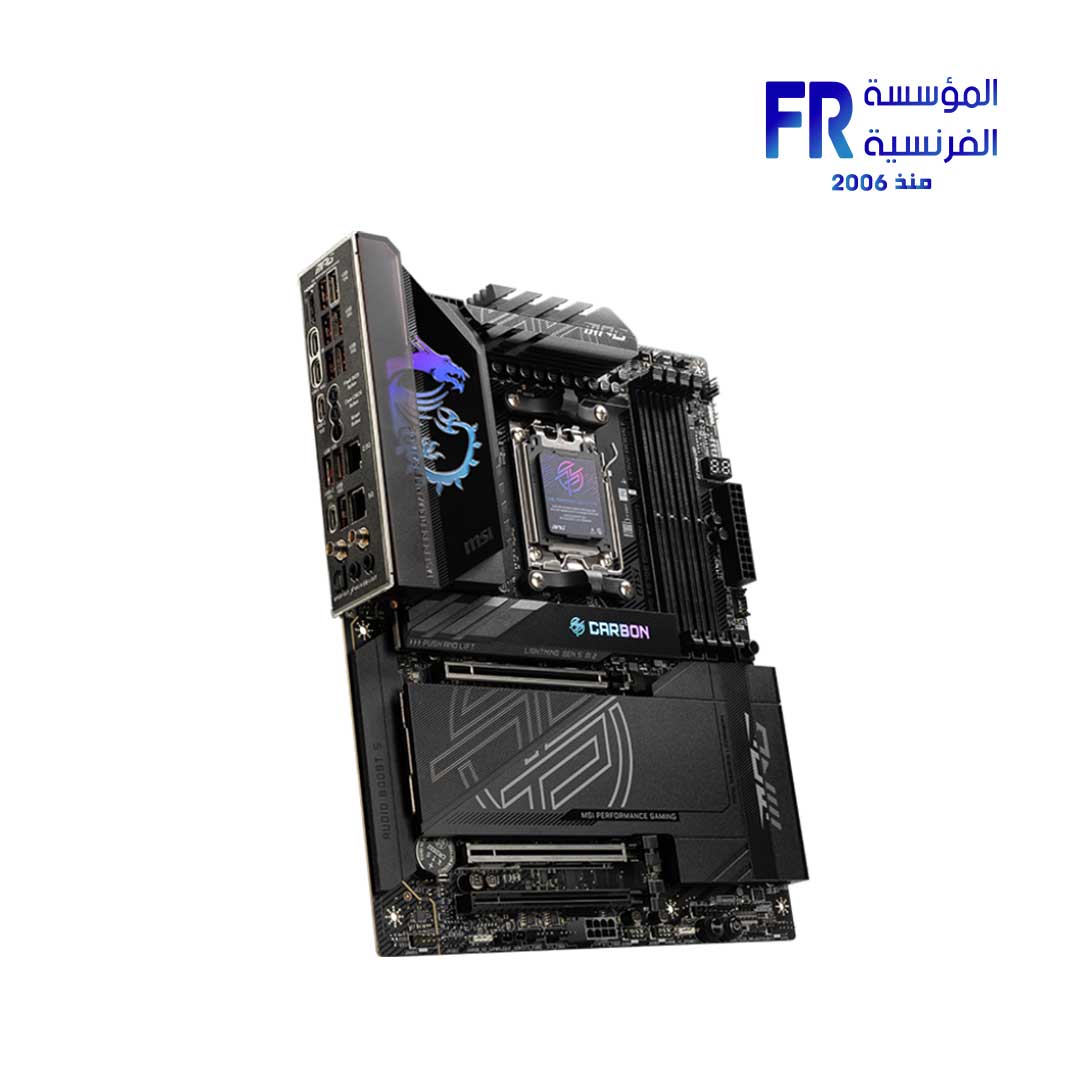

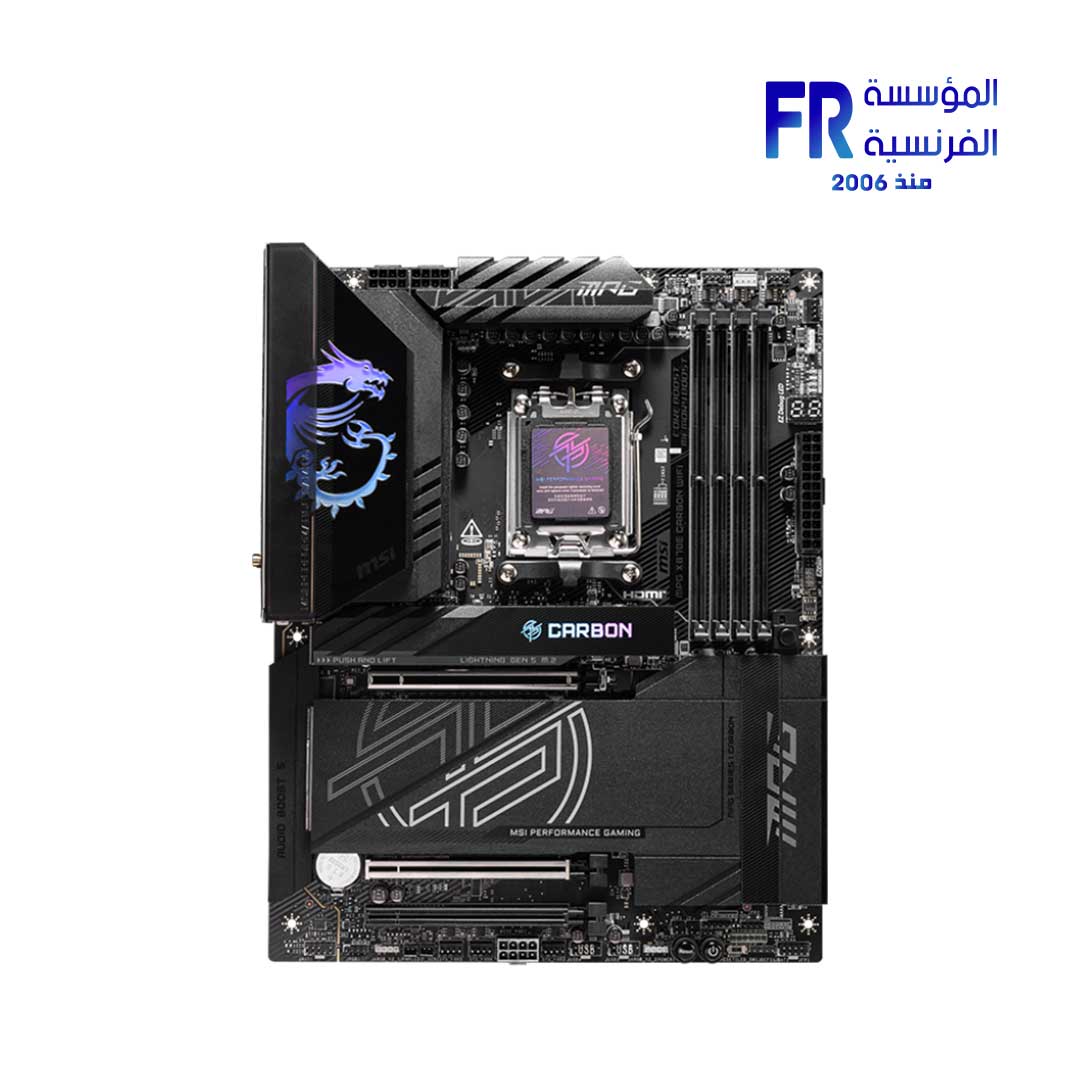

Msi MPG X870E Carbon Wifi Motherboard

29500 جنية

ATX Form Factor
AMD X870E Chipset
AM5 Socket
4 x Dual-Channel DDR5 Slots
4 x SATA | 2 x PCIe 5.0 & 2 x PCIe 4.0
2 x PCIe 5.0 x16 | 1 x PCIe 4.0 x16
USB4 | USB 3.2 Gen 1, 2 & 2×2
Wi-Fi 7 | Bluetooth 5.4 | 2.5GbE & 5GbE
Realtek 7.1-Channel Audio
For Windows 11 (64-Bit)

مشاهدات 41

المتوفر في المخزون 1 فقط

رمز المنتج: 824142382219 التصنيفات: AMD Motherboards, اللوحه الام الوسوم: AM5 Motherboard, AMD Motherboard, CARBON, Gaming PC, motherboard, MPG, MPG Series, msi, MSI Motherboard, MSI MPG X870E Carbon WiFi, Msi MPG X870E Carbon Wifi Motherboard, PC build, PC Components, PC Gaming, PC Hardware, PC Upgrade, PCIe 5.0 Motherboard, Tech Gadgets, WIFI, WiFi 6E Motherboard, X870E

الموديل	MPG X870E Carbon Wifi
CHIPSET MANUFACTURERS	AMD
CPU SOCKET	AM5
MOTHERBOARD CHIPSET	X870
Motherboard Type	ATX
CPU SERIES	AMD Ryzen 7000 Series & Ryzen 8000 & Ryzen 9000 Series Processors
Technology	DDR5
Memory Speed	4800 MHZ, 4866 MHz, 5000 MHz, 5066, 5066 MHz, 5200MHZ, 5333, 5333 MHz, 5400Mhz, 5600 MHz, 5800, 6000MHz, 6200MHZ, 6400Mhz, 6600Mhz, 6800Mhz, 7000 MHz, 7200MHZ, 7400MHZ, 7600MHZ, 7800MHZ, 8000MHZ, 8200MHz, 8266MHz, 8400 MHZ
MAX MEMORY SIZE	256GB
Memory Slot	4
PCI-E X16	YES
PCI-E GEN	PCIe 5.0
PCI-E Slots (M.2)	4
SATAIII	4x SATA 6.0 Gb/s
Communication module	Bluetooth, Wireless
Part Number	911-7E49-001
Warranty	3 year

Msi MPG X870E Carbon Wifi اللوحه الام

Msi MPG X870E Carbon Wifi Motherboard

Msi MPG X870E Carbon Wifi Motherboard specs:

Chipset	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO^TM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMI^TM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4^® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors) • PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) •PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor) PCI_E3 slot • Supports up to PCIe 4.0 x4 * PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.
Audio	Realtek^® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output
Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot* • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processors * PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.
RAID	•Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices • RAID 0, RAID 1 and Raid 10* for M.2 NVMe storage devices * RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen™ 9000/7000 series CPU.
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN	1x Realtek^® 8126 5G LAN 1x Realtek^® 8125 2.5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth^® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED 1x EZ Digit Debug LED
BACK PANEL PORTS	USB 10Gbps Type-A Flash BIOS Button Clear CMOS Button Smart Button 2.5G LAN 5G LAN Audio Connectors HDMI™ USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A USB 10Gbps Type-C Wi-Fi / Bluetooth Optical S/PDIF Out
OPERATING SYSTEM	Support for Windows^® 11 64-bit
BOX CONTENT
PCB Info	ATX 243.84mmx304.8mm
