Msi Pro Z890-S WIFI PZ LGA1851 ATX Motherboard
14900 جنيه
- Model Name: PRO Z890-S WIFI PZ
- رقم القطعة: 911-7E58-004 (EAN: 824142394205)
- Socket / Chipset: LGA 1851 / Intel Z890
- Memory Support: 4x DDR5, up to 8800+ MT/s (OC)
- Storage & Slots: 3x M.2 (1x PCIe 5.0) & 1x PCIe 5.0 x16 Slot
- Networking & I/O: Wi-Fi 7, 2.5G LAN, & Thunderbolt 4
- الضمان: 3 Years
المتوفر في المخزون 1 فقط
ضمان مطابقة السعر

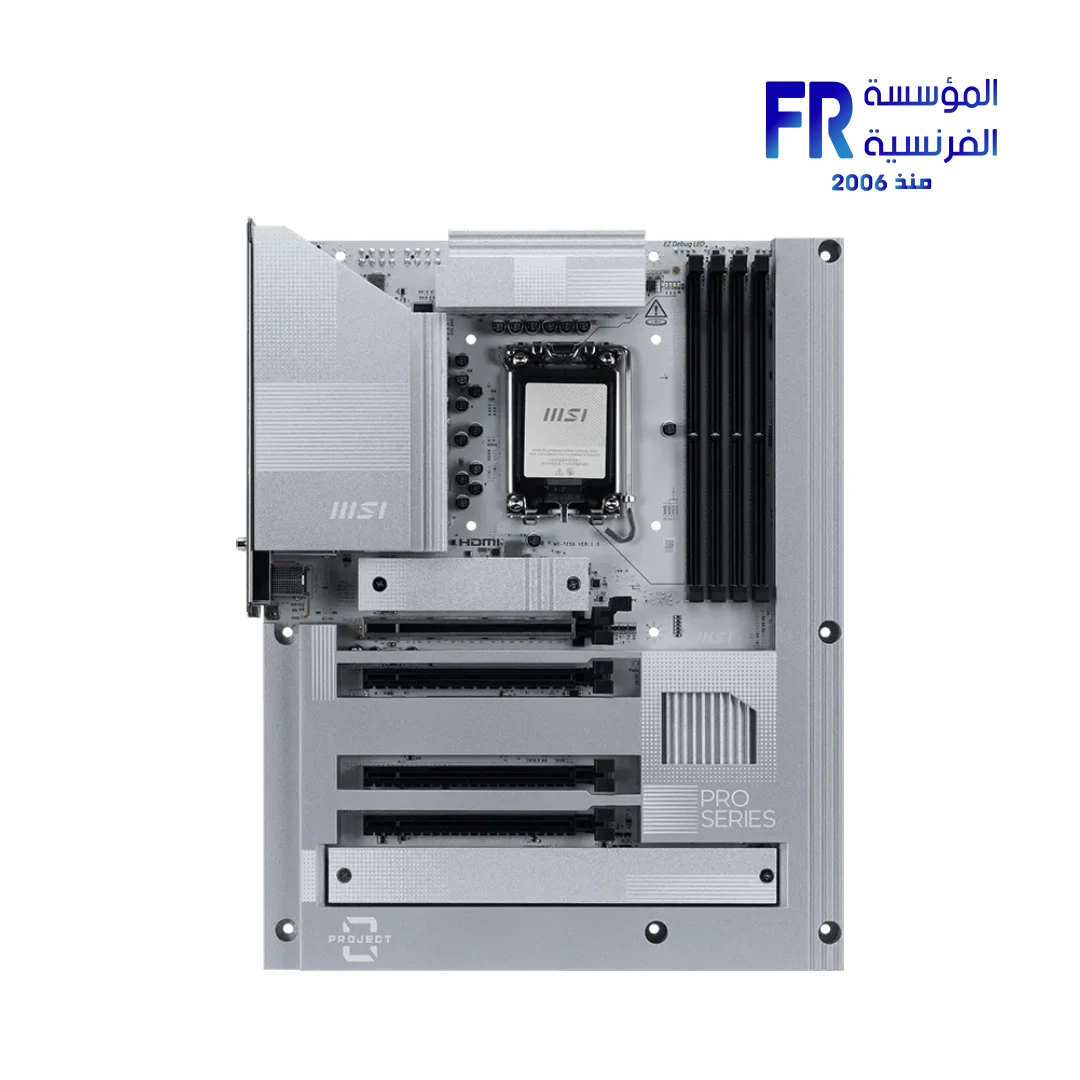

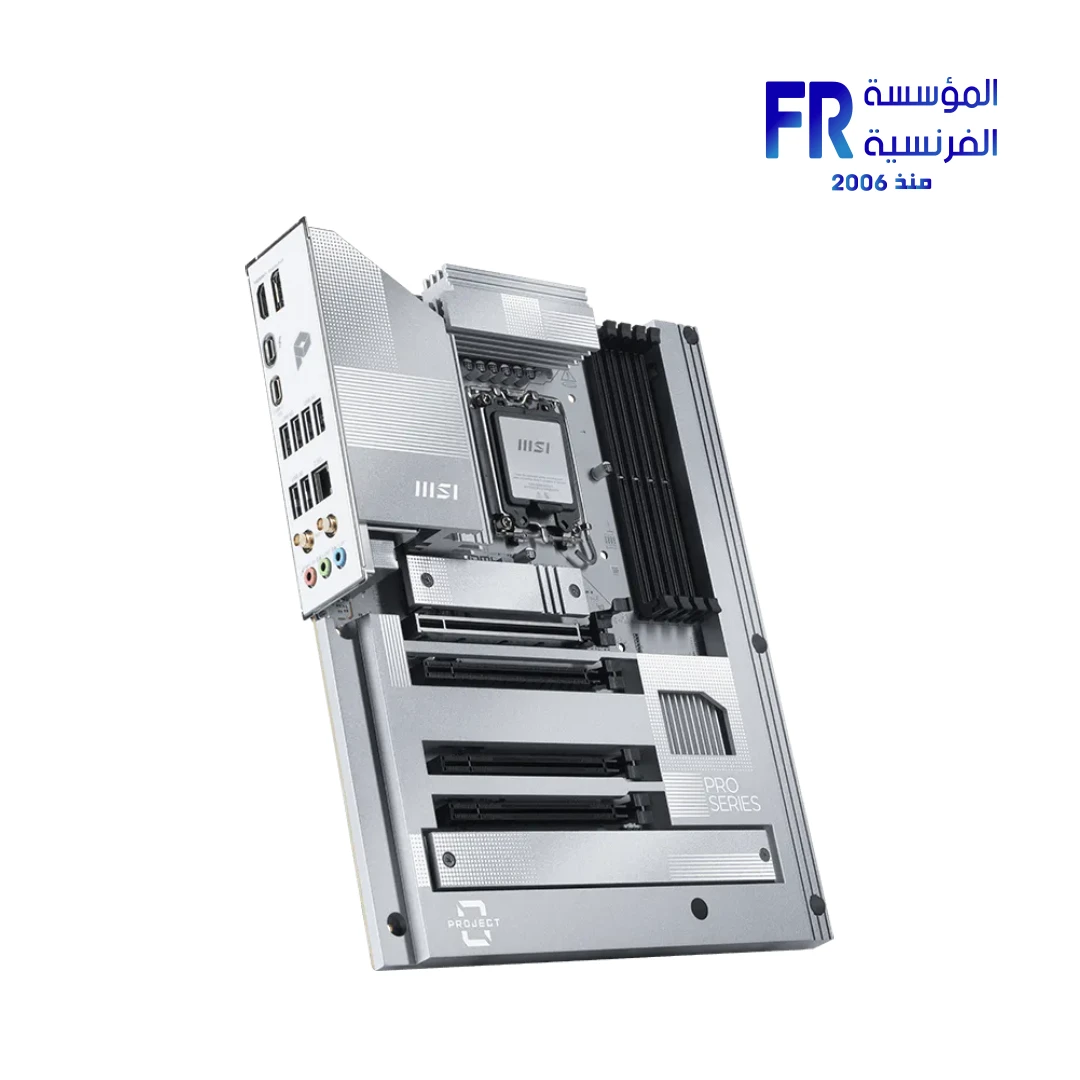

MSI PRO Z890-S WIFI PZ: Back-Connect LGA 1851 Motherboard
In short, the MSI PRO Z890-S WIFI PZ technically facilitates a superior building environment through its innovative back-connect architecture and Intel Z890 chipset. Since this motherboard relocates power and fan headers to the rear, it effectively enhances system aesthetics while maintaining high-speed throughput for Intel Core Ultra Processors (Series 2). Notably, the integration of Wi-Fi 7 specifically caters to next-generation wireless bandwidth by providing up to 5.8Gbps speeds.
Furthermore, the architectural layout is specifically positioned for professional multitasking, featuring a server-grade 6-layer PCB that ensures signal integrity during high-frequency memory overclocking up to 8800+ MT/s. Because the unit supports PCIe 5.0 for both GPU and M.2 storage, it technically ensures that your system is ready for the fastest current hardware iterations. Consequently, the PRO Z890-S delivers a disciplined technical presence that blends EZ DIY features with exquisite Thunderbolt 4 connectivity. As a result, you receive a highly efficient and visually perfect foundation for your AI-ready workstation.
Official MSI PRO Z890 Product Page
Advanced Connectivity & DIY Engineering
Back-Connect Design Advantage

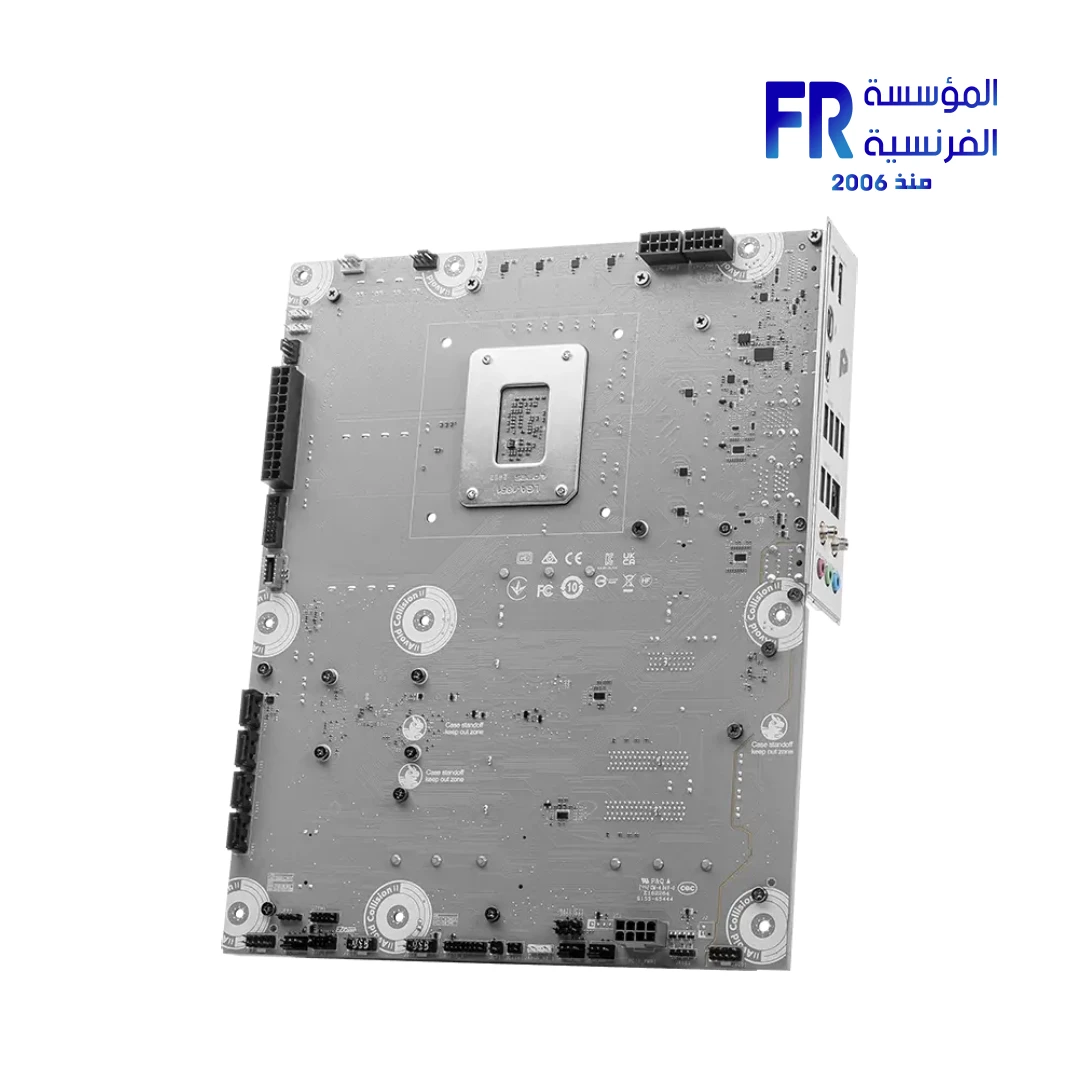

Notably, the back-connect design specifically simplifies cable management by moving power and fan headers to the rear. This technically allows for a neater front view effectively ensuring that internal lighting and components are fully displayed without the obstruction of bulky cables.
EZ DIY Installation Ecosystem
Moreover, the architecture specifically features the EZ PCIe Clip II and EZ Antenna that effectively shield your building experience from frustration. Consequently, you can install or remove hardware with one finger, resulting in a more efficient assembly process and a secure hardware lock.
Additionally, the inclusion of a dedicated Thunderbolt 5 card header effectively provides a future-proof path for 160Gbps bandwidth upgrades. Unlike conventional boards, the PRO Z890-S incorporates a Supplemental PCIe Power connector to ensure your GPU remains stable under AI workloads. As a result, you receive a technically superior platform that balances high-end performance with a sophisticated white-and-silver aesthetic.
💡 Pro-Builder Tip: Case Compatibility
To clarify, the PZ (Project Zero) series technically requires a compatible back-connect chassis with specific cutouts for the rear headers. Specifically, ensure you verify chassis support for MSI Project Zero or similar back-connect standards to effectively maintain proper airflow and cable clearance. Furthermore, utilizing the EZ Antenna’s magnetic stand technically facilitates optimal Wi-Fi 7 signal reception for 6GHz bands.
المواصفات الفنية
| Hardware Feature | Detailed Specification |
|---|---|
| Chipset | INTEL Z890 |
| CPU Support | Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Memory Support | 4x DDR5 UDIMM (Max 256GB), Up to 8800+ MT/s (OC) |

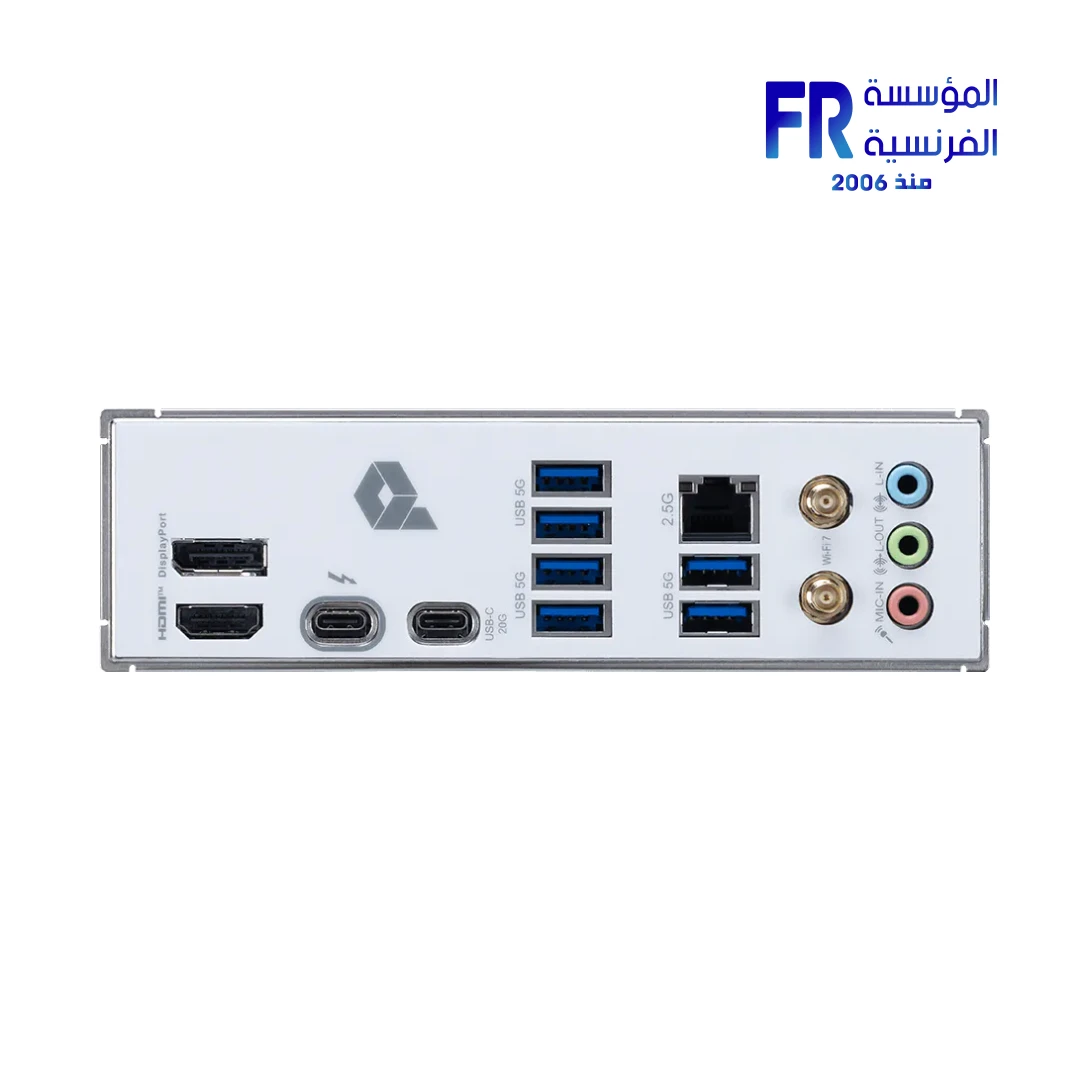

| Graphics Ports | 1x HDMI™ 2.1 (4K 60Hz), 1x DP 1.4, 1x Thunderbolt™ 4 (DP 2.1) |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 2x PCIe 4.0 x4, 1x PCIe 3.0 x1 |
| Storage Connectivity | 3x M.2 (1x Gen5 x4, 2x Gen4 x4), 4x SATA 6G |
| Network / Wireless | Realtek® 2.5Gbps LAN | Intel® Wi-Fi 7 | BT 5.4 |
| USB Details | 1x 20Gbps Type-C (Rear), 1x 20Gbps Type-C (Front), 8x USB 5Gbps |
| Power Solution | 12+1+1+1 Duet Rail Power System |
| Model Name | MSI PRO Z890-S WIFI PZ |
| Part Number | 911-7E58-004 |
| UPC / EAN | 824142394205 / 4711377259040 |
| الضمان | 3 Year Local Agent Warranty |

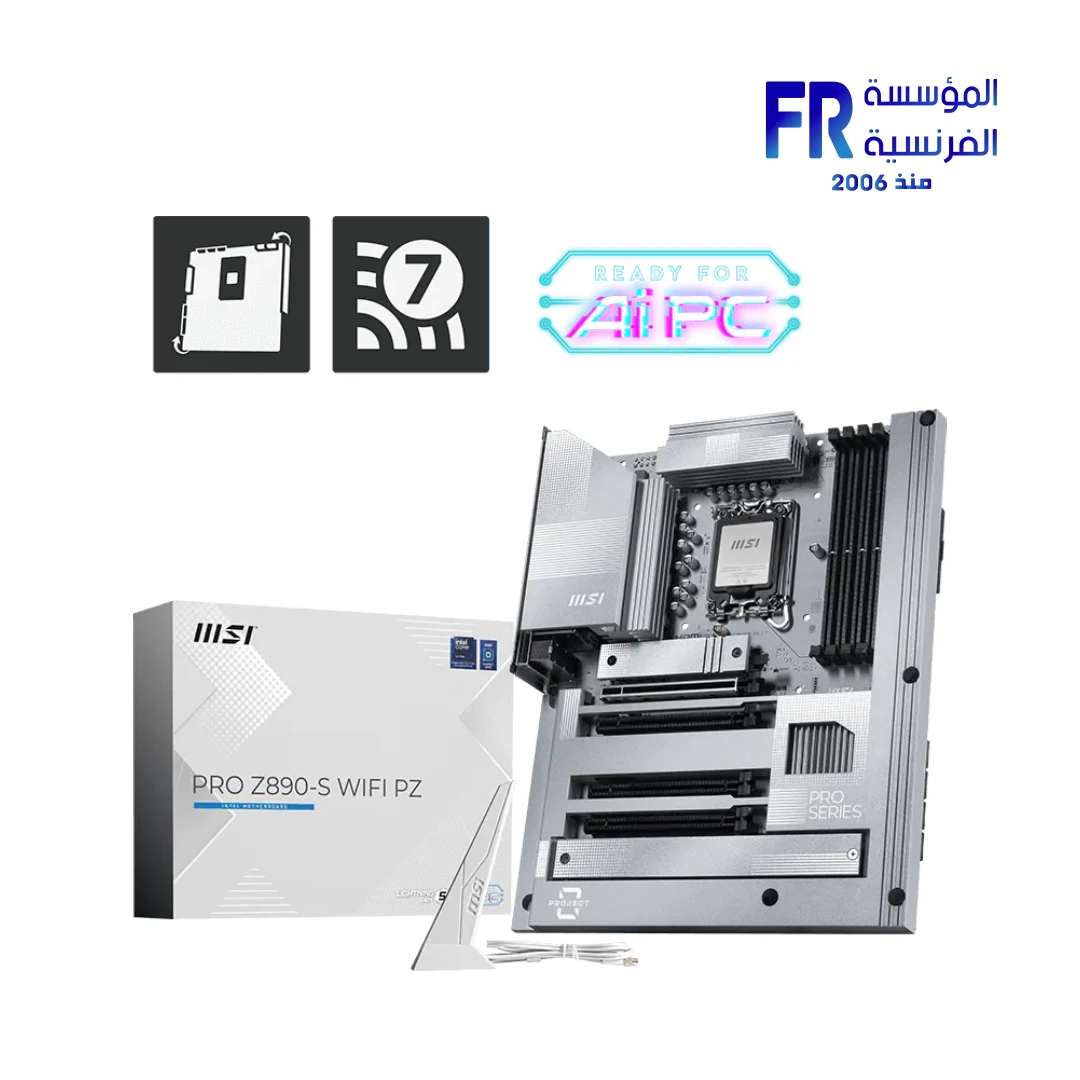

What’s In The Box
Warranty & Service Policy
The manufacturer’s authorized local agent serves as the primary technical reference for the warranty at all times starting from the date of purchase. Alfrensia offers a 30-day DOA replacement guarantee for manufacturing defects, where the product item is replaced with a brand-new unit. If the specific item is unavailable, a full refund of the paid item price will be issued (strictly excluding shipping fees). After the initial 30 days, the local service center manages the remainder of the 3-year warranty period.
يعتبر الوكيل المحلي المعتمد هو المرجع التقني والأساسي للضمان في جميع الأوقات منذ لحظة الشراء. تقدم مؤسسة الفرنسية ضمان استبدال فوري لمدة 30 يومًا في حالة وجود عيوب صناعة، حيث يتم استبدال صنف المنتج المعيب بآخر جديد تمامًا. وفي حال عدم توفر نفس صنف المنتج، نلتزم برد كامل المبلغ المدفوع لقيمة الصنف فقط، مع العلم أن هذا الاسترداد لا يشمل مصاريف الشحن نهائيًا. وبمجرد انقضاء أول 30 يومًا، يتم استكمال الفترة المتبقية من الضمان (3 سنوات ضمان وكيل) مباشرة مع الوكيل المعتمد ومراكز الخدمة التابعة له.
*Intel, the Intel Logo, and Core are trademarks of Intel Corporation. MSI and Project Zero are trademarks of Micro-Star INT’L CO., LTD. Technical specifications are based on official documentation provided at the time of publication.
