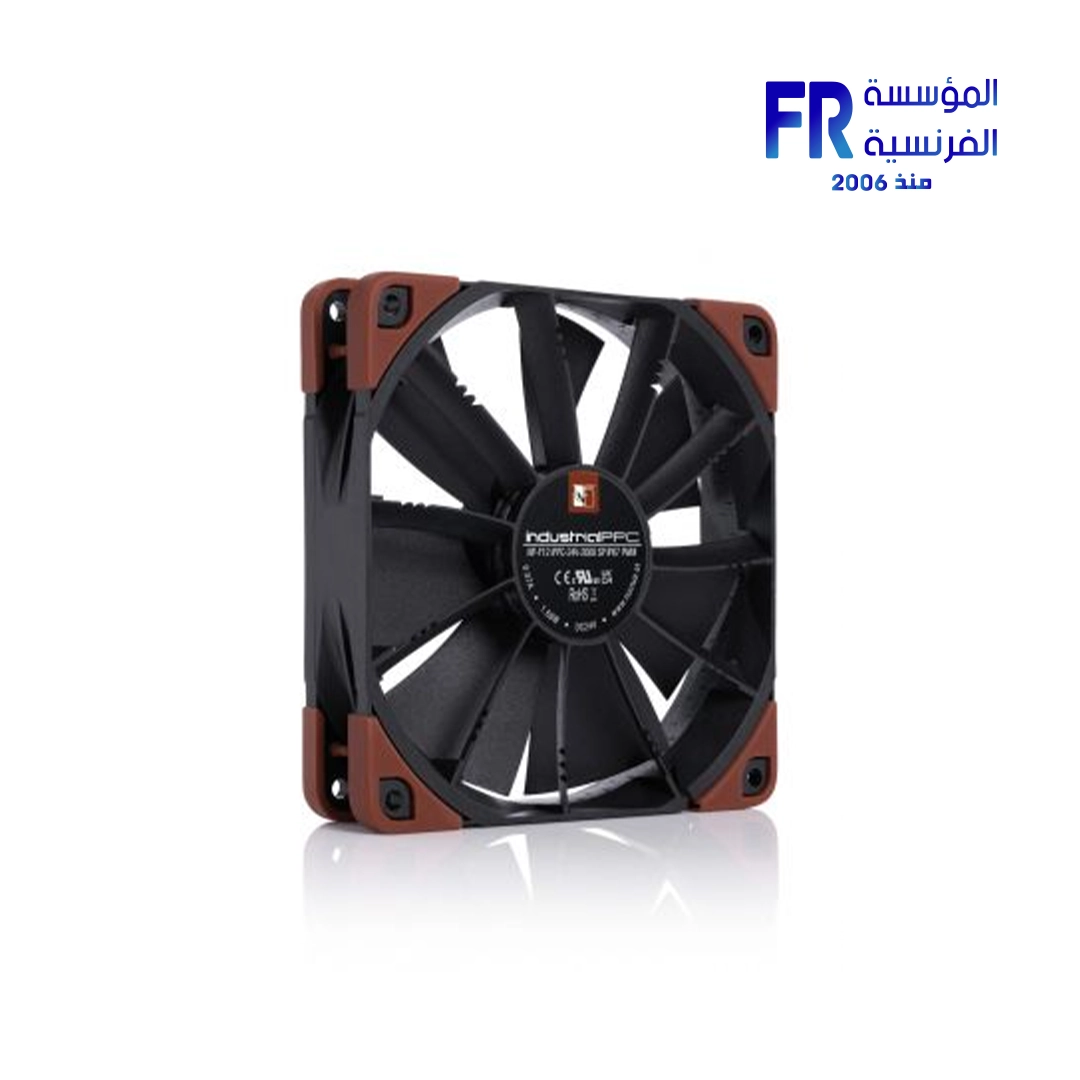

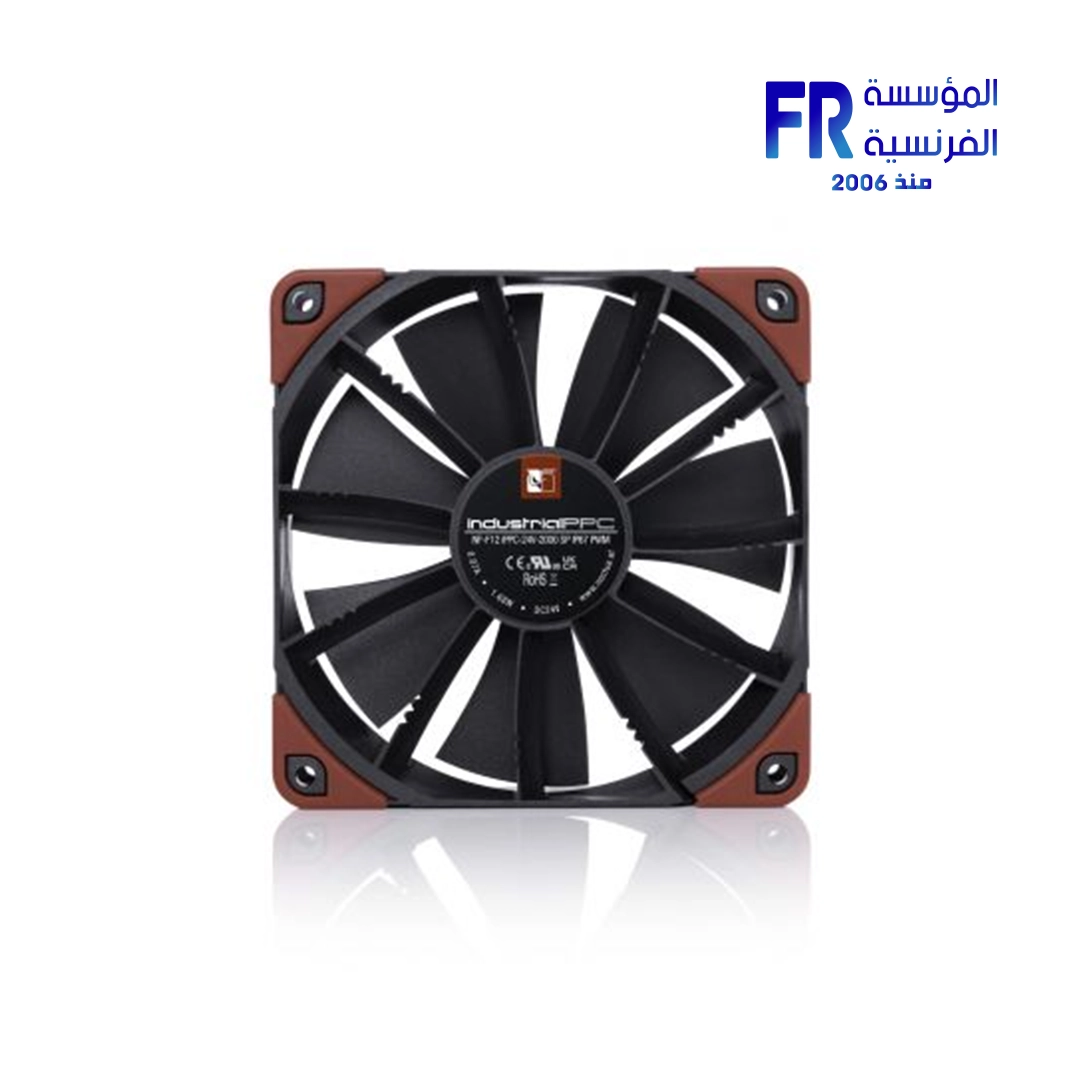

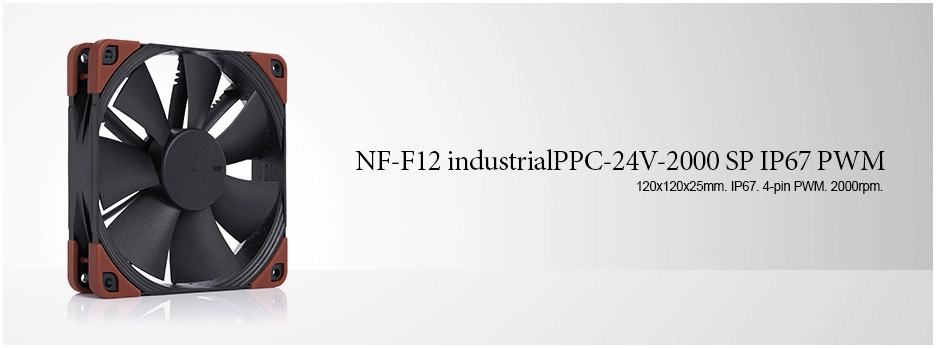

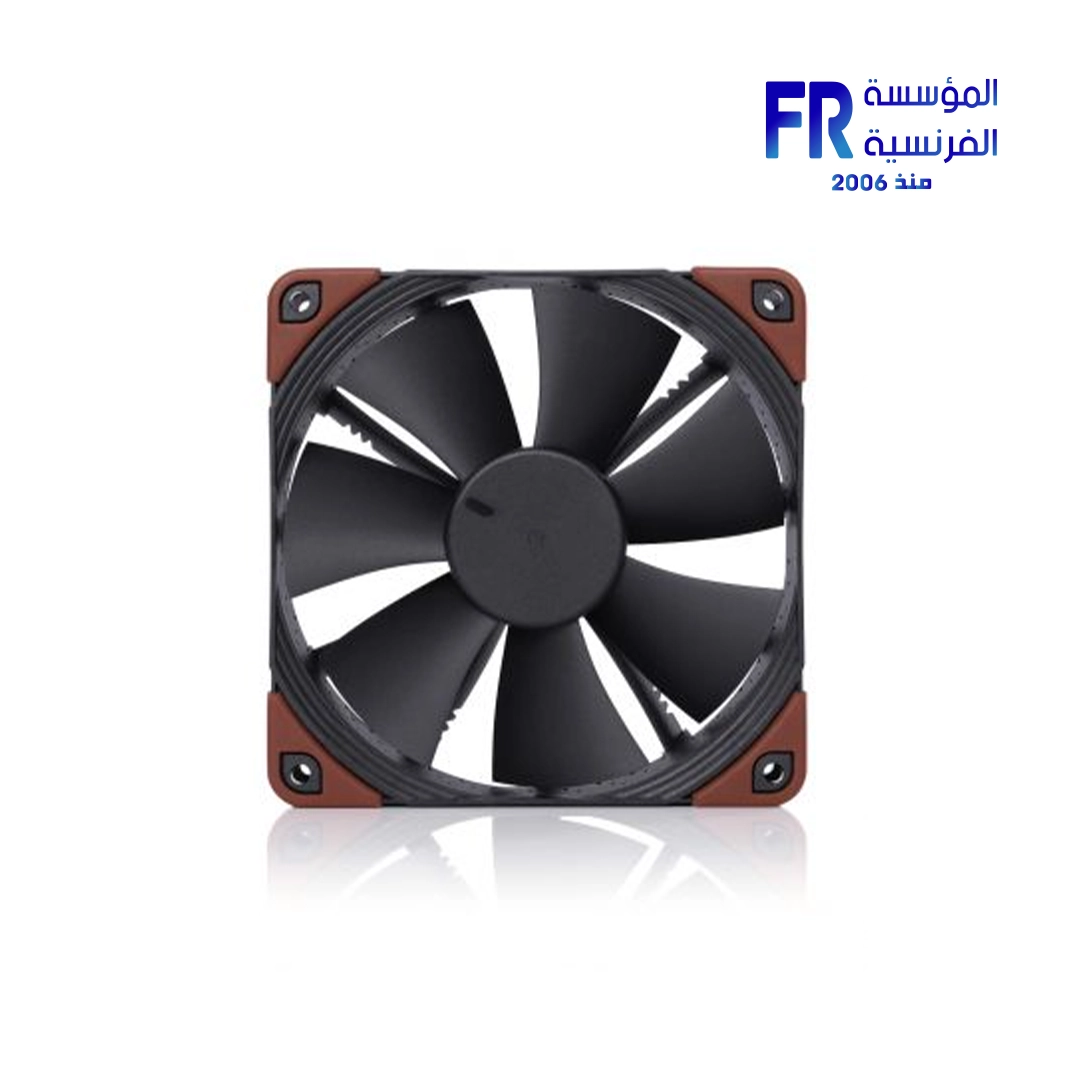

Noctua NF F12 industrialPPC 24V 2000 SP IP67 PWM 120mm Fan

Noctua NF F12 industrialPPC 24V 2000 SP IP67 PWM 120mm Fan:

The Noctua NF F12 industrialPPC 24V 2000 SP IP67 PWM 120mm Fan is a robust, high-performance cooling solution designed for demanding industrial applications and PC enthusiasts alike. It features a fibre-glass reinforced polyamide construction and IP67 ingress protection, ensuring exceptional durability against water and dust. With a rotational speed of 2000 RPM and advanced FocusedFlow™ frame technology, it delivers superior airflow and static pressure. Furthermore, its SSO2 bearing ensures long-term stability and quiet operation, making it an ideal choice for challenging environments.

Industrial-Grade Durability & Protection:

The Noctua NF-F12 industrialPPC-24V-2000 SP IP67 PWM fan is built for extreme reliability. Its construction uses fibre-glass reinforced polyamide. This material ensures exceptional durability and resilience in harsh conditions. The fan boasts an IP67 ingress protection rating. This means it is fully protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. Consequently, it is perfectly suited for challenging industrial environments where exposure to dust and water is common.

This industrial-grade design ensures consistent operation and an extended lifespan, even under demanding workloads. The robust build quality makes it a dependable choice for mission-critical systems where fan failure is not an option.

Superior Airflow & Static Pressure:

The NF-F12 industrialPPC fan delivers outstanding cooling performance. It operates at a rotational speed of 2000 RPM, generating an impressive airflow of 121.8 m³/h. Its FocusedFlow™ frame technology and Heptaperf™ blade geometry are meticulously designed to concentrate the airflow, resulting in superior static pressure. With a static pressure of 3.94 mm H₂O, this fan excels in applications requiring high pressure, such as cooling dense radiator fins or restrictive PC cases.

This combination of high airflow and static pressure ensures efficient heat dissipation. It effectively cools components like CPUs and GPUs, even in challenging thermal environments. The fan’s powerful performance makes it a top choice for enthusiasts and professionals seeking maximum cooling efficiency.

Quiet Operation & Versatile Control:

Despite its powerful performance, the NF-F12 industrialPPC fan maintains a relatively low acoustical noise level of 29.7 dB(A). This is achieved through Noctua’s renowned SSO2 bearing technology, which ensures long-term stability and minimal operational noise. The fan’s MTTF (Mean Time To Failure) is over 150,000 hours, highlighting its exceptional reliability.

The fan supports a 4-pin PWM connector, allowing for precise speed control. It operates on a 24V operating voltage, making it suitable for specialized industrial setups, while the PWM signal voltage is 5V. It can also run at 1050 RPM when supplied with 12V, offering flexibility. This versatile control allows users to fine-tune the balance between cooling performance and noise levels according to their specific needs.

Explore compatible Fans or check Noctua Products for other options. Find full details on the official Noctua NF-F12 industrialPPC 24V 2000 SP IP67 PWM product page.

Specifications:

Fan Specifications:

• Size: 120x120x25 mm
• Mounting Hole Spacing: 105×105 mm
• Connector & Pin-Configuration: 4-pin PWM
• Cable Length: 40cm
• Bearing: SSO2
• Blade Geometry: Heptaperf™
• Frame Technology: FocusedFlow™
• Material: Fibre-glass reinforced polyamide
• Ingress Protection: IP67
• Motor Type: Single-phase
• Rotational Speed (+/- 10%): 2000 RPM
• Min. Rotational Speed @ 20% PWM (+/-20%): 450 RPM
• Rotational Speed @ 12V (+/- 10%): 1050 RPM
• Airflow: 121.8 m³/h
• Acoustical Noise: 29.7 dB(A)
• Static Pressure: 3.94 mm H₂O
• Input Power (typical): 1.32 W
• Input Power (max.): 1.68 W
• Input Current (typical): 0.055 A
• Max. Input Current: 0.07 A
• Operating Voltage: 24 V
• Voltage PWM Signal: 5 V
• MTTF: > 150.000 h

Scope of Delivery:

• Fan
• 4 Fan Screws

Product Identifiers:

• Part Number/SKU: NF F12 industrialPPC 24V 2000 SP IP67 PWM
