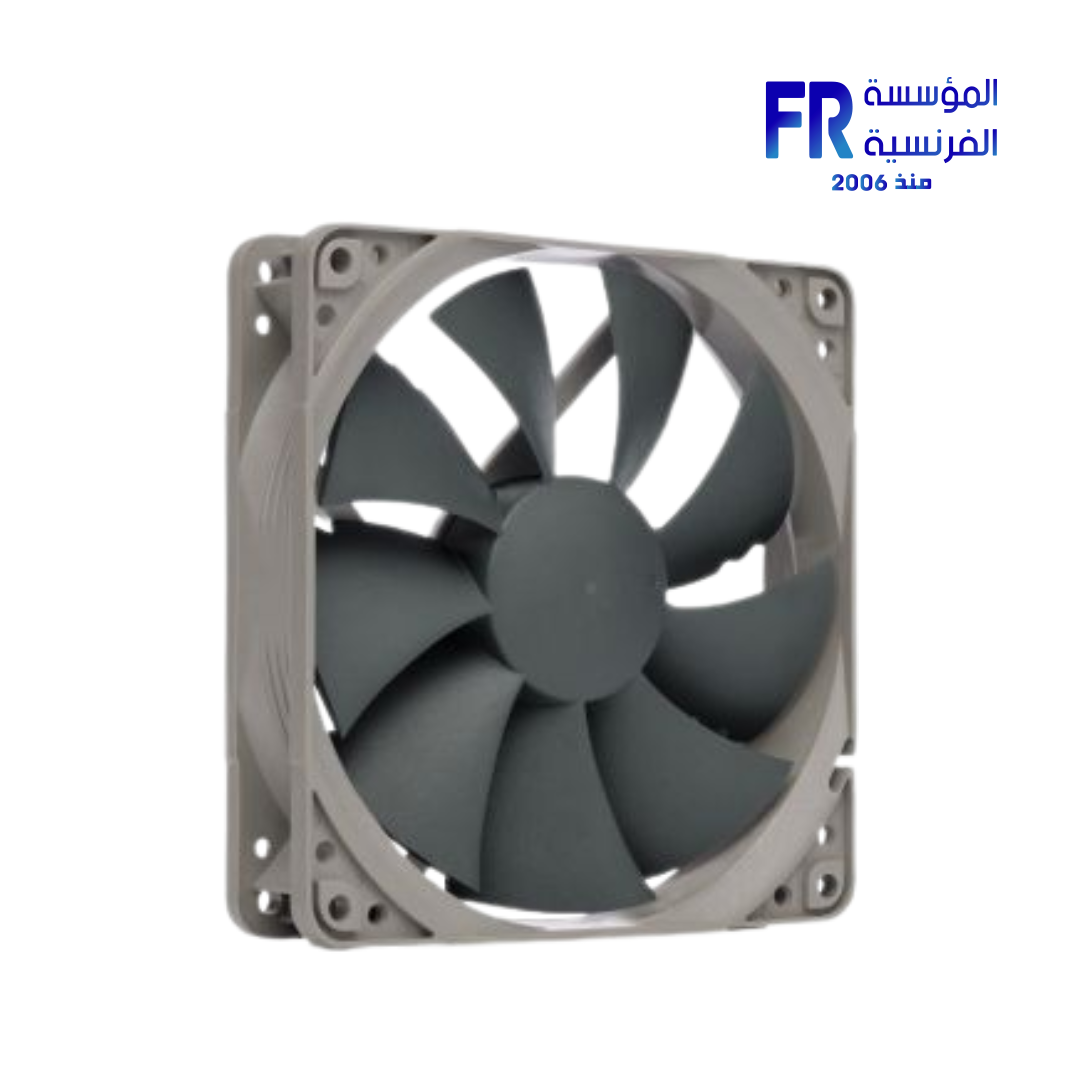

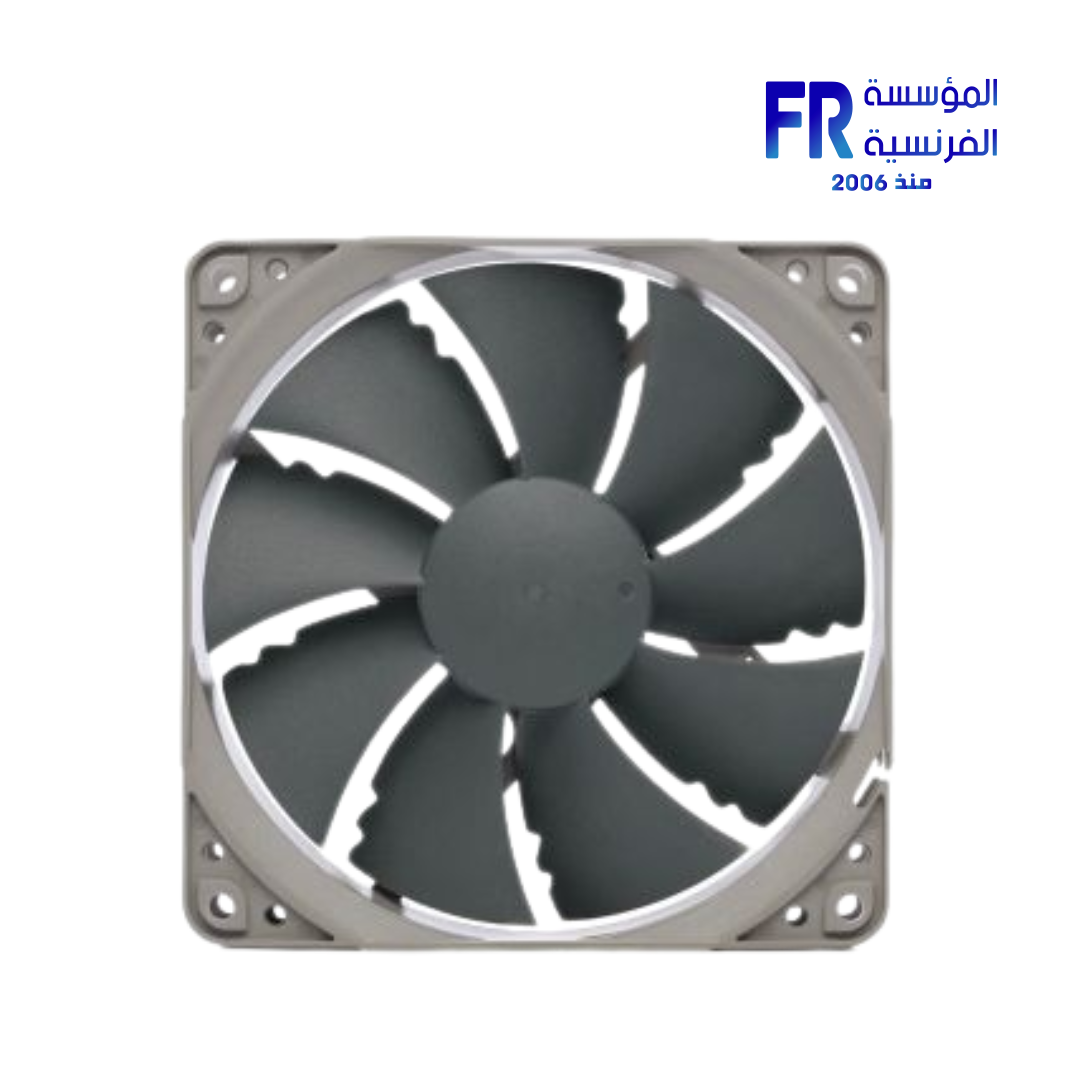

Noctua NF P12 redux 1700 PWM 120mm Fan

Noctua NF-P12 redux-1700 PWM: High-Performance 120mm Fan

The Noctua NF-P12 redux-1700 PWM delivers exceptional cooling performance with 1700 RPM max speed and 2.83 mm H₂O static pressure, optimized for heatsinks and radiators. Featuring PWM-controlled speeds from 450-1700 RPM, this grey-and-black redux edition fan moves 70.7 CFM (120.2 m³/h) while operating at just 25.1 dB(A). Furthermore, its SSO2 bearing ensures >150,000 hours MTBF for long-term reliability in demanding applications.

Pressure-Optimized Design:

Engineered with 9-blade impeller design and inner surface microstructures, the NF-P12 redux generates focused airflow for restricted environments. The PWM version allows precise speed control via 4-pin motherboard headers, while the staggered blade tips reduce tonal components. Moreover, the included Low-Noise Adapter (LNA) limits maximum speed to 1200 RPM for near-silent operation when full performance isn’t required.

Key Features:

• Airflow: 70.7 CFM (120.2 m³/h) at 1700 RPM
• Static Pressure: 2.83 mm H₂O
• Noise Level: 25.1 dB(A) at full speed
• Speed Range: 450-1700 RPM (±10%) via PWM
• Bearing: SSO2 with magnetic stabilization
• Frame: Grey redux series (industrial-grade)
• Connector: 4-pin PWM
• MTBF: >150,000 hours

Technical Specifications:

Bundle Includes:

• 1x NF-P12 redux-1700 PWM fan
• 4x Anti-vibration rubber mounts (NA-SAV2 redux)
• 1x Low-Noise Adapter (LNA)
• 1x 4-pin PWM extension cable (30cm)
• 4x Fan screws

Ideal Applications:

• CPU air coolers and heatsinks
• Water cooling radiators (up to 60mm thickness)
• High-airflow case ventilation
• Workstation and server cooling
• Silent PC builds (with LNA)
