⚡ Engineering Highlights at a Glance:

• 3,100 RPM Pump: Delivers strong coolant flow for heavy gaming and multitasking while keeping noise low.

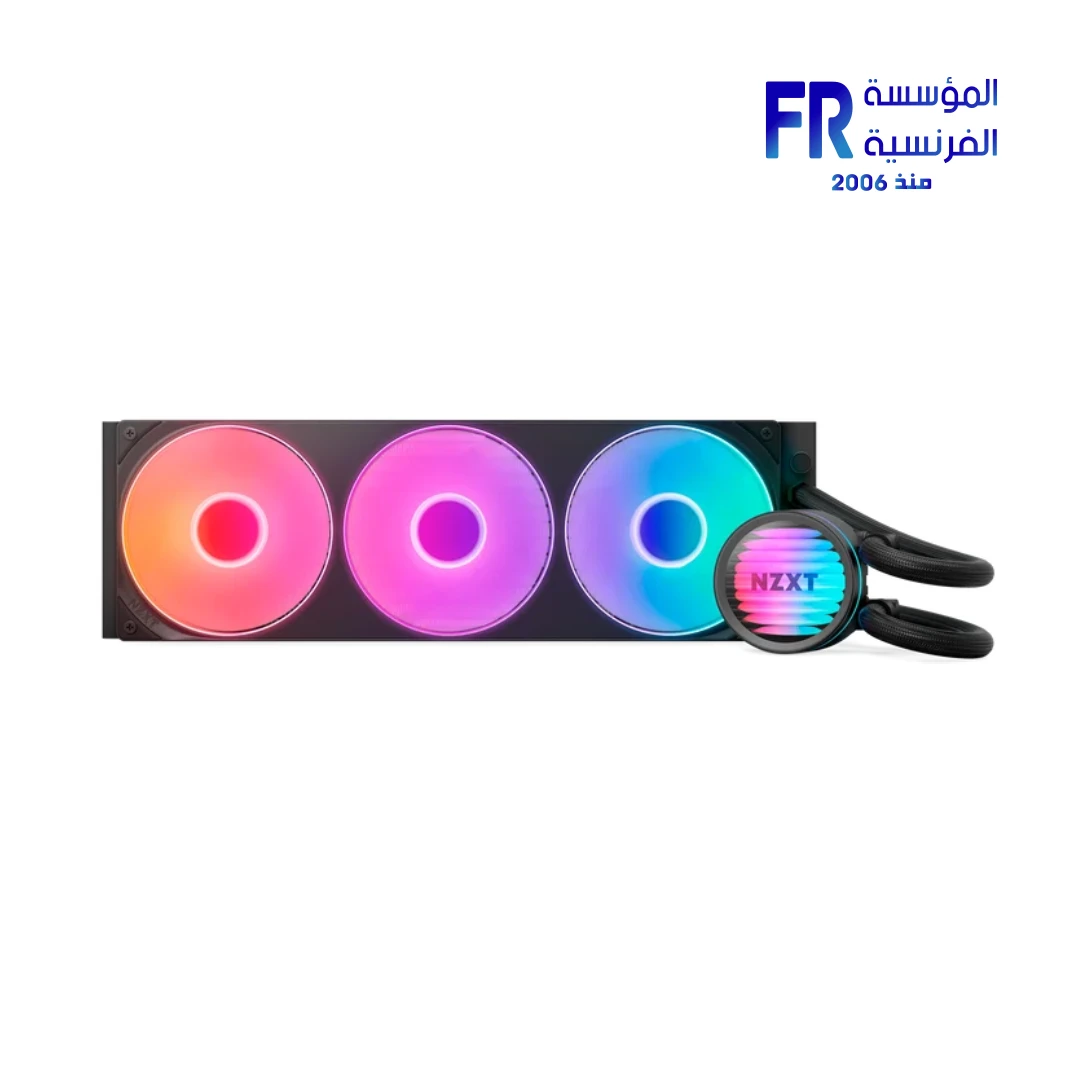

• F360 RGB Core Single-Frame Array: Three fans in one frame with fewer screws and cables, plus 8 RGB LEDs per fan.
• High Static Pressure Blades: Each fan delivers 75.05 CFM and 3.07 mmH₂O at 500–2,400 RPM, tuned for radiator fins.

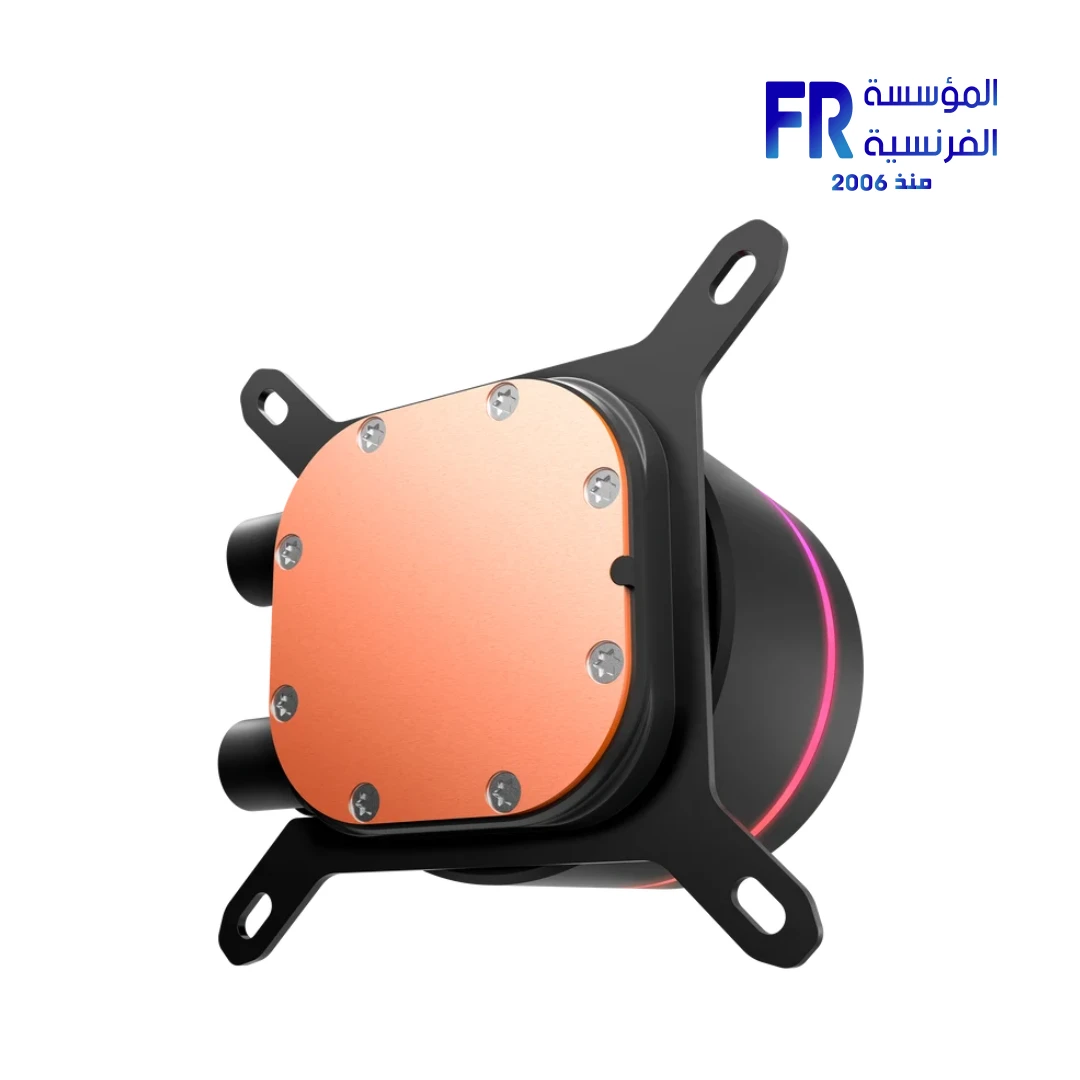

• Copper Cold Plate: Solid copper base for efficient heat transfer from the CPU to the coolant.
• Motherboard ARGB Control: Connects to a 5V ARGB header, so you can sync lighting through your motherboard’s software without extra controllers.
• Tool-Free Installation: Brackets and pre-applied thermal paste simplify mounting on Intel and AMD sockets.
• Wide Socket Support: Works with Intel LGA 1851/1700/1200/115X and AMD AM5/AM4 out of the box.

Case Clearance and Mounting

The radiator measures 397 x 120 x 27mm, so your case needs a 360mm radiator mount on the top, front, or side. Check that the fan array’s 26mm thickness plus the 27mm radiator total is within your case clearance. The 420mm tubing gives you room to route, but plan the pump orientation before mounting so the tubes align without strain. For best results, mount the radiator with the tubes at the bottom when the pump is at the front of the case, or follow the manual for the recommended orientation.

Connecting Fans and RGB

The Kraken Core 360 RGB connects directly to your motherboard, so you do not need an NZXT controller. The single-frame fan array uses one 4-pin PWM connector and one 5V RGB connector. Plug the pump into the AIO_PUMP header if available, or the CPU_FAN header if not. Connect the fan PWM cable to CPU_FAN and the RGB cable to your motherboard’s 5V ARGB header. If your motherboard lacks a 5V ARGB header, you will not be able to control the pump or fan lighting through motherboard software.

Pump Speed and Fan Curves

The pump runs at 3,100 RPM, which is not designed for variable speed control; leave the pump header at 100% in the BIOS. Set the fan curve separately using the CPU_FAN header. At full speed, each fan reaches 31.9 dBA, which is quiet for a 140mm-class fan. A curve that ramps to about 70% under sustained load keeps noise down while still pushing enough air through the radiator. Verify pump RPM in the BIOS or your monitoring software after installation to confirm the pump is running.

Plan the radiator orientation before you mount it. For front-mounted builds, route the tubes downward to reduce the chance of air pockets reaching the pump. For top-mounted builds, mount the pump block first and check that the 420mm tubing reaches the pump without strain. Follow the manual’s recommended orientation for your case layout.

Plug the pump into the AIO_PUMP header if your motherboard has one, and set that header to 100% in the BIOS. The pump runs at 3,100 RPM and is not designed for variable speed control. Connect the fan array’s PWM cable to CPU_FAN so you can set a fan curve separately from the pump.

Connect the RGB cable to your motherboard’s 5V ARGB header and control lighting through your motherboard’s software. The Kraken Core 360 RGB does not require an NZXT controller; if you prefer NZXT CAM for lighting, that would require a different NZXT cooler with a controller included.

Set a fan curve that ramps to about 70% under sustained load for a balance of noise and cooling; at full speed each fan reaches 31.9 dBA. After installation, check the pump RPM in BIOS or monitoring software to confirm the pump is running, and monitor CPU temperatures during a stress test to confirm the cooler is seated correctly.
