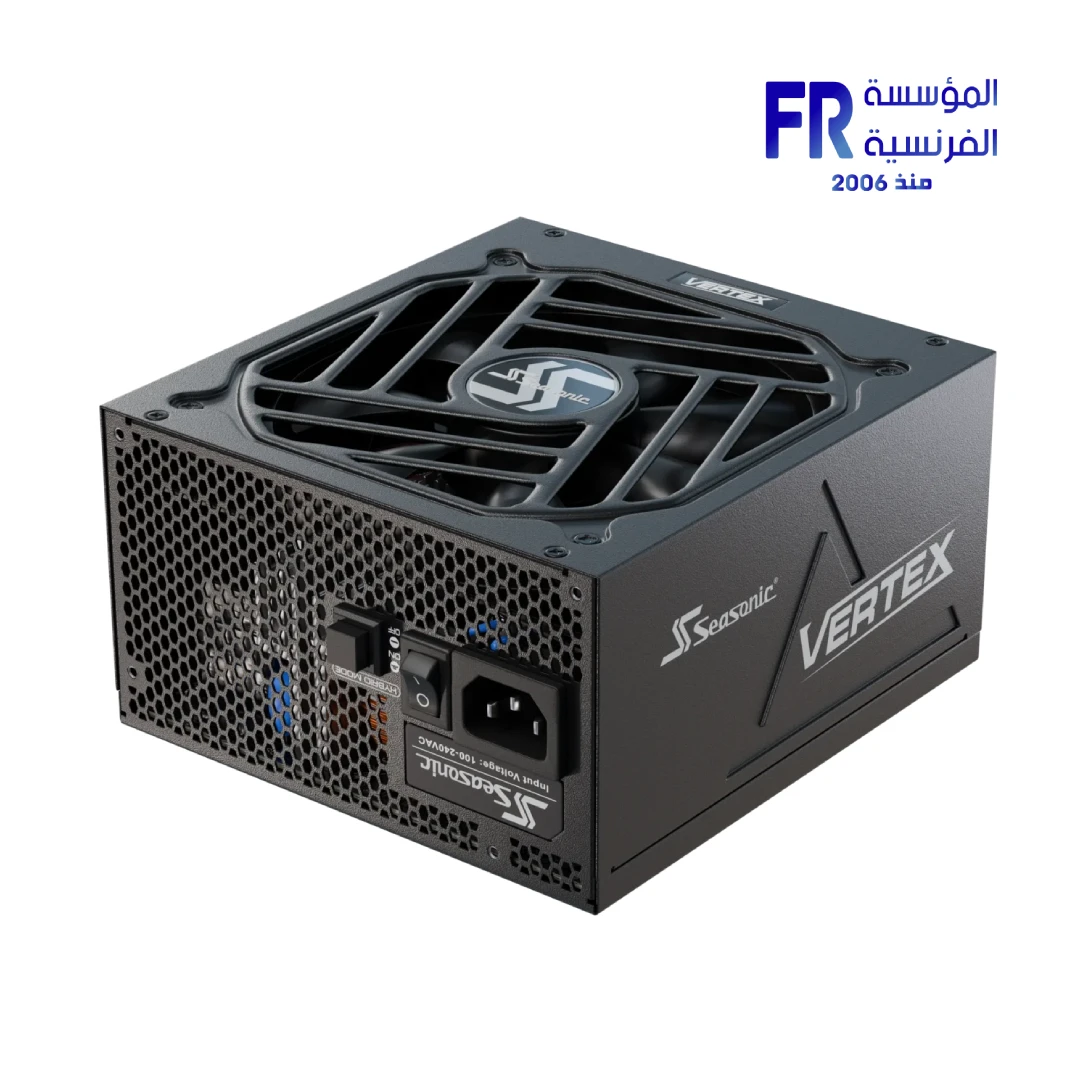

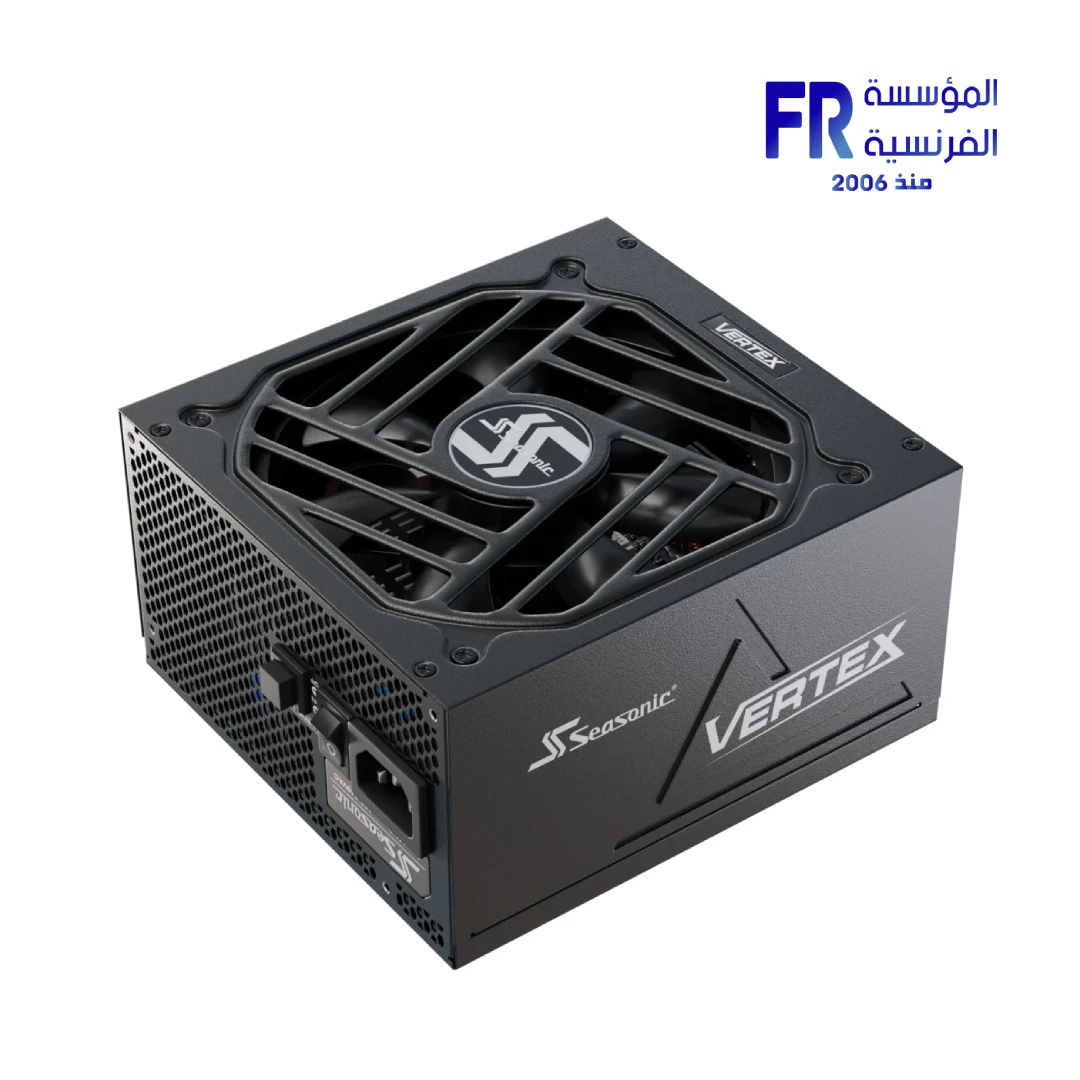

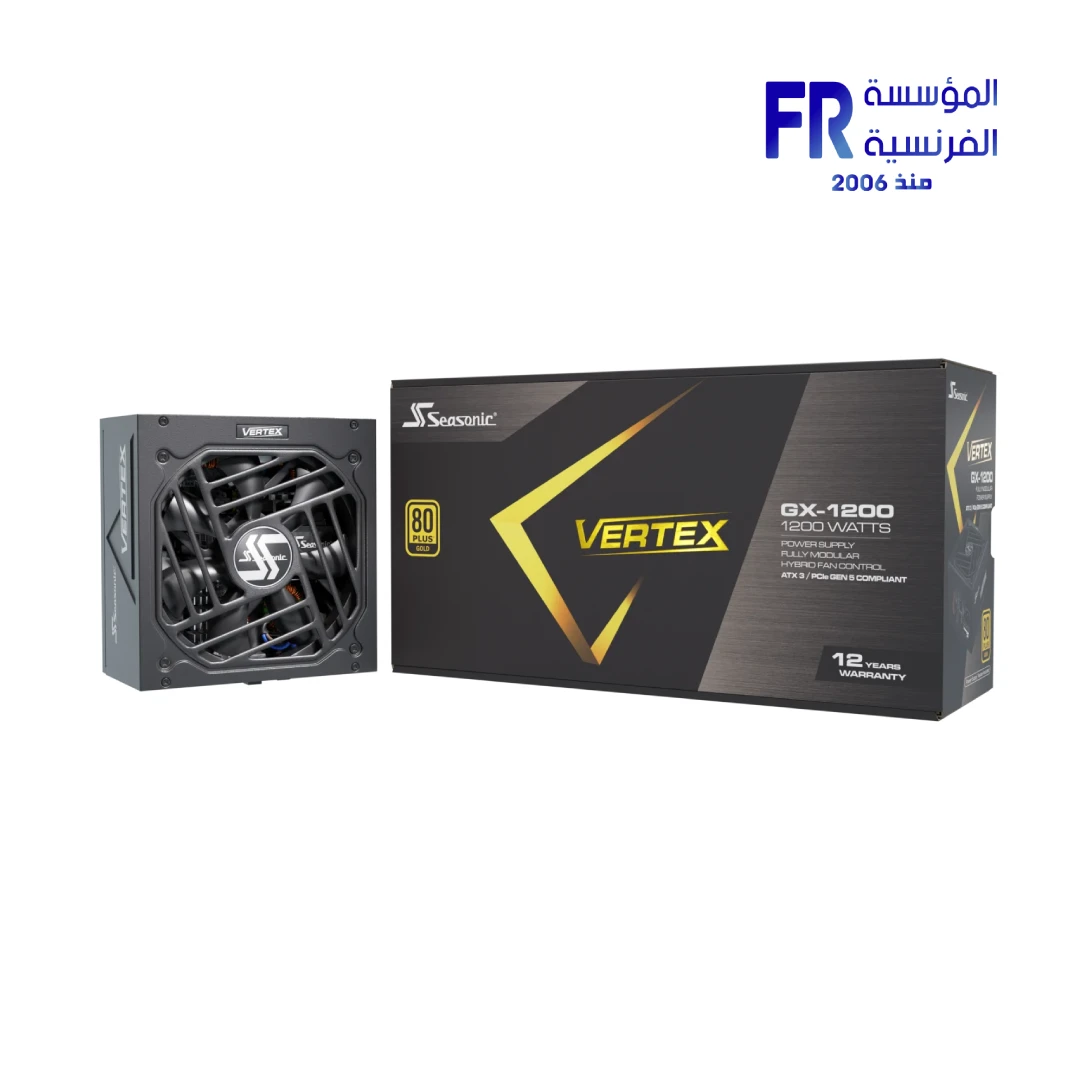

Seasonic Vertex GX-1200 1200W Atx 3.1 80 Plus Gold Fully Modular Hybrid Fan Power Supply
13000 جنيه
- رقم القطعة: 12122GXAFS
- Model & Barcode: VERTEX GX-1200 ATX 3 | 882016002380
- Power & Efficiency: 1200W | 80 Plus Gold Certified
- Cabling & Form Factor: Fully Modular | Compact ATX (160mm)
- Standards & Cooling: ATX 3.1 & PCIe 5.1 | 135mm FDB Fan | Hybrid Control
- الضمان: 12 Years Warranty
متوفر في المخزون
ضمان مطابقة السعر
Official Authorized Seasonic Retailer – Egypt
Genuine local stock with full 12-Year local manufacturer warranty support.
⚡ Quick Verdict:
The VERTEX GX-1200 is the ultimate power flagship for elite builds. Combining colossal 1200W capacity, modern ATX 3.1 standards, and native 12V-2×6 GPU power with an unmatched 12-year warranty, it offers total peace of mind for high-end systems.

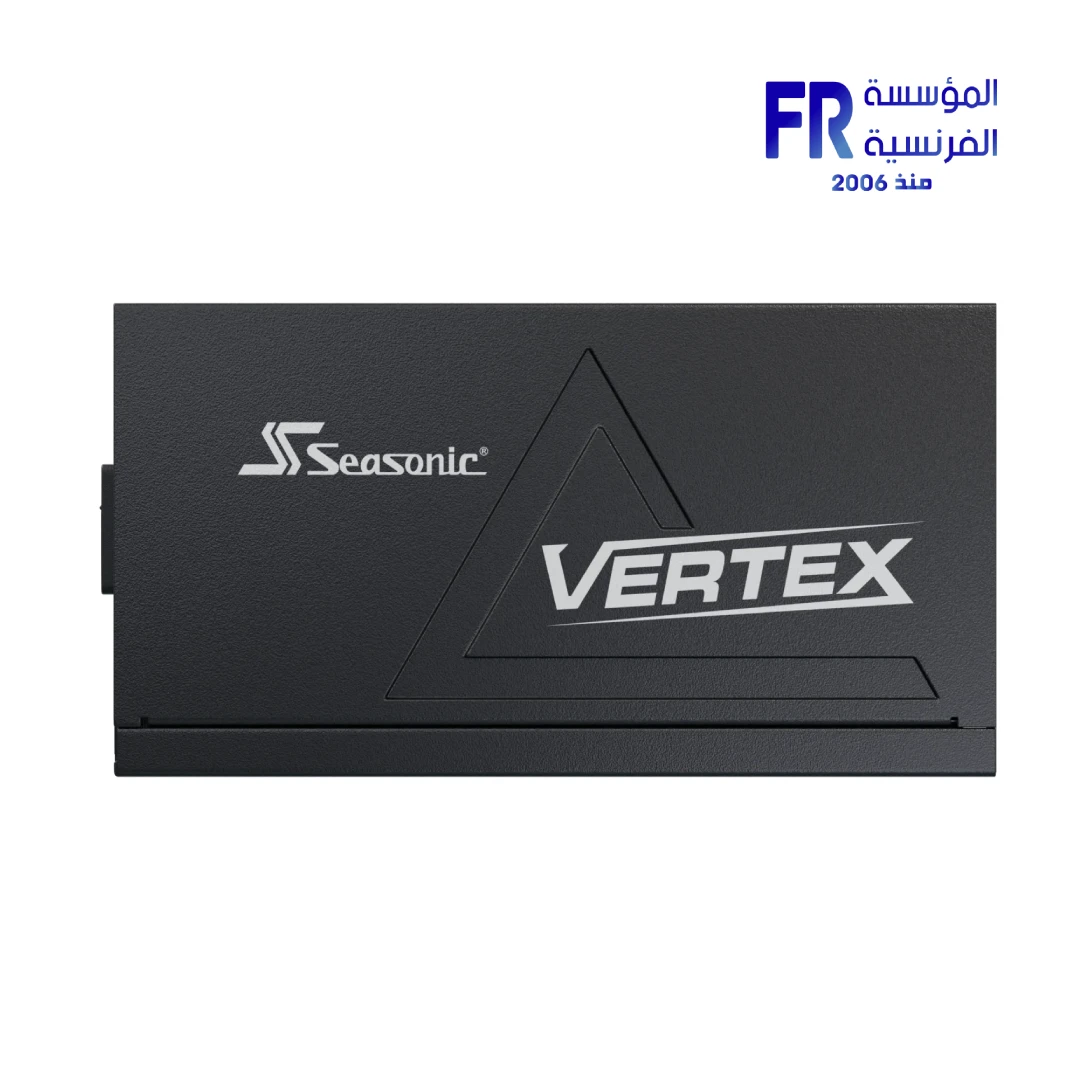

Seasonic Vertex GX-1200 ATX 3.1 1200W Power Supply
Legendary Engineering. Flagship Performance.
The Seasonic VERTEX GX-1200 provides 1200 Watts of true power at an 80 PLUS® Gold efficiency rating.
Designed to feed flagship multi-core CPUs and demanding graphics architectures, this fully modular powerhouse brings peace of mind to overclockers and professionals alike.
It is fully compatible with ATX 3.1 and PCIe 5.1 standards, including a dedicated 12V-2×6 cable designed for current and next-generation graphics cards.

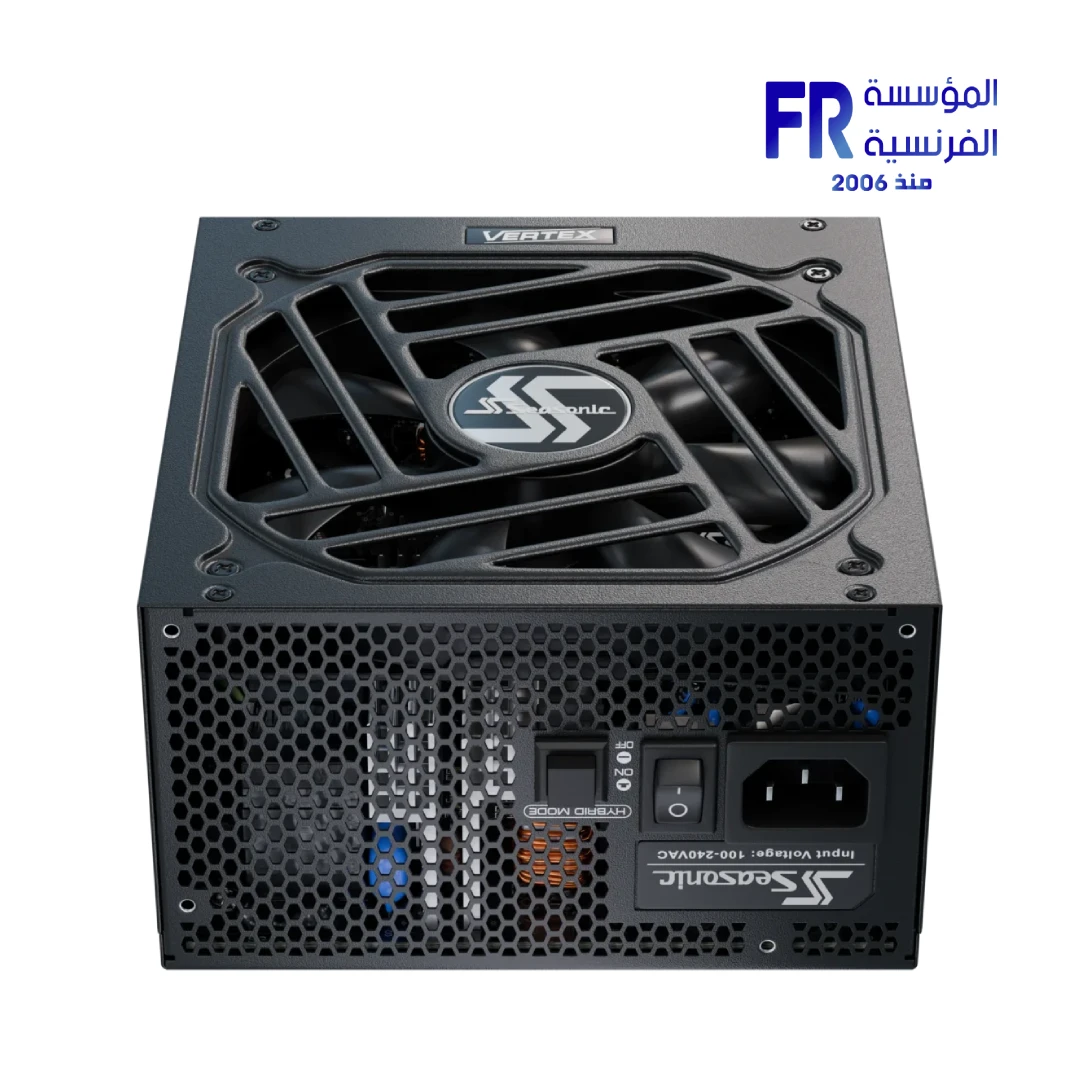

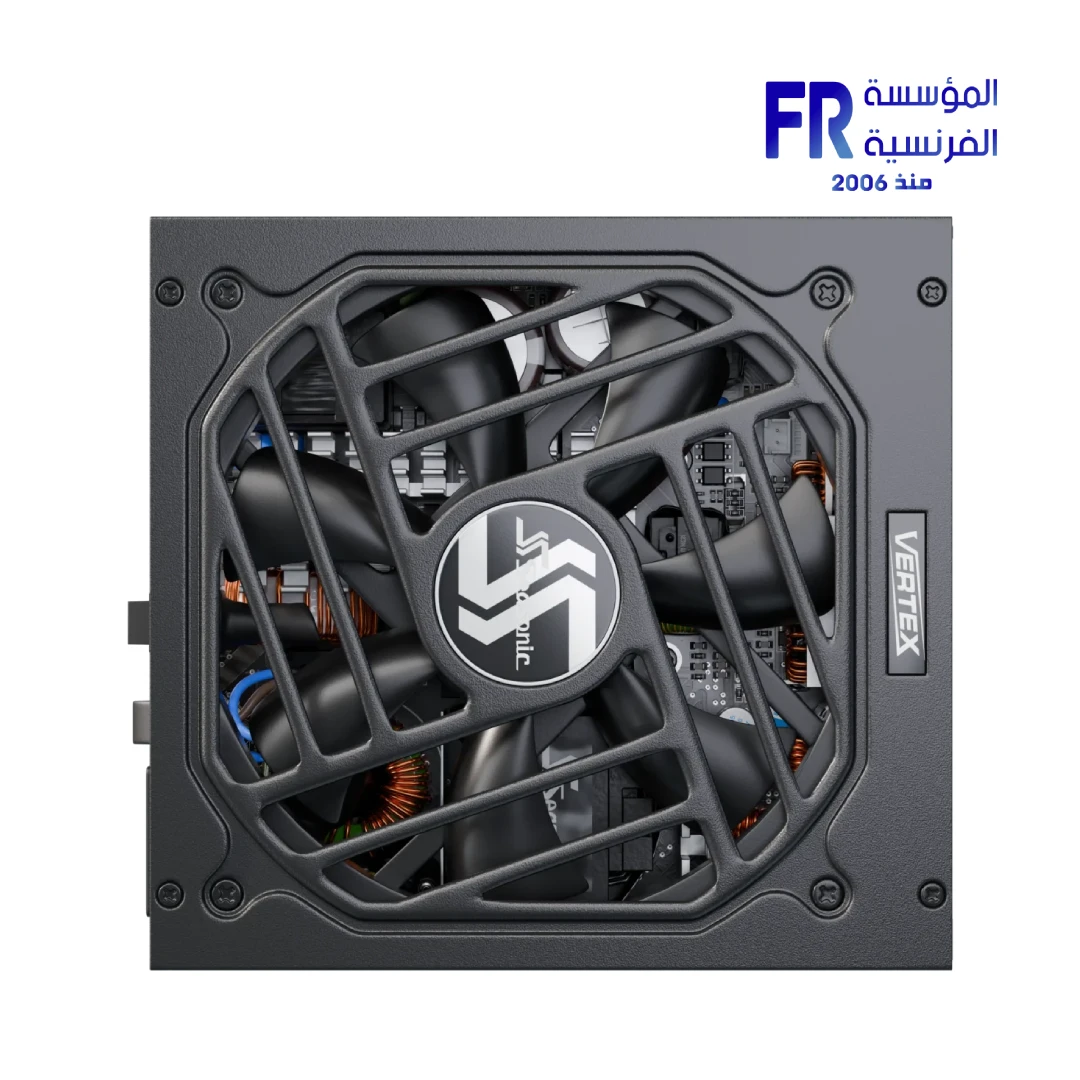

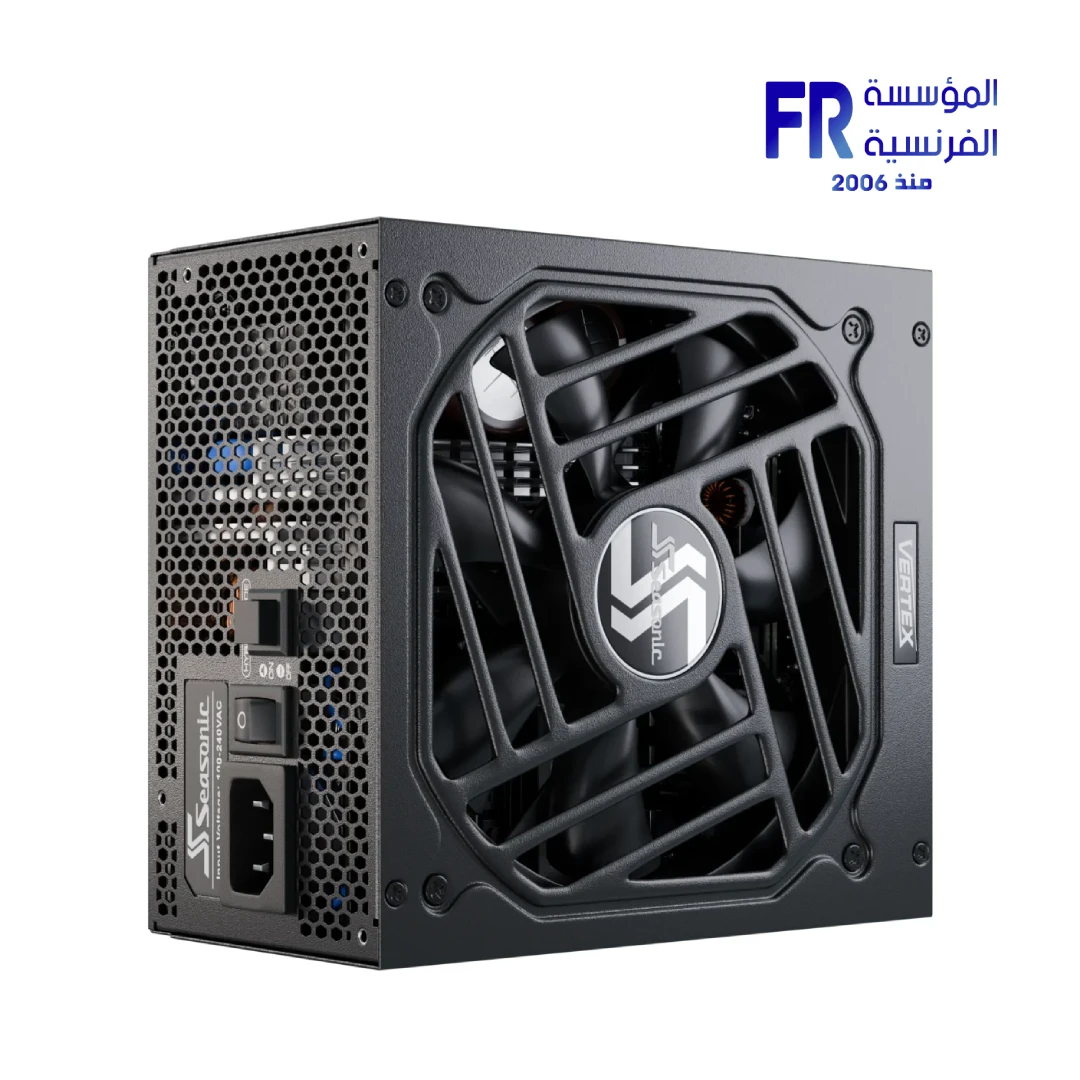

Cooling is driven by a massive 135 mm Fluid Dynamic Bearing (FDB) fan regulated by Seasonic’s state-of-the-art Digital Hybrid Fan Control.
Backed by an industry-leading 12-year manufacturer warranty, the VERTEX GX-1200 represents the pinnacle of premium PC power delivery.
💚 Pro Tip: Use the fully modular cable architecture to install only the cables your build requires, significantly opening up internal chassis airflow and reducing dust accumulation.
المواصفات الفنية
| Model Name | VERTEX GX-1200 |
| Part Number / MPN | 12122GXAFS |
| SKU / EAN-13 | 882016002380 |
| 80PLUS® | Gold |
| Cybenetics Efficiency Level | Gold |
| Cybenetics Noise Level | A- |
| Form Factor | ATX/EPS |
| Dimensions | 160 × 150 × 86 mm |
| Fan Size | 135 mm |
| Fan Control | Digital Fan Control |
| Fan Bearing | Fluid Dynamic Bearing |
| Life Expectancy | 50,000 hours at 40 °C, 15 % – 65 % RH |

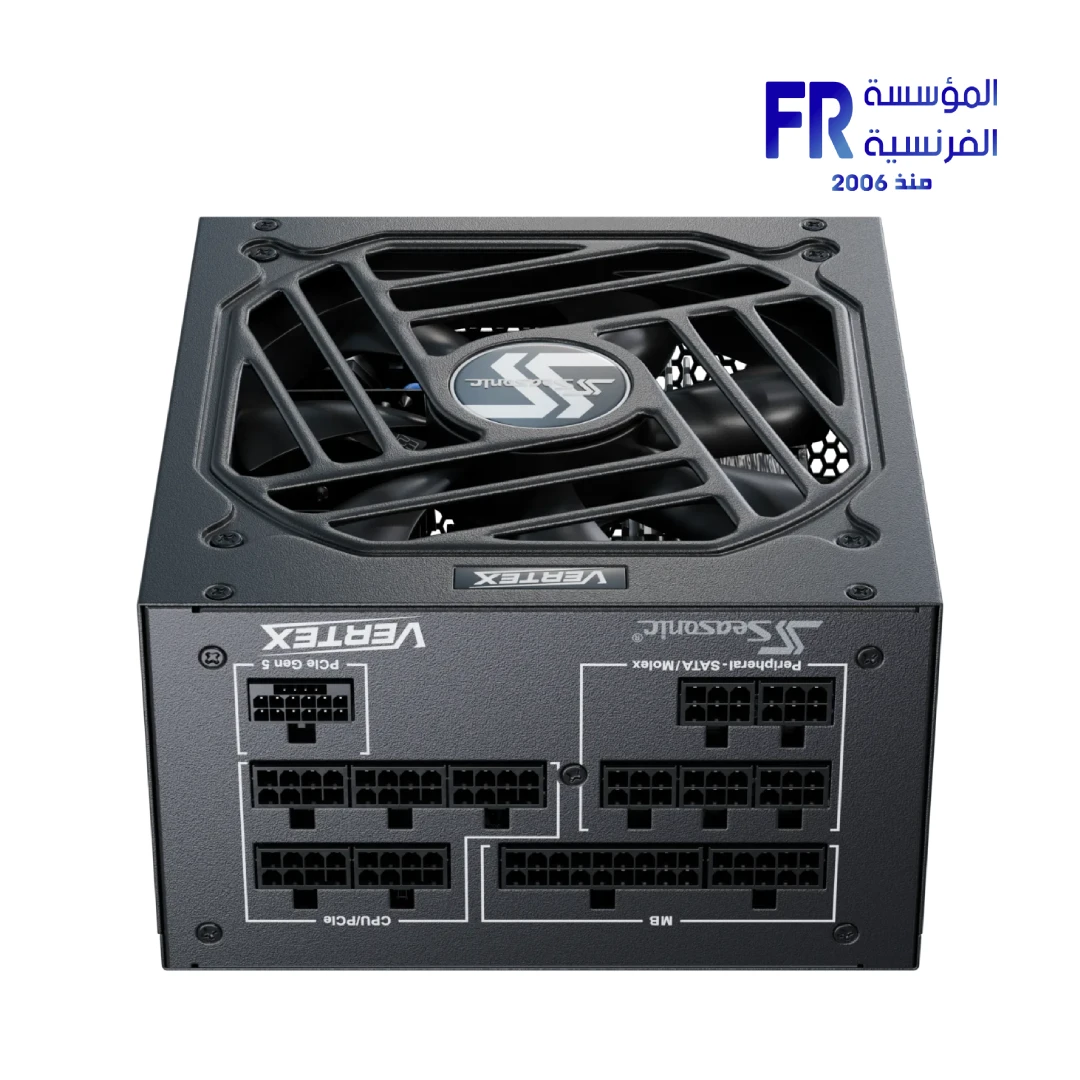

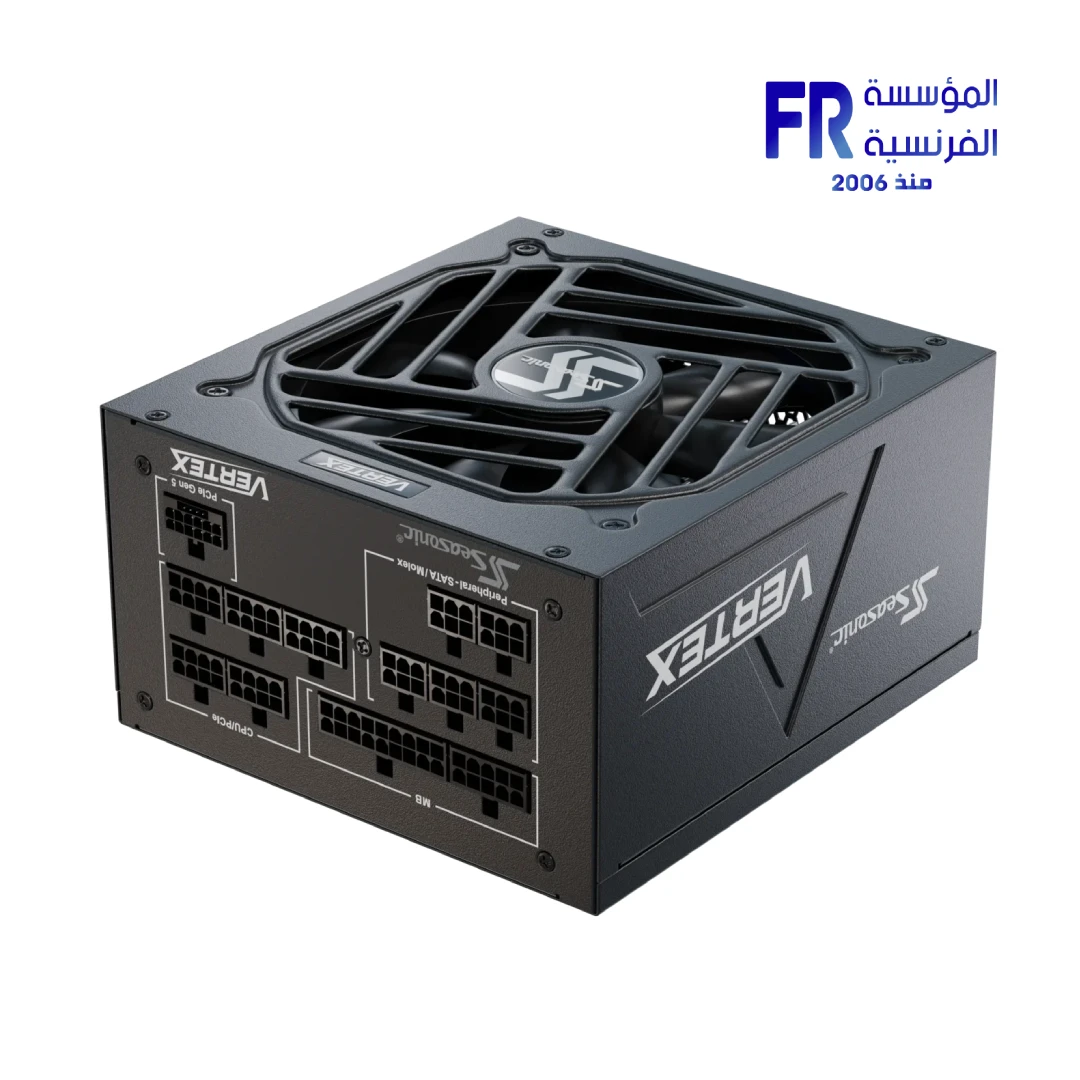

| Modularity | Fully Modular |
| Cable type | Cables with Braided Pattern |
| Operating Temperature | 0 – 50 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours |
| AC Input | Full Range |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP |
| Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| الضمان | 12 Years Local Warranty |
Power Output Details
| AC Input | 100 V – 240 V, 15 – 7.5 A, 50 Hz – 60 Hz | ||||
|---|---|---|---|---|---|
| DC Output Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Current | 25 A | 25 A | 100 A | 0.3 A | 3 A |
| Maximum Power | 125 W (Combined) | 1200 W | 3.6 W | 15 W | |
| Total Continuous Power | 1200 W | ||||

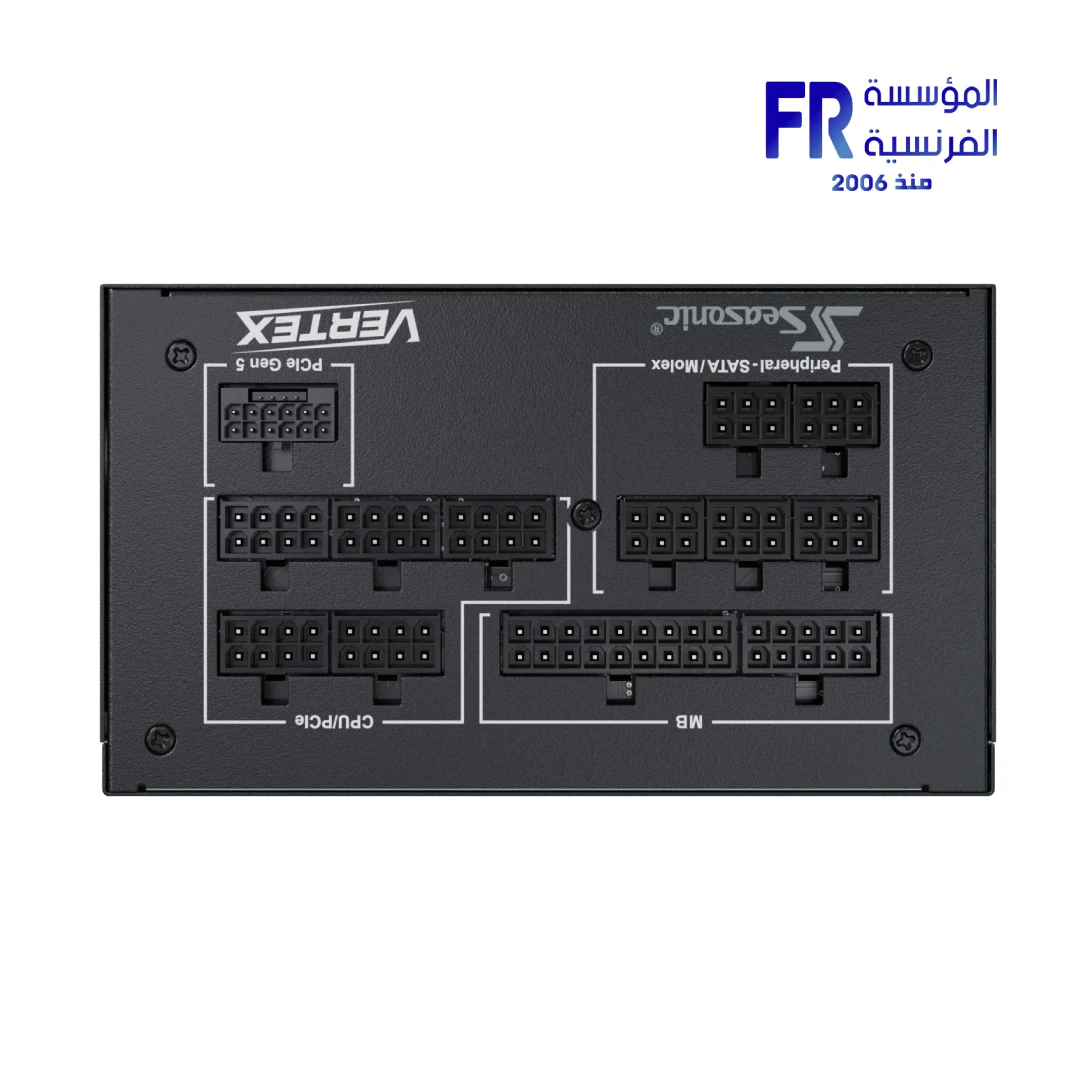

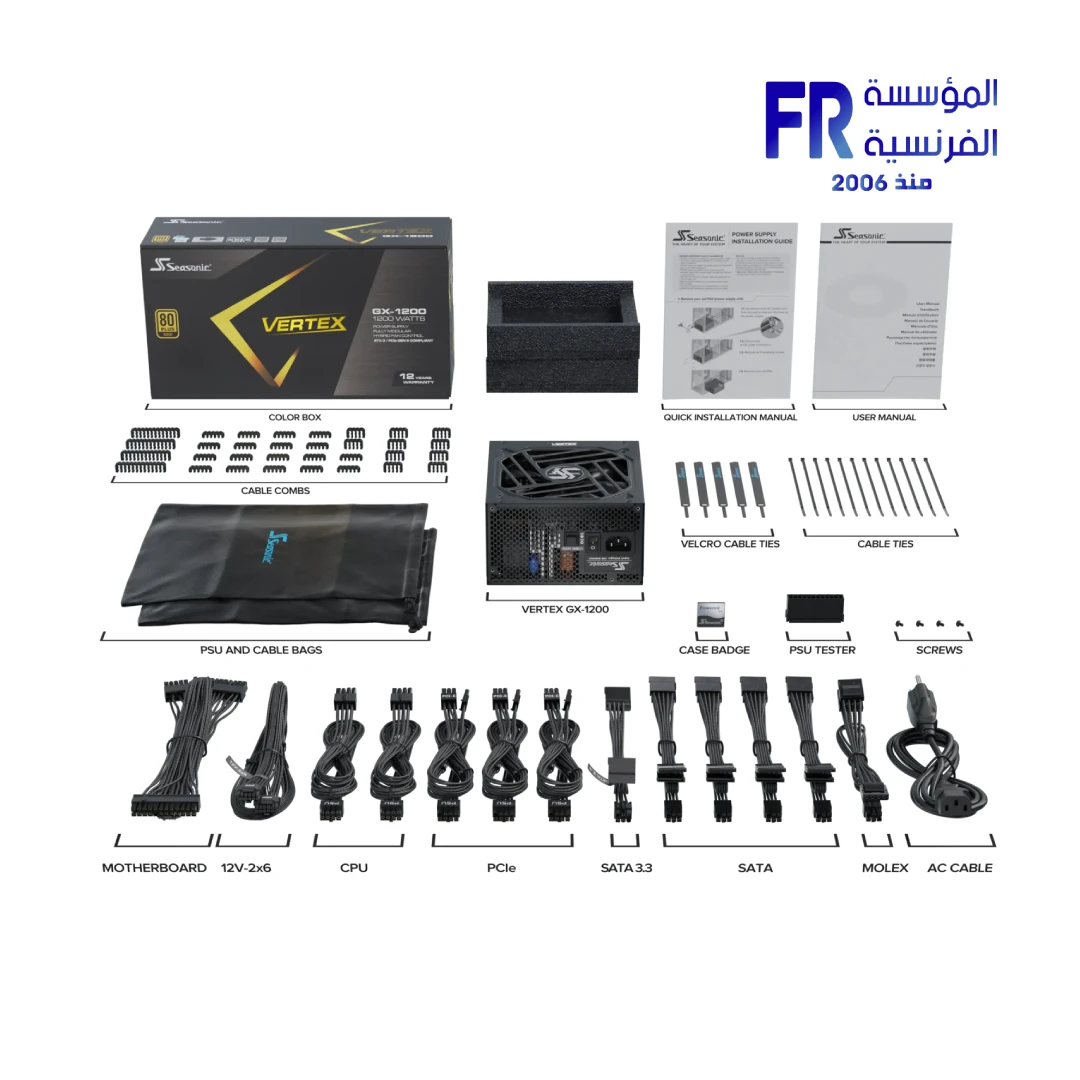

Cable Specifications
| Cable Details | Connectors per Cable | Cables Count | Total Length | Type |
|---|---|---|---|---|
| MB (24/20 pins) | 1 Connector | 1 Cable | 610 mm | Modular |
| CPU (8/4 pins) | 1 Connector | 2 Cables | 650 mm | Modular |
| PCIe (8/6 pins) | 1 Connector | 3 Cables | 750 mm | Modular |
| SATA | 4 Connectors | 4 Cables | 950 mm | Modular |
| SATA 3.3 V | 2 Connectors | 1 Cable | 550 mm | Modular |
| Molex | 3 Connectors | 1 Cable | 690 mm | Modular |
| 12V-2×6 (12+4 Pins to 12+4 Pins) | 1 Connector | 1 Cable | 700 mm | Modular |
Frequently Asked Questions
Q: Does the Seasonic VERTEX GX-1200 feature the updated ATX 3.1 safety standard?
A: Yes. The VERTEX GX-1200 ships with the upgraded 12V-2×6 PCIe Gen 5.1 cable, designed to comply with revised standards for secure connection locks and safer peak power transfers.
Q: What is Digital Hybrid Fan Control and how does it optimize noise?
A: It is an advanced digital circuit that coordinates fan rotations based on real-time loads. This design maintains zero fan rotations at lower thermal brackets, keeping operating noise quiet.
Q: What makes Fluid Dynamic Bearings (FDB) superior to standard fans?
A: High-performance FDB fans absorb mechanical shocks through localized fluid dynamics. This reduces internal vibration and significantly increases the life expectancy of the fan up to 50,000 hours.
