⚡ Engineering Highlights at a Glance:

• 1200W ATX 3.1: Compliant with ATX12V v3.1 and EPS12V v2.92, delivering stable power with resistance to power spikes from modern GPUs and CPUs.
• 600W 12V-2×6 Connector: Native PCIe 5.1 cable with a heat-resistant connector, delivering up to 600W to modern NVIDIA GeForce RTX 50 Series graphics cards.
• 80 PLUS Gold / Cybenetics Gold: Up to 91.6% efficiency at 50% load, reducing power waste and heat output.
• Cybenetics A- Noise: Certified for low noise output, with a 135mm fluid dynamic bearing fan and Zero RPM Mode that stops the fan under 50% load.
• 100% Japanese Capacitors: Higher hold-up time and lower ripple noise for stable, reliable power delivery.
• Fully Modular Design: Connect only the cables you need, keeping the build clean and improving airflow.
• Compact 160mm Depth: Shorter than many 180mm units, freeing room for cable management in mid-tower cases.

GPU Connector Planning

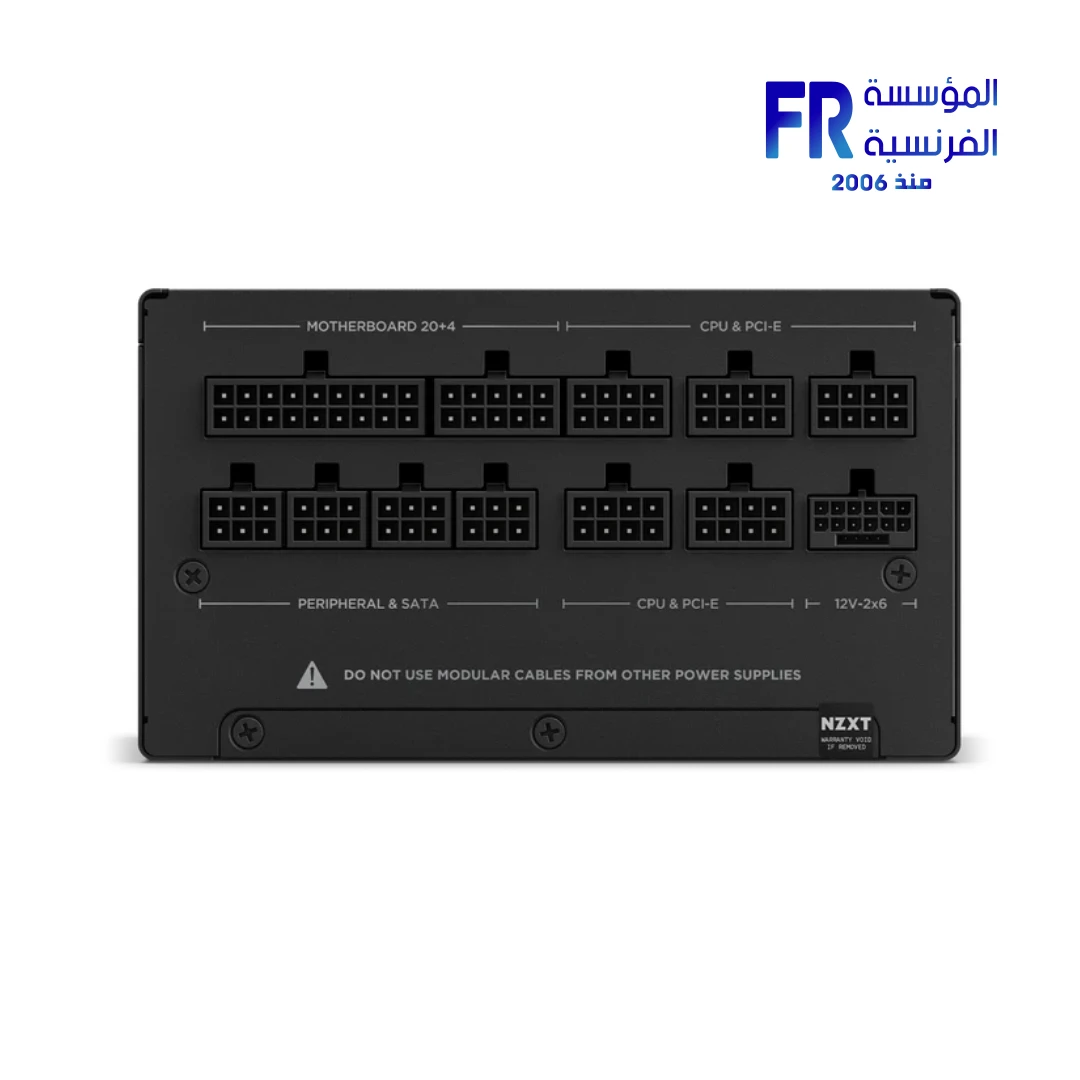

The C1200 Gold includes one 600W 16-pin 12V-2×6 cable and three 8-pin (6+2) PCIe cables. Check your GPU’s power connectors before purchase; if it needs two 12V-2×6 cables, this PSU supplies only one and would require an adapter or a different unit. The three 8-pin PCIe cables cover older cards that need multiple 8-pin connectors.

Case Fit and Cable Routing

The PSU measures 150 x 86 x 160mm, which is shorter than many 180mm units and fits most mid-tower cases. The fully modular design lets you connect only the cables you need, and the flat cable design helps them sit flush against the case. Plug in the 24-pin, 4+4-pin CPU, and 8-pin CPU cables first to simplify routing, then add the PCIe, SATA, and peripheral cables.

Fan Mode and Efficiency

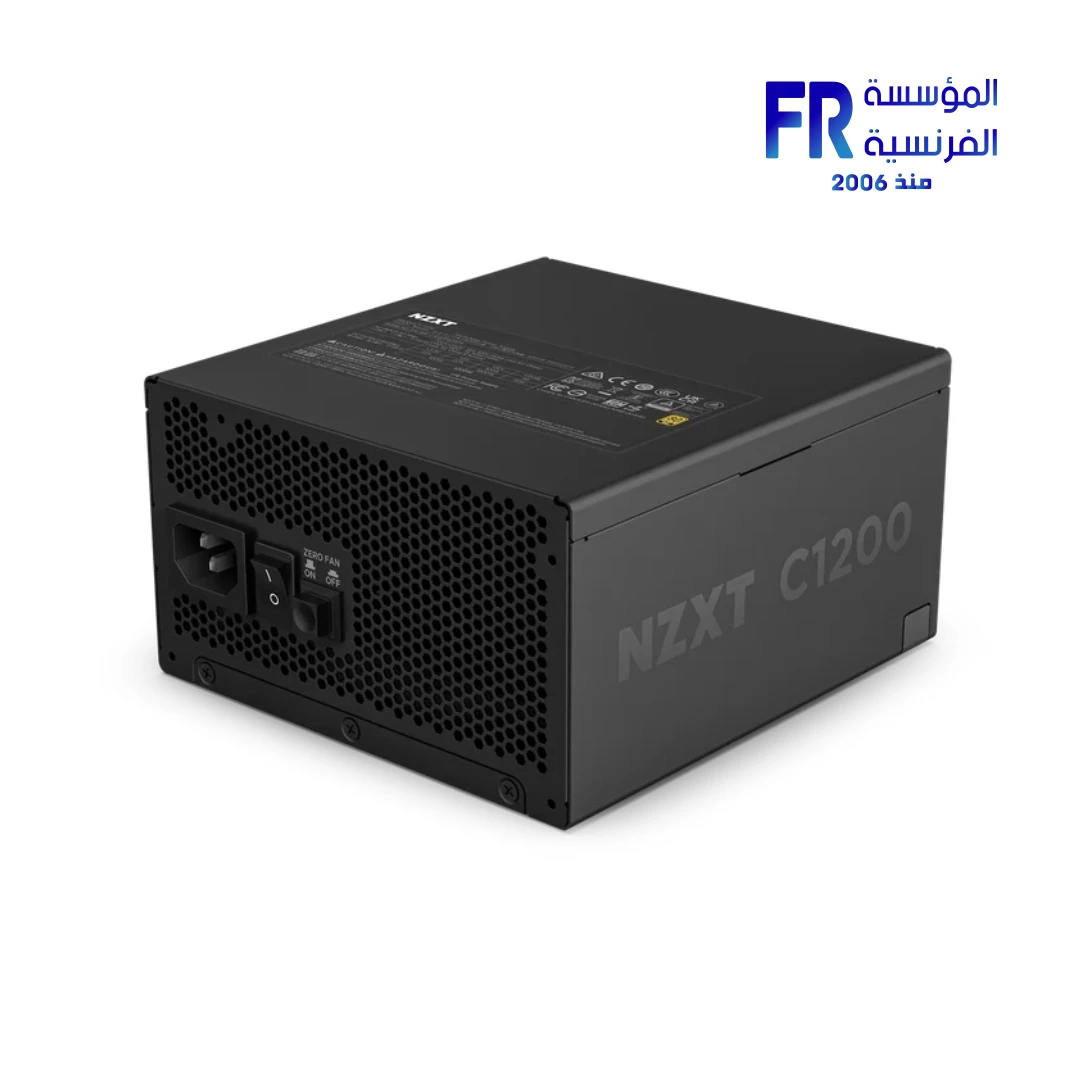

The 135mm fluid dynamic bearing fan uses Zero RPM Mode, staying off until system load reaches about 50%. A button on the PSU turns the mode off if you prefer the fan to spin at all times. Below 50% load the unit runs passively, which suits quiet idle and desktop use. At full speed the fan reaches 44.5 dBA, which is audible but normal for a 1200W unit under heavy load. Keep the PSU intake unobstructed and confirm your case has reasonable airflow around the PSU bay.

Check your GPU’s power connectors before ordering. The C1200 Gold includes one 600W 12V-2×6 cable and three 8-pin PCIe cables, which covers most single-GPU builds. If your GPU needs two 12V-2×6 cables, choose a higher-capacity unit like the NZXT C1500 Platinum.

Plug in the 24-pin, 4+4-pin CPU, and 8-pin CPU cables first, then add only the PCIe, SATA, and peripheral cables you need. Because the design is fully modular, you can leave unused cables in the box, which keeps the PSU bay cleaner and improves airflow.

Use the Zero RPM Mode for quiet idle operation by keeping the PSU intake unobstructed and using a case with reasonable airflow around the PSU bay. If you prefer the fan to spin continuously, press the toggle button on the PSU to turn off the Zero RPM Mode.

The 1200W output and 100% Japanese capacitors support sustained heavy loads, but confirm your total system draw with a power supply calculator. The 10-year warranty backs the build quality, so keep the receipt and register the unit if required. For clean builds, route the 12V-2×6 cable with gentle bends and check that the connector latch clicks fully into the GPU.
