⚡ Engineering Highlights at a Glance:

• 850W 80 Plus Bronze PSU Included: The bundle provides a Bronze-certified power supply, so you save on a separate PSU purchase and reduce cable routing complexity.

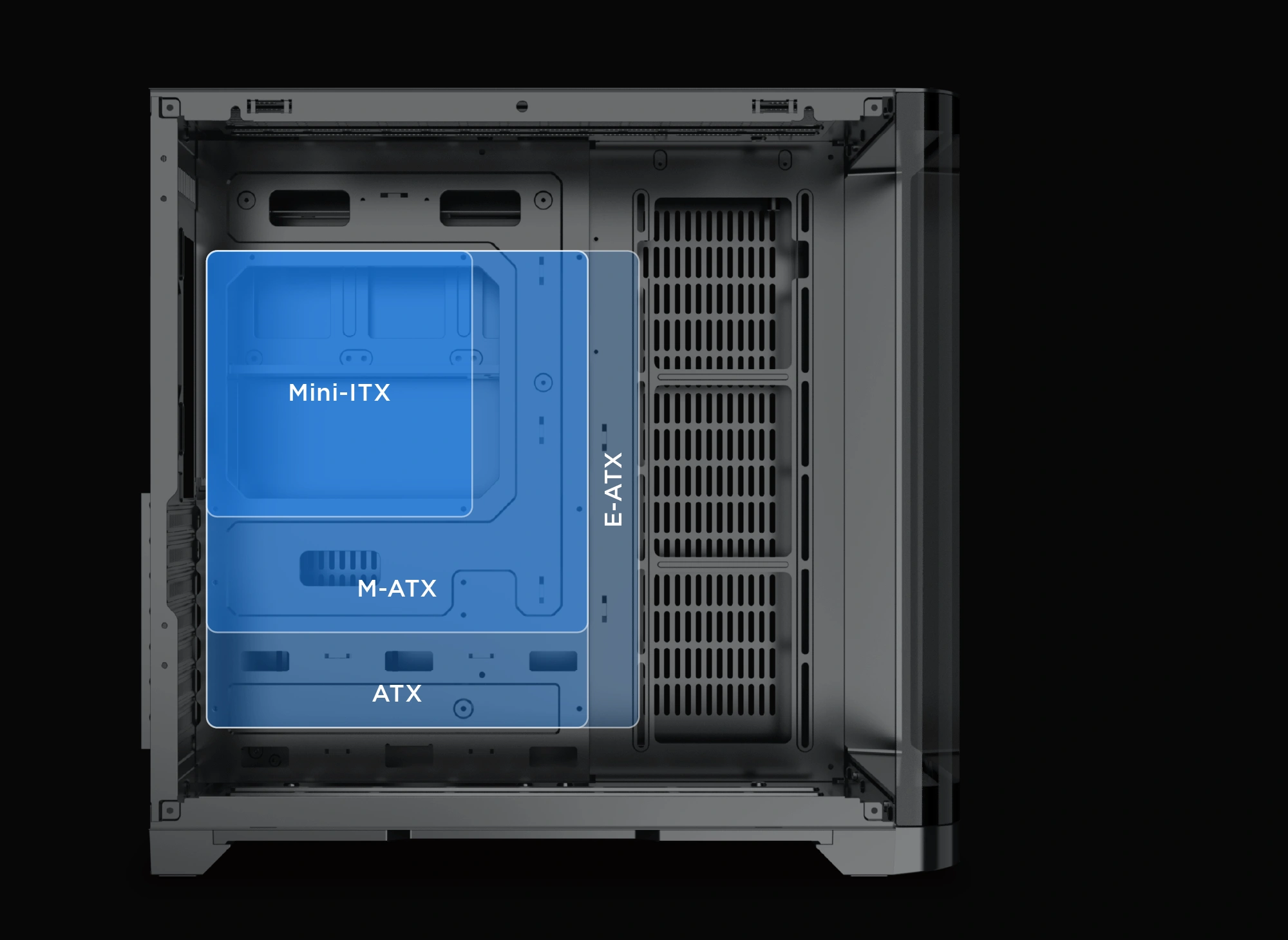

• E-ATX Motherboard Support: The case fits E-ATX, ATX, M-ATX, and Mini-ITX boards, so it works for both high-end and compact builds.
• 420mm GPU Clearance: Long triple-fan graphics cards fit without removing drive cages or modifying the chassis.
• Dual 360mm Radiator Support: The top and side positions each accept 240mm or 360mm radiators, so you can run dual-AIO or custom loop configurations.
• Up to 10 Fans: The case supports 3 top, 3 side, 3 bottom, and 1 rear fan (120mm), which allows for high-airflow configurations.

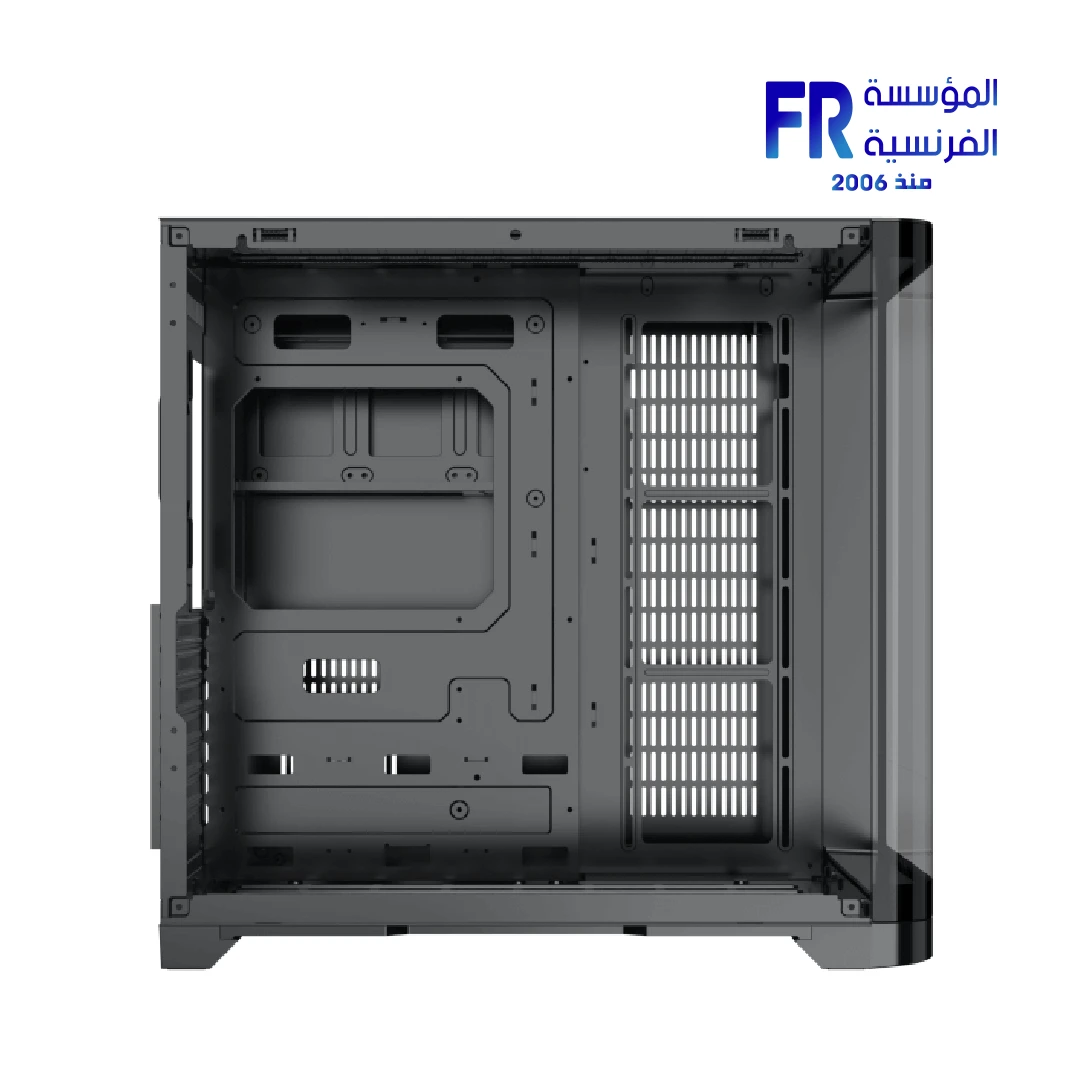

• 220mm PSU Clearance: The chassis accommodates long modular power supplies, which leaves room for cable management behind the motherboard tray.

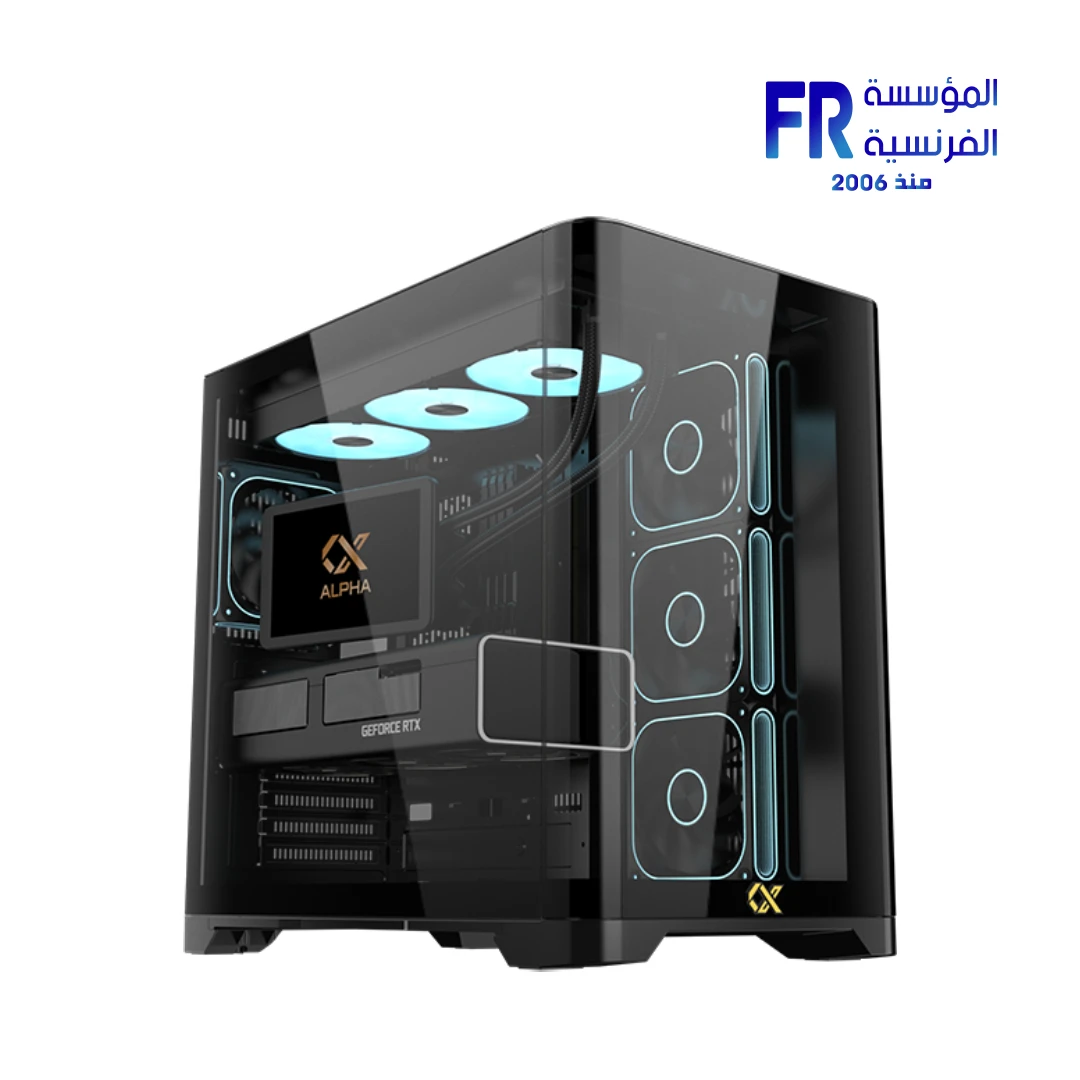

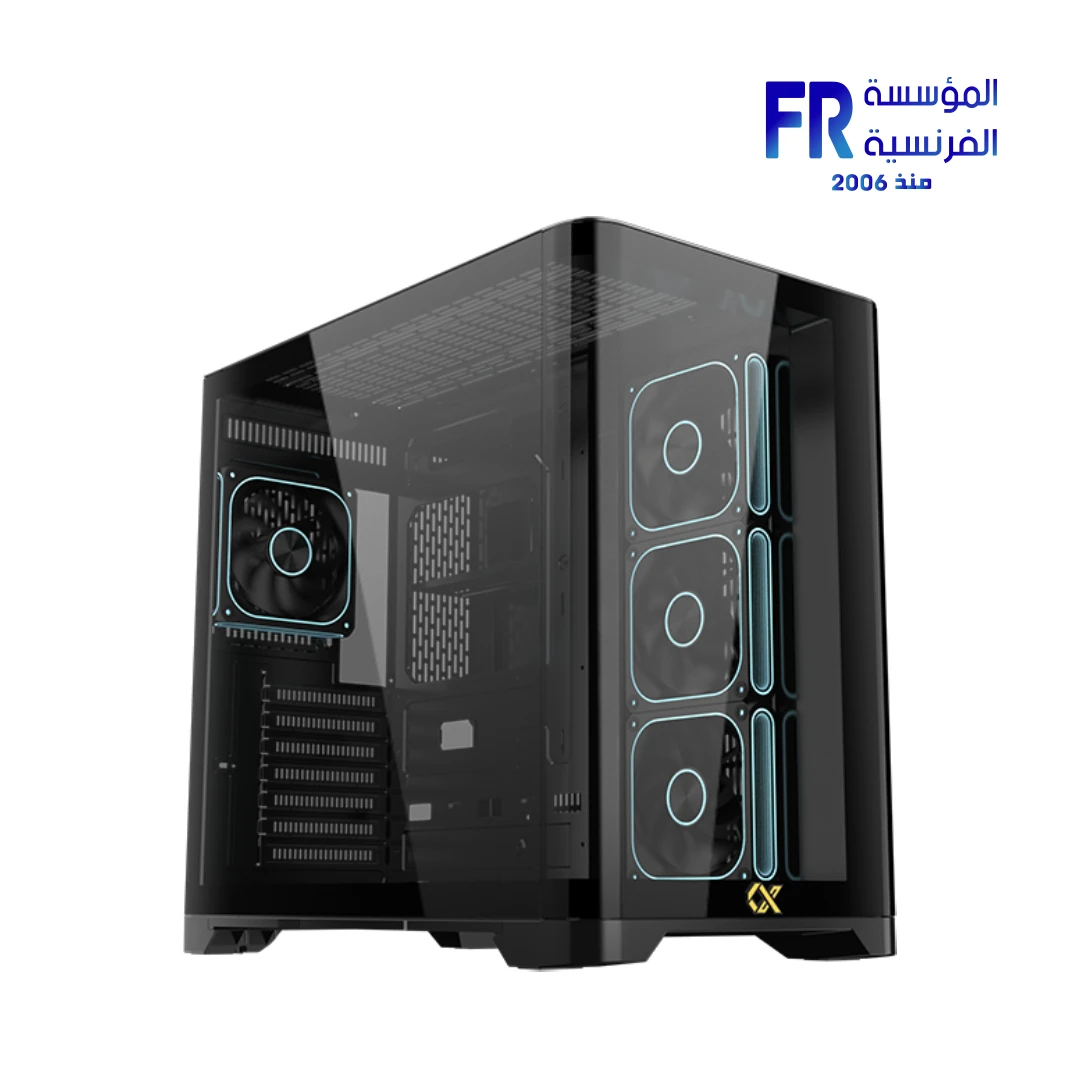

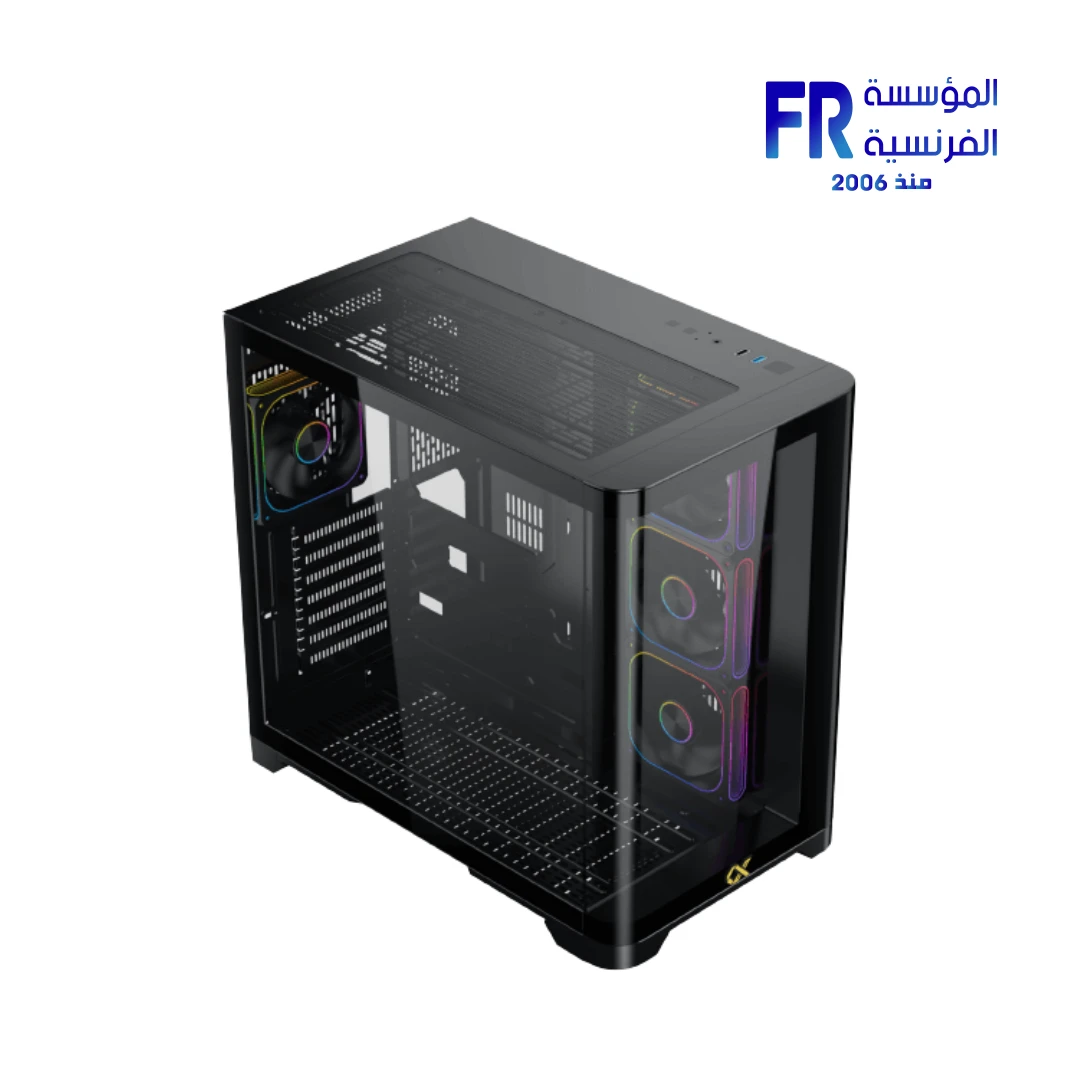

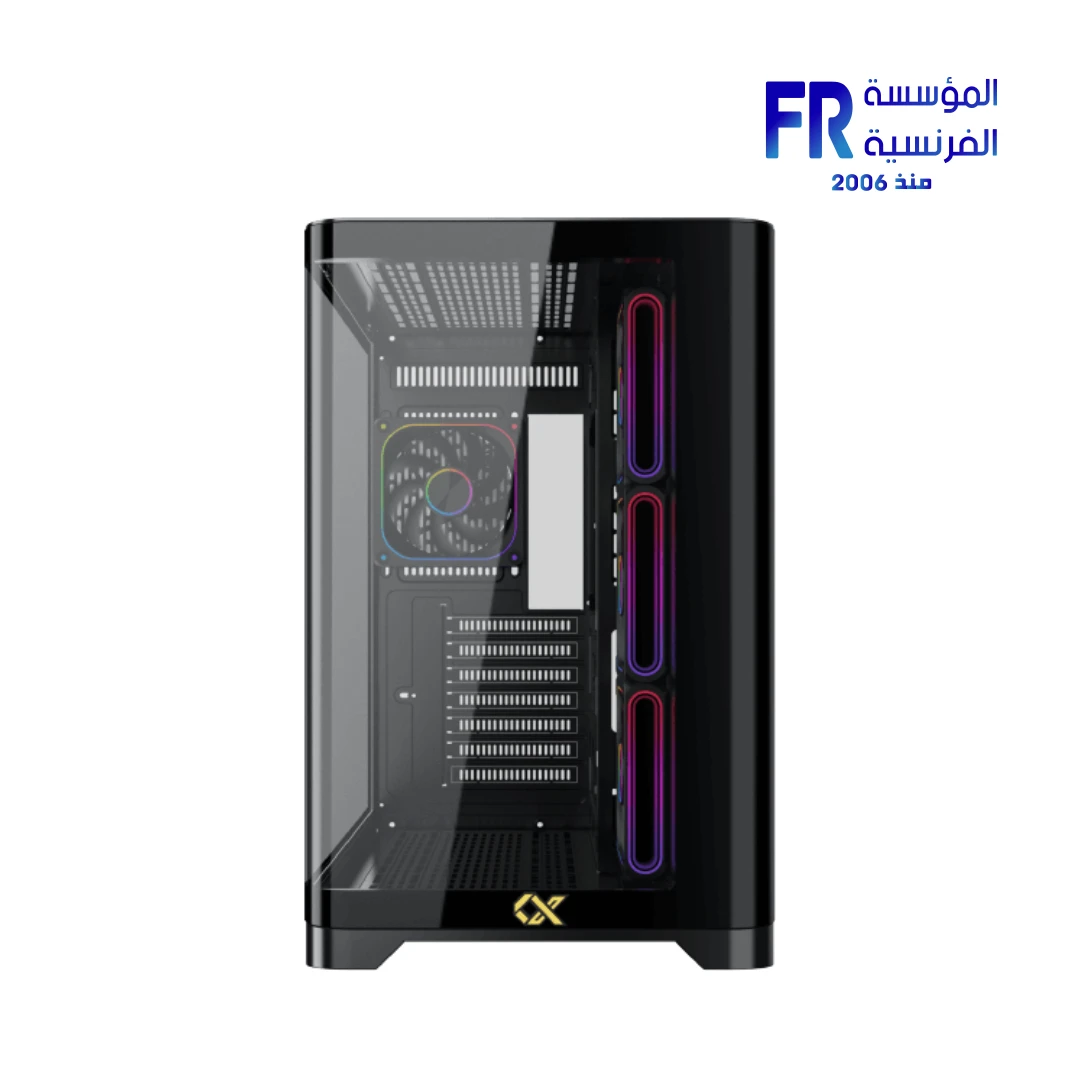

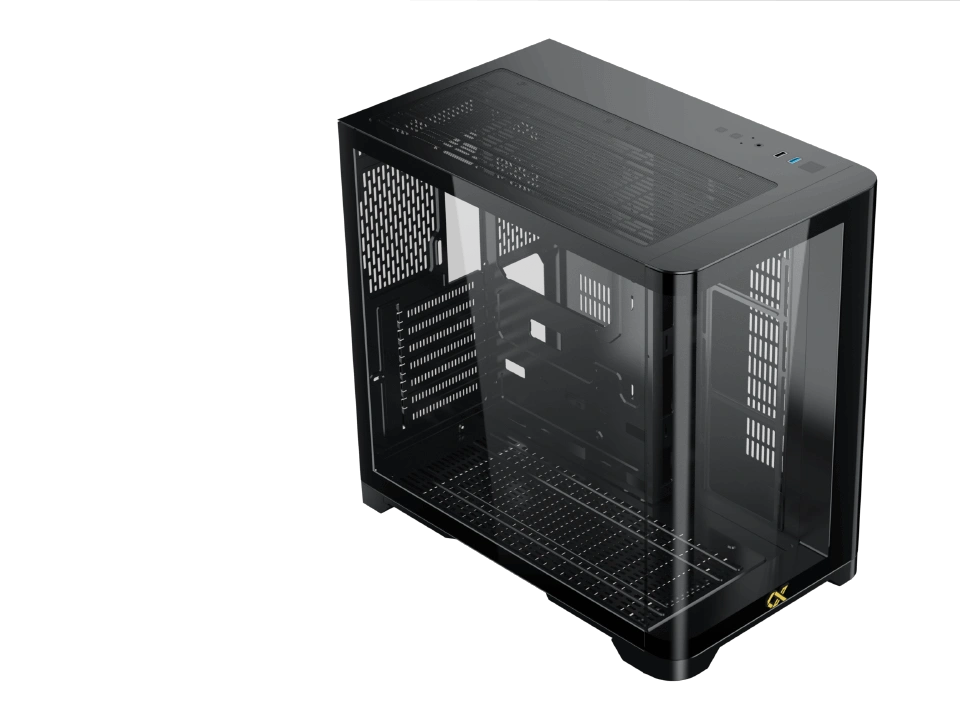

• Tempered Glass Side Panel: The clear side panel shows off internal components and lighting for showcase builds.

Side Radiator Support Depends on Motherboard Width

The side radiator position supports 240mm and 360mm radiators only with ATX motherboards. Because E-ATX boards may reduce clearance in that area, plan your motherboard choice and radiator configuration together. In addition, if you install fans on the side (3x 120mm), the maximum motherboard width may shrink.

CPU Cooler Height Limit Is 160mm

The case fits CPU air coolers up to 160mm tall. Therefore, verify your cooler’s height before ordering, because taller dual-tower air coolers will not fit. If you prefer a large air cooler, consider a 360mm AIO instead, since the top radiator position does not have the same height limit.

📐 Build Order and Cable Management

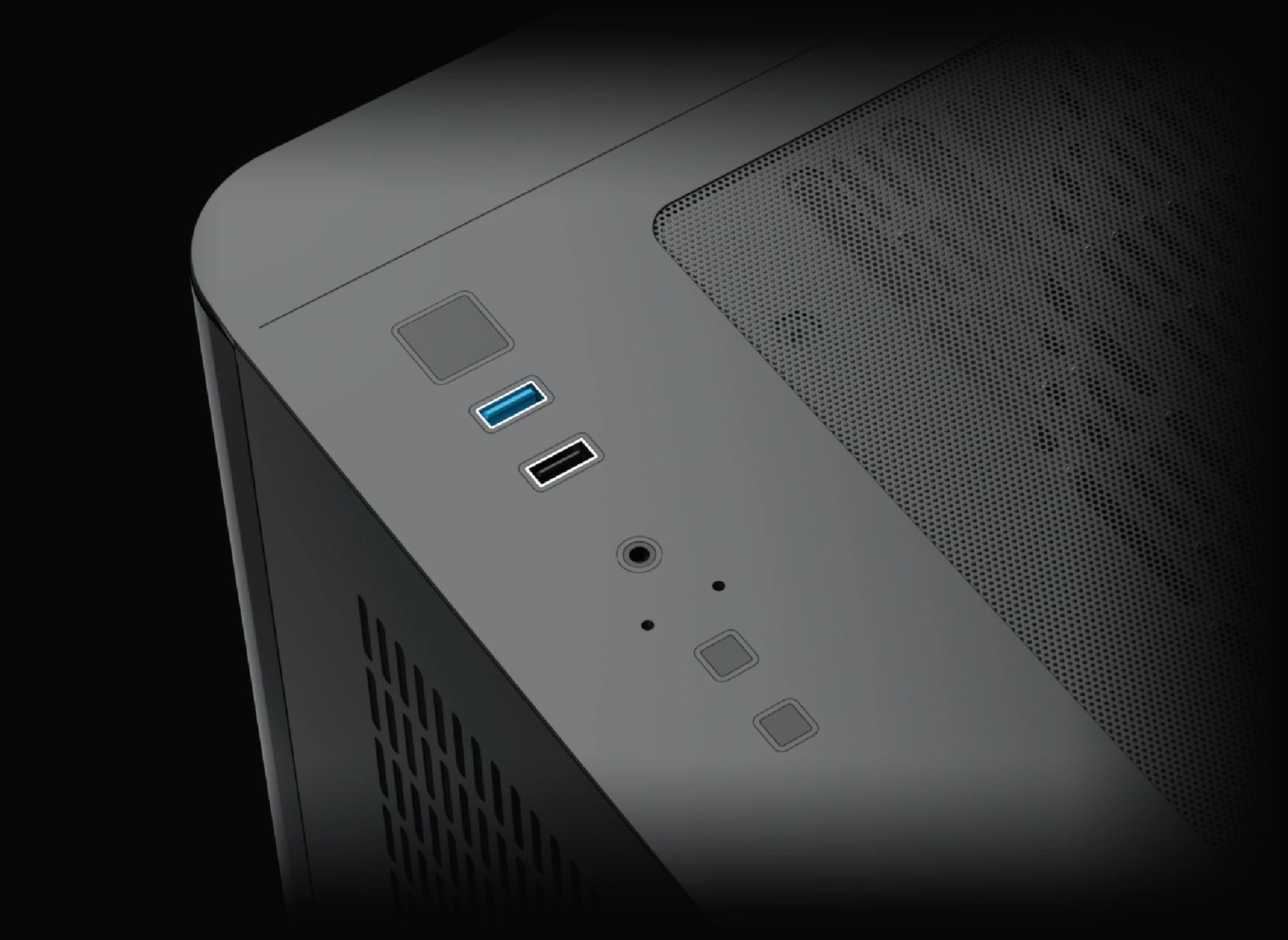

Install the power supply (up to 220mm) before the GPU, because the PSU sits below the GPU area. Route the 24-pin and GPU power cables through the grommets before you mount a top radiator, since access becomes tighter afterward. Because the 850W PSU is already included, you can plan the cable routing around its cable lengths. If your case setup requires front-panel USB 3.0, confirm the motherboard has a matching internal header before final installation.

Because this bundle includes an 850W 80 Plus Bronze PSU, verify your total system power draw before installing high-end components. An 850W unit covers most single-GPU builds, but if you plan to run an RTX 4090-class GPU with a high-wattage CPU, check the PSU calculator to ensure headroom. Route the 24-pin and GPU cables behind the motherboard tray before installing a top radiator, because access becomes tighter afterward. The top radiator position works well with a 360mm AIO for CPU cooling; if you plan a custom loop, use the side radiator position for a distribution plate or secondary radiator, but note that E-ATX boards may reduce side radiator clearance. For best airflow, configure bottom and side fans as intake and top and rear fans as exhaust. Because the case supports 7 expansion slots, verify your GPU’s slot width before installing a vertical mount or multi-GPU setup. Confirm the CPU cooler height (160mm maximum) against your cooler’s dimensions before ordering, since taller air coolers will not fit.
