تصفية

SALE

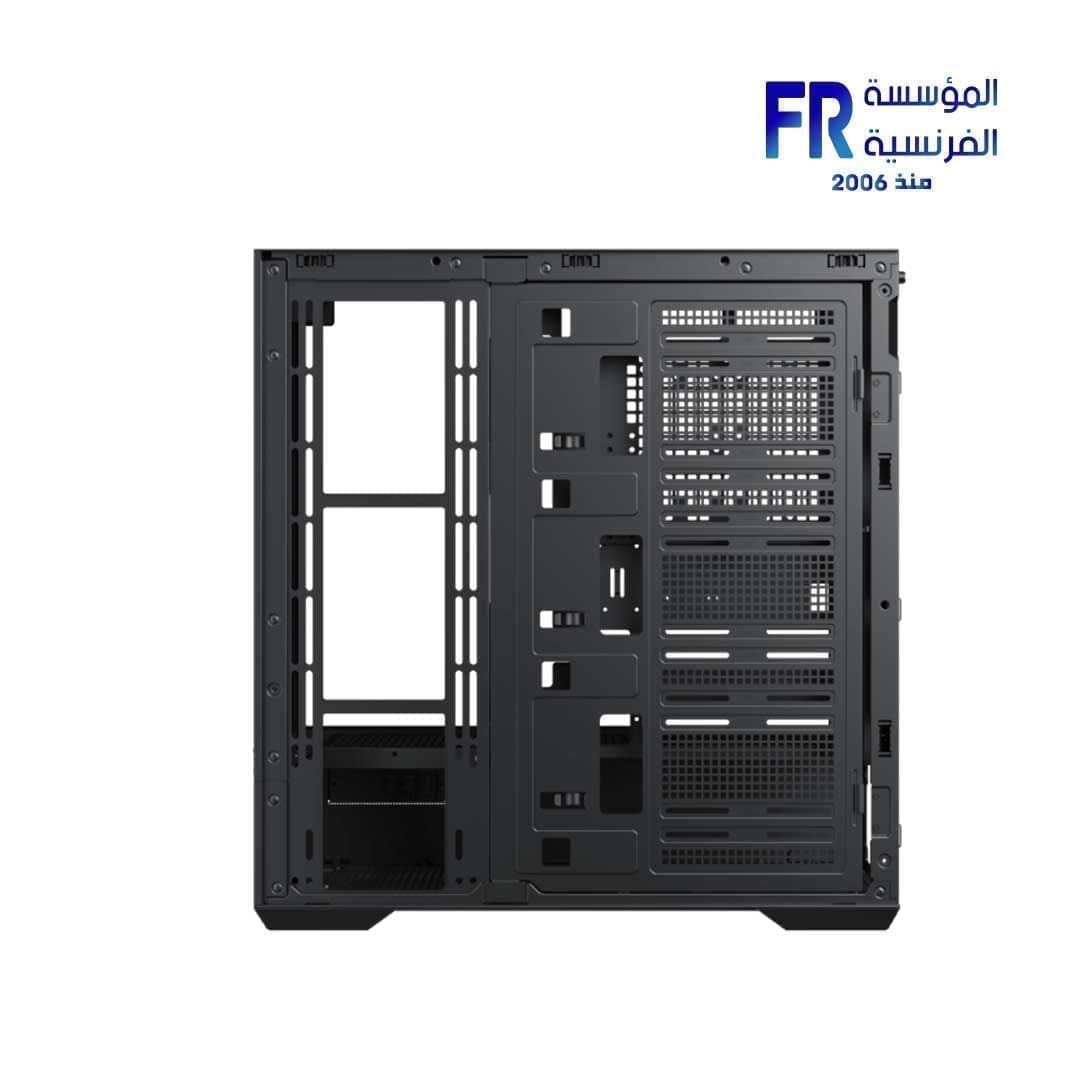

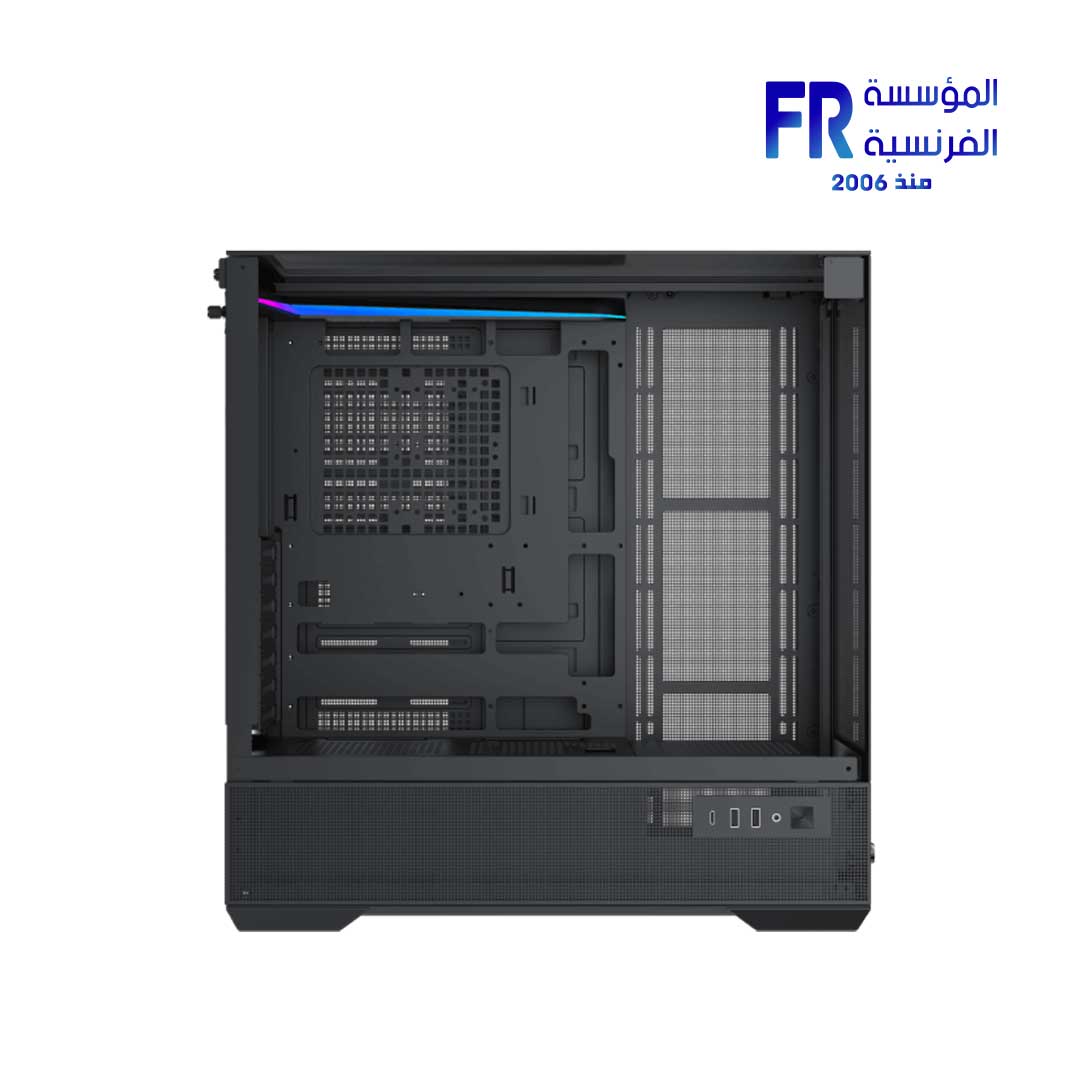

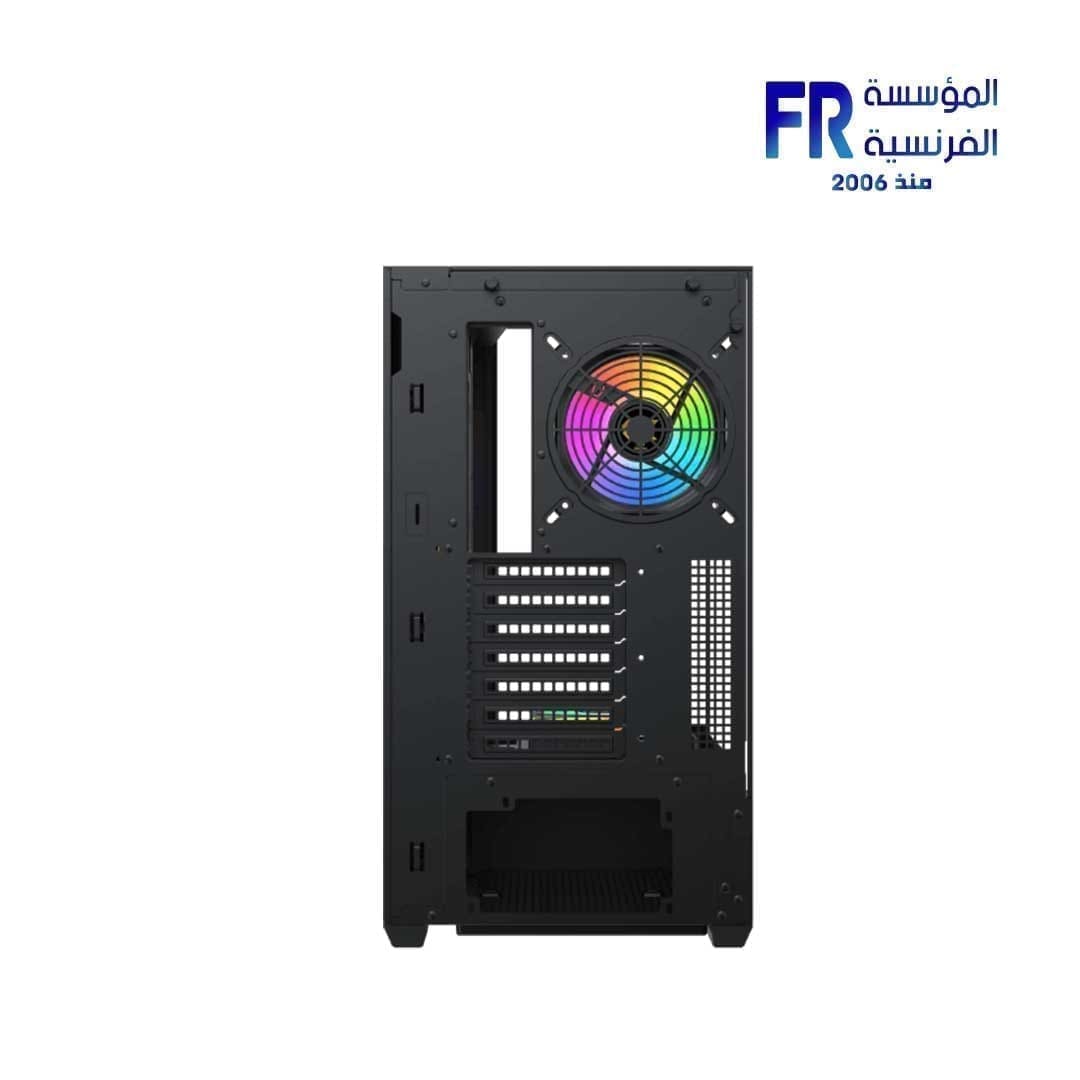

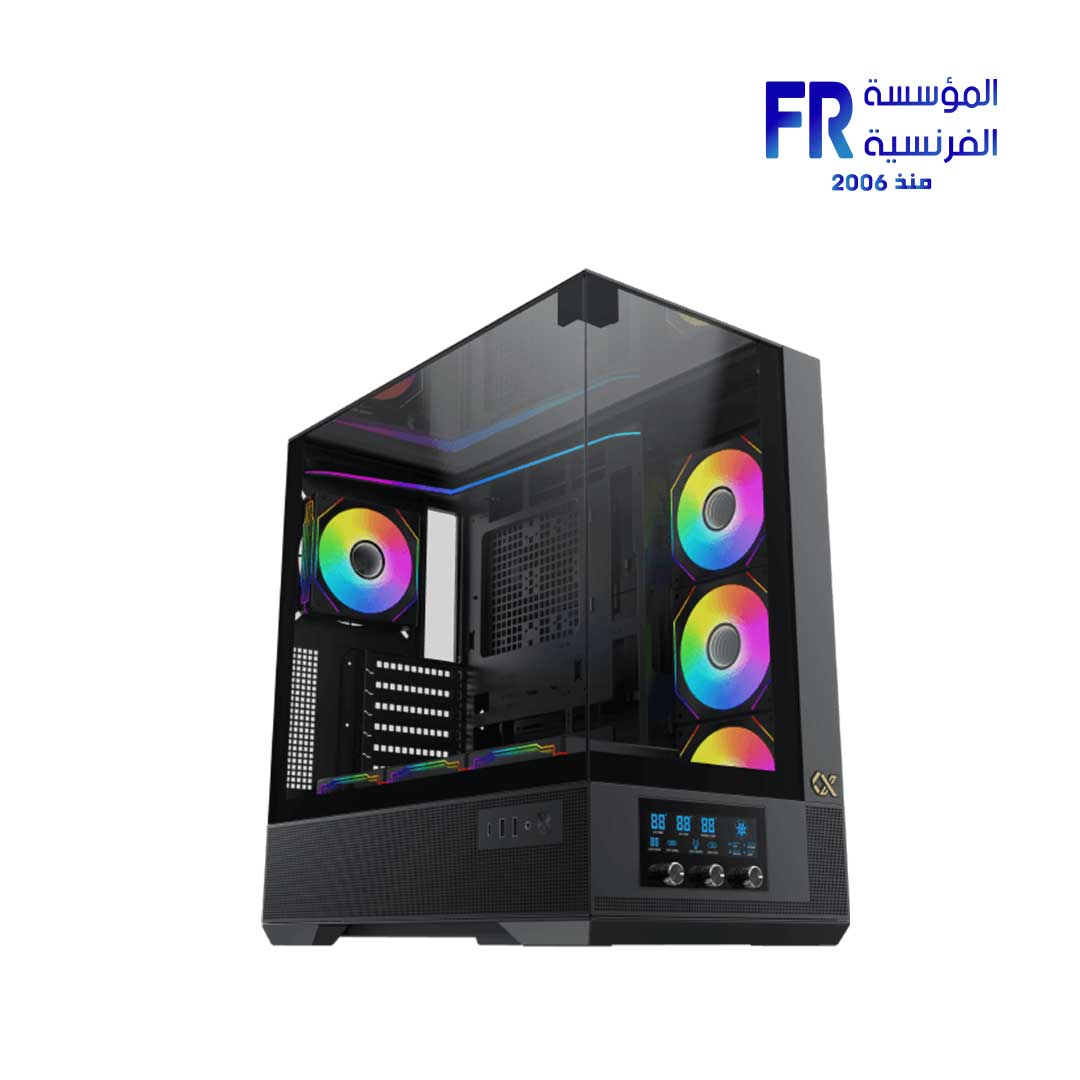

Xigmatek Vision Full Tower Case

6249 جنية

Product Name : Vision

Dimensions : 450x258x476mm (LxWxH)

CPU Cooler Clearance : 180mm

I/O Panel : USB3.0 x2 ,Type C ,HD Audio

PSU Length Limitation : 220mm

GPU Length Limitation : 420mm

المتوفر في المخزون 1 فقط

Price Match Guarantee

رمز المنتج: 7111901010 التصنيف: كيس الوسوم: زيجماتك, FULL TOWER, Xigmatek Vision, VISION, case, FULL TOWER CASE العلامة التجارية: زيجماتك

Xigmatek Vision Full Tower Case

Product Name

Vision

Dimensions

450x258x476mm (LxWxH)

Fan Support

MB: 120mm x3 or 140mmx3
PSU Shroud: 120mm x3
Rear: 120mm or 140mm x1
SSD/HDD Mounting Bracket: 120mm x1

Drive Bays

SSD/HDD Mounting Bracket (Rear MB Panel)
3.5″ x1 or 2.5″ x2

SSD/HDD Mounting Flip Cover
Option A:
3.5″ x3 or 3.5″ x2 & 2.5″ x1 or 3.5″ x1 & 2.5″ x2 or 2.5″ x3
(SSD/HDD Mounting Bracket without 3.5″ HDD or 12cm Fan)
Option B:
3.5″ x2 or 3.5″ x1 & 2.5″ x1 or 2.5″ x2
(SSD/HDD Mounting Bracket with 3.5″ HDD or 12cm Fan)

CPU Cooler Clearance

180mm

Material

Steel

Expansion Slots

7 Standard Slots
(Support GPU Horizontal or Vertical Installation)

Motherboard Support

EATX
ATX (Support Back Plug)
Micro ATX
Mini ITX

مزود الطاقة

Standard PS2 ATX PSU

Radiator Support

MB: 240/280/360
(EATX MB Width ≤ 290mm)

I/O Panel

USB3.0 x2
Type C
HD Audio

PSU Length Limitation

220mm

GPU Length Limitation

420mm

Xigmatek Vision Full Tower Case

3 Tempered
Glass Panel Design

Superior Airflow and
Ventilation Design

Traditional Fan Blade

800-2200 RPM PWM Fan
Pre-installed on Rear Side

Reverse Fan Blade

800-2200 RPM PWM Fan
Pre-installed on MB & PSU Shroud Panel Side

Smart Fan Control
LCD Display Panel

Smart Fan Control LCD
Display Panel User Guide

Left Control Konb
Rotate: RGB Light Display Control
Short Press: RGB LED Speed Control

Middle Control Knob
Short Press: RGB Light On/Off
Long Press: ARGB Motherboard SYNC Switch

Right Control Knob
Rotate: 4 Fan Speed Control (800/1200/1700/2200 RPM)

Support Motherboard
up to E-ATX

Support ATX Back Plug
اللوحه الام

Supported Model:

ASUS TX GAMING B760-BTF
ASUS TUF GAMING Z790-BTF WIFI
ROG MAXIMUS Z790 HERO BTF

and more to come.

Fan Support

MB: 120mm x3 or 140mmx3
PSU Shroud: 120mm x3
Rear: 120mm or 140mm x1
SSD/HDD Mounting Bracket: 120mm x1

Radiator Support

MB: 240/280/360
(EATX MB Width ≤ 290mm)

PSU Limitation
up to 220mm

CPU Cooler Clearance
up to 180 mm

GPU Length Limitation
up to 420mm

SSD/HDD Mounting Bracket
(Rear MB Panel)

3.5″ x1 or 2.5″ x2

SSD/HDD Mounting Flip Cover

Option A:
3.5″ x3 or 3.5″ x2 & 2.5″ x1 or 3.5″ x1 & 2.5″ x2 or 2.5″ x3
(SSD/HDD Mounting Bracket without 3.5″ HDD or 12cm Fan)

SSD/HDD Mounting Flip Cover

Option B:
3.5″ x2 or 3.5″ x1 & 2.5″ x1 or 2.5″ x2
(SSD/HDD Mounting Bracket with 3.5″ HDD or 12cm Fan)

Case

الموديل	Vision
حجم الكيس	FULL TOWER
PANEL	Tempered Glass
Motherboard Type	Mini ITX, ATX, E-ATX, m-ATX
FANS INCLUDED	7 FAN
Expansion Slots	7
Fan Support	8 x 120 mm
Radiator Support	360mm
GPU Length	420mm
CPU Height	180 mm
PSU SUPPORT	220mm
Pre-installed PSU	N/A
I/O Ports	HD Audio, Power, USB Type C, 2x USB 3.0
3.5“ Drive Bays	1
2.5 Drive Bays	2-Bay Drive
اللون	اسود
Part Number	EN45196
الضمان	1 سنة
