ASUS TUF Gaming B650E-PLUS WiFi AM5 DDR5 ATX motherboard

ASUS TUF Gaming B650E-PLUS WiFi Socket AM5 DDR5 ATX Motherboard

Model: ASUS TUF GAMING B650-PLUS WIFI (Note: Listed as B650E in prompt title, but B650 in official specs)
Socket & Chipset: AMD AM5 | AMD B650 Chipset
CPU Support: AMD Ryzen™ 9000, 8000, and 7000 Series
Memory: 4x DIMM Slots | Max 256GB DDR5 | Up to 7600+ MT/s (OC) | AMD EXPO™ & OptiMem II
Storage: 3x M.2 Slots (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) | 4x SATA 6Gb/s Ports
Expansion: 1x PCIe 4.0 x16 (SafeSlot Core+) | 1x PCIe 4.0 x16 (x4 mode) | 2x PCIe 4.0 x1
Networking: Realtek 2.5Gb Ethernet (TUF LANGuard) | 2×2 Wi-Fi 6 + Bluetooth v5.2
Rear I/O: 1x USB 3.2 Gen 2×2 Type-C | 3x USB 3.2 Gen 2 | 4x USB 2.0 | 1x DisplayPort | 1x HDMI | 5x Audio Jacks | BIOS FlashBack™
Audio: Realtek 7.1 Surround Sound with DTS Audio Processing
Special Features: ASUS TUF PROTECTION | M.2 Q-Latch | Q-LED | Pre-mounted I/O Shield | Aura Sync RGB
Form Factor: ATX (12 x 9.6 inches)
الضمان: 3 years

هل تريد أن يتم إخطارك عندما يتوافر هذا المنتج في المخزون مجددًا؟

غير متوفر حالياً

المنتج ده خلص حالياً. فريق المبيعات هيرشحلك بديل متوفر بنفس المستوى وبأفضل سعر.

اسأل على البديل واتساب

التصنيفات: اللوحة الأم, لوحات أم AMD الوسوم: Ryzen 9000 Series, Ryzen 7000 Series, pcie 5.0 m.2, ATX, Ryzen 8000 Series, DDR5, AMD EXPO, 256GB Max Memory, ASUS, 3x M.2 Slots, tuf gaming b650e-plus wifi, AM5 Socket, 2.5Gb Ethernet, motherboard العلامة التجارية: ASUS

ATX Motherboard

ASUS TUF Gaming B650E-PLUS WiFi

Socket AM5 · PCIe 5.0 · DDR5 · Wi-Fi 6E · 2.5GbE

AM5

Socket

256GB

DDR5 Max

PCIe 5.0

x16 + M.2

Wi-Fi 6E

Wireless

Why Choose the TUF B650E-PLUS WiFi?

PCIe 5.0 Ready

PCIe 5.0 x16 slot and PCIe 5.0 M.2 deliver double the bandwidth of PCIe 4.0 for next-gen GPUs and ultra-fast SSDs [citation:1].

DDR5 & Wi-Fi 6E

Four DIMM slots support up to 256GB DDR5 with EXPO overclocking up to 8000+ MT/s. Wi-Fi 6E adds the 6GHz band for lower latency [citation:1].

TUF Protection

DIGI+ VRM with 12+2+1 80A DrMOS, TUF LANGuard, ESD Guards, and stainless-steel back I/O for military-grade durability [citation:7].

Engineered for Performance

01 — Power Design

12+2+1 Phase VRM

12+2+1 80A DrMOS power stages with 8-layer PCB, 8+8 pin ProCool connectors, alloy chokes, and durable capacitors deliver stable power for high-core-count Ryzen processors [citation:7].

80A

DrMOS Stages

02 — Connectivity

Wi-Fi 6E & 2.5GbE

Wi-Fi 6E supports 2.4/5/6GHz bands for lower latency on the 6GHz spectrum. Realtek 2.5Gb Ethernet with TUF LANGuard. Rear USB 20Gbps Type-C and front USB 10Gbps Type-C [citation:1][citation:7].

2.5GbE

Realtek LAN

PCIe 5.0 x16 & M.2

The PCIe 5.0 x16 slot delivers double the bandwidth of PCIe 4.0 for next-gen graphics cards. The M.2_1 slot supports PCIe 5.0 x4 for storage speeds up to 128Gbps. Three M.2 slots total, all with dedicated heatsinks [citation:1][citation:16].

PCIe 5.0 x16 · PCIe 5.0 M.2 · 3x M.2

Audio & Thermal Design

Realtek 7.1 Surround Sound with audio shielding, premium capacitors, and dedicated PCB layers. Enlarged VRM heatsink, three M.2 heatsinks, and PCH heatsink keep components cool. Fan Xpert 4 with hybrid fan headers supports PWM and DC fans [citation:7].

7.1 Audio · VRM Heatsink · Fan Xpert 4

EZ DIY

Build With Confidence

PCIe Q-Release for easy graphics card removal. M.2 Q-Latch for tool-free SSD installation. BIOS FlashBack updates BIOS without CPU, memory, or GPU. Q-Antenna and Q-LED simplify setup and troubleshooting [citation:7].

Q-Release · Q-Latch · BIOS FlashBack

Aura Sync & Personalization

Three Addressable Gen 2 RGB headers and one Aura RGB header support Aura Sync for synchronized lighting. Armoury Crate provides centralized control for RGB, Fan Xpert 4, and Two-Way AI Noise Cancelation [citation:7].

Aura Sync · Armoury Crate · AI Noise Cancelation

Built for Your Build

AMD AM5 Platform

Supports AMD Ryzen 9000, 8000, and 7000 Series processors. Windows 11 and Windows 10 64-bit compatible [citation:1].

DDR5 Dual Channel

Four DIMM slots support up to 256GB DDR5 with EXPO. ECC and Non-ECC Un-buffered DIMM support. Overclocking up to 8000+ MT/s [citation:1].

ATX Form Factor

30.5 cm x 24.4 cm ATX layout with PCIe 5.0 x16, PCIe 4.0 x16 (x4), 2x PCIe 4.0 x1, 3x M.2, and 4x SATA 6Gb/s [citation:1].

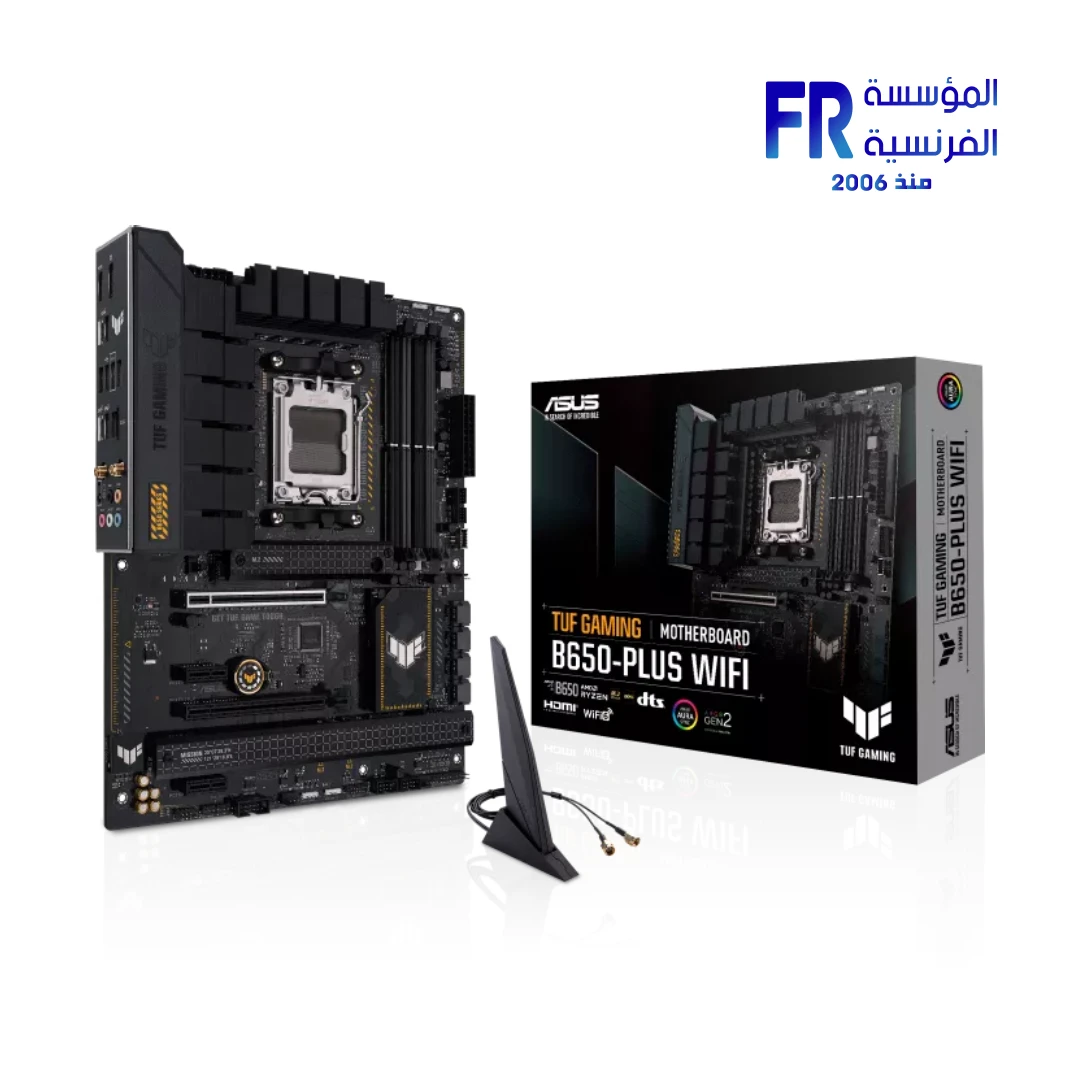

In the Box

Everything you need to get started.

اللوحات الأم

ASUS TUF Gaming B650E-PLUS WiFi.

SATA Cables

2 x SATA 6Gb/s cables.

Wi-Fi Antenna

ASUS Wi-Fi moving antenna.

M.2 Screws

M.2 mounting hardware.

المواصفات الفنية

Model Name	ASUS TUF Gaming B650E-PLUS WiFi
Part Number	90MB1M20-M0EAY0
EAN	4711387995488
العلامات التجارية	ASUS
سوكت المعالج	AMD Socket AM5
CPU Support	AMD Ryzen 9000/8000/7000 Series
Chipset	AMD B650
Memory	4x DDR5 DIMM, up to 256GB, up to 8000+ MT/s (OC)
Expansion Slots	1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 2x PCIe 4.0 x1
وحدات التخزين	3x M.2 (PCIe 5.0 & 4.0), 4x SATA 6Gb/s, RAID 0/1/5/10
LAN	Realtek 2.5Gb Ethernet
Wireless	Wi-Fi 6E (802.11ax) 2×2, Bluetooth 5.3
Audio	Realtek 7.1 Surround Sound CODEC
USB	Rear: 1x USB 3.2 Gen 2×2 Type-C, 3x USB 3.2 Gen 2, 4x USB 2.0; Front: 1x USB 3.2 Gen 1 Type-C, 2x USB 3.2 Gen 1, 4x USB 2.0
Video Output	1x HDMI 2.1, 1x DisplayPort 1.4
Form Factor	ATX (30.5 cm x 24.4 cm)
OS Support	Windows 11, Windows 10 64-bit
Official Warranty	3 Years

Frequently Asked Questions

What is the difference between B650E and B650?

B650E is the higher-tier version of B650 with guaranteed PCIe 5.0 support for both the x16 slot and M.2 storage. The B650 (non-E) chipset may have PCIe 4.0 on the primary x16 slot depending on the specific motherboard model [citation:12].

Does this motherboard support Ryzen 9000 series?

Yes. The TUF Gaming B650E-PLUS WiFi supports AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket. A BIOS update may be required for newer CPU generations [citation:1].

How many M.2 slots does this board have?

Three M.2 slots total: M.2_1 (PCIe 5.0 x4, 2280), M.2_2 (PCIe 4.0 x4, 22110), and M.2_3 (PCIe 4.0 x4, 2280). All slots include heatsinks [citation:1][citation:16].

What is the warranty period?

ASUS TUF Gaming series motherboards carry a 3-year standard warranty. Warranty period may vary by region — check with your local retailer [citation:4].

Does this board support ECC memory?

Yes. The board supports ECC and Non-ECC Un-buffered DDR5 DIMMs. Non-ECC memory supports On-Die ECC function. Actual ECC mode operation depends on CPU support [citation:1].

3 Years

Warranty Included

TUF

Military-Grade

Genuine

ASUS Product

ASUS TUF Gaming B650E-PLUS WiFi

ATX · Socket AM5 · PCIe 5.0 · DDR5 · Wi-Fi 6E

3-Year Warranty Included

Add to Cart

In Stock · Ships from Alfrensia

اللوحة الأم

MODEL	TUF-GAMING-B650E-PLUS-WIFI
CHIPSET MANUFACTURERS	AMD
سوكت المعالج	AM5
شريحة اللوحة الأم	B650
Motherboard Type	ATX
CPU SERIES	AMD Ryzen 7000 Series & Ryzen 8000 & Ryzen 9000 Series Processors
Technology	DDR5
Memory Speed	7600 MHz
Max Memory Size	256GB
Memory Slot	4
PCI-E X16	2
PCI-E GEN	PCIe 4.0, PCIe 3.0, Gen 5
PCI-E Slots (M.2)	3
SATAIII	4x SATA 6.0 Gb/s
Communication module	2.5Gb Ethernet, Bluetooth, Wi-Fi 6E
Part Number	TUF-GAMING-B650E-PLUS-WIFI
الضمان	3 Years
