Deepcool Gammaxx L360 ARGB AIO Liquid Cpu Cooler SPECIFICATIONS:

This high-performance liquid cooling solution is designed for compatibility with a wide range of Intel and AMD sockets, making it an excellent choice for enthusiasts seeking efficient thermal management and customizable aesthetics. Below is a detailed breakdown of its Applications , Technical Specifications , and key highlights.

Applications:

• Intel Compatibility :
  Supports Intel sockets including LGA 2066, 2011-v3, 2011, 1700, 1200, 1151, 1150, 1155 .
  Ideal for both modern and legacy Intel CPUs, ensuring broad compatibility.

• AMD Compatibility :
  Supports AMD sockets including AM5 and AM4 .
  Perfect for the latest Ryzen processors as well as previous generations.

• Use Cases :

  • High-performance gaming rigs.

  • Workstations requiring efficient cooling for CPU-intensive tasks (e.g., video editing, 3D rendering).

  • Custom PC builds with RGB lighting integration.

Technical Specifications:

General Information:

• Net Weight : 1696 g

• EAN : 6933412727170 (International Article Number for product identification).

• Part Number (P/N) : DP-H12CF-GL360-ARGB

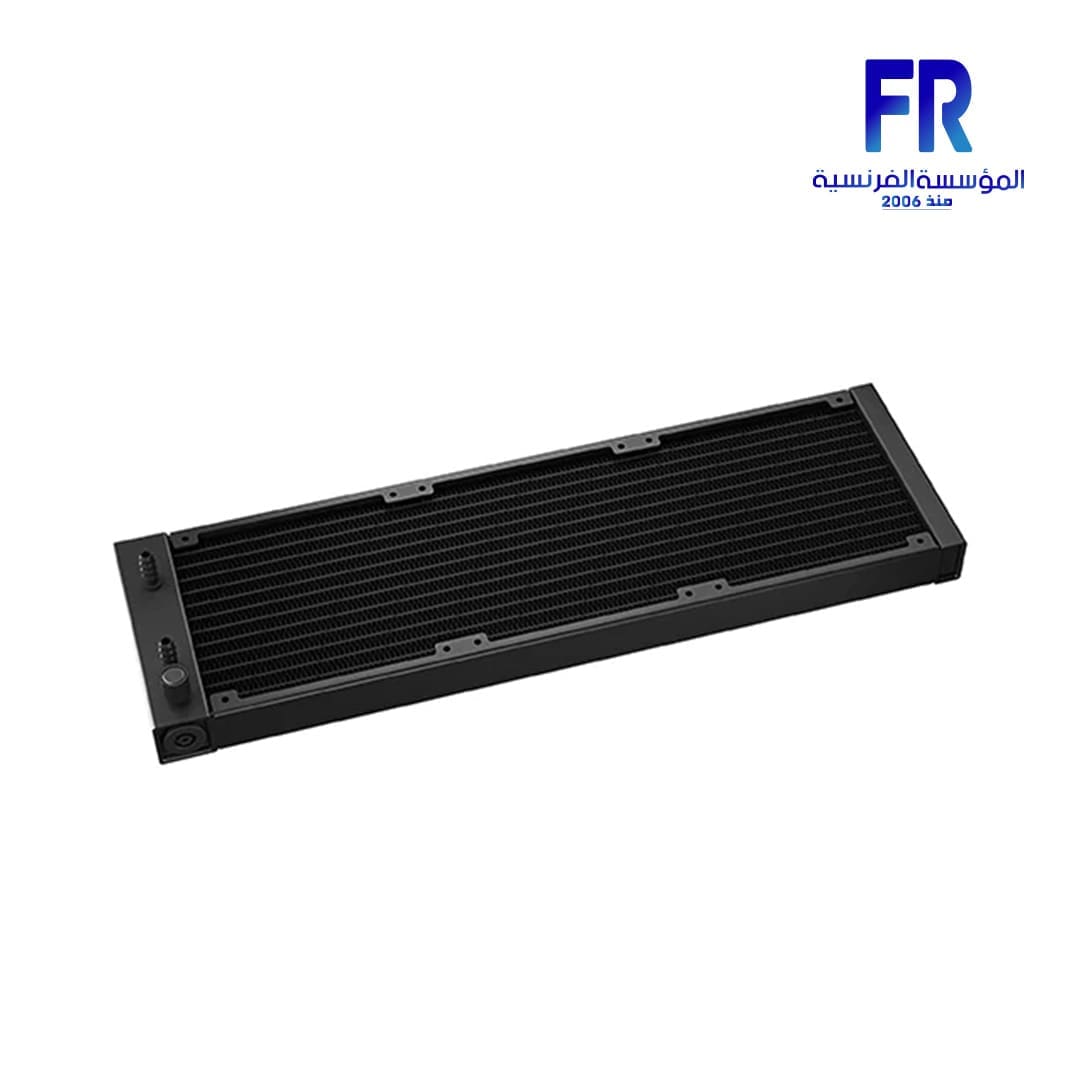

Radiator Details:

• Dimensions : 402 × 120 × 27 mm (L × W × H)

• Material : Aluminum (lightweight yet highly effective at heat dissipation).

• Tube Length : 465 mm (provides flexibility during installation).

Pump Details:

• Dimensions : 91 × 79 × 47 mm (L × W × H)

• Speed : 2550 RPM ± 10% (ensures consistent coolant circulation).

• Noise Level : 17.8 dB(A) (ultra-quiet operation for silent builds).

• Connector : 3-pin (standard power connector for pumps).

• Rated Voltage/Current : 12 VDC / 0.21 A (low power consumption).

• Power Consumption : 2.52 W (energy-efficient design).

Fan Details:

• Dimensions : 120 × 120 × 25 mm (L × W × H)

• Speed : 500–1800 RPM ± 10% (adjustable speed for dynamic cooling).

• Airflow : 69.34 CFM (efficient airflow for optimal heat dissipation).

• Air Pressure : 2.42 mmAq (adequate pressure for radiators and heatsinks).

• Noise Level : ≤30 dB(A) (quiet operation even at higher speeds).

• Connector : 4-pin PWM (precise control over fan speed).

• Bearing Type : Hydro Bearing (durable and quiet performance).

• Rated Voltage/Current : 12 VDC / 0.17 A (low power draw).

• Power Consumption : 2.04 W (energy-efficient fans).

LED Lighting:

• Type : Addressable RGB LED (customizable lighting effects).

• Connector : 3-pin (+5V-D-G) (compatible with most RGB controllers).

• Rated Voltage : 5 VDC (standard voltage for RGB systems).

• Power Consumption :

  • 2.25 W (PUMP)

  • 6.6 W (FAN × 3) (total power usage for RGB lighting).

Key Highlights:

1. Broad Compatibility :
   Works seamlessly with both Intel and AMD platforms, making it versatile for a wide range of builds.

2. Efficient Cooling Performance :

   • Large 402 mm radiator ensures superior heat dissipation.

   • Hydro Bearing fans provide reliable airflow with minimal noise.

3. Quiet Operation :

   • Pump noise level of just 17.8 dB(A) ensures near-silent performance.

   • Fans operate at ≤30 dB(A) , maintaining a peaceful environment even under load.

4. Customizable RGB Lighting :

   • Addressable RGB LEDs allow for personalized color schemes and effects.

   • Compatible with popular RGB control software for seamless integration.

5. Energy Efficiency :

   • Low power consumption for both pump (2.52 W ) and fans (2.04 W each ) ensures minimal strain on the system’s power supply.

6. Compact Design :

   • The pump’s compact dimensions (91 × 79 × 47 mm ) make it easy to install in tight spaces.

   • Flexible 465 mm tubing provides freedom during setup.

Why Choose This Product?

• High Performance : Designed for demanding applications like gaming, content creation, and overclocking.

• Silent Operation : Ultra-quiet pump and fans ensure a distraction-free experience.

• Customization : Addressable RGB LEDs add a touch of personalization to your build.

• Durability : Aluminum radiator and hydro bearing fans ensure long-lasting reliability.
