What does the 80 PLUS Platinum certification mean?

The 80 PLUS Platinum certification guarantees a very high energy efficiency, reaching 92% efficiency at 50% system load. This results in less wasted heat, lower operating temperatures, and reduced energy costs.

How does Seasonic ensure the stability of the output voltage?

Seasonic uses Micro Tolerance Load Regulation (MTLR), which keeps the output voltage within an extremely tight range (under 0.5% load regulation). This stability is crucial for ensuring the longevity and performance of sensitive components.

Does this PSU support the new PCIe Gen 5 graphics cards?

Yes, the PRIME PX-1600 is fully ATX 3.1 and PCIe 5.1 compliant. It is equipped with the native 12V-2x6 connector (or 12VHPWR during transition) required to reliably power the newest high-end graphics cards.

تصفية

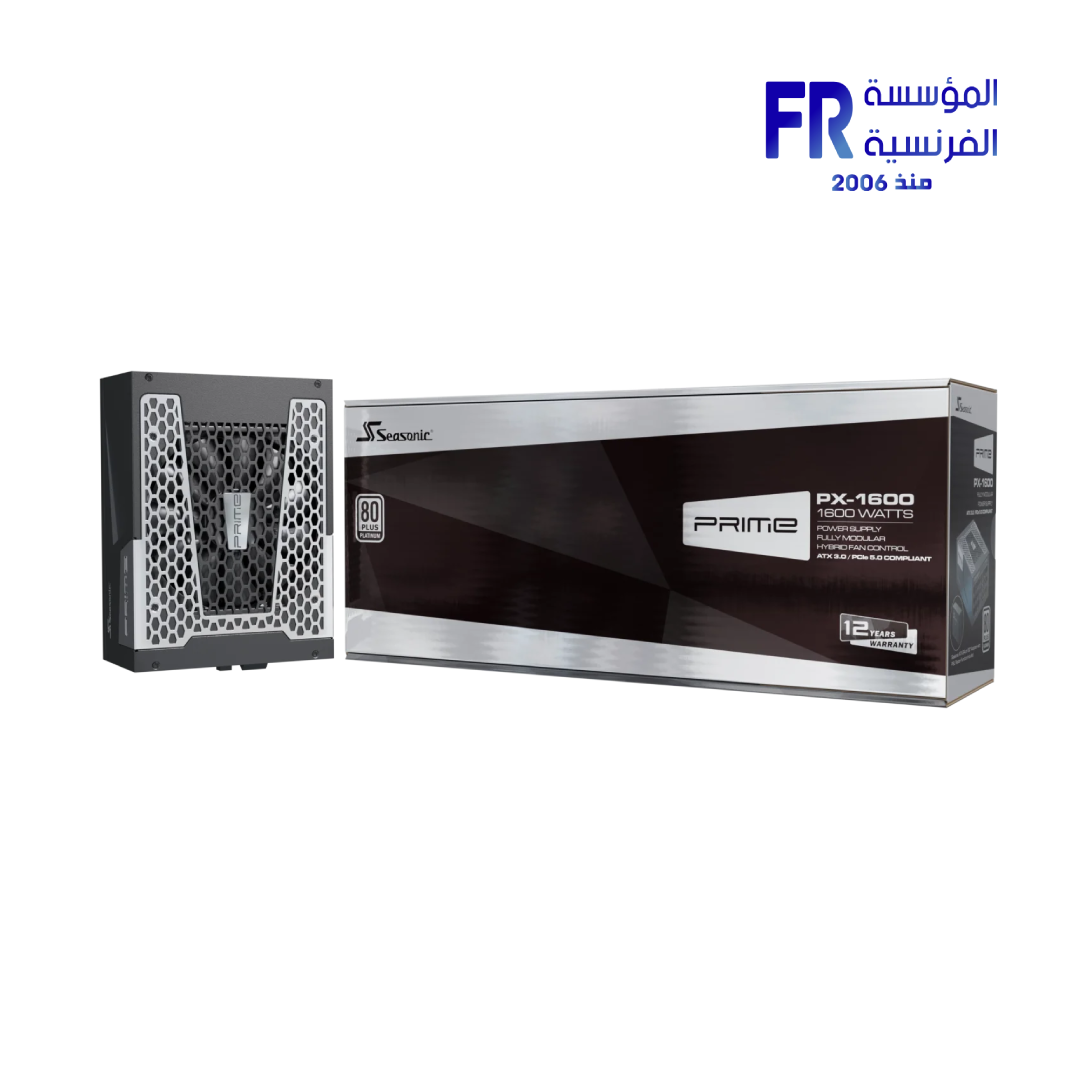

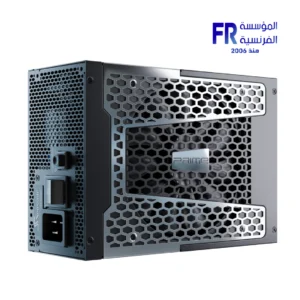

Seasonic Prime PX-1600 1600W Atx 3.1 80 Plus Platinum Fully Modular Hybrid Fan Power Supply

Seasonic Prime PX-1600 1600W Atx 3.1 80 Plus Platinum Fully Modular Hybrid Fan Power Supply

22500 جنيه

Model: Seasonic PRIME PX-1600 (manufacturer model code to be verified)
Wattage & Efficiency: 1600W, 80 PLUS Platinum
Standards: ATX 3.1 and PCIe 5.1
Modularity: Fully modular
GPU Power: Native 12V-2×6 cables
Cooling: 135 mm fan with Digital Fan Control
الضمان: 12 years

المتوفر في المخزون 2 فقط

ضمان مطابقة السعر

رمز المنتج: 882016002472 التصنيف: مزود الطاقة الوسوم: PSU, 3.1, Seasonic Prime series, PRIME, 1600W, High Efficiency, 1600 Watt, FAN, ATX, وحدة مزود الطاقة, PLATINUM, Fully, High Wattage, 80+, Modular, PRIME PX-1600 ATX 3, POWER, ATX 3.1, 882016002472, FULLY MODULAR, Supply, Hybrid, Seasonic, PX-1600, 80 PLUS PLATINUM, Plus, Hybrid Fan Mode العلامة التجارية: Seasonic

Seasonic PRIME PX-1600 ATX3 1600W Black مزود الطاقة

The Seasonic Prime PX-1600 ATX3 PSU is an ultra-high-wattage unit built for extreme performance systems. Consequently, compliance with the **ATX 3.1 and PCIe 5.1 standards** ensures unparalleled power delivery and handling of power excursions for the newest dual-flagship graphics cards. Moreover, featuring 80 PLUS Platinum efficiency and a 12-Year Warranty, this fully modular PSU provides unwavering power and exceptional longevity.

1600W

Max Continuous Power

80+ Platinum

92% Efficiency (Cybenetics Titanium)

ATX 3.1 / PCIe 5.1

Standard Compliance

12 Years

Warranty Coverage

Next-Gen Stability and Unwavering Performance for the PRIME PX-1600

Extreme Efficiency and Voltage Control

The PRIME PX-1600 achieves **80 PLUS Platinum efficiency**, backed by 105°C-rated Japanese capacitors for long-term reliability. Furthermore, **Micro Tolerance Load Regulation (MTLR)** keeps output voltage deviations under 0.5%. This impressive stability is critical for the reliable operation of sensitive components, especially when running extreme overclocking or multi-GPU setups.

Digital Hybrid Fan Control for Silent Operation

Seasonic’s **Digital Hybrid Fan Control** optimizes the unit’s cooling with three operational stages, including a **Fanless Mode** under low load for near-silent performance. In addition, the use of a Fluid Dynamic Bearing (FDB) fan generates considerably less operating noise and heat than standard fans. This robust construction greatly increases the fan’s lifespan and contributes to the unit’s class-leading 12-Year Warranty.

⚠️ Important Caution: ATX 3.1 Cable Transition

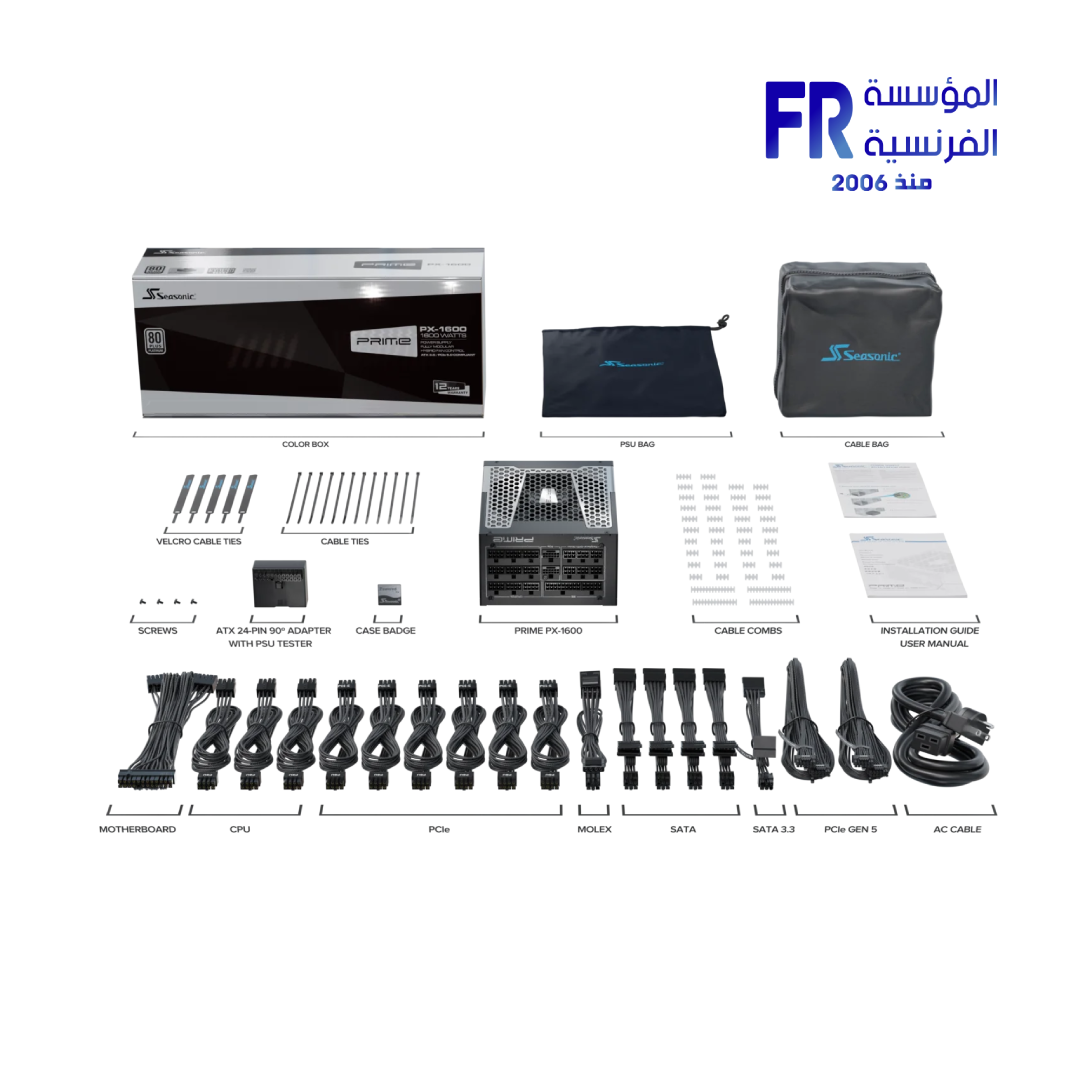

Due to the transition from the ATX 3.0 to the new **ATX 3.1** standard, customers may receive one of two versions of the PCIe 5.1 cable in the box:

Older Stock: 12VHPWR cable (ATX 3.0)
New Stock: 12V-2×6 cable (ATX 3.1)

Both cables are functional, but the 12V-2×6 is the updated connector.

المواصفات الفنية

Specification	Detail
Wattage / Efficiency	1600 W / 80 PLUS Platinum
ATX Standard	ATX 3.1 & PCIe 5.1 Compliant
Modularity / GPU Cable	Fully Modular / Native 12V-2×6 Cable (x2)
Fan Control / Bearing	Digital Hybrid / FDB (135mm)
Dimensions	210 × 150 × 86 mm (L x W x H)
Capacitors	105°C-rated Japanese Electrolytic
Protection Features	OPP, OVP, UVP, OCP, OTP, SCP
الضمان	12 Years

💡 Pro Tip:

When connecting the 12V-2×6 cable to your GPU, ensure it is **fully inserted and click-locked** before powering on the system. Seasonic stresses this point, as incomplete connection can lead to instability under high loads. Utilize the Fanless Mode for silent operation during low-power tasks.

Important Notice: All information, specifications, and images provided herein are for reference and illustrative purposes only. Visual representations may not be perfectly accurate. Product specifications, features, and appearance can vary by model and country, and are subject to change without notice by the manufacturer. While we strive to present the most precise and comprehensive information, errors in typography or photography may occur.

For the most accurate and up-to-date details, we strongly recommend referring to the official manufacturer’s website. All trademarks and copyrights are the property of their respective owners.

If you have suggestions, or if you notice an error or incorrect information in this draft, please help us improve by reporting it directly via our feedback form: Alfrensia.com – Website Feedback & Report Form.

POWER SUPPLY

MODEL	PRIME PX-1600
قدرة مزود الطاقة	1600W
Psu-Cable-Type	FULL MODULAR
ENERGY EFFICIENT	80 PLUS PLATINUM
Protection	OCP, OPP, OTP, OVP, SCP, UVP
PSU Capacitors	Japanese Capacitors
DC to DC	غير محدد
Fan Size (mm)	135mm
Part Number	PRIME PX-1600 ATX 3
الضمان	12 Years
