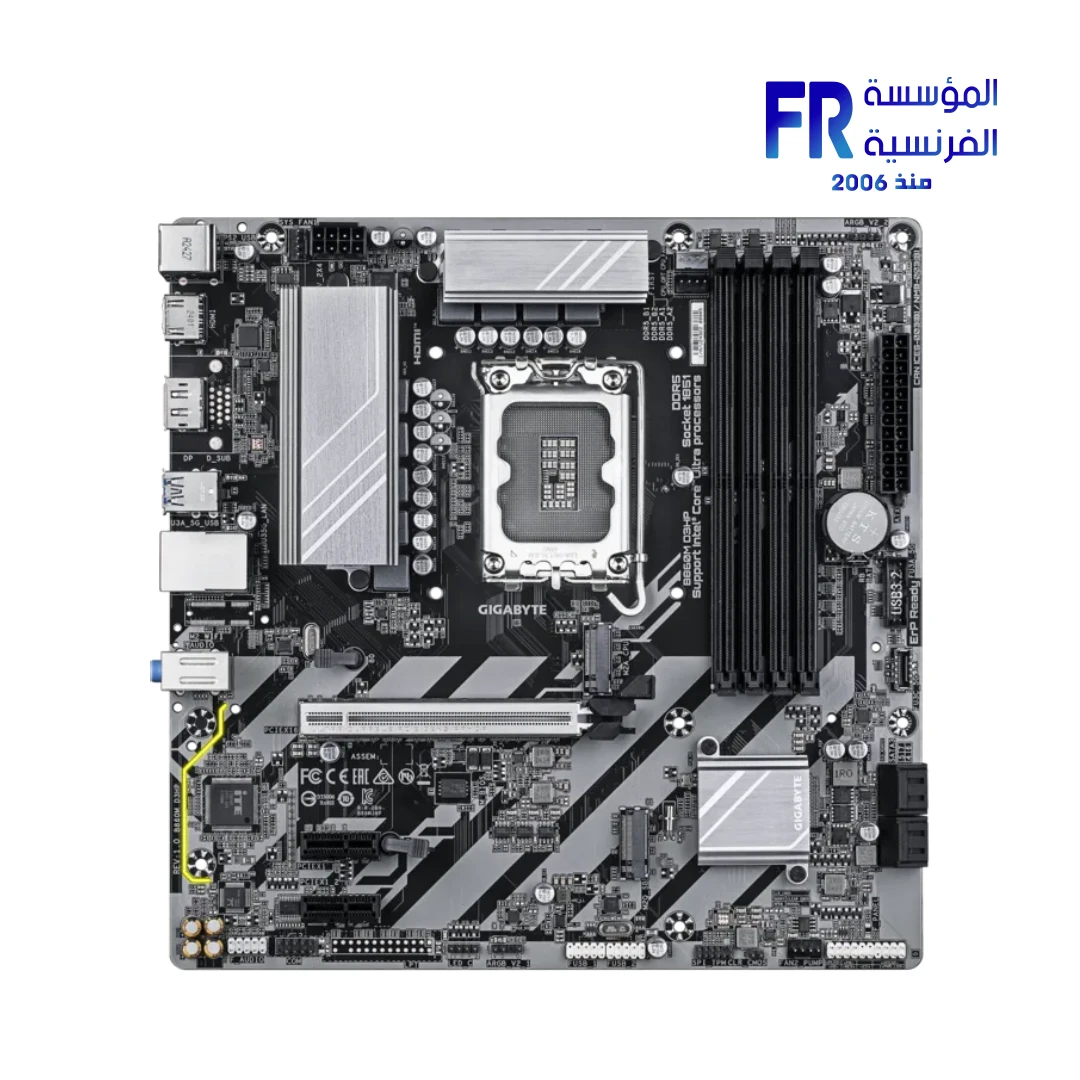

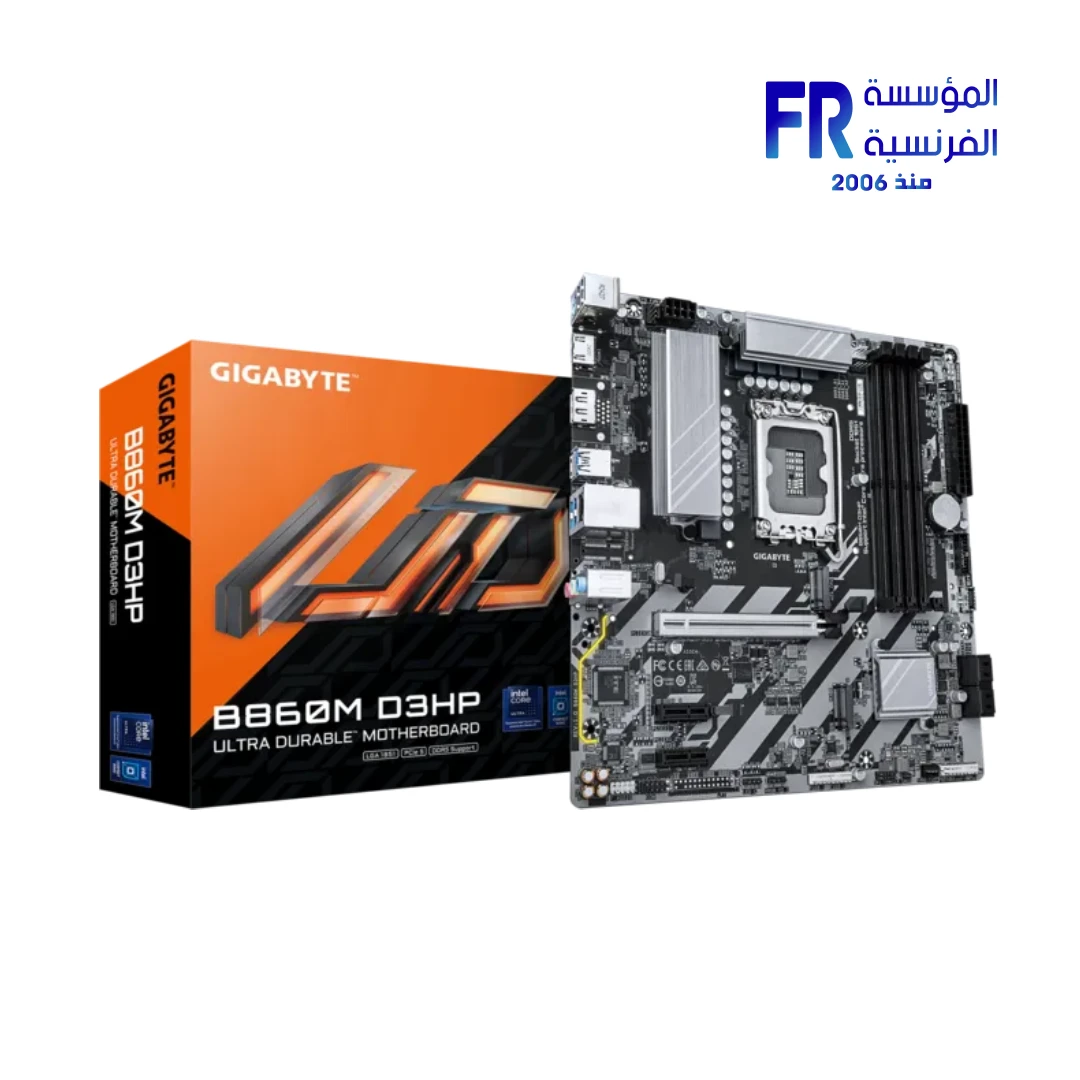

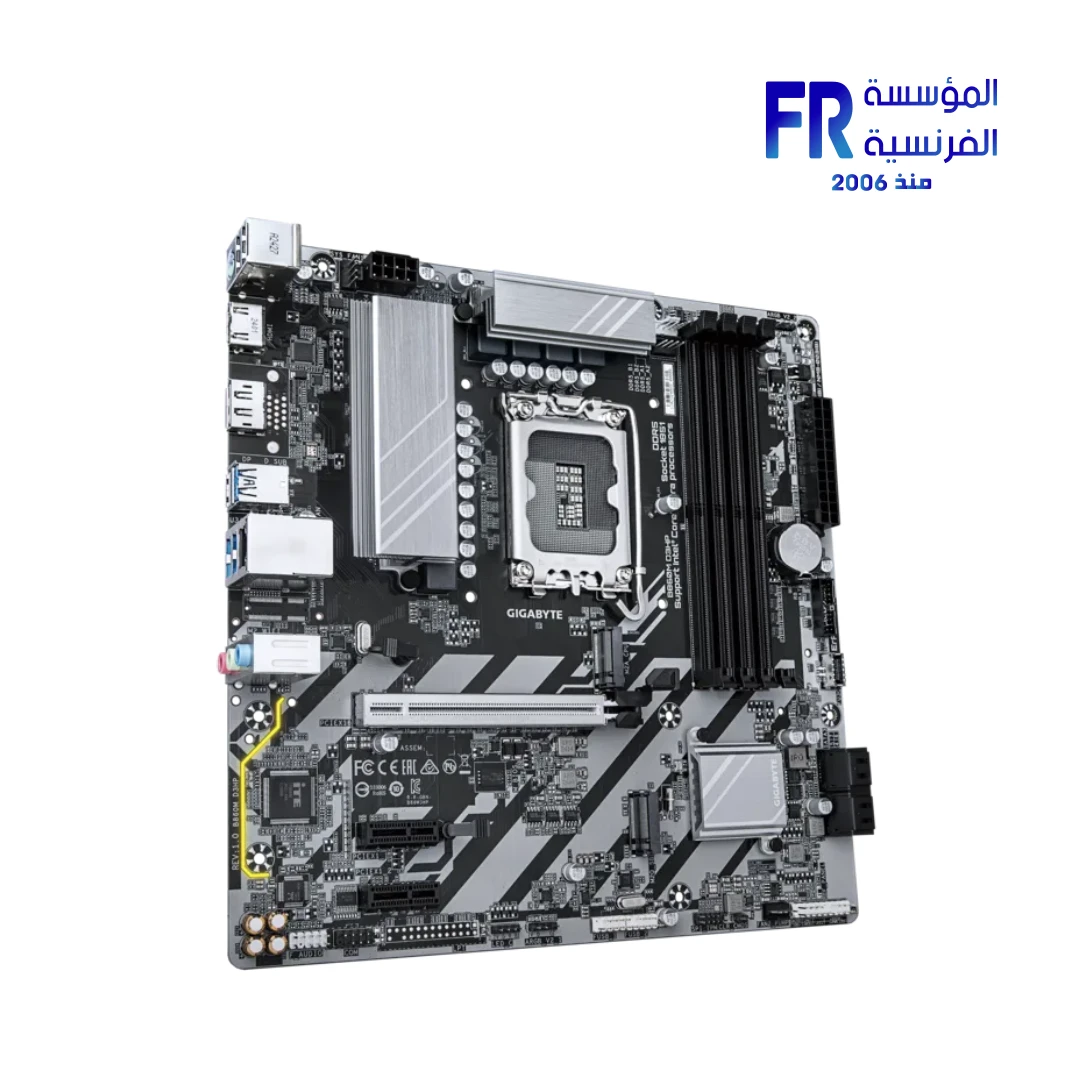

Gigabyte B860M D3HP LGA 1851 DDR5 mATX Black Motherboard
6699 EGP
- Part Number: 9MB86M3HP-00-G11
- CPU Socket: LGA 1851 (Intel® Core™ Ultra Processors Series 2)
- Memory Support: 4x DDR5 DIMM, up to 9066(O.C.) MT/s
- Primary Expansion Slot: 1x PCIe 5.0 x16 (UD Slot with EZ-Latch)
- Storage Interface: 2x M.2 Slots (PCIe 4.0 x4) & 4x SATA 6Gb/s
- Video Output: 1x HDMI 2.1 (4K@60Hz) & 1x DisplayPort 2.1 (4K@144Hz)
- Networking: Realtek® GbE LAN (1 Gbps)
- Warranty: 3 Years
المتوفر في المخزون 1 فقط
Price Match Guarantee
Gigabyte B860M D3HP LGA 1851 DDR5 mATX Black Motherboard
In short, the Gigabyte B860M D3HP LGA 1851 DDR5 mATX Black Motherboard technically facilitates a sophisticated entry point into the next generation of computing, specifically optimized for Intel® Core™ Ultra Processors (Series 2). Because it utilizes a Hybrid 4+1+2 phases VRM solution, Gigabyte effectively reinforces system stability with ultimate hardware scalability. Notably, the integration of D5 Bionic Corsa technology reinforces structural synchronization for “Infinite Memory Performance,” pushing DDR5 overclocking limits to an elite 9066+ MT/s near-instantaneously.
Furthermore, the motherboard utilizes PCIe 5.0 x16 lanes and dual PCIe 4.0 M.2 slots to technically facilitate extreme data transfer velocities. Specifically, the inclusion of AI Snatch and HyperTune BIOS reinforces its performance pedigree, acting as an auto-overclocking engine that redefines PCB design with AI-driven signal enhancement. Consequently, features like PCIe EZ-Latch and the EZ Debug Zone effectively act as a streamlined toolkit for DIY enthusiasts, ensuring that high-end visual excursions through DisplayPort 2.1 and HDMI 2.1 are supported by a logically perfect and durable foundation.
Architectural Excellence & Smart Management
6-Layer Mid-Loss PCB
Notably, the motherboard specifically utilizes a 6-layer PCB with mid-loss material to effectively enhance signal integrity. This technically facilitates stable power delivery to UD Power Connectors, ensuring that high-performance components operate without thermal throttling during intense excursions.
Audio Noise Guard & Hi-Fi Audio
Moreover, the integration of High-End Audio Capacitors technically facilitates a studio-grade soundstage. Specifically, the audio noise guard effectively separates sensitive analog components from PCB interference, reinforcing a pure acoustic experience near-instantaneously.
💡 Pro-Builder Tip: Q-FLASH Auto Scan
To clarify, the Q-FLASH Auto Scan feature technically facilitates BIOS updates via USB without needing a CPU or RAM installed. Specifically, when using a flash drive, the system effectively auto-scans for the correct file, reinforcing a logically perfect update process that saves time and prevents manual searching errors.
Technical Specifications
| Hardware Section | Detailed Specification |
|---|---|
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors; L3 cache varies with CPU |
| Chipset | Intel® B860 Express Chipset |
| Memory | 4 x DDR5 DIMM; Support up to 256 GB; 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s |
| Onboard Graphics | Intel® HD Graphics: 1x HDMI (4096×2160@60Hz); 1x DisplayPort (3840×2160@144Hz) |
| Audio | Realtek® Audio CODEC; 2/4/5.1/7.1-channel High Definition Audio |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | 1 x PCI Express x16 (PCIe 5.0, x16); 2 x PCI Express x1 (PCIe 3.0, x1) |
| Storage Interface | 2x M.2 (Socket 3, PCIe 4.0 x4/x2); 4x SATA 6Gb/s; RAID 0, 1, 5, 10 support |
| USB | 1x USB Type-C (Internal Header); 5x USB 3.2 Gen 1 (3 Rear, 2 Internal); 7x USB 2.0/1.1 (3 Rear, 4 Internal) |
| Internal I/O | 24-pin ATX, 8-pin 12V, CPU Fan, Pump, 2x RGB Gen2, 1x RGB, 2x M.2, 4x SATA, TPM, Serial Port, Clear CMOS |
| Back Panel | 3x USB 2.0, PS/2 Port, DP, HDMI, 3x USB 3.2 Gen 1, RJ-45, 3x Audio Jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temp, Fan/Water Cooling Flow Rate detection, Fan Fail Warning |
| BIOS | 256 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GCC, Q-Flash, Smart Backup, AI Perfdrive |
| Bundled Software | Norton® Internet Security (OEM); LAN bandwidth management software |
| Operating System | Windows 11 64-bit / Windows 10 64-bit (NPU driver only on Win11) |
| Form Factor | Micro ATX; 24.4cm x 24.4cm |
| Model Name | B860M D3HP (rev. 1.0) |
| Part Number | 9MB86M3HP-00-G11 |
| UPC | 889523046937 |
| EAN | N/A |
| Warranty | 3-Year Local Warranty |
Frequently Asked Questions
Can I run 256GB of RAM on this Micro-ATX board?
Yes, the B860M D3HP technically facilitates high-capacity memory configs through its 4 DDR5 DIMM sockets. Specifically, it reinforces structural synchronization for 64GB single modules, effectively acting as a powerhouse for workstation and high-end gaming excursions.
Is the PCIe 5.0 slot backwards compatible?
Notably, the motherboard reinforces full backwards compatibility. While the PCIe 5.0 x16 slot technically facilitates the bandwidth of next-gen GPUs, it effectively supports PCIe 4.0 and 3.0 graphics cards near-instantaneously without any structural hurdles.
