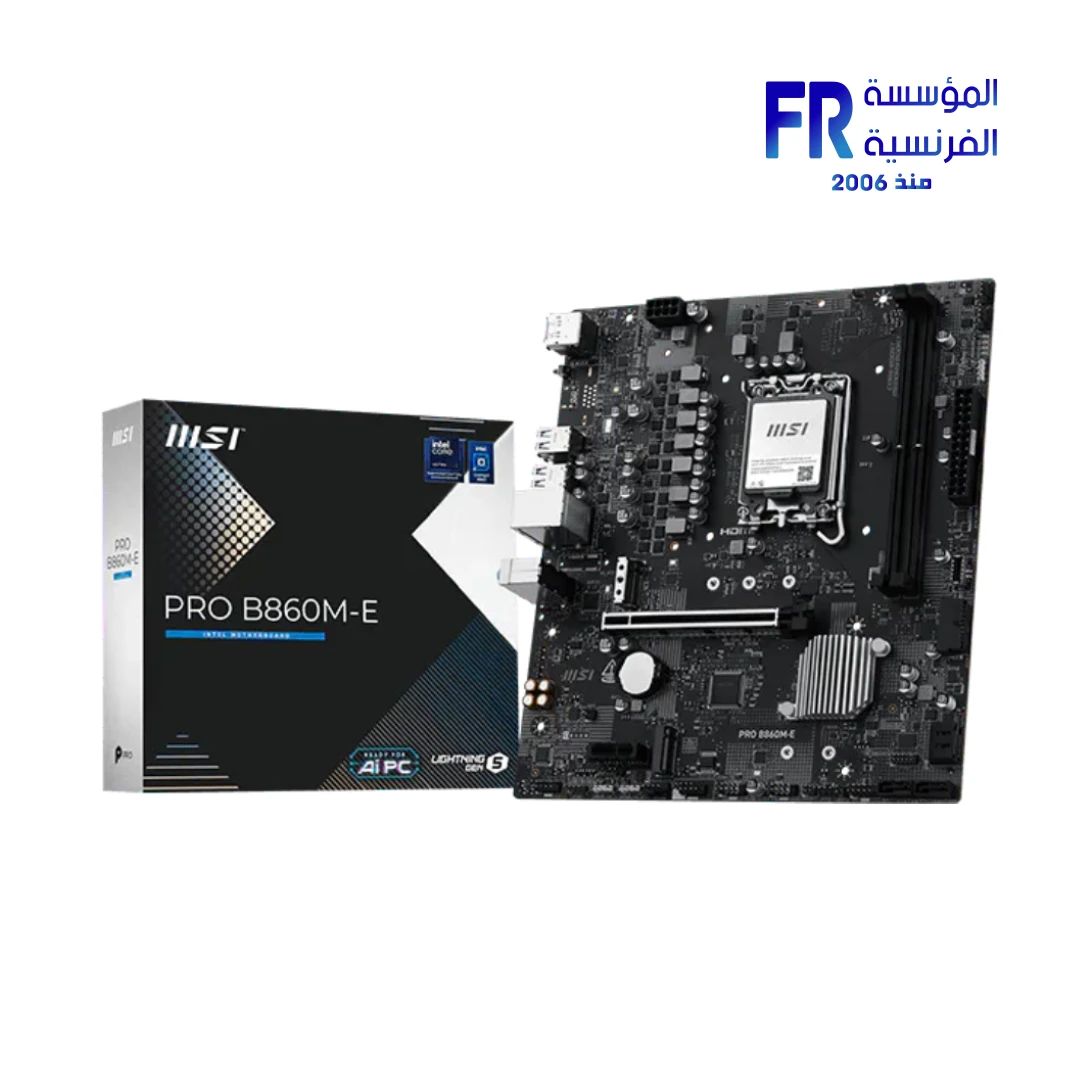

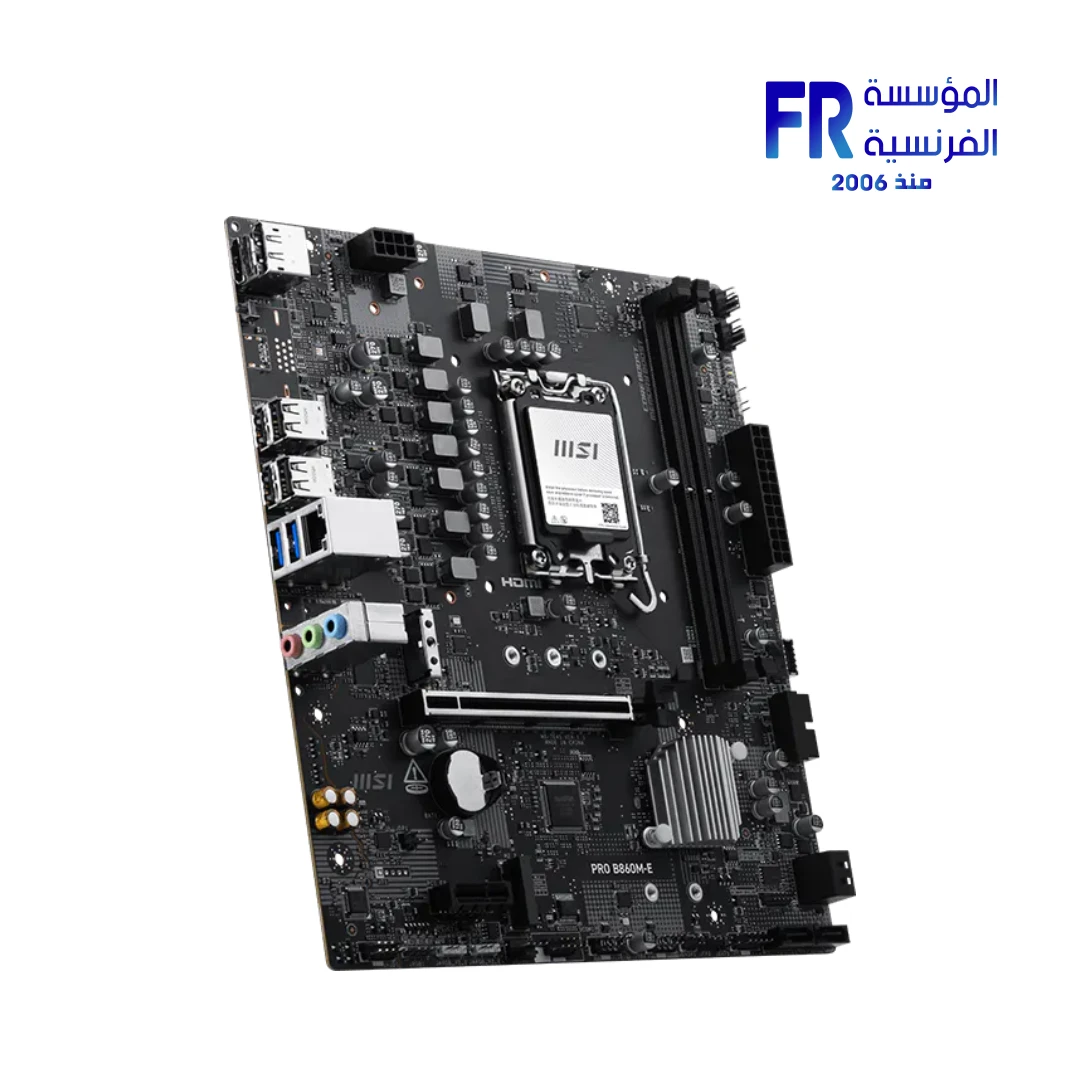

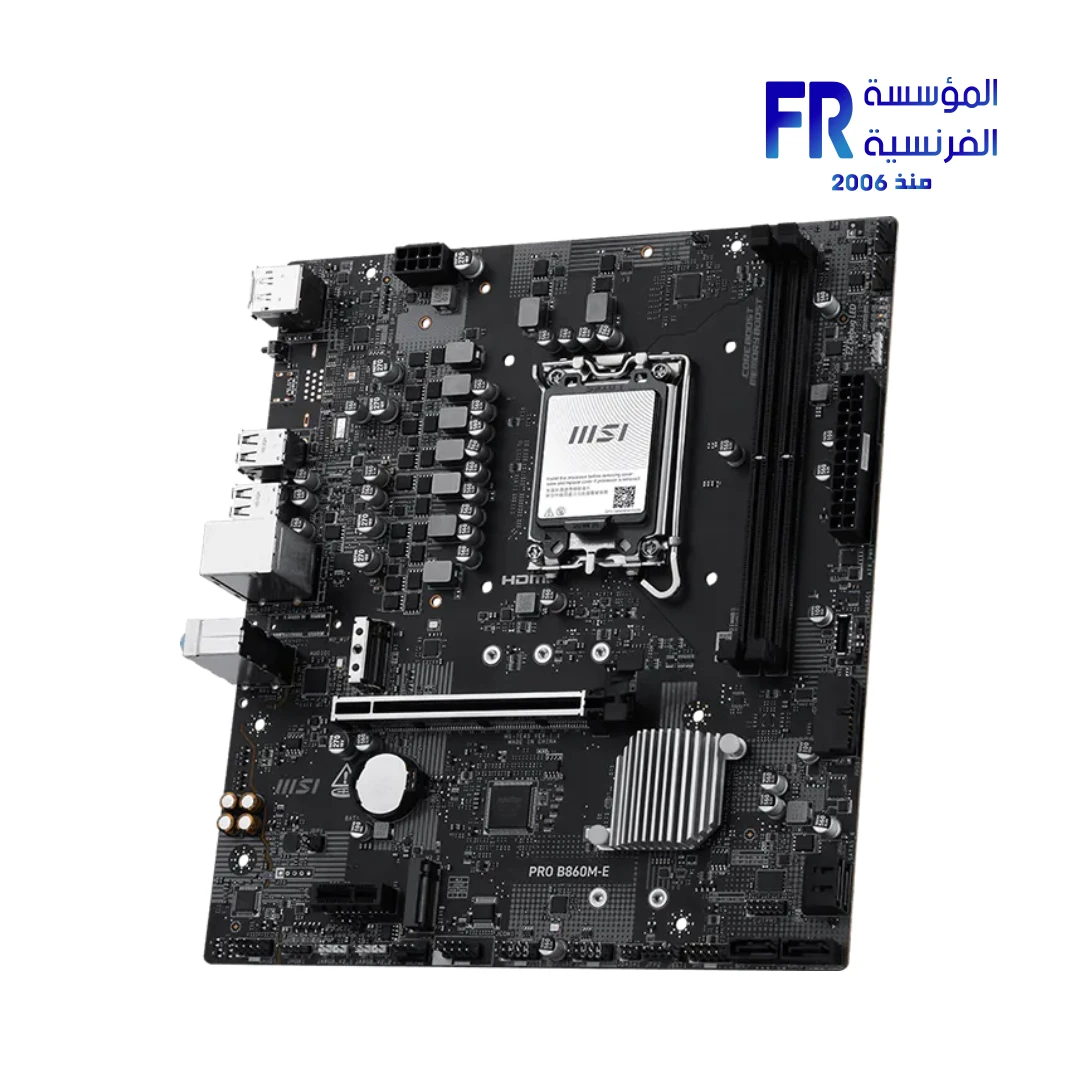

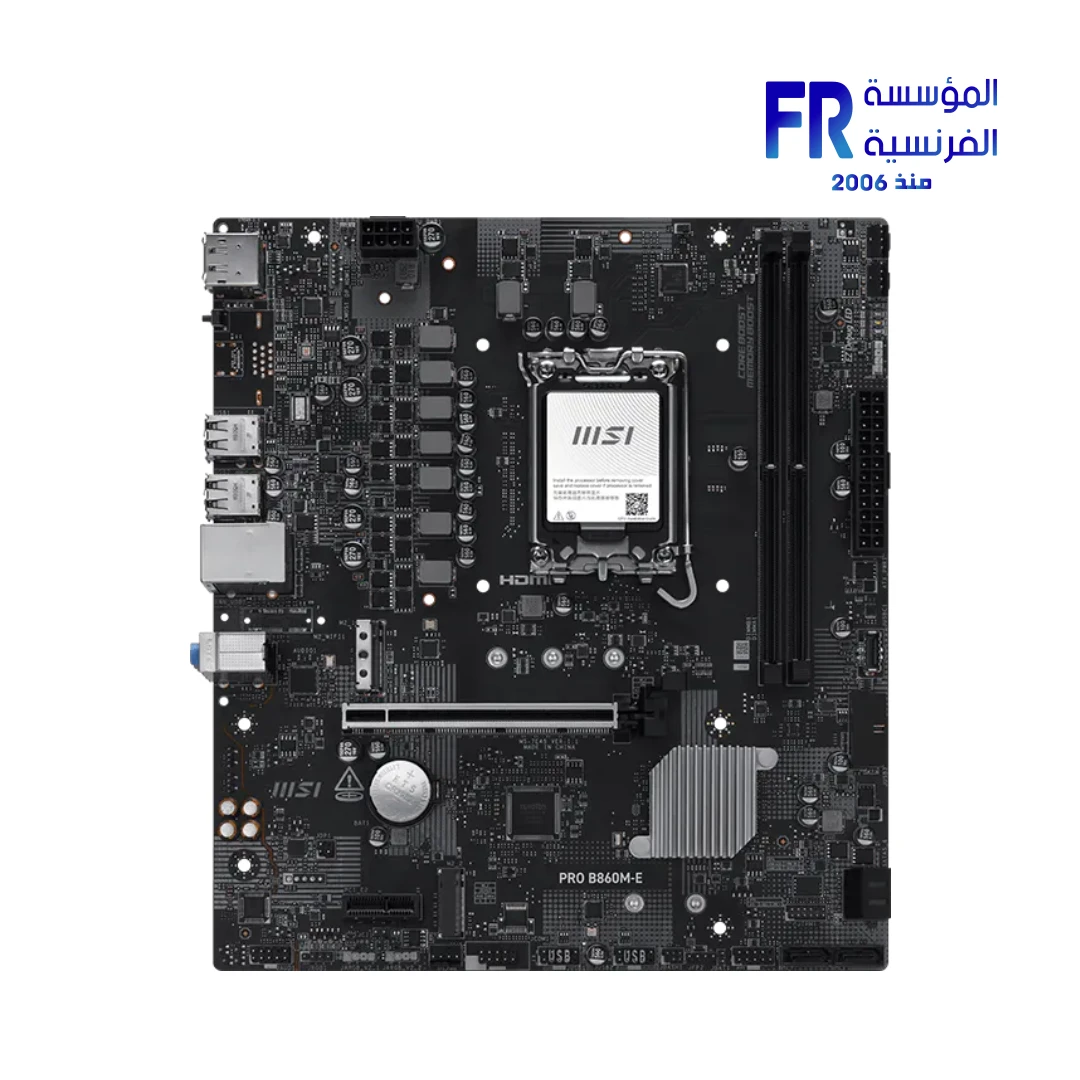

Msi Pro B860M-E LGA1851 Micro ATX Motherboard
6750 EGP
- Part Number 911-7E45-004 / 824142449356
- CPU Socket LGA 1851 (Intel® Core™ Ultra Series 2)
- Memory Support 2x DDR5 DIMM, up to 9066+(OC) MT/s
- Primary Expansion Slot 1x PCIe 5.0 x16 (From CPU)
- Storage 2x M.2 Slots (1x PCIe 5.0 x4, 1x PCIe 4.0 x4)
- Networking Realtek® 5Gbps LAN
- USB Connectivity Front USB 10Gbps Type-C Header
- Warranty 3 Years
المتوفر في المخزون 2 فقط
Price Match Guarantee
Msi Pro B860M-E LGA1851 Micro ATX Motherboard
In short, the Msi Pro B860M-E LGA1851 Micro ATX Motherboard technically facilitates a superior computing environment through its support for the next-generation Intel® Core™ Ultra Processors (Series 2). Notably, the MSI engineering specifically utilizes the LGA 1851 socket to effectively enhance processing efficiency for Arrow Lake architectures. Specifically, the integration of PCIe 5.0 technology and 5Gbps LAN reinforces structural synchronization for high-velocity data transfers and elite networking near-instantaneously.
Furthermore, the dual DDR5 memory slots effectively support extreme overclocking frequencies reaching up to 9066+ MT/s. Because the frame supports a disciplined Micro-ATX footprint, it technically facilitates elite Motherboard performance without spatial compromise in compact desktop configurations. Consequently, the PRO B860M-E delivers a professional industrial aesthetic that blends EZ Debug LED diagnostics with futuristic CUDIMM memory compatibility. As a result, you receive a visually and logically perfect foundation for your AI-ready workstation.
Next-Gen Logic & Memory Synchronization
DDR5 Performance & CUDIMM
Notably, the PRO B860M-E architecture specifically utilizes a dual-slot memory topology. This technically allows for extreme signal integrity reaching 9066+ MT/s while effectively acting as a high-velocity bridge for modern CUDIMM modules. Consequently, your technical presence remains fluid during high-load computing iterations.
Gen 5 Storage Pipeline
Moreover, the M.2_1 slot effectively supports extreme 128Gbps bandwidth via PCIe 5.0. This architecture ensures your high-performance SSD transitions remain stable while maintaining structural synchronization for professional workstations and AI PC builds.
💡 Pro-Builder Tip: EZ Debug Alignment
To clarify, the MSI PRO B860M-E technically facilitates rapid troubleshooting via 4x EZ Debug LEDs. Specifically, ensure you utilize the dedicated memory detection LED to effectively confirm module seating during initial boot iterations. Furthermore, ensure you utilize the DisplayPort 1.4 output to maintain 4K 60Hz visual clarity for integrated graphics setups near-instantaneously.
Technical Matrix
| Hardware Feature | Detailed Specification |
|---|---|
| Model Name | PRO B860M-E |
| Part Number | 911-7E45-004 |
| UPC | 824142449356 |
| EAN | N/A |
| Chipset | Intel® B860 |
| Socket Support | LGA 1851 (Intel® Core™ Ultra Series 2) |
| Memory | 2x DDR5, Max 128GB, Up to 9066+(OC) MT/s |
| Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x1 |
| Storage | 1x M.2 PCIe 5.0 x4, 1x M.2 PCIe 4.0 x4, 4x SATA 6G |
| Display Outputs | 1x HDMI™ 2.1, 1x DisplayPort 1.4 (4K 60Hz) |
| Networking | Realtek® 8126 5Gbps LAN |
| Audio | Realtek® ALC897 7.1-Channel HD Audio |
| USB Ports | 1x USB 10Gbps Type-C (Front), 4x USB 5Gbps, 8x USB 2.0 |
| Form Factor | Micro-ATX (220mm x 243.84mm) |
| Warranty | 3 Years Local Agency Warranty |
What’s In The Box
Frequently Asked Questions
What is the benefit of the 5Gbps LAN in the PRO B860M-E?
Notably, the 5Gbps Ethernet technically facilitates a seamless visual and data transition for high-speed internet or local NAS environments. Specifically, it provides double the bandwidth of standard 2.5G ports. Consequently, your setup maintains industrial-grade alignment near-instantaneously.
Does this motherboard support the latest PCIe 5.0 SSDs?
Yes, the motherboard technically facilitates expansion excursions for Gen 5 storage through its primary M.2 slot. Furthermore, it supports high-velocity data protocols for future-proof builds. Therefore, you can execute elite-tier hardware transitions while maintaining structural synchronization.
*MSI, PRO Series, and the MSI logo are registered trademarks of Micro-Star International. Intel, the Intel logo, and Core Ultra are registered trademarks of Intel Corporation. Technical specifications are based on official documentation provided at the time of publication.
Help us maintain data accuracy via our Technical Feedback Form.
