⚡ Engineering Highlights at a Glance:

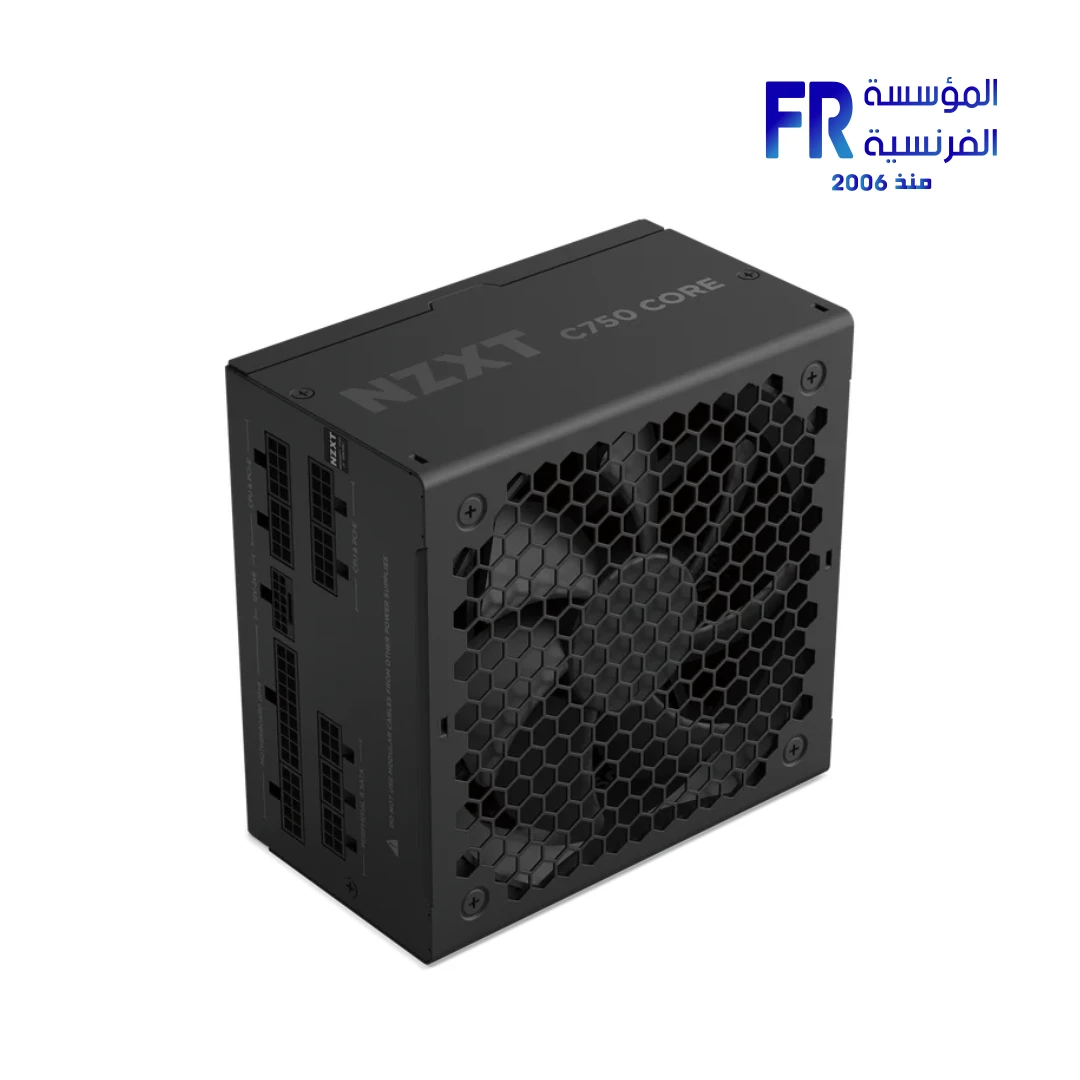

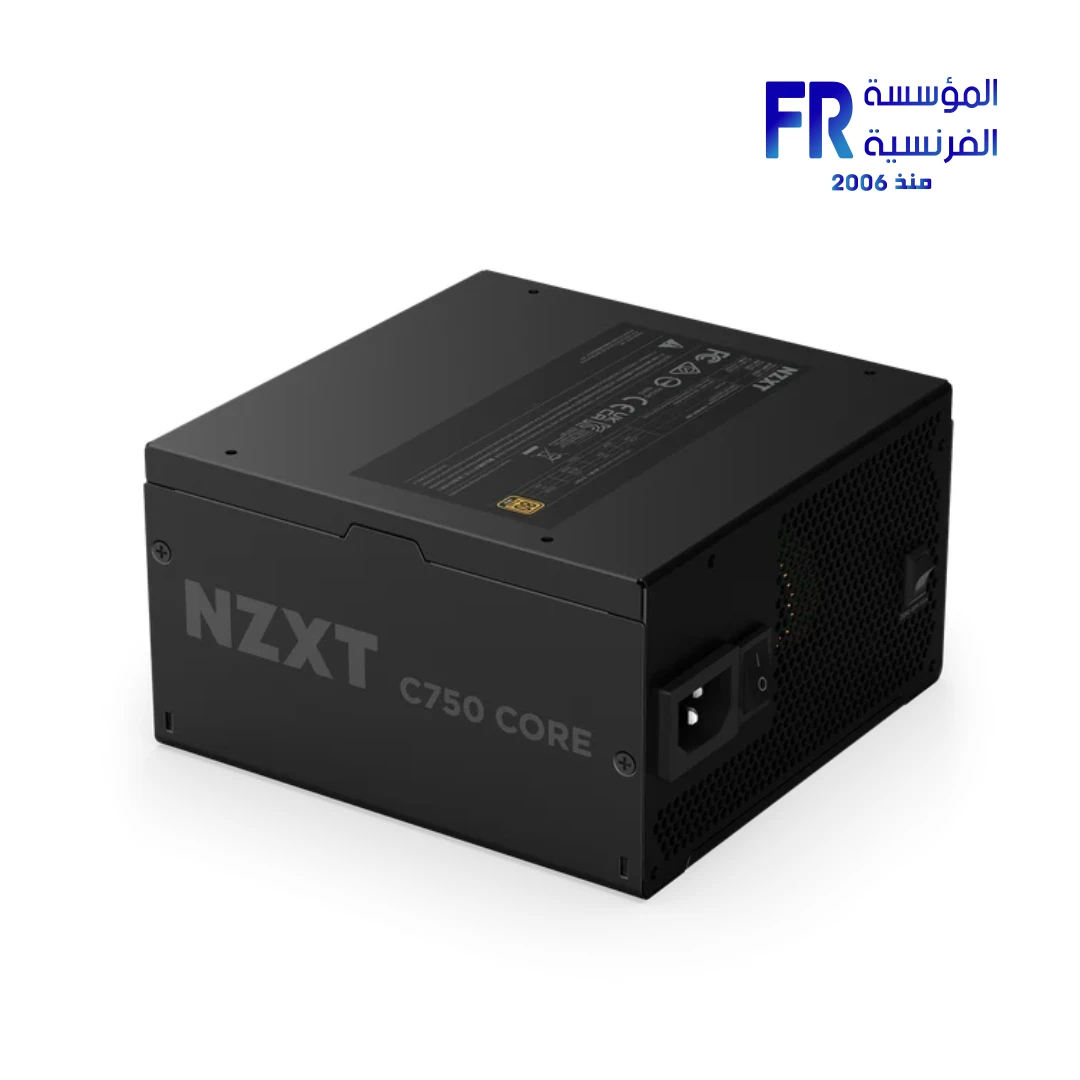

• 750W ATX 3.1: Compliant with ATX12V v3.1 and EPS12V v2.92, delivering stable power for modern GPUs and CPUs.
• 300W 12V-2x6 Connector: Native PCIe 5.1 cable with a dual-color housing that shows when the connector is fully seated; rated for GPUs drawing up to 300W.
• 80 PLUS Gold / Cybenetics Platinum: Up to 92.11% efficiency at 50% load, reducing heat and power waste.
• Cybenetics A++ Noise: Rated under 15 dBA, with Zero RPM Mode stopping the fan at low loads for near-silent operation.

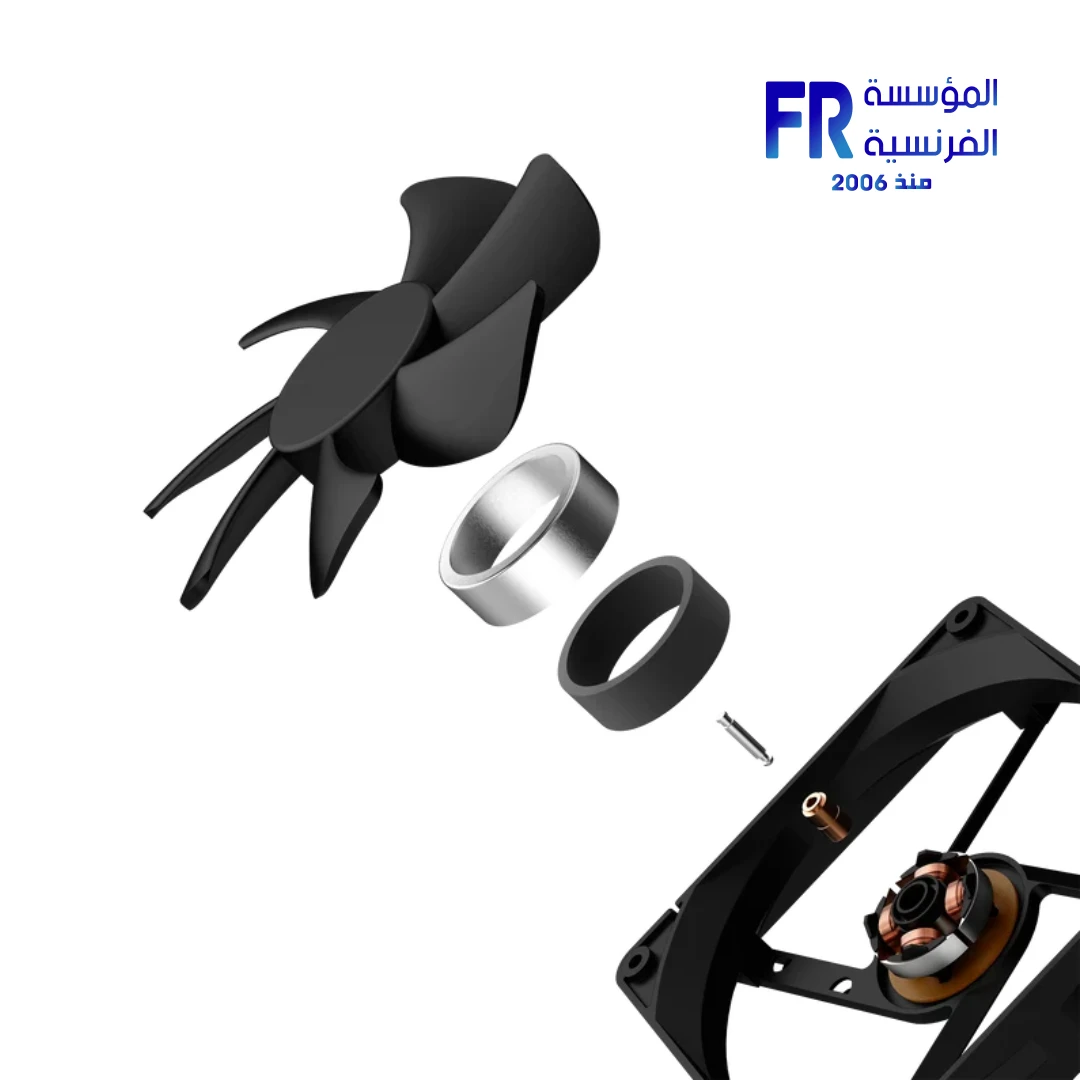

• 135mm FDB Fan: Fluid dynamic bearing design delivers 103.36 CFM airflow while keeping noise down.
• 105°C-Rated Capacitors: Premium components for stable, long-lasting performance under heavy loads.

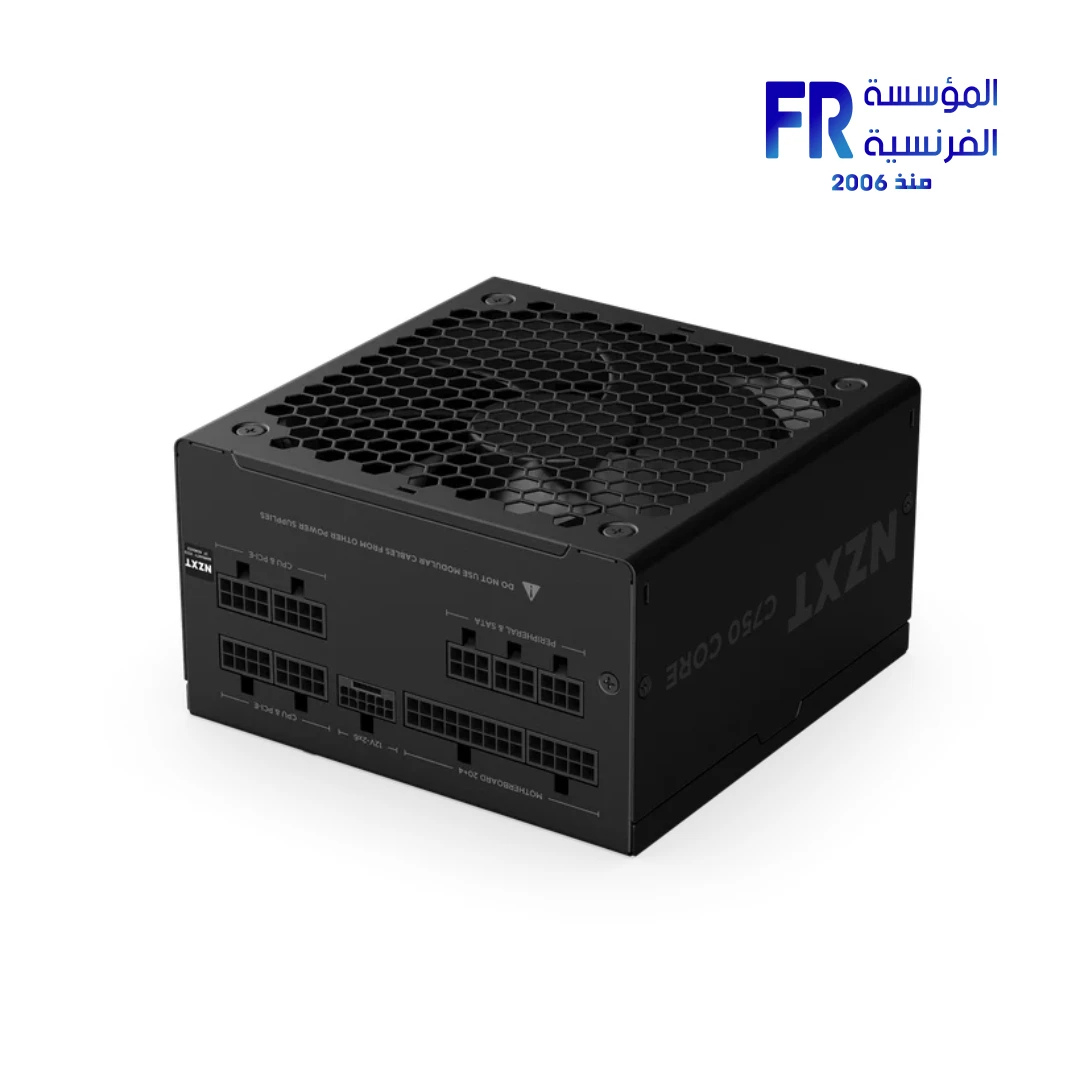

• Fully Modular with Embossed Cables: Connect only the cables you need, with cable combs included for a clean build.

GPU Connector Planning

The C750 Gold Core includes one 300W 16-pin 12V-2x6 cable with a dual-color housing that shows when the connector is fully seated, plus two 8-pin (6+2) PCIe cables. Check your GPU's power connectors before purchase; flagship cards that need 600W over 12V-2x6 or three 8-pin connectors exceed what this PSU supplies. If your card draws under 300W and uses a single 12V-2x6 or up to two 8-pin connectors, this PSU is a good fit.

Case Fit and Cable Routing

The PSU measures 150 x 86 x 150mm, which is shorter than many 160mm and 180mm units. This leaves more room for cable routing in mid-tower and compact cases, but you should still confirm the PSU bay depth and cable exit clearance. The fully modular design lets you connect only the cables you need; because the cables are individually embossed with combs, they can be routed neatly behind the motherboard tray. Plug in the 24-pin, 4+4-pin CPU, and 8-pin CPU cables first to simplify routing.

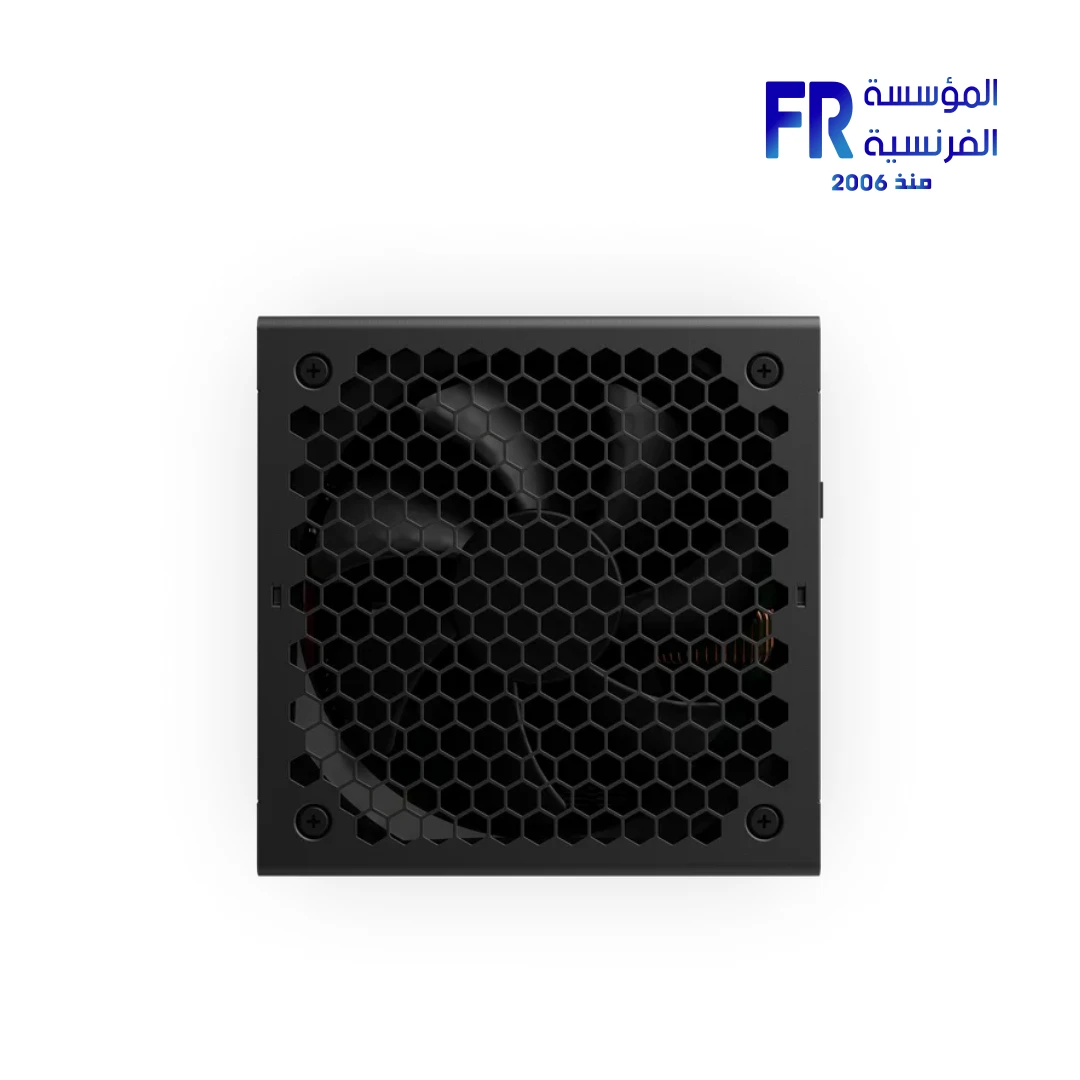

Fan Mode and Efficiency

The 135mm fluid dynamic bearing fan uses Zero RPM Mode, staying off at low loads for silent operation. Below light workloads the PSU runs passively, which suits quiet idle and desktop use. At full speed the fan reaches 40.5 dBA, which is audible but normal for a 750W unit under load. Keep the PSU intake clear of cables and dust filters. The unit is rated to operate at 0–50°C continuous full load, so it holds up in hot climates with proper case airflow.

Check your GPU's power connectors and total draw before ordering. The C750 Gold Core includes one 300W 12V-2x6 cable and two 8-pin PCIe cables; cards drawing more than 300W over a single 12V-2x6 or needing three 8-pin connectors exceed what this PSU supplies. If your GPU is in this tier, the C850 or C1000 Gold Core would be a better fit.

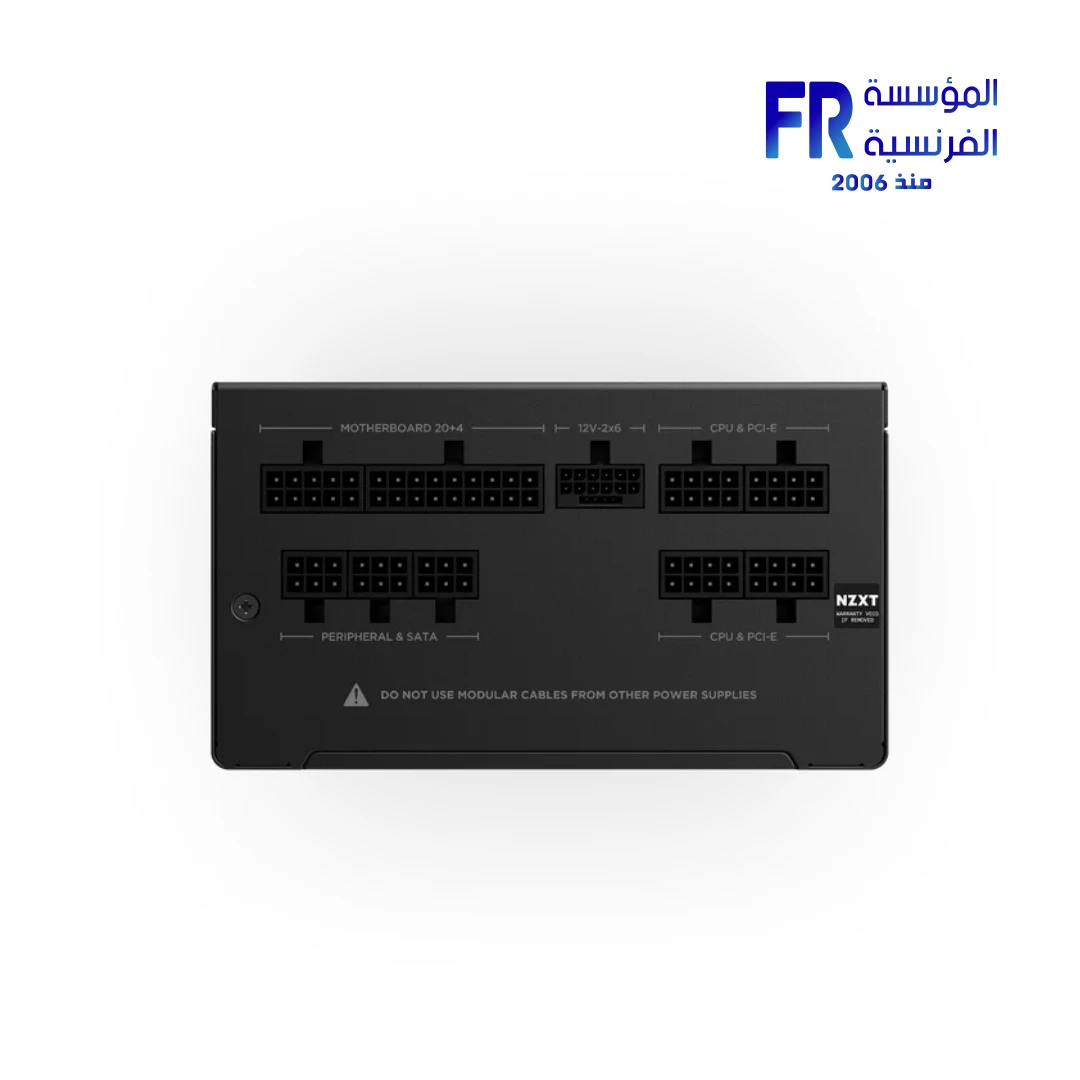

Plug in the 24-pin, 4+4-pin CPU, and 8-pin CPU cables first, then add only the PCIe, SATA, and peripheral cables you need. The fully modular design keeps the PSU bay tidy and improves airflow, and the embossed cables with combs make routing easier behind the motherboard tray.

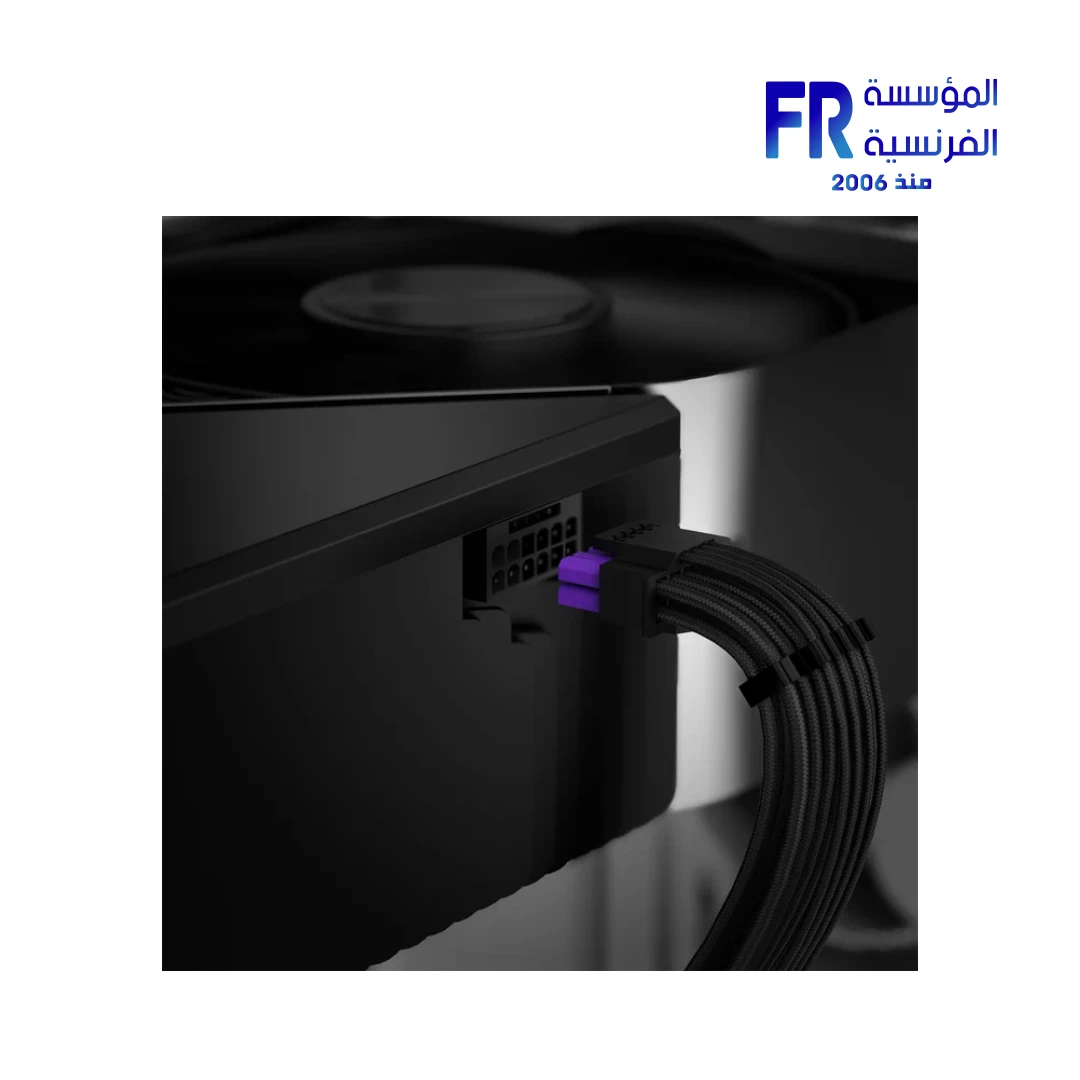

Use the dual-color housing on the 12V-2x6 connector to confirm a fully seated connection before powering on. Route the cable with gentle bends and keep it clear of sharp edges and hot components, and check that the connector latch clicks into place.

Take advantage of Zero RPM Mode for quiet idle operation by keeping the PSU intake unobstructed and using a case with reasonable airflow around the PSU bay. The unit is rated for 0–50°C continuous full load, so it holds up in warm climates. The 7-year warranty backs the build quality, so keep your receipt and register the PSU if required.
