Asus Tuf Gaming X870 Pro WIFI7 W Neo AM5 DDR5 ATX Motherboard
17999 EGP
- Part Number 90MB1NY0-M0EAY0
- CPU Socket AM5 (Ryzen 9000 / 8000 / 7000 Series)
- Memory Support 4x DDR5 DIMM (Up to 8600+ MT/s OC)
- Expansion Slots 1x PCIe 5.0 x16 & 1x PCIe 4.0 x16
- Storage 4x M.2 Slots (2x PCIe 5.0 x4, 2x PCIe 4.0 x4)
- Networking Wi-Fi 7 & 5Gb Ethernet
- Connectivity 2x USB4® (40Gbps) & Front USB 20Gbps (30W PD)
- Warranty 3 Years
متوفر في المخزون
Price Match Guarantee
Asus TUF Gaming X870-PRO WIFI7 W NEO: Elite AM5 Performance & Next-Gen Connectivity
In short, the Asus TUF Gaming X870-PRO WIFI7 W NEO technically facilitates an industrial-grade foundation for AMD Ryzen 9000 series processors through its sophisticated 16+2+1 power stage architecture. Since this motherboard utilizes the X870 chipset, it effectively enhances data throughput by integrating dual USB4 40Gbps ports and PCIe 5.0 readiness for both graphics and storage. Notably, the “W NEO” aesthetic specifically provides a refined white finish that caters to high-performance boutique builds.
Furthermore, the inclusion of Wi-Fi 7 technology specifically minimizes latency while maximizing wireless bandwidth for competitive online iterations. Because the board incorporates NitroPath DRAM technology, it technically ensures superior signal integrity for DDR5 memory speeds exceeding 9600+ MT/s. Consequently, the X870-PRO NEO delivers a disciplined system presence that blends military-grade durability with AI-enhanced optimization. As a result, you receive a technically perfect platform for high-bandwidth gaming and advanced AI workloads.
Intelligent Power & Thermal Engineering
AI Solution Suite
Notably, the firmware specifically features AI Overclocking and AI Cooling II logic. This technically allows the motherboard to maximize clock speeds while adjusting fan headers in real-time, effectively ensuring that users receive a stabilized performance profile during complex processing iterations.
PCIe 5.0 Expansion
Moreover, the X870 chipset specifically utilizes native PCIe 5.0 lanes for the primary SafeSlot. Consequently, your setup maintains industrial-grade compatibility with next-generation GPUs and NVMe drives, ensuring that bandwidth remains unrestricted during high-draw gaming excursions.
Additionally, the inclusion of DIY-friendly features like M.2 Q-Release and PCIe Slot Q-Release effectively simplifies the hardware assembly process. Unlike traditional boards, the TUF Gaming X870-PRO incorporates a 5Gb Ethernet port to ensure your wired network accuracy remains superior. As a result, you receive a technically advanced ATX platform that balances extreme connectivity with military-grade TUF protection.
💡 Build Tip: USB4 & M.2 Bandwidth
To clarify, the 2x USB4 ports technically share bandwidth with the M.2_2 slot on this motherboard. Specifically, installing an SSD in the M.2_2 slot will effectively reduce the USB4 controller to PCIe 4.0 x2 mode. Furthermore, ensure you check the BIOS settings if you require full x4 bandwidth for your NVMe drive, as this may technically disable the USB4 ports to prioritize storage speed.
Detailed Technical Specifications
| Hardware Category | Detailed Specification |
|---|---|
| CPU | AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Processors |
| Chipset | AMD X870 Chipset |
| Memory | 4 x DIMM, Max. 256GB, DDR5 (9600+ MT/s OC Support) |
| Graphics | 1x HDMI 2.1 (4K@60Hz), 2x USB4 (DisplayPort 1.4a support) |
| Expansion Slots | 1x PCIe 5.0 x16 (x16 mode), 1x PCIe 4.0 x16 (x4 mode) |
| Storage | 2x M.2 PCIe 5.0 x4, 2x M.2 PCIe 4.0 x4, 2x SATA 6Gb/s |
| Ethernet | 1 x Realtek 5Gb Ethernet with TUF LANGuard |
| Wireless | Wi-Fi 7 (2×2, 160MHz), Bluetooth v5.4 |

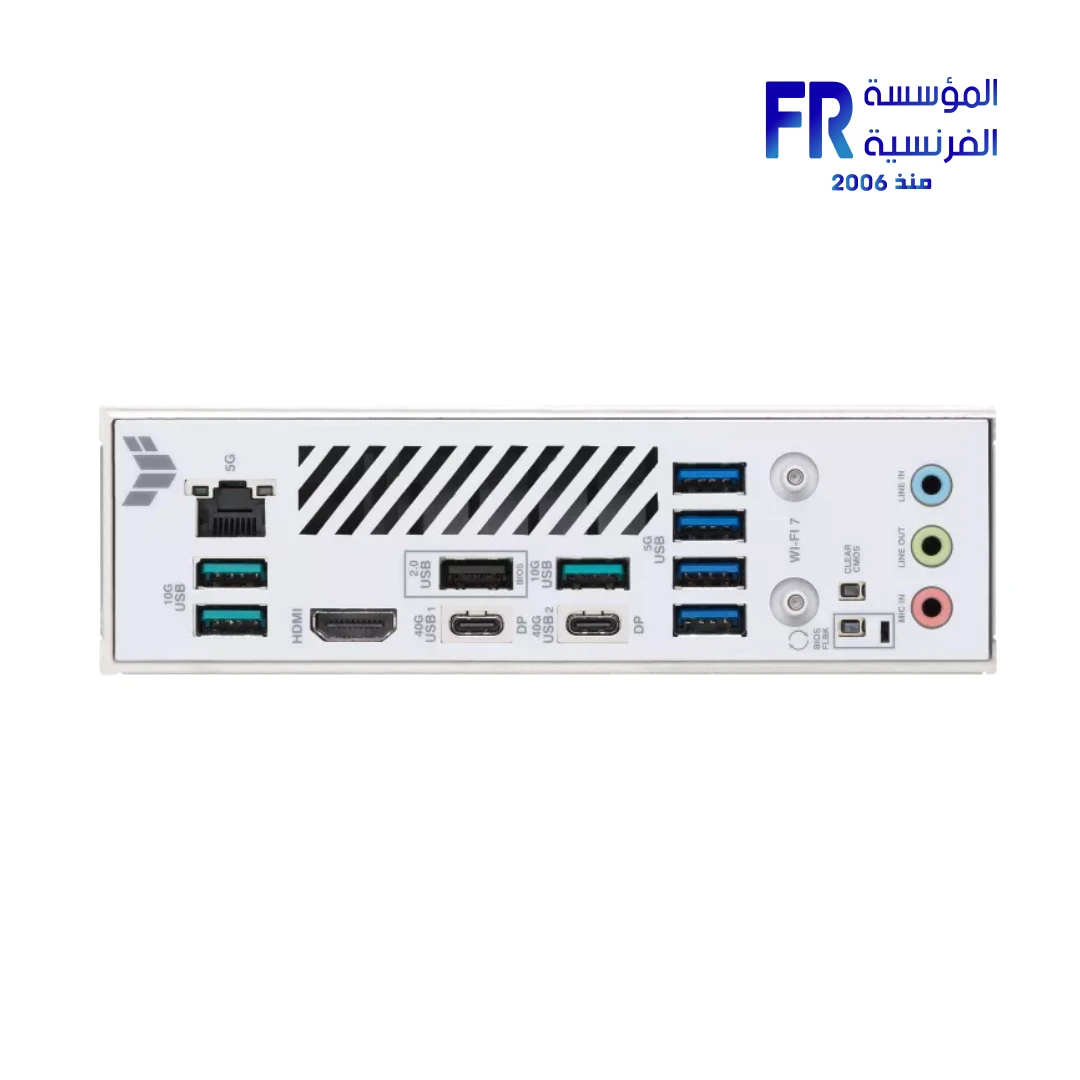

| Rear USB Ports | 2x USB4 (Type-C), 3x USB 10Gbps (Type-A), 4x USB 5Gbps, 1x USB 2.0 |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Codec |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Model Name | Asus TUF Gaming X870-PRO WIFI7 W NEO |
| Part Number | 90MB1NY0-M0EAY0 |
| UPC | Not Provided |
| EAN | 199291425248 |
| Warranty | 3 Year Local Warranty |
What’s In The Box
Frequently Asked Questions
What makes the X870 chipset superior for Ryzen 9000?
Notably, the X870 architecture technically facilitates native USB4 40Gbps integration. Specifically, this ensures that the motherboard effectively supports ultra-fast external storage and high-resolution displays. Consequently, your system setup ensures industrial-grade future-proofing during complex hardware iterations.
Does this motherboard support Wi-Fi 7 on Windows 10?
Notably, Wi-Fi 7 features technically require Windows 11 24H2 or later for full functionality. Specifically, Windows 10 will effectively only support Wi-Fi 6 standards due to OS-level driver limitations. Consequently, you receive the best wireless accuracy by upgrading to the latest system iterations.
What is NitroPath DRAM technology?
Notably, NitroPath architecture specifically improves the physical slot retention and signal integrity. Specifically, this technically allows for memory frequencies that are up to 400 MT/s higher than traditional designs. Consequently, your setup ensures industrial-grade stability during extreme DDR5 overclocking excursions.
*ASUS, TUF Gaming, and Aura Sync are registered trademarks of ASUSTeK Computer Inc. AMD, Ryzen, and AM5 are trademarks of Advanced Micro Devices, Inc. Technical specifications are based on official documentation provided at the time of publication.
Help us maintain data accuracy via our Technical Feedback Form.
