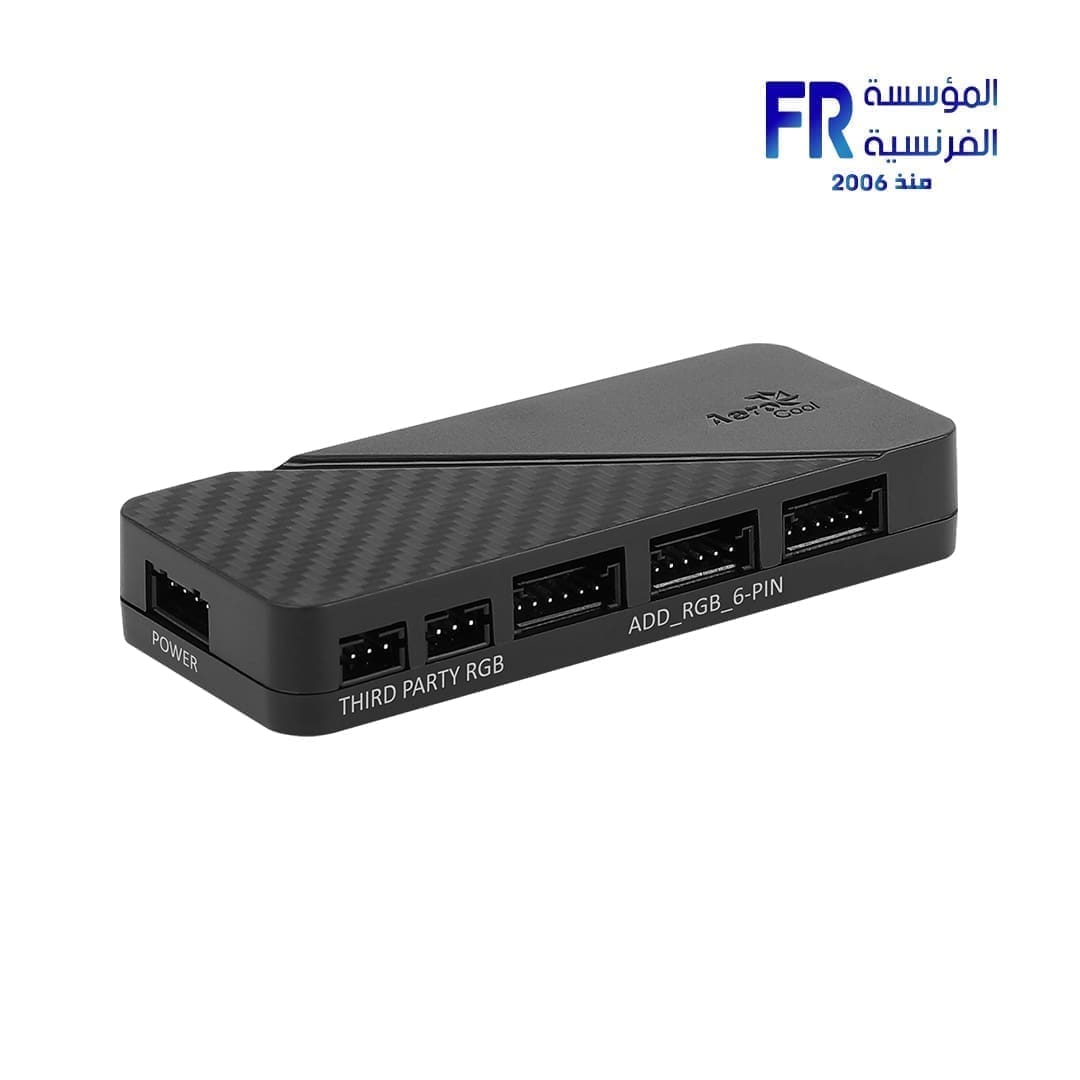

AeroCool H66F RGB Control Hub

AeroCool H66F RGB Control Hub

AeroCool H66F RGB Control Hub SPECIFICATIONS:

• Model: H66F
• Hub & Remote Control:
  • Type: RF wireless

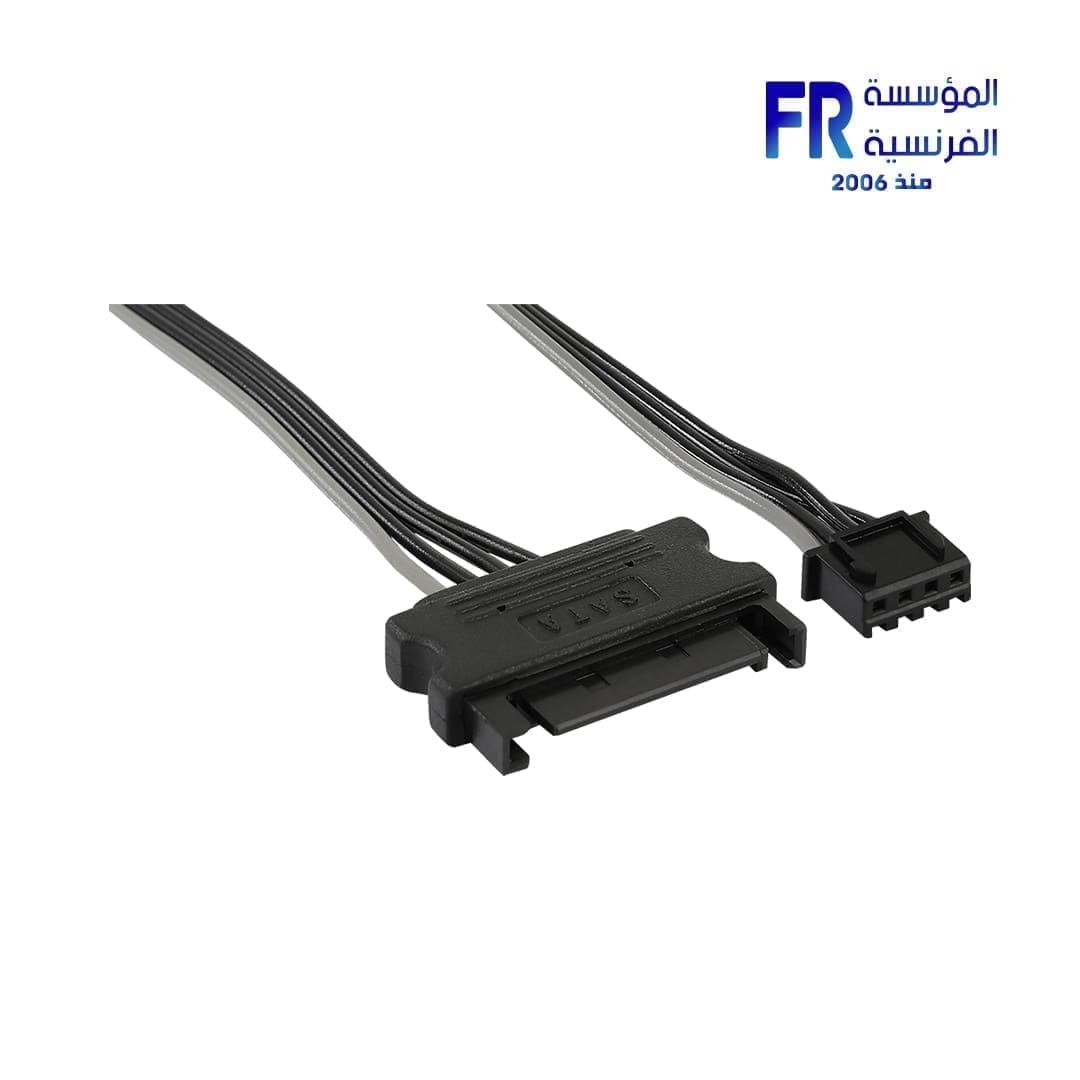

  • Connector: SATA
  • Rated Voltage: 12 V/5V
  • Rated Current: 3 A
  • Frequency: 433.92 MHz
  • Receive Range: 10m
  • Port for Fan: 6
  • Port for 5V ARGB Connector: 2
• Accessories:
  • Velcro Strap x 1
  • Screw x 12
  • Black Zip Tie x 2
• EAN Code: 4710562755275
• Supported Fans – Included:
  • Mirage 12 ARGB Pro
  • Astro 12 Pro
  • Duo 12 Pro
  • Eclipse 12 Pro
  • Duo 14 Pro
  • Edge 14 Pro
• Supported Fans – Compatible (Not Included):
  • Astro 12F
  • Astro 12F PWM
  • Mirage 12 ARGB
  • Astro 12
  • Astro 24
  • Saturn 12F ARGB
  • Duo 12
  • Duo 14
  • Duo 20
  • Edge 14
  • Eclipse 12
  • Saturn 12F ARGB

• COMPATIBLE WITH ADDRESSABLE RGB MOTHERBOARDS

Access 16.8 million colors and more lighting effects using compatible Addressable RGB motherboards including ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion.

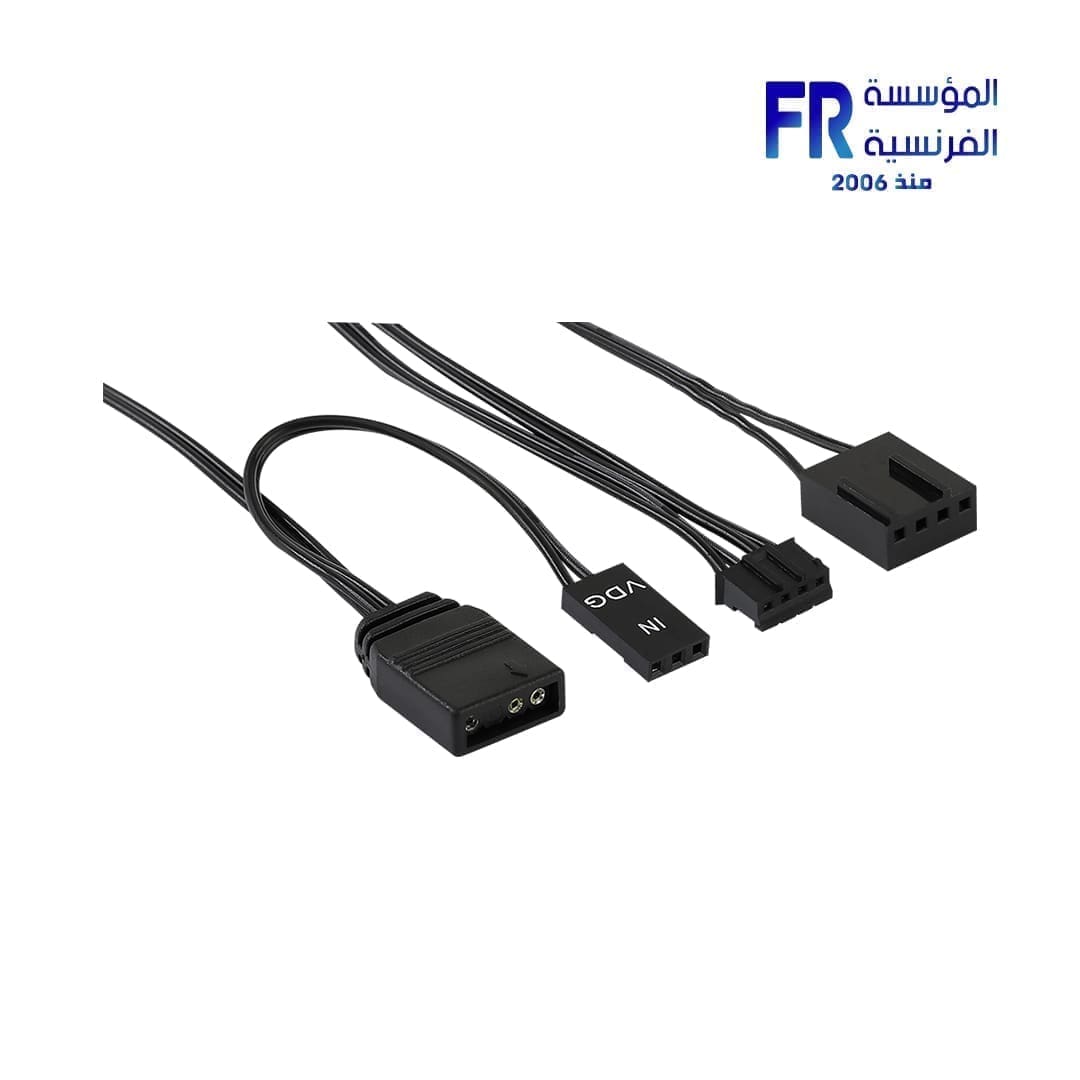

• CONNECT YOUR ARGB FANS AND ACCESSORIES

Allows you to connect up to six 6-Pin Addressable RGB fans.

Allows you to connect up to two 3-Pin Addressable RGB accessories with 5V ARGB connector.

• PWM CONTROL FUNCTIONS FOR OPTIMIZED FAN SPEED

H66F hub comes with PWM control functions for optimized fan speed to maximize cooling efficiency and minimize noise.

Please check that the 4-Pin fan header on your motherboard is PWM compatible. Check your motherboard manual for more details.
Note that there are two main types of 4-Pin connectors:

• PWM based – PWM compatible
• Voltage based – not PWM compatible
