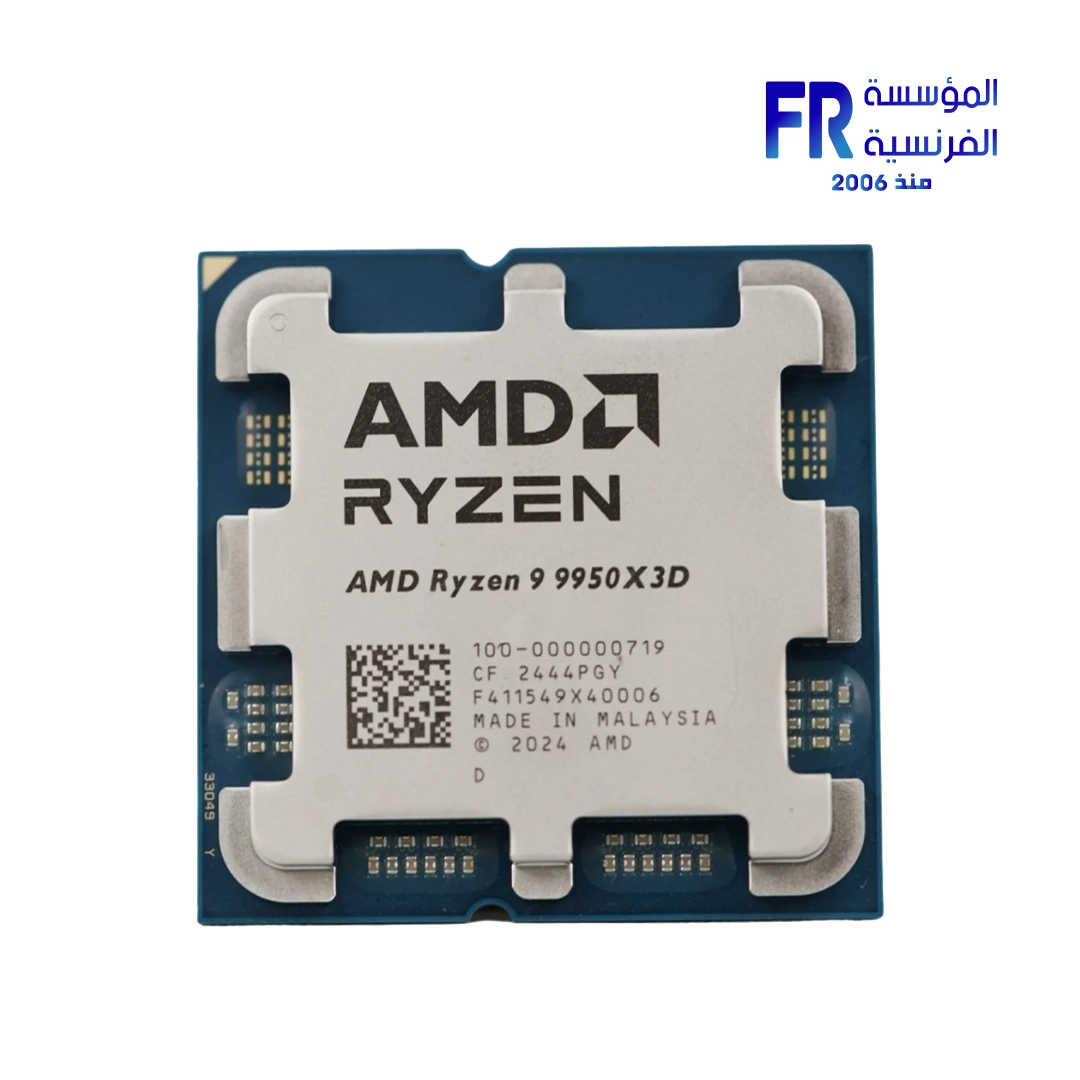

✅ Authorized AMD Partner in Egypt | Official 3-Year Warranty | Tray Processor (No Cooler Included) | Expert PC Building Consultation Available

⚡ Engineering Highlights at a Glance:

• 16 Cores / 32 Threads: Zen 5 cores with SMT for heavy multi-threaded workloads and content creation.
• 128MB L3 Cache with 3D V-Cache: 2nd gen AMD 3D V-Cache adds cache to the cores to improve gaming frame rates and reduce memory stalls.
• Up to 5.7 GHz Boost: Base clock of 4.3 GHz with a maximum boost of 5.7 GHz for responsive single-core performance.
• AM5 Socket and PCIe 5.0: Works with A620, B650, B650E, B840, B850, X670, X670E, X870, and X870E chipsets, with PCIe 5.0 support.
• DDR5 Support: Dual-channel DDR5 up to 5600 MT/s with 2 x 1R or 2 x 2R modules, and up to 256GB total capacity.
• Unlocked for Overclocking: Includes AMD EXPO, Precision Boost Overdrive, Curve Optimizer, and Ryzen Master support.
• Tray Processor: Ships without a cooler; AMD recommends a liquid cooler for optimal performance.

Cooling Is Mandatory

This is a Tray processor with no included cooler, and AMD recommends a liquid cooler for optimal performance . The 170W TDP plus the 3D V-Cache heat density means sustained loads need strong cooling. Pair the 9950X3D with a 240mm or larger AIO, or a high-end air cooler rated for 170W+. Check your case’s radiator support before buying. Without adequate cooling, the CPU will hit its 95°C Tjmax and throttle.

Motherboard and Memory

The AM5 socket works with A620, B650, B650E, B840, B850, X670, X670E, X870, and X870E chipsets. Choose a board whose VRM matches the 170W TDP and whose BIOS supports the Ryzen 9000 Series. Install DDR5 in matched pairs for dual-channel operation, and enable AMD EXPO in the BIOS to run the rated speed. Official memory support is DDR5-5600 with 2 modules; 4 x 1R and 4 x 2R configurations run at DDR5-3600, so use two modules for the best memory performance.

Overclocking and Platform

The processor is unlocked, so you can raise the multiplier, use Precision Boost Overdrive, and apply Curve Optimizer offsets in Ryzen Master. Because the 3D V-Cache cores share heat density with the rest of the die, keep overclocking conservative and monitor temperatures under load. The board’s chipset choice affects PCIe 5.0 lane count and USB connectivity; X870E boards typically offer more of both. Check your chosen chipset’s spec sheet before purchase if you need specific PCIe 5.0 or USB 3.2 Gen 2 ports.

Pair the 9950X3D with a B650E, X670E, or X870E motherboard for full PCIe 5.0 support and a VRM rated for the 170W TDP. B650 and B850 boards work if their VRM is adequate; check the board’s CPU support list before purchase.

Because this is a Tray processor, budget for a separate cooler . AMD recommends a liquid cooler for optimal performance; a 240mm or 360mm AIO is a practical choice. Check your case’s radiator mounting support and clearance before ordering. Without adequate cooling, the CPU will hit 95°C and throttle.

Install DDR5 in two matched modules to run at the official 5600 MT/s speed; four modules drop to 3600 MT/s. Enable AMD EXPO in the BIOS and verify stability with a memory test. For workstation use, 64GB or 128GB is a practical starting point, with 256GB available if your workloads need it.

Update the motherboard BIOS to the latest version before installing the CPU, because Ryzen 9000 Series support depends on the BIOS revision. Use the integrated Radeon graphics for troubleshooting before adding a discrete GPU, and confirm your PSU wattage with a power supply calculator that includes the 9950X3D under sustained load plus your GPU.
