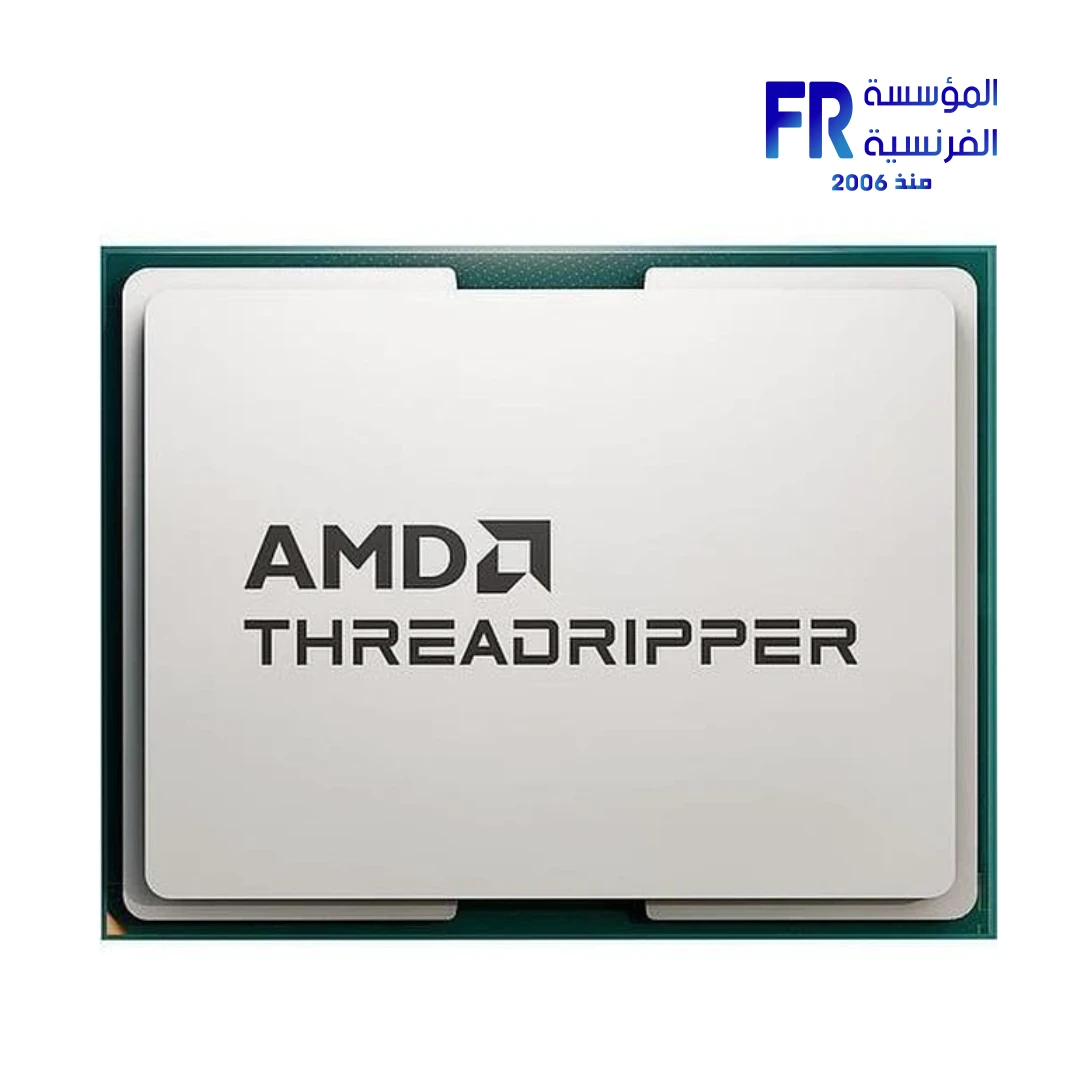

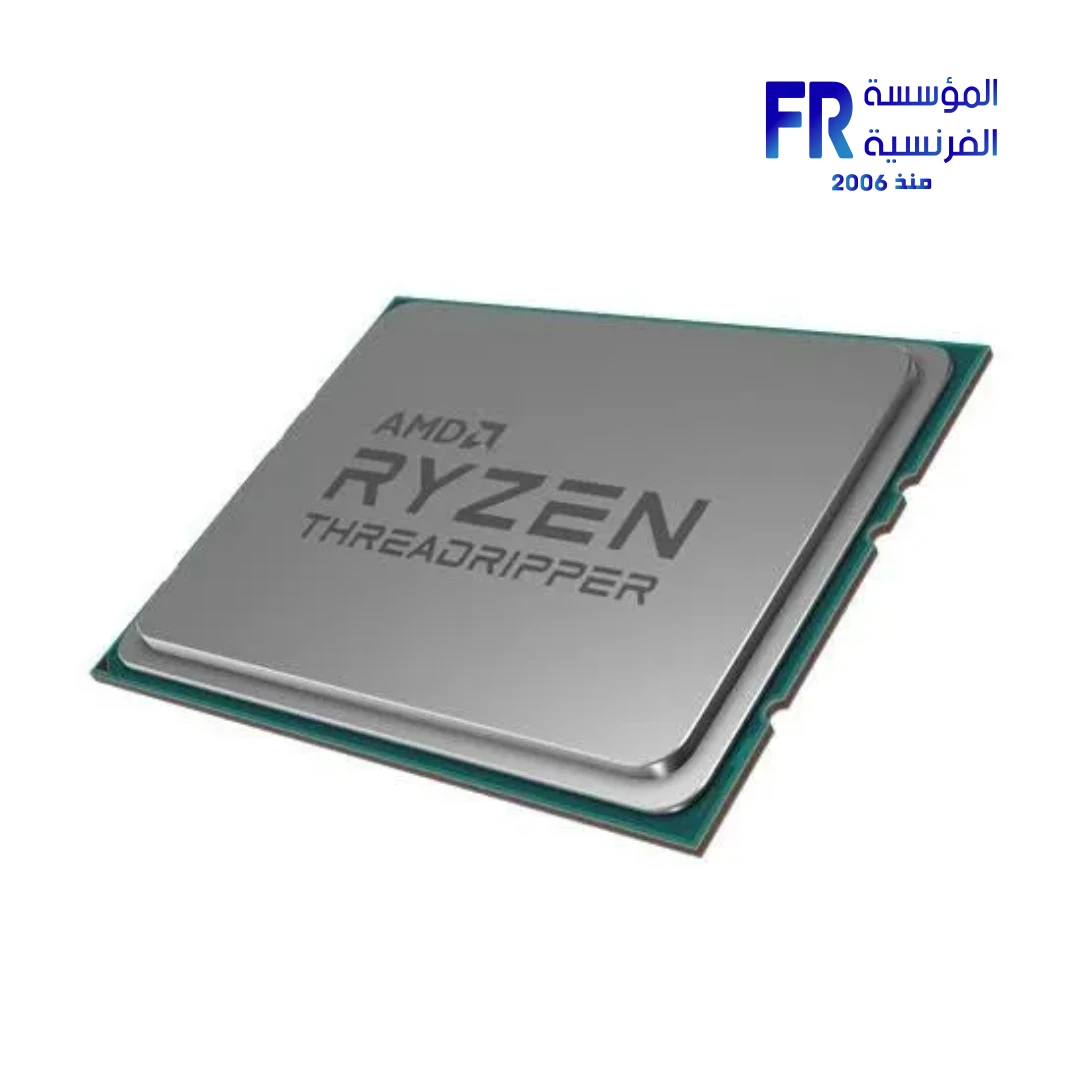

AMD Ryzen Threadripper 9980X 64 Core 3.2 GHz sTR5 Tray Processor
- Model: AMD Ryzen™ Threadripper™ 9980X (Tray) | SKU:
100-000001593 - Architecture: Zen 5 (TSMC 4nm CPU / 6nm I/O Die) | Codename: Shimada Peak
- Core/Thread Count: 64 Cores / 128 Threads
- Clock Speeds: Base 3.2 GHz | Max Boost up to 5.4 GHz
- Cache: 384 MB Total (256 MB L3 + 64 MB L2 + 5 MB L1)
- Socket & Chipset: sTR5 Socket | TRX50 Chipset
- Memory Support: DDR5 ECC RDIMM | 4 Channels | Up to 6400 MT/s
- PCIe Connectivity: PCIe 5.0 | 92 Lanes Total (88 Usable)
- Power & Thermal: 350W Default TDP | Unlocked for Overclocking | No Cooler Included
- Form Factor: 3 year
Not available right now, but we have the alternative
Our sales team will match you with an in-stock alternative at the same level or better, at the best price, right on WhatsApp.
Talk to our sales team for an alternativeWant to be notified when this product is back in stock?
In-stock alternatives
✅ Authorized AMD Partner in Egypt | Official Warranty Coverage | Expert PC Building Consultation Available
AMD Ryzen Threadripper 9980X 64 Core 3.2 GHz sTR5 Tray Processor
AMD Ryzen Threadripper 9980X is a workstation processor featuring 64 Zen 5 cores and 128 threads, a 3.2 GHz base clock, up to 5.4 GHz boost clock, 256MB L3 cache, 350W TDP, sTR5 socket, PCIe 5.0 support with 92 native lanes, and quad-channel DDR5 RDIMM memory up to 6400 MT/s. It is designed for professional workstation builds, content creation, 3D rendering, and AI workloads.
⚡ Engineering Highlights at a Glance:
- 64 Zen 5 Cores / 128 Threads: Massive parallel processing power for rendering, simulation, and multi-threaded workloads.
- Up to 5.4 GHz Boost Clock: High single-thread performance for responsive application launches and snappy workflow.
- 256MB L3 Cache: Large cache reduces memory latency and accelerates data-intensive tasks.
- PCIe 5.0 with 92 Native Lanes: Supports multiple GPUs, NVMe drives, and high-bandwidth expansion cards.
- Quad-Channel DDR5 RDIMM: Up to 6400 MT/s with ECC support enabled by default for data integrity.
- Unlocked for Overclocking: Supports AMD EXPO memory overclocking, Precision Boost Overdrive, and Curve Optimizer voltage offsets.
- TSMC 4nm FinFET (CPU) + 6nm FinFET (I/O): Advanced process technology for efficiency and performance.
- sTR5 Socket: Compatible with TRX50 chipset motherboards.
Who is the AMD Ryzen Threadripper 9980X For?
Expert Advice & Build Considerations
Platform and Socket Compatibility
The Threadripper 9980X uses the sTR5 socket and requires a TRX50 chipset motherboard. It is not compatible with consumer AM5 or older sTRX4 platforms. Ensure your motherboard BIOS is updated to support the 9000 Series Threadripper before installation. The processor requires discrete graphics—there is no integrated GPU.
🔌 Power and Cooling Requirements
With a 350W default TDP, the 9980X demands a robust power delivery system and a high-capacity CPU cooler. sTR5 coolers with large cold plates are required; standard consumer coolers will not fit. Ensure your power supply has sufficient headroom, especially if running multiple GPUs. The maximum operating temperature is 95°C.
💾 Memory Configuration
The 9980X supports quad-channel DDR5 RDIMM memory up to 6400 MT/s with ECC enabled by default. For maximum bandwidth and stability in workstation workloads, populate all four memory channels. AMD EXPO memory overclocking technology is supported for compatible kits, and Precision Boost Overdrive and Curve Optimizer allow further tuning.
Technical Specifications
| Product Name | AMD Ryzen Threadripper 9980X |
| Brand | AMD |
| SKU / MPN (Tray) | 100-000001593 |
| Product ID Boxed | 100-100001593WOF |
| Family | Ryzen Threadripper |
| Series | Ryzen Threadripper 9000 Series |
| Former Codename | Shimada Peak |
| Processor Architecture | Zen 5 |
| # of CPU Cores | 64 |
| # of Threads | 128 |
| Multithreading (SMT) | Yes |
| Base Clock | 3.2 GHz |
| Max. Boost Clock | Up to 5.4 GHz |
| L1 Cache | 5120 KB |
| L2 Cache | 64 MB |
| L3 Cache | 256 MB |
| Default TDP | 350W |
| CPU Socket | sTR5 |
| Supporting Chipsets | TRX50 |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| Package Die Count | 9 |
| Unlocked for Overclocking | Yes |
| AMD EXPO Memory Overclocking | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | Not Included |
| Max. Operating Temperature (Tjmax) | 95°C |
| OS Support | Windows 11 64-Bit, Windows 10 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
| Native SATA Ports | 2 |
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes (Total/Usable) | 92 / 88 |
| NVMe Support | Boot, RAID0, RAID1, RAID5, RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 4 |
| System Memory Subtype | RDIMM |
| System Memory Specification | Up to 6400 MT/s |
| ECC Support | Yes (Default Enabled) |
| Graphics Model | Discrete Graphics Card Required |
| Security Features | AMD Memory Guard, AMD Secure Processor, Windows Secure Boot, UEFI Secure Boot, Windows Device Guard, GMET Trap, VBS, Windows Secured-Core PC, Firmware TPM, AMD-V (SVM), AMD-V Nested Paging (RVI), AMD AVIC, AMD-Vi (I/O MMU), SLAT, AES-NI, NX bit |
Expert Recommendation: Getting the Most from Your Threadripper 9980X
The Threadripper 9980X is built for workstation-class workloads. Pair it with a TRX50 motherboard and populate all four memory channels with RDIMM modules up to 6400 MT/s to maximize bandwidth. For rendering or simulation, enable Precision Boost Overdrive and tune Curve Optimizer offsets to extract additional performance while monitoring temperatures. Ensure your CPU cooler is rated for sTR5 and can handle the 350W TDP; standard consumer coolers will not fit the larger integrated heat spreader. If running multiple GPUs or NVMe drives, take advantage of the 92 PCIe 5.0 lanes for maximum bandwidth. Update your motherboard BIOS to the latest version before installation to ensure compatibility with the 9000 Series Threadripper. The 95°C Tjmax provides headroom, but sustained workloads benefit from a high-airflow case and robust cooling.
Frequently Asked Questions
What socket does the AMD Ryzen Threadripper 9980X use?
The Threadripper 9980X uses the sTR5 socket and is compatible with TRX50 chipset motherboards. It is not compatible with consumer AM5 or older sTRX4 platforms.
How many cores and threads does the 9980X have?
The 9980X features 64 Zen 5 cores and 128 threads with a 3.2 GHz base clock and up to 5.4 GHz boost clock. It has 256MB of L3 cache.
What memory does the 9980X support?
The 9980X supports quad-channel DDR5 RDIMM memory up to 6400 MT/s with ECC enabled by default. AMD EXPO memory overclocking technology is supported for compatible kits.
What is the TDP of the Threadripper 9980X?
The 9980X has a 350W default TDP and a maximum operating temperature of 95°C. It requires a robust power delivery system and a high-capacity sTR5 CPU cooler.
How many PCIe lanes does the 9980X provide?
The 9980X supports PCIe 5.0 with 92 native lanes (88 usable), enabling multiple GPUs, high-speed NVMe storage, and expansion cards.
Does the Threadripper 9980X include a cooler?
No. The 9980X is a tray processor and does not include a thermal solution. An sTR5-compatible CPU cooler must be purchased separately.
