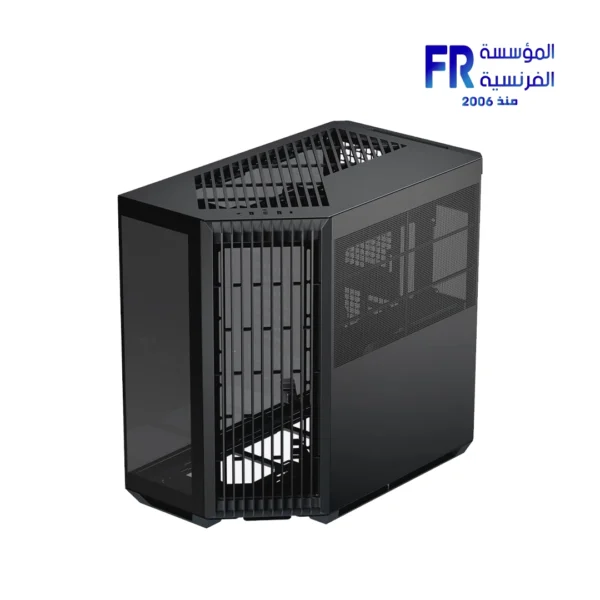

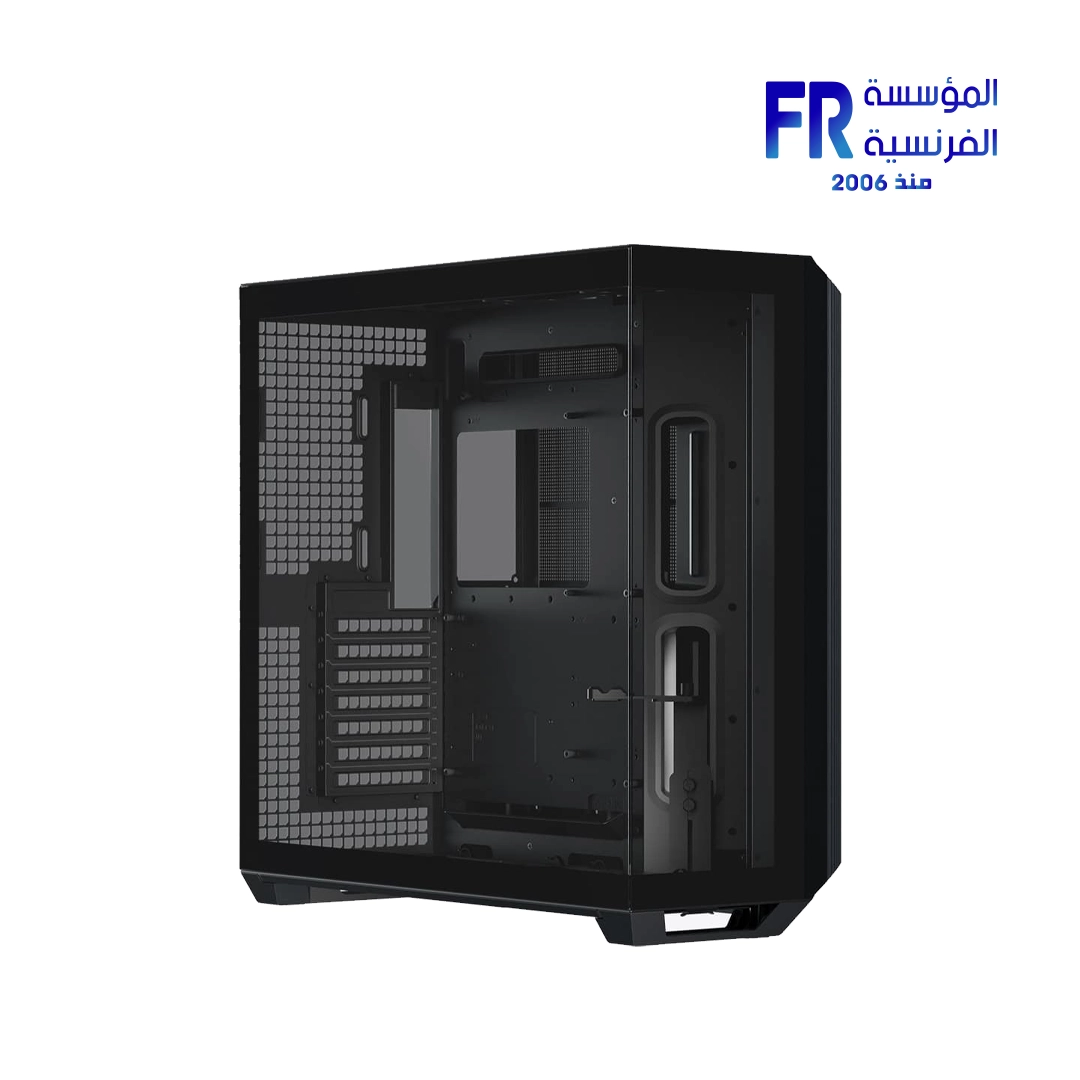

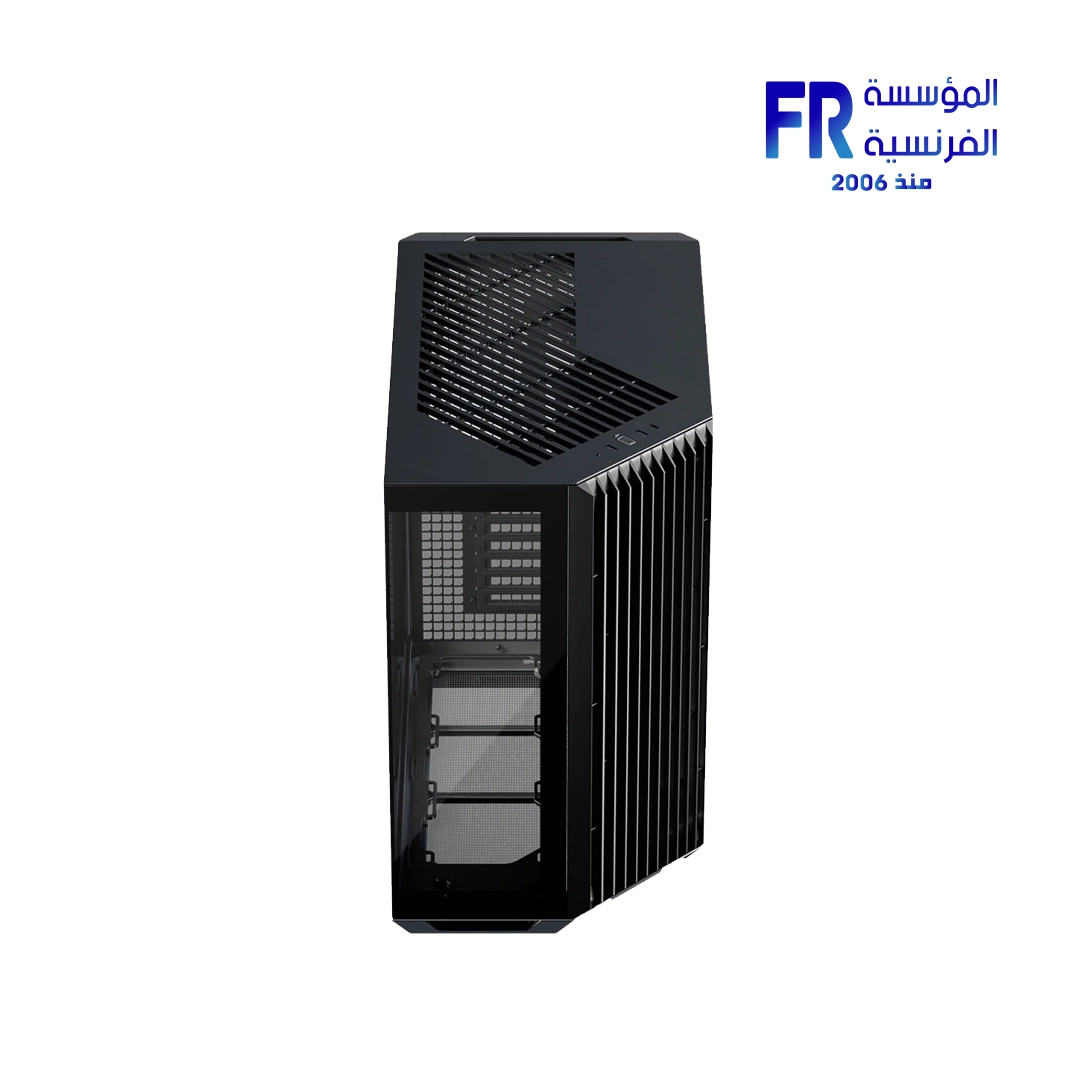

Apnx V1 Mid Tower Case

APNX V1 Mid Tower Case:

The APNX V1 Mid Tower Case redefines cooling dynamics and performance with a unique personality. This mid-tower case combines customizable cooling precision with an innovative 45° angular intake design. All of this is housed within a sleek, panoramic dual-chamber structure. Built for performance and an exceptional user experience, its mechanism design offers optimized cooling options for both GPU and CPU. Furthermore, quick-release cooling brackets and panels ensure easy access, while neat cable management features contribute to a super-clean appearance.

Unique Thermal Design & Flexible Configuration of APNX V1:

Innovative Cooling Dynamics:

The APNX V1 Mid Tower Case features a unique thermal design within its dual-chamber panoramic structure. A 45° angular intake enhances overall airflow and thermal efficiency for both the GPU and CPU. This is achieved while preserving the hallmark full tempered glass view. The angular intake panel supports three 12cm, two 14cm, and up to two 16cm fans. The top mesh ventilation pattern visualizes the unique path of the airflow. This intuitively demonstrates the cooling dynamics of the angular intake while improving top airflow.

Adjustable Motherboard Position & Extensive Fan Support:

The APNX V1 Mid Tower Case allows you to personalize your performance with an adjustable motherboard position mechanism. It offers two installation positions. This grants more space for enhancing GPU airflow and cooling performance. Alternatively, it provides comfortable installation of thicker radiators/fans to prioritize CPU cooling. You can enjoy a wide array of potential cooling configurations with ten fan slots. This includes support for liquid coolers up to 360mm. It also accommodates CPU coolers up to 170mm.

Effortless Access & Streamlined Maintenance:

The APNX V1 Mid Tower Case prioritizes easy access. The top, front-angled, and both side panels are designed to lock and snap without the need for tools or screws. Quick-release cooling brackets with minimal screws at the front-angled and bottom positions ensure easy installation for any fans or radiators. Redesigned, user-friendly, hinged storage brackets allow for a streamlined setup. They also facilitate the installation of multiple storage devices, supporting 2 x 3.5” HDD and 4 x 2.5” SSD or up to 6 x 2.5” SSD.

Robust Support & Clean Cable Management:

A GPU mount with adjustable height and swivel angle is included. This ensures your heavy graphics card (up to 395mm in length) is securely supported. The **APNX V1 Mid Tower Case** is designed for intuitive cable management. Clear cable channels with included velcro ties and rubber pathways in the side panel ensure a super-clean appearance for your build. Hassle-free maintenance is provided by removable filters on the bottom, side, and front-angled panels, plus a built-in top filter for easy cleaning. A special bracket design addresses the void created by the adjustable motherboard displacement, also serving as a stylish brand decoration.

Explore compatible PC Cases or check APNX Products for other options. Find full details on the official APNX V1 Mid Tower Case product page.

Specifications:

• Model: V1-BK-v1
• Case Type: Mid Tower
• Colors: Black (as per V1-BK-v1)
• Body Material: SGCC
• Front Panel Material: ABS
• Steel Thickness: 0.8mm
• Motherboards Support: ATX/Micro ATX/mini-ITX
• Case Dimensions (Overall): 290 x 485.5 x 500mm (W x H x D)
• 3.5” Drive Bays: 2 Max. (2 x 3.5”/2.5″)
• 2.5” Drive Bays: 6 Max. (4 x 2.5” and 2 x 2.5″/3.5”)
• Expansion Slots: 7
• GPU Clearance: Up to 395mm (W/O radiator in the front-right position)
• CPU Cooler Clearance: Up to 170mm
• Air Cooling (Front-Right): 120mm x 3 or 140mm x 2 or 160mm x 2 (Max.)
• Air Cooling (Top): 120mm x 3 or 140mm x 2 (Max.)
• Air Cooling (Bottom): 120mm x 3 (Max.) or 140mm x 2 (Max.)
• Air Cooling (Rear): 120mm x 1 (Max.)
• Liquid Cooling (Front-Right): Up to 360mm Radiator (Optional)
• Liquid Cooling (Top): Up to 360mm Radiator (Optional)
• Liquid Cooling (Bottom): Up to 360mm Radiator (Optional)
• Liquid Cooling (Rear): 120mm Radiator (Optional)
• Filters: Top (Built-in), Front-Right (Removable), Side (Removable), Bottom (Removable)
• I/O Ports: USB3.2 Gen 2×2 Type-C x 1, USB3.2 Gen 1 Type -A x 2, Audio & Mic.
• Internal Cable Management Depth: 90mm
• Power Supply: ATX PSU (Including cables, up to 220mm) (Optional)
• Model Number/SKU: V1-BK-v1
• EAN/UPC: 192275001957
