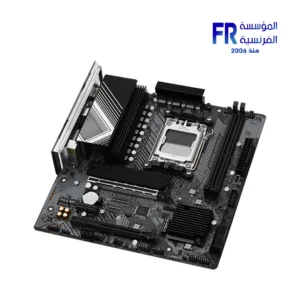

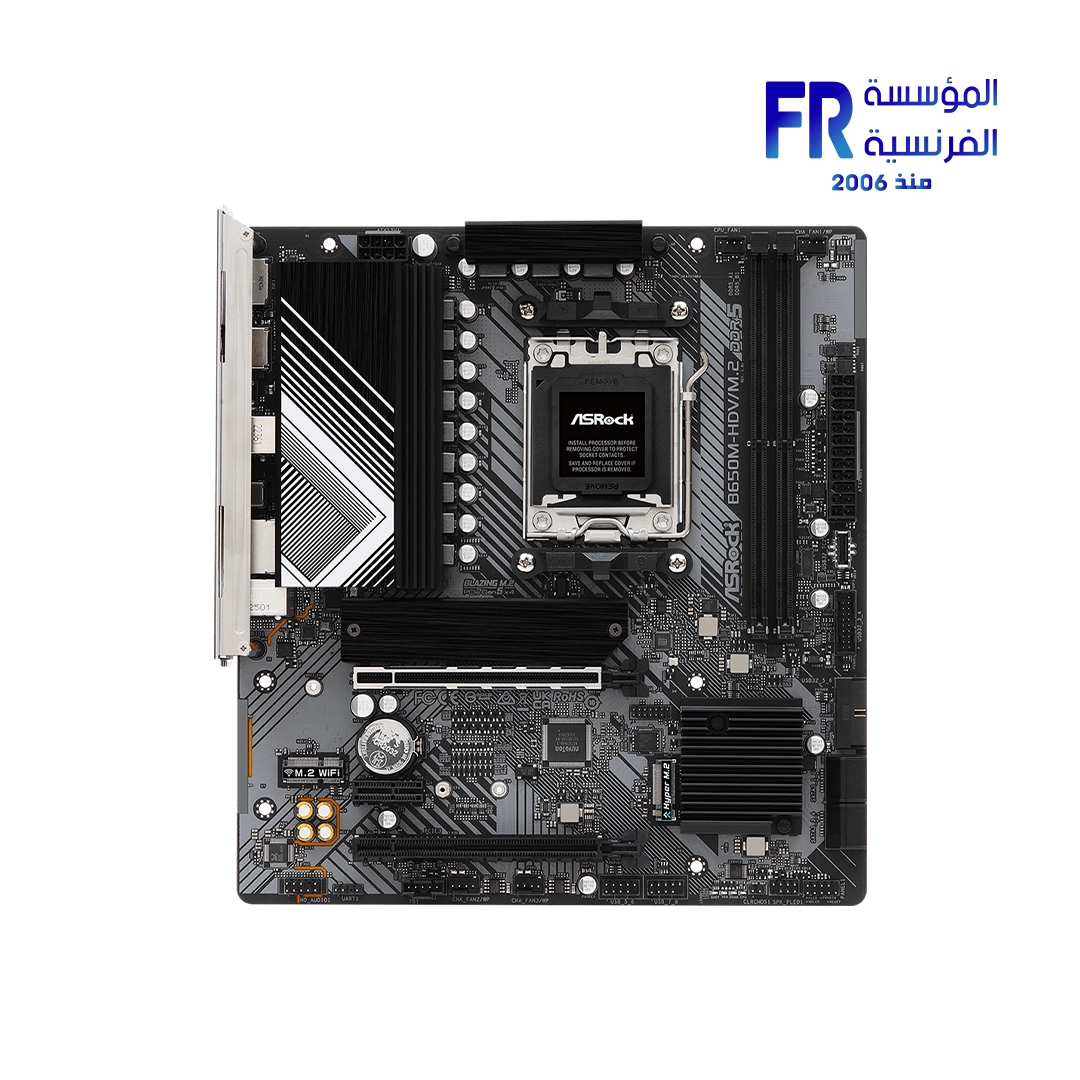

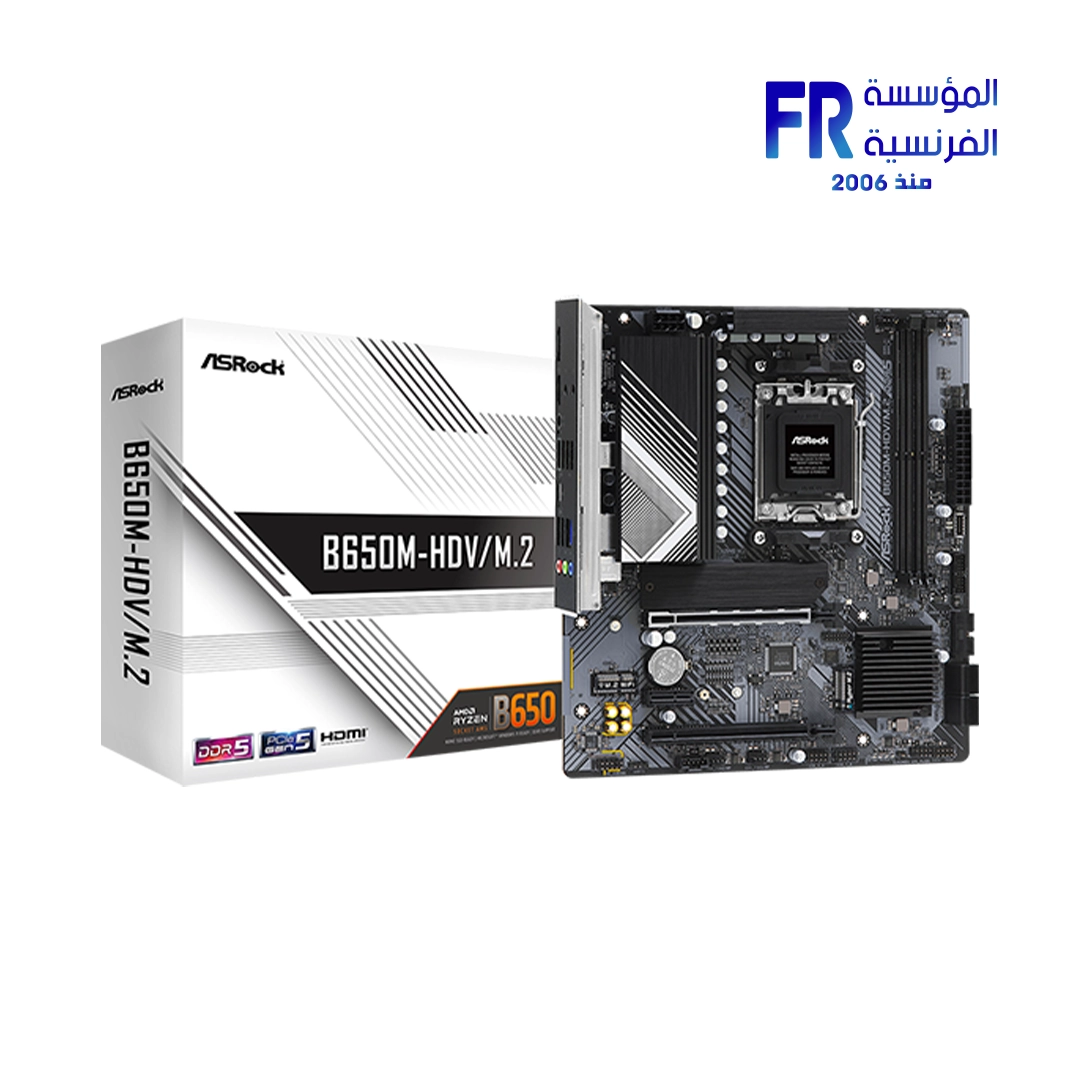

ASRock B650M HDV/M.2 Motherboard

The ASRock B650M HDV/M.2 Motherboard offers robust performance and extensive features. It supports the latest AMD Ryzen™ processors. This motherboard is designed for superb productivity, rock-solid durability, and ultrafast gaming experiences.

Unleash Next-Gen Performance:

This motherboard supports AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series Processors. It features an 8+2+1 Power Phase design with 50A Dr.MOS. This ensures stable power delivery. Consequently, it provides excellent performance for demanding tasks and gaming. The dual-channel DDR5 memory technology supports speeds up to 7200+(OC). It also supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO). Therefore, you can maximize your system’s memory potential.

Blazing Fast Storage and Connectivity:

Experience incredible data transfer speeds. The motherboard includes a Blazing M.2 (PCIe Gen5x4) socket. This supports up to 128 Gb/s. Furthermore, a Hyper M.2 (PCIe Gen4x4) socket offers up to 64 Gb/s. Four SATA3 connectors are also available. This provides versatile storage options. For networking, Dragon 2.5G LAN delivers ultrafast internet speeds. This is crucial for gaming, browsing, and streaming. Thus, you get a seamless online experience.

Designed for Durability and User Convenience:

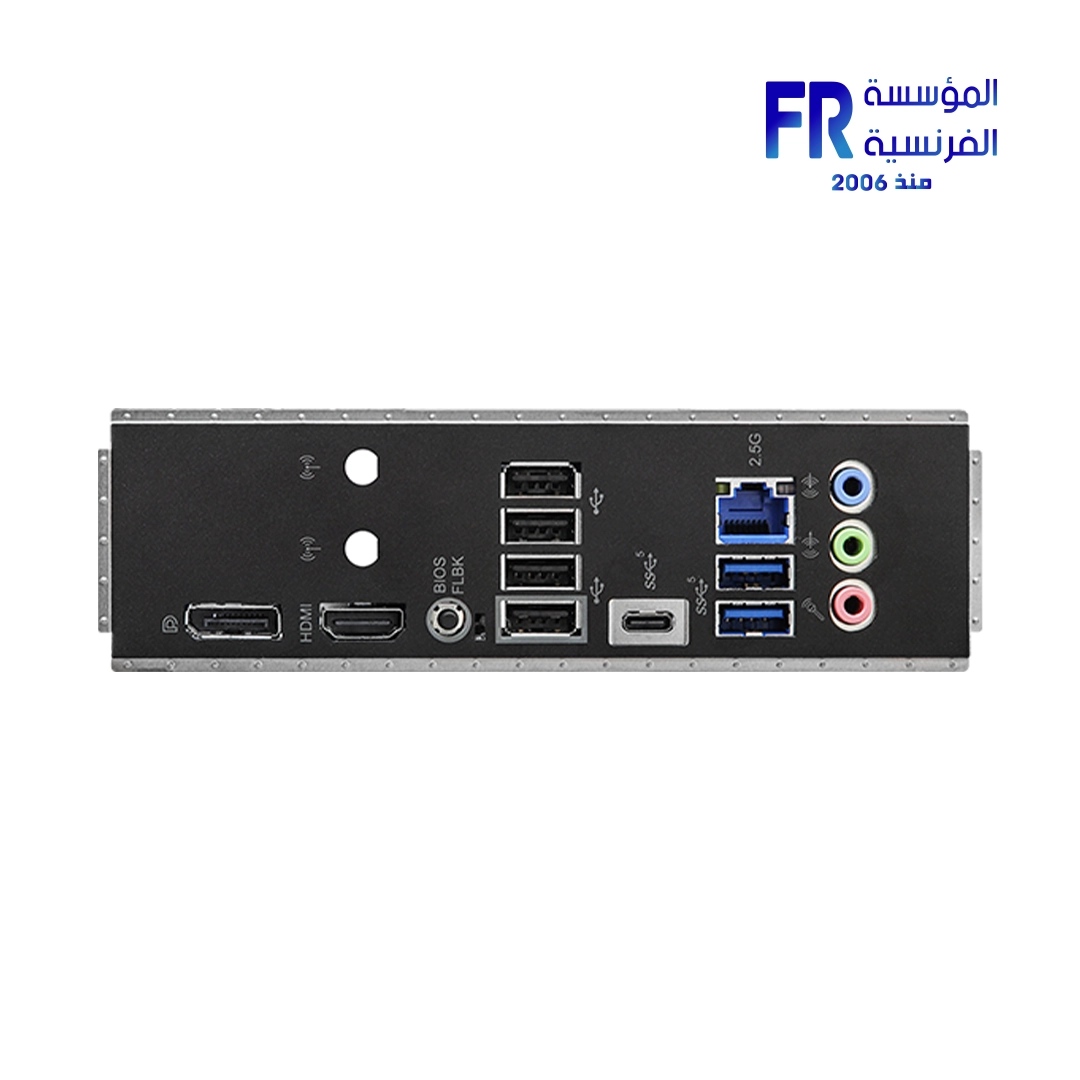

The ASRock B650M HDV/M.2 is built for reliability. It features a pre-installed I/O Shield. This simplifies installation and provides enhanced protection. The BIOS Flashback Button allows for easy BIOS updates without a CPU. ASRock Auto Driver Installer streamlines driver installation. Therefore, setting up your system is quick and hassle-free. ASRock Post Status Checker helps troubleshoot boot issues. This ensures a smooth user experience.

Comprehensive Graphics and Audio:

Enjoy integrated AMD RDNA™ 2 Graphics. Graphics output options include HDMI 2.1 and DisplayPort 1.4. Both support up to 4K 120Hz. This delivers stunning visuals. For audio, the Realtek ALC897 7.1 CH HD Audio Codec provides high-quality sound. Nahimic Audio further enhances your listening experience. Consequently, you get immersive audio for games and media.

Key Features:

• CPU Support: AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors.
• Power Design: 8+2+1 Power Phase, 50A Dr.MOS.
• Memory: 2 x DDR5 DIMMs, Dual Channel, up to 7200+(OC), supports XMP/EXPO.
• PCIe Slots: 2 x PCIe 4.0 x16, 1 x PCIe 4.0 x1.
• M.2 Slots: 1 x Blazing M.2 (PCIe Gen5x4), 1 x Hyper M.2 (PCIe Gen4x4), 1 x M.2 Key E for WiFi.
• Graphics Output: HDMI 2.1, DisplayPort 1.4 (up to 4K 120Hz).
• Audio: Realtek ALC897 7.1 CH HD Audio, Nahimic Audio.
• LAN: Dragon 2.5G LAN.
• USB Ports: 1 x USB 3.2 Gen2 Front Type-C, 7 x USB 3.2 Gen1 (2 Rear, 1 Rear Type-C, 4 Front), 8 x USB 2.0 (4 Rear, 4 Front).
• Durability: Pre-Installed I/O Shield, 2oz Copper PCB.
• Convenience: ASRock Auto Driver Installer, BIOS Flashback Button, Post Status Checker.

Technical Details:

• Product Name: Asrock B650M HDV M.2 Motherboard
• Model: B650M-HDV/M.2
• SKU: 90-MXBLA0-A0UAYZ
• Chipset: AMD B650
• Max. System Memory: 128GB
• BIOS: 256Mb AMI UEFI Legal BIOS
• LAN Controller: Dragon RTL8125BG
• RAID Support: RAID 0, RAID 1, RAID 10 for SATA and M.2 NVMe.
• Form Factor: Micro ATX (9.6-in x 8.9-in, 24.4 cm x 22.6 cm)
• Operating System Support: Microsoft Windows® 10 64-bit / 11 64-bit.
