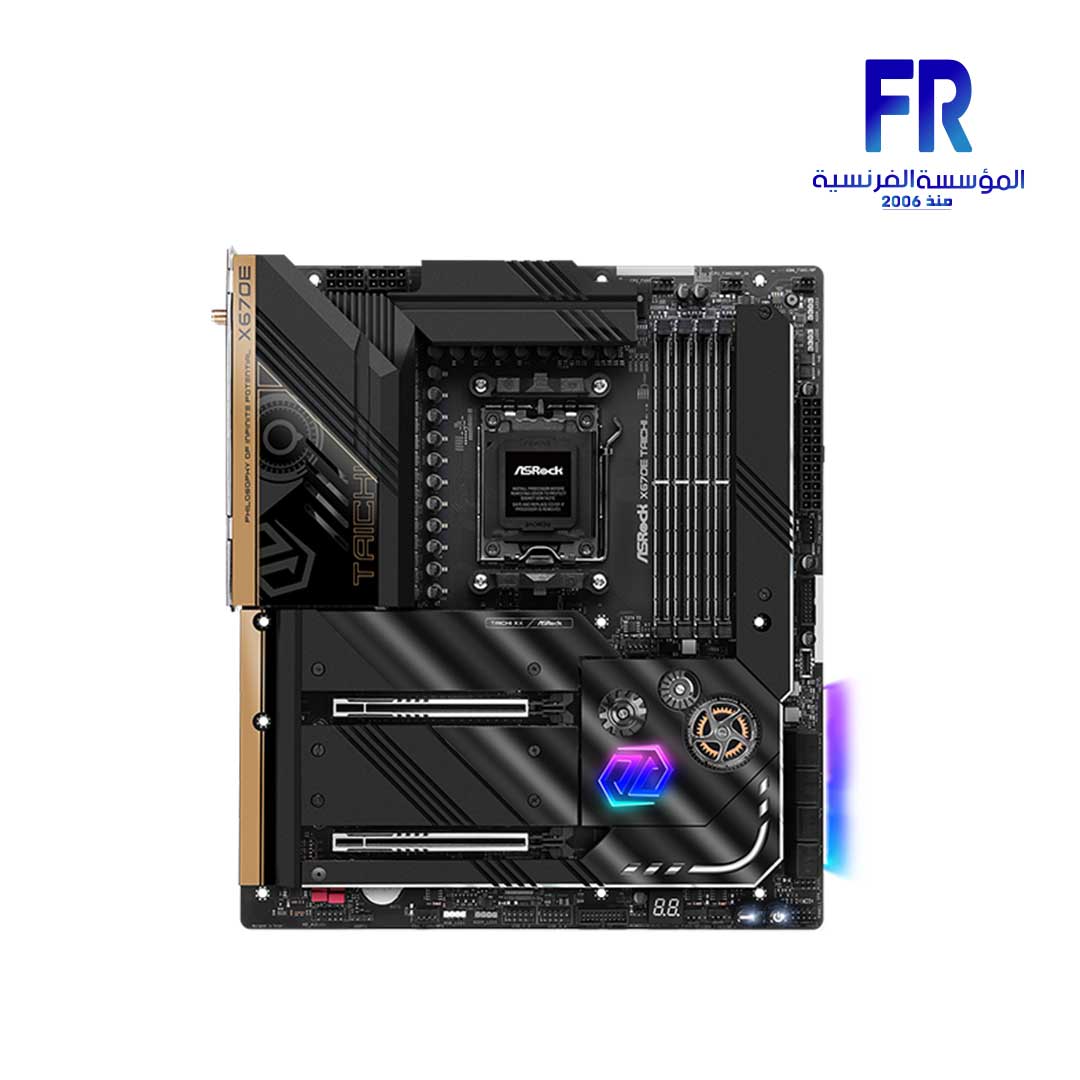

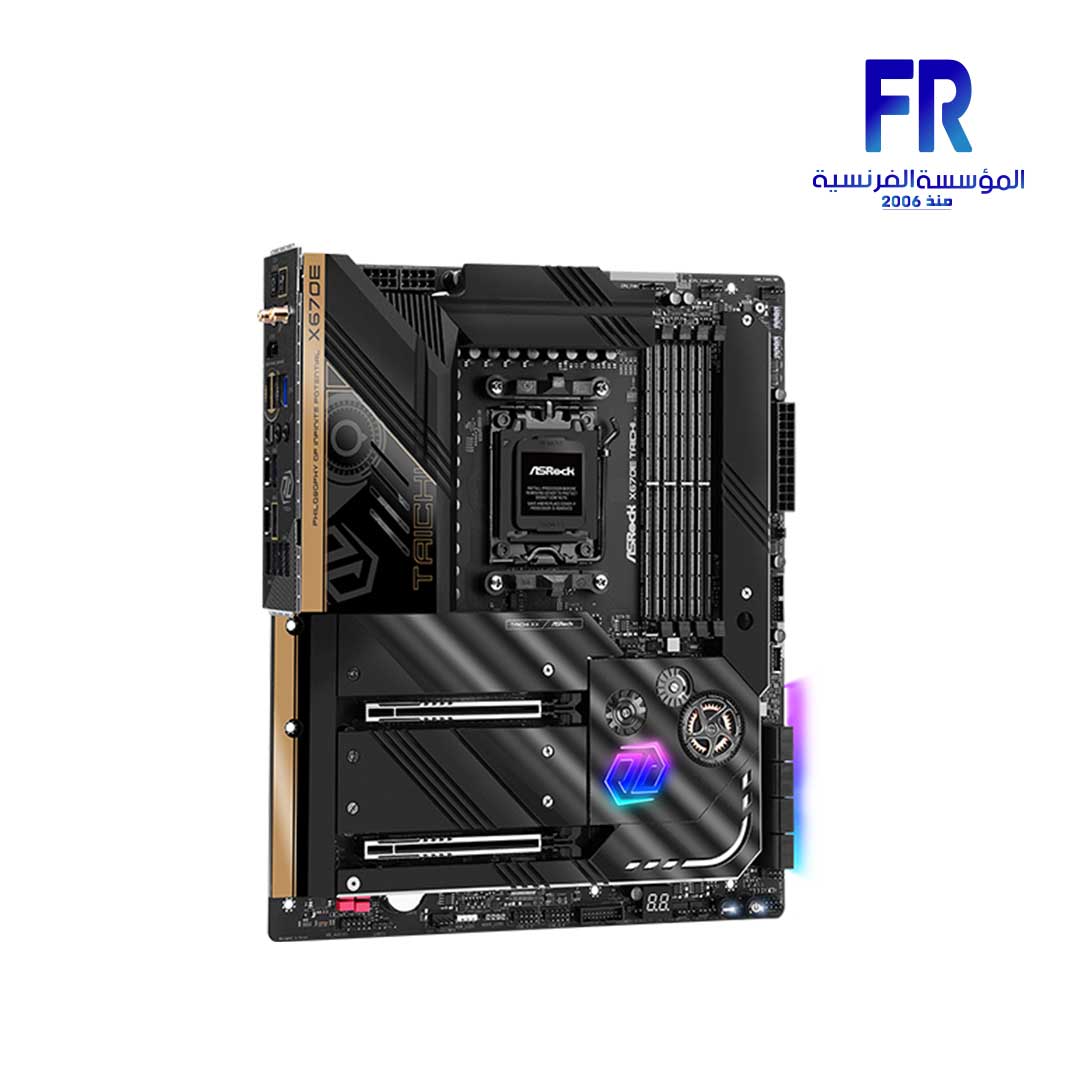

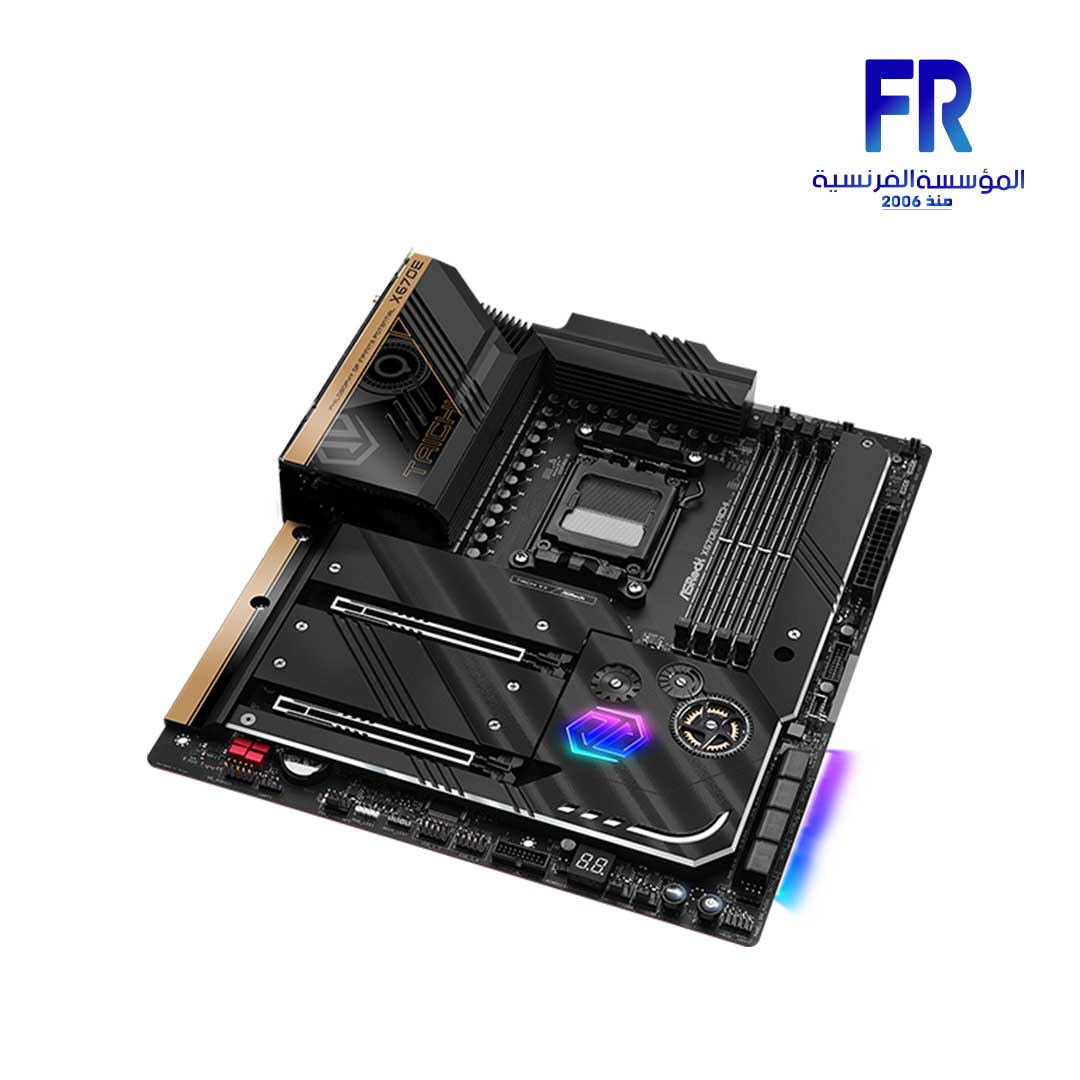

Asrock X670E TAICHI Motherboard
24800 EGP
- Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
- 24+2+1 Phase Power Design, SPS for Vcore+GT
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 7800+ (OC) - 2 PCIe 5.0 x16
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI
- Realtek ALC4082 5.1 CH HD Audio Codec,
ESS SABRE9218 DAC, WIMA Audio Caps - Killer 2.5G LAN
- Killer 802.11ax Wi-Fi 6E + Bluetooth 5.3
Views: 138
Only 1 left in stock
SKU: 4710483940132
Categories: AMD Motherboards, MOTHERBOARD
Tags: ASROCK, motherboard, TAICHI, X670E
Asrock X670E TAICHI Motherboard
Asrock X670E TAICHI Motherboard SPECS :
-
Unique Feature
Superb Productivity
– PCIe Gen5 (Graphics, M.2)
– Blazing M.2 Gen5 Fan Heatsink
– Dual Channel DDR5
– USB4 Type-C Ports (40 Gb/s)
Rock-Solid Durability
– Ultra Low-Loss PCB
– 24+2+1 Power Phase, 105A SPS with Enlarged Heatsink Armor
– Flexible Integrated I/O Shield
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
Ultrafast Gaming
– Killer 2.5G LAN, Killer 802.11ax Wi-Fi 6E Module
– Killer DoubleShot™ Pro
– ASRock Lightning Gaming Ports
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer -
CPU
– Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
– Supports ASRock Hyper BCLK Engine*The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. -
Chipset
– AMD X670 -
Memory
– Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 ECC/non-ECC, un-buffered memory up to 7800+(OC)*
– Max. capacity of system memory: 256GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules*Please refer to Memory Support List for more information. -
BIOS
– 256Mb AMI UEFI Legal BIOS with GUI support -
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 60Hz**Only the CPU’s embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 7000 processors with embedded graphics. -
Audio
– 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
– WIMA Audio Capacitors (For Front Outputs)
– ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)
– Individual PCB Layers for R/L Audio Channel
– Impedance Sensing on Rear Out port
– Nahimic Audio -
LAN
– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Killer E3100G
– Supports Killer LAN Software
– Supports Killer DoubleShot™ Pro -
Wireless LAN
– 802.11ax Wi-Fi 6E Module
– Supports IEEE 802.11a/b/g/n/ac/ax
– Supports Dual-Band 2×2 160MHz with extended 6GHz band support*
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.3 + High speed class II
– Supports MU-MIMO
– Supports Killer LAN Software
– Supports Killer DoubleShot™ Pro*Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality. -
Slots
CPU:
– 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*
Chipset:
– 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- Supports AMD CrossFire™
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)*Supports NVMe SSD as boot disks -
Storage
CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors
ASMedia ASM1061:
– 4 x SATA3 6.0 Gb/s Connectors***Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit** If M2_2 is occupied by a SATA-type M.2 device, SATA3_A1 will be disabled. -
USB
– 2 x USB4 Type-C (Rear)
– 1 x USB 3.2 Gen2x2 Type-C (Front)
– 5 x USB 3.2 Gen2 Type-A (Rear)
– 7 x USB 3.2 Gen1 (3 Rear, 4 Front)
– 4 x USB 2.0 (Front)*All USB ports support ESD Protection -
Connector
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
– 1 x Dr. Debug with LED
– 1 x Power Button with LED
– 1 x Reset Button with LED*Supports in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***CPU_FAN1 supports the fan power up to 1A (12W).
****CPU_FAN2/WP_3A supports the fan power up to 3A (36W).
*****CHA_FAN1~6/WP support the fan power up to 2A (24W).
CPU_FAN2/WP_3A and CHA_FAN1~6/WP can auto detect if 3-pin or 4-pin fan is in use. -

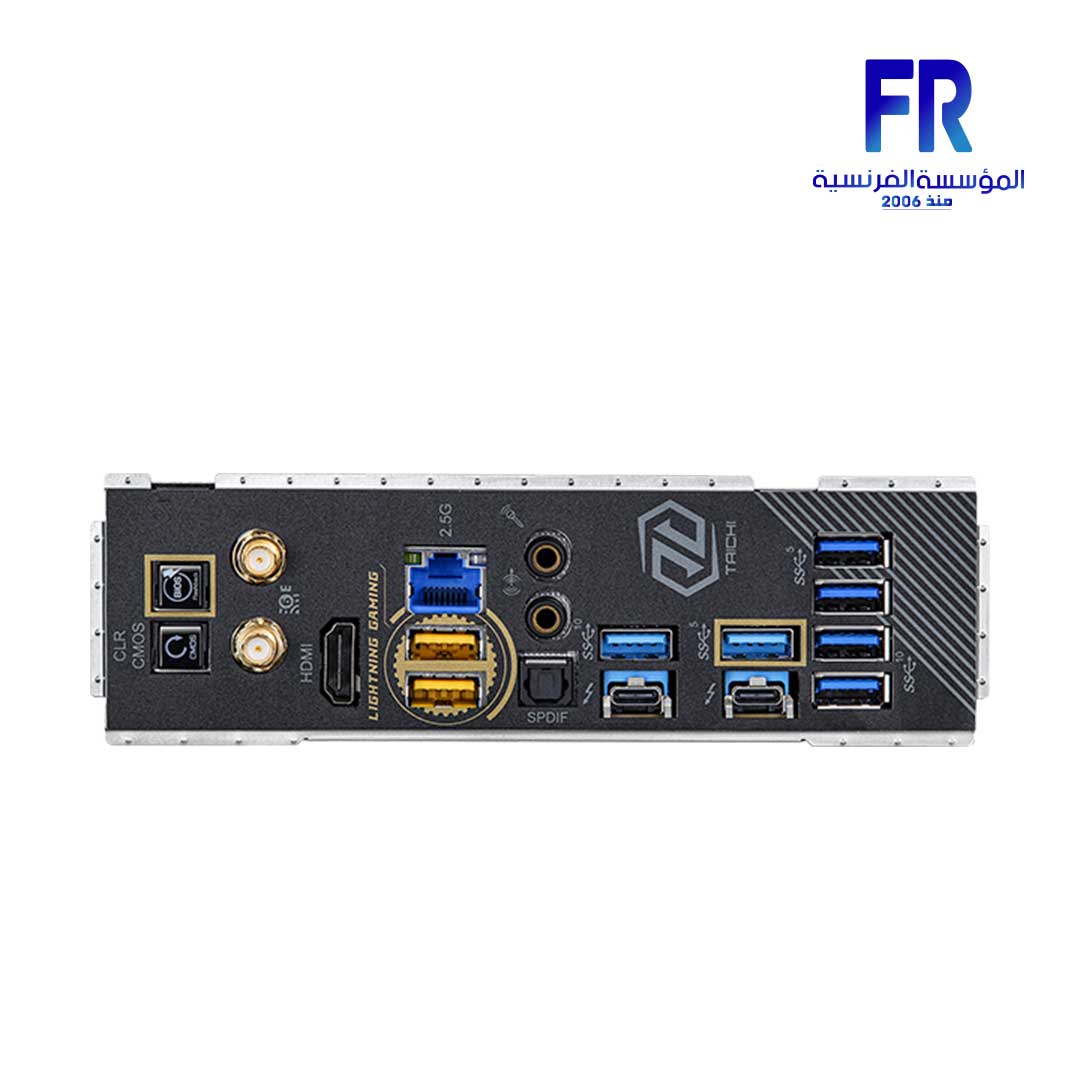

Rear Panel I/O
– 2 x Antenna Ports
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 2 x USB4 Type-C Ports (40 Gb/s)*
– 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (USB32_12 are Lightning Gaming Ports. USB32_3 supports Ultra USB Power.)
– 3 x USB 3.2 Gen1 Ports
– 1 x RJ-45 LAN Port
– 1 x Clear CMOS Button
– 1 x BIOS Flashback Button
– 1 x Line Out Jack (Gold Audio Jack)
– 1 x Microphone Input Jack (Gold Audio Jack)*Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging -
Software and UEFI
Software
– ASRock Motherboard Utility (A-Tuning)
– Killer Control Center
– ASRock Polychrome SYNC
UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash -

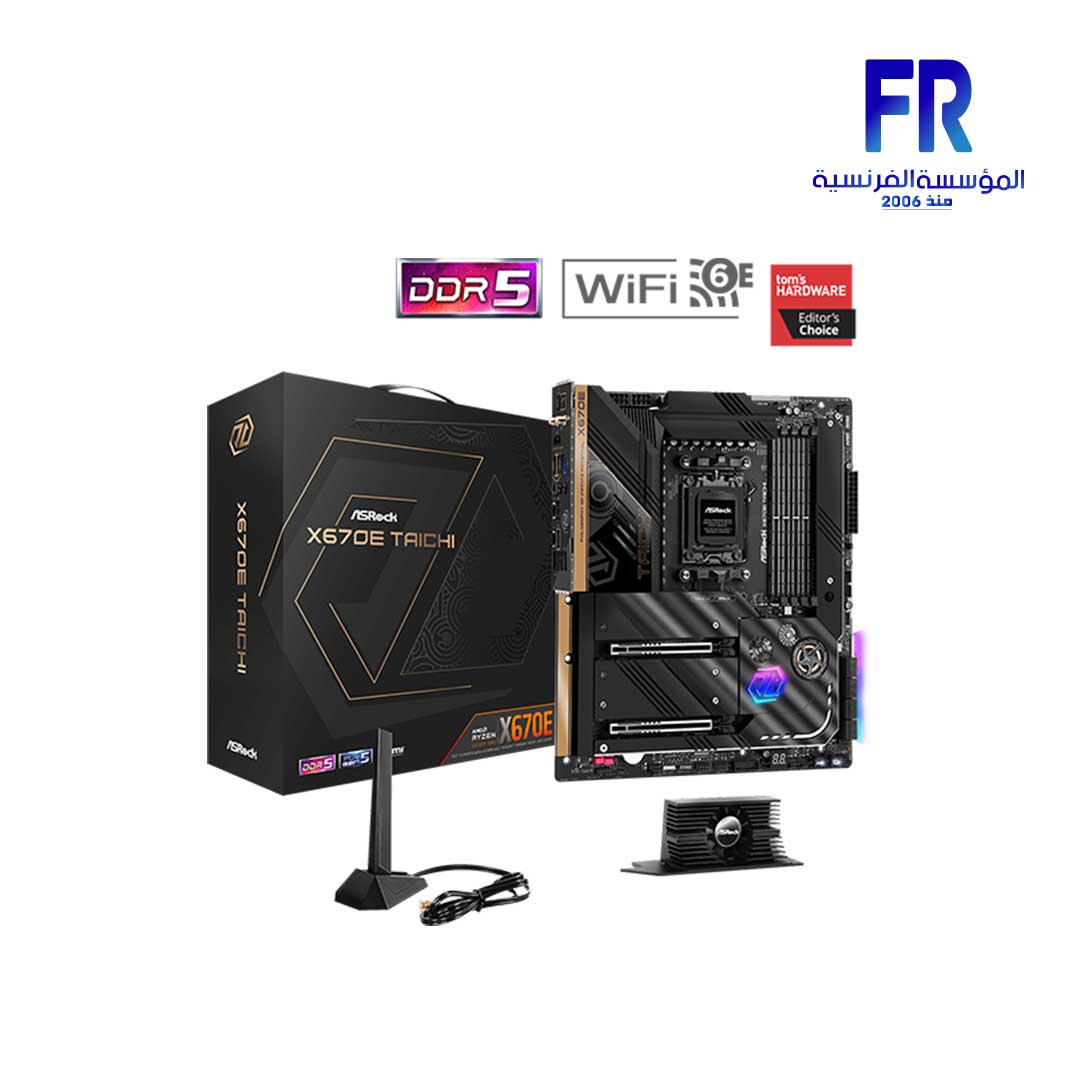

Accessories
– 1 x User Manual
– 4 x SATA Data Cables
– 1 x Wireless Dongle USB Bracket
– 1 x Blazing M.2 Gen5 Fan Heatsink
– 1 x ASRock WiFi 2.4/5/6 GHz Antenna
– 4 x Screws for M.2 Sockets
– 1 x Standoff for M.2 Socket -
Form Factor
– EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
– 8 Layer PCB -
OS
– Microsoft Windows® 10 64-bit / 11 64-bit -
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
– CEC Tier II ready
