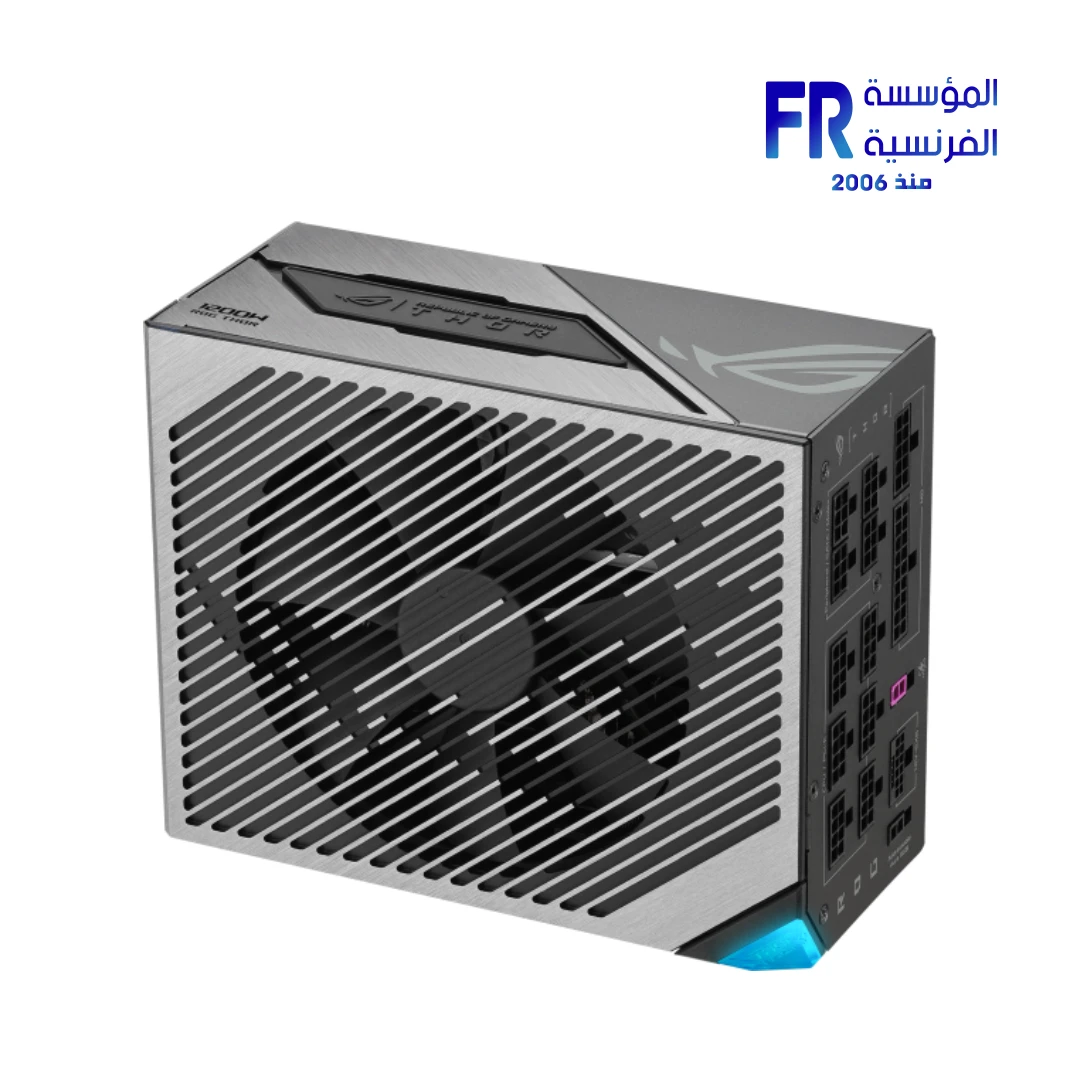

Asus ROG Thor Platinum III 1200W 80 Plus Platinum ATX 3.1 GaN MOSFET Magnetic OLED Display Aura Sync ARGB Fully Modular Power Supply
23520 EGP
- Part Number 90YE00V2-B0NA00
- Wattage & Efficiency 1200W 80 Plus Platinum
- Standard ATX 3.1 (GaN MOSFET Technology)
- Feature Magnetic OLED Display (Real-time Power Draw)
- GPU Connector 1x PCI-E Gen 5.1 16-pin (12V-2×6)

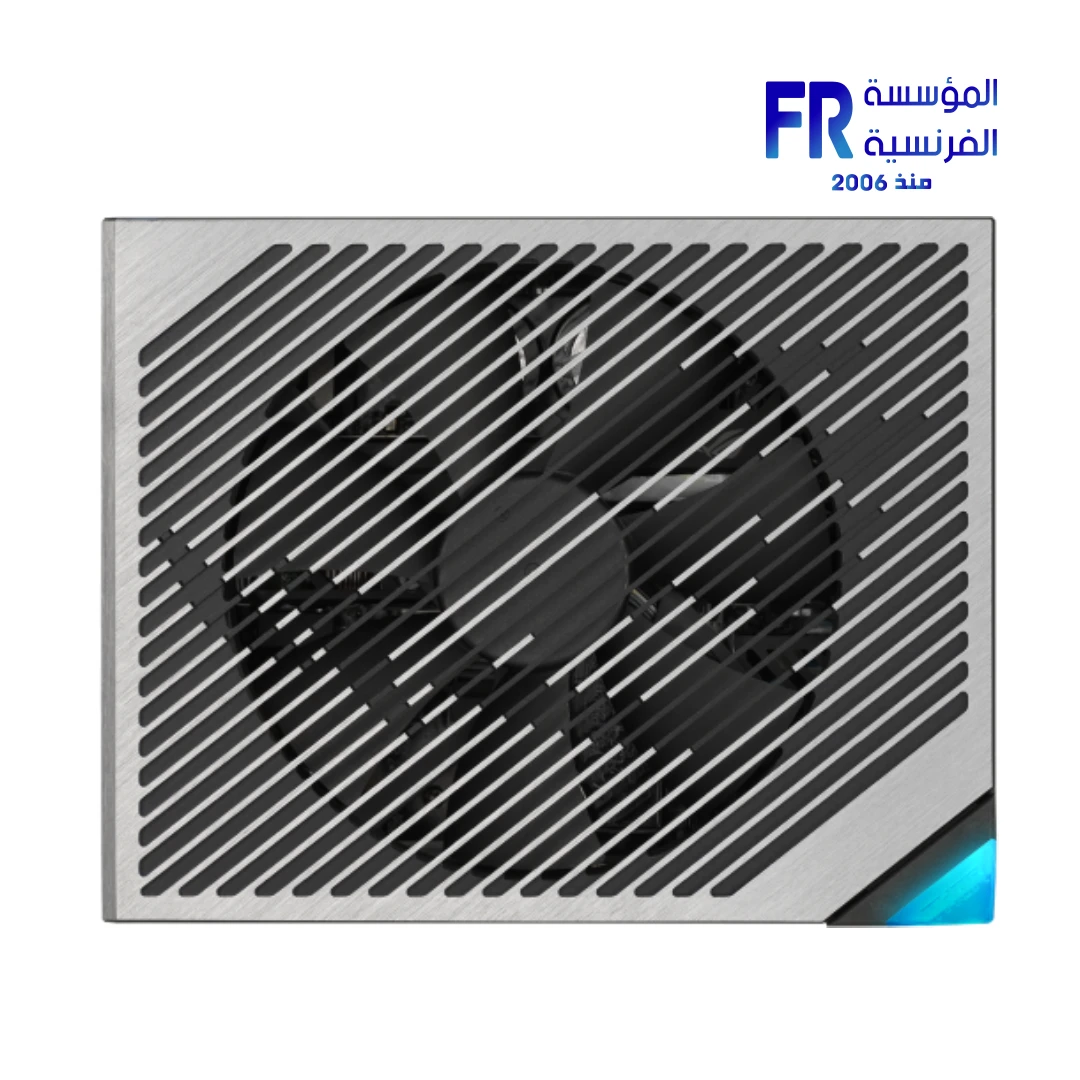

- Cooling ROG Heatsinks + Dual-ball Bearing Fan (0dB Mode)
- Warranty 10 Years
Asus ROG Thor Platinum III 1200W 80 Plus Platinum ATX 3.1 GaN MOSFET Magnetic OLED Display Aura Sync ARGB Fully Modular Power Supply
The Asus ROG Thor Platinum III 1200W delivers unmatched performance with GaN MOSFET technology, a patented intelligent voltage stabilizer, and a magnetic OLED display for real-time monitoring.
Official Product Page
Unmatched Performance & Stability
GaN MOSFET Technology
The GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation. This advanced architecture ensures industry-leading power efficiency and reliability.
Intelligent Voltage Stabilizer
“GPU-First” voltage sensing with a patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance, compliant with the ATX 3.1 standard.
Magnetic OLED Display
A magnetic OLED display shows real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation. ROG heatsinks and a fully aluminum enclosure synergize for superior cooling.
Technical Specifications
| Feature | Details |
|---|---|
| Model Name | ROG Thor 1200W Platinum III (90YE00V2-B0NA00) |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Dimensions | 190 x 150 x 86 mm |
| Efficiency | 80Plus Platinum |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 30A 25A 100A 0.3A 3A |
| Combined Load | 125W 125W 1200W 3.6W 15W |
| Total Output | 1200W |

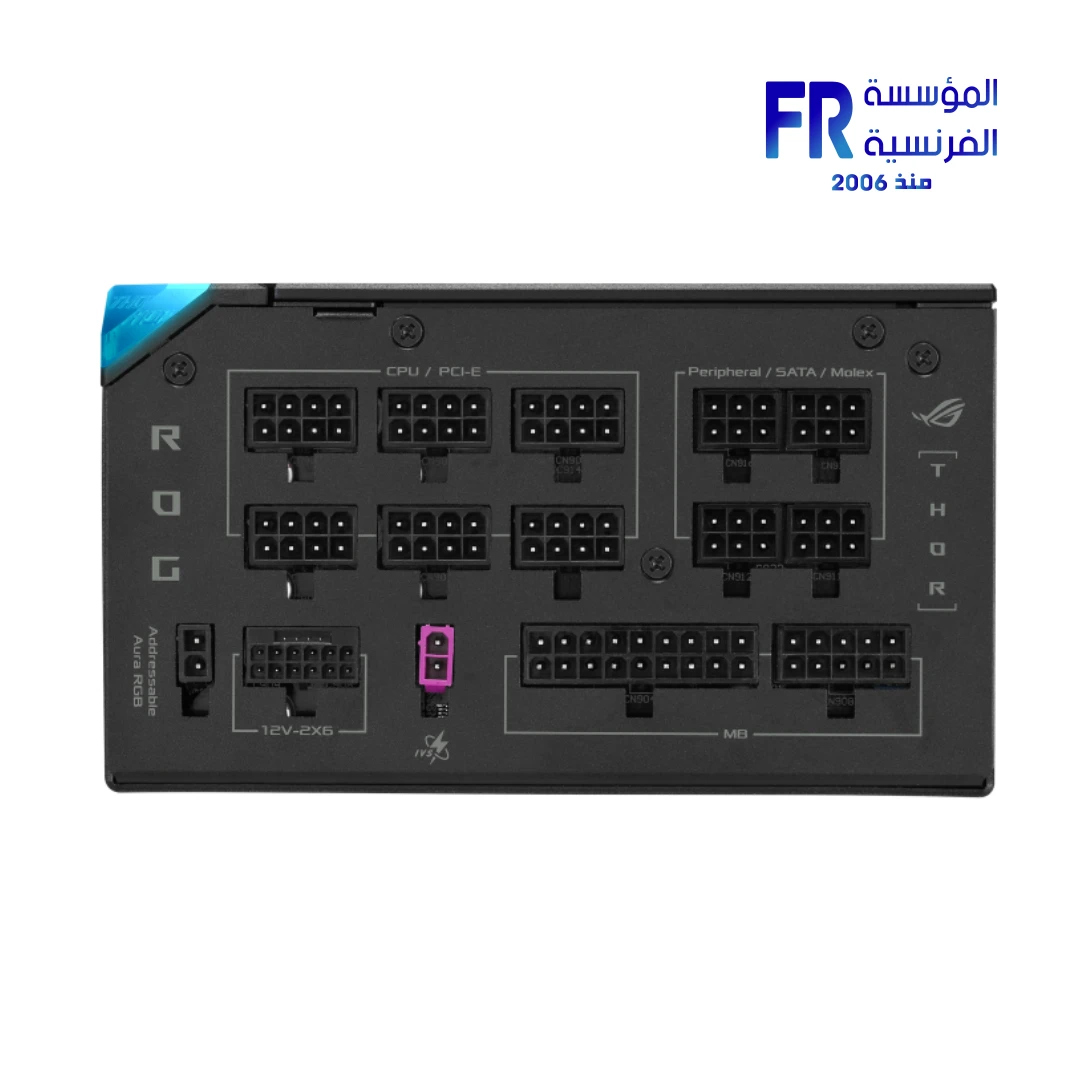

| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 6+2-pin x 4 SATA x 7 PERIPHERAL x 6 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) PCI-E Gen 5.1 16-pin Cable x 1 (750mm) PCI-E Cable 1-to-1 x 4 (750mm) SATA Cable 1-to-4 x 1 (400+120+120+120mm) SATA Cable 1-to-3 x 1 (400+120+120mm) Peripheral 1-to-3 x 2 (400+150+150mm) Addressable RGB Cable x 1 (800mm) ROG sticker x 1 ROG cable tie x 6 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1 |
| Weight | 2.37 KG (single PSU) |
| AURA SYNC | ARGB |
| Cybenetics Noise Level Certification | A++ |
| 0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load |

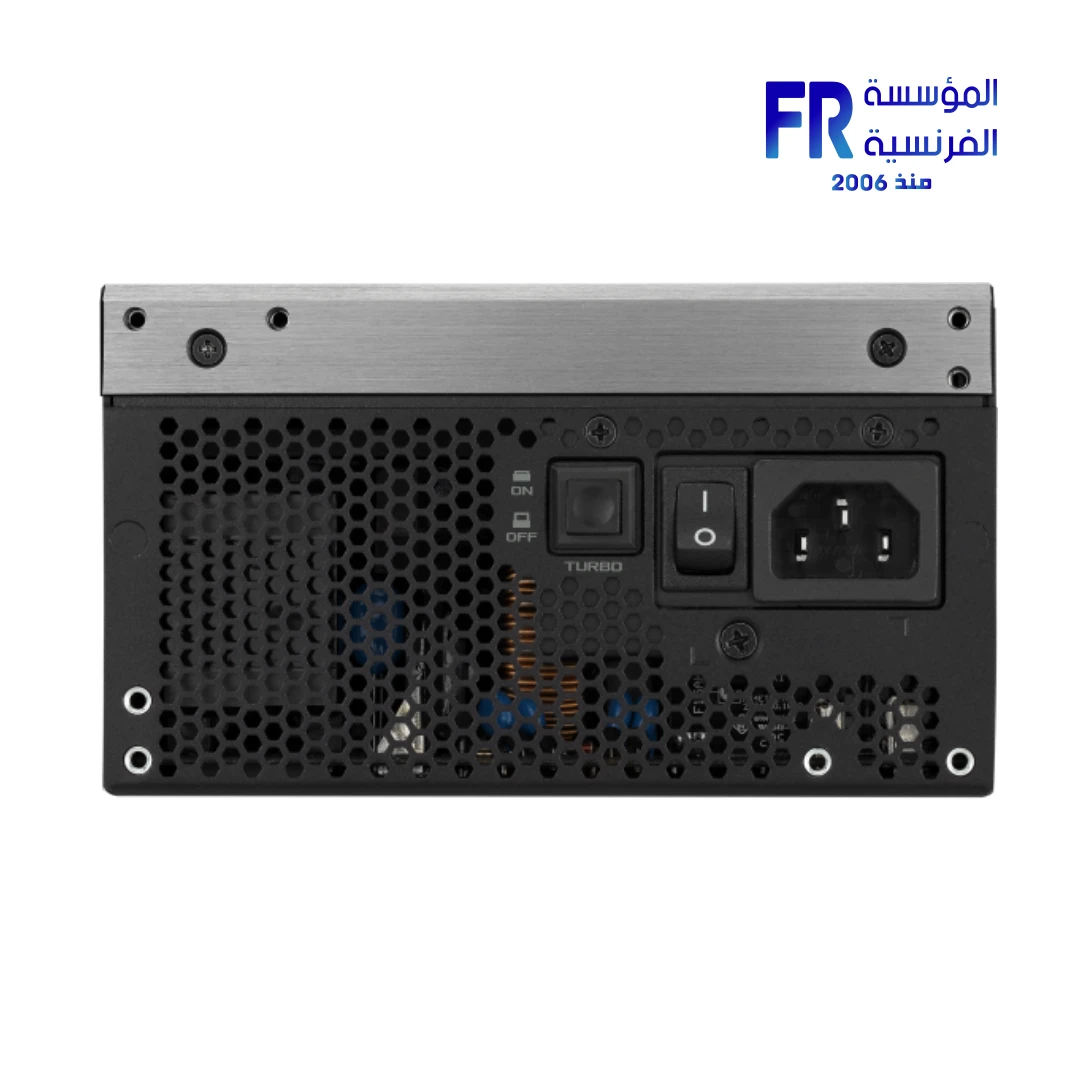

| 0dB Fan Button | Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels. |
| Warranty | 10 Years |
ℹ️ Technical Note: ATX 3.1 & GaN Architecture
The ROG Thor Platinum III utilizes advanced GaN MOSFET technology for up to 30% greater power efficiency and a cleaner internal layout. Combined with ATX 3.1 compliance and a native PCI-E Gen 5.1 16-pin cable, it delivers stable, high-efficiency power for next-generation GPUs and processors.
Frequently Asked Questions
Does the OLED display rotate?
+
Yes, the magnetic OLED display can be swapped to either side of the unit, allowing you to install the PSU with the fan facing up or down while keeping the real-time power draw monitoring visible.
What is the “GPU-First” voltage sensing?
+
This feature uses an intelligent voltage stabilizer to prioritize voltage delivery to the graphics card. It can enhance voltage delivery by up to 45%, ensuring smoother gaming performance during high power loads.
