V850 GOLD – V2
SEMI-FANLESS FULL-MODULAR 80 PLUS GOLD POWER SUPPLY
80 Plus Gold Certified
Half-bridge LLC Resonant Converter And DC-DC Technology
Silent 135mm FDB Fan
40% Semi-fanless Mode With Hybrid Switch
16AWG PCIE Cables

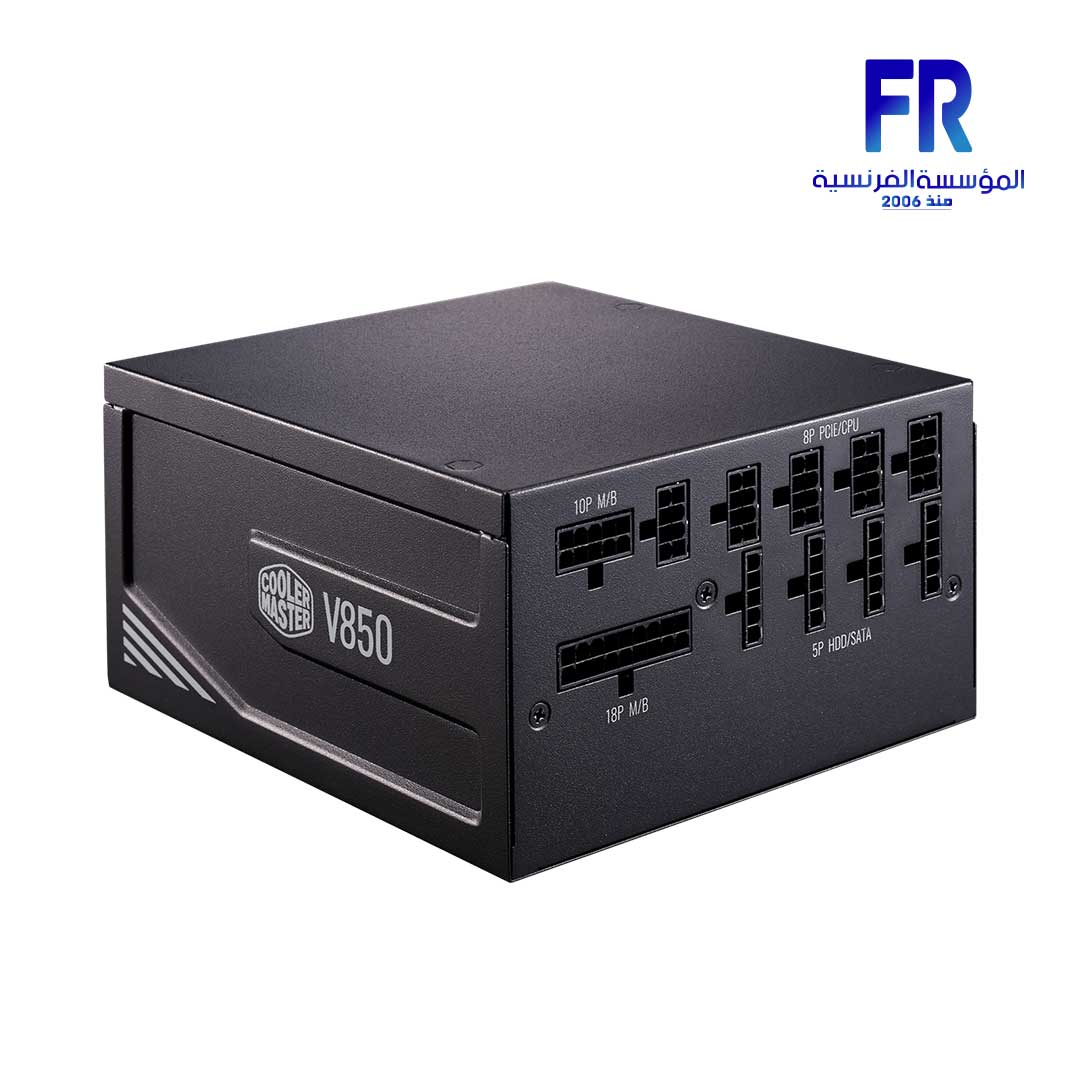

Cooler Master V850 V2 850W Gold Fully Modular Power Supply
7500 EGP
80 Plus Gold Certified
Half-bridge LLC Resonant Converter And DC-DC Technology
Silent 135mm FDB Fan
40% Semi-fanless Mode With Hybrid Switch
16AWG PCIE Cables
Out Of Stock.
| PSU CABLE TYPE | |
|---|---|
| PSU WATT | |
| ENERGY EFFICIENT |
The cooling system isn’t just bigger, it’s better. And when you aren’t pushing your system too hard, the semi-fanless mode will keep the unit completely silent when under 40% maximum load. The built in analog hybrid switch allows you to disengage fanless mode at any time with a simple button press for testing, debugging, or simply achieving maximum cooling at all times.
POWER UP
The V Gold – v2 series delivers a top-shelf power supply unit in 550, 650, 750, and 850 wattage levels. It offers an 80 PLUS Gold efficiency rating, full-modular cabling, optional semi-fanless operation with a hardware based hybrid switch, a 135mm FDB fan, 16AWG PCIe high efficiency cables, and a 10 year warranty. This series has brought together a number of innovations and improvements from past products to form a PSU that meets all your needs. The 100% Japanese capacitors, half-bridge LLC resonant converter, and DC-DC circuitry work together, resulting in a product that even the pros can respect.
80 PLUS GOLD CERTIFIED
COOLER MASTER V850 V2
The efficiency of your power supply unit is important because it directly affects you system’s performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit’s ability to move power from the wall to your components. The higher a PSU’s efficiency is, the lower the total amount of power it needs to power your system. The V Gold series has an 80 PLUS Gold efficiency rating, meaning it has a guaranteed typical efficiency of 90%.
PERFORMANCE DRIVEN TOPOLOGY
COOLER MASTER V850 V2
The V Gold – v2 is a professional grade power supply unit made for the normal user. It’s more than just the 80 PLUS Gold efficiency rating. It’s the performance, stability, reliability, lifespan, and so much more. That quality starts with the technology used on the inside. The half-bridge LLC resonant converter and DC-DC technology, made with 100% Japanese capacitors, work together to create a PSU that offers reliable and stable voltage outputs for safer, more reliable performance and higher efficiency.
A BIGGER, BETTER FAN
The V Gold – v2 keeps cool under pressure. The fluid dynamic fan bearing creates less friction, making it great for low RPM operations. This technology, combined with a larger 135mm fan, keeps the fan running smoothly and efficiently for longer, keeping the noise level down and extending the lifespan of the PSU.
COOLER MASTER V850 V2
FULL-MODULAR CABLING
Cabling is often the most troublesome part of building a PC. The V Gold can’t solve all your cabling problems but it’s an excellent place to start. With full control and customization of your cables, you don’t have to have excess cables cluttering your PC. This level of control can reduce cable bulk which can increase airflow and make your system look as great as it runs. And with the included 16AWG PCIe cables, you’ll get increases to both efficiency and style.
Model
MPY-850V-AFBAG
ATX Version
ATX 12V V2.52
PFC
Active PFC
Input Voltage
100-240V
Input Current
13-6A
Input
Frequency 50-60Hz
Dimensions (L x W x H)
160 x 150 x 86 mm
Fan Size
135mm
Fan Bearing
FDB
Fan Speed
1545 RPM
Noise Level @ 20%
0 dBA
Noise Level @ 50%
15.4 dBA
Noise Level @ 100%
32.5 dBA
Efficiency 90% @
Typical Load
80 PLUS Rating
80 PLUS Gold
ErP 2014 Lot 3
Yes
Operating Temperature
0-50°C
Power Good Signal
100 – 500 ms
Hold Up Time
17ms
MTBF
>100,000 Hours
Protections
OVP, OPP, SCP, OCP, UVP, OTP
Regulatory
CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
ATX 24 Pin Connectors
1
EPS 4+4 Pin Connectors
1
EPS 8 Pin Connector
1
SATA Connectors
12
Peripheral 4 Pin Connectors
4
PCI-e 6+2 Pin Connectors
6
Series
V Gold Series
80 Plus
Gold
Modular
Full Modular
Wattage
Above 750W
