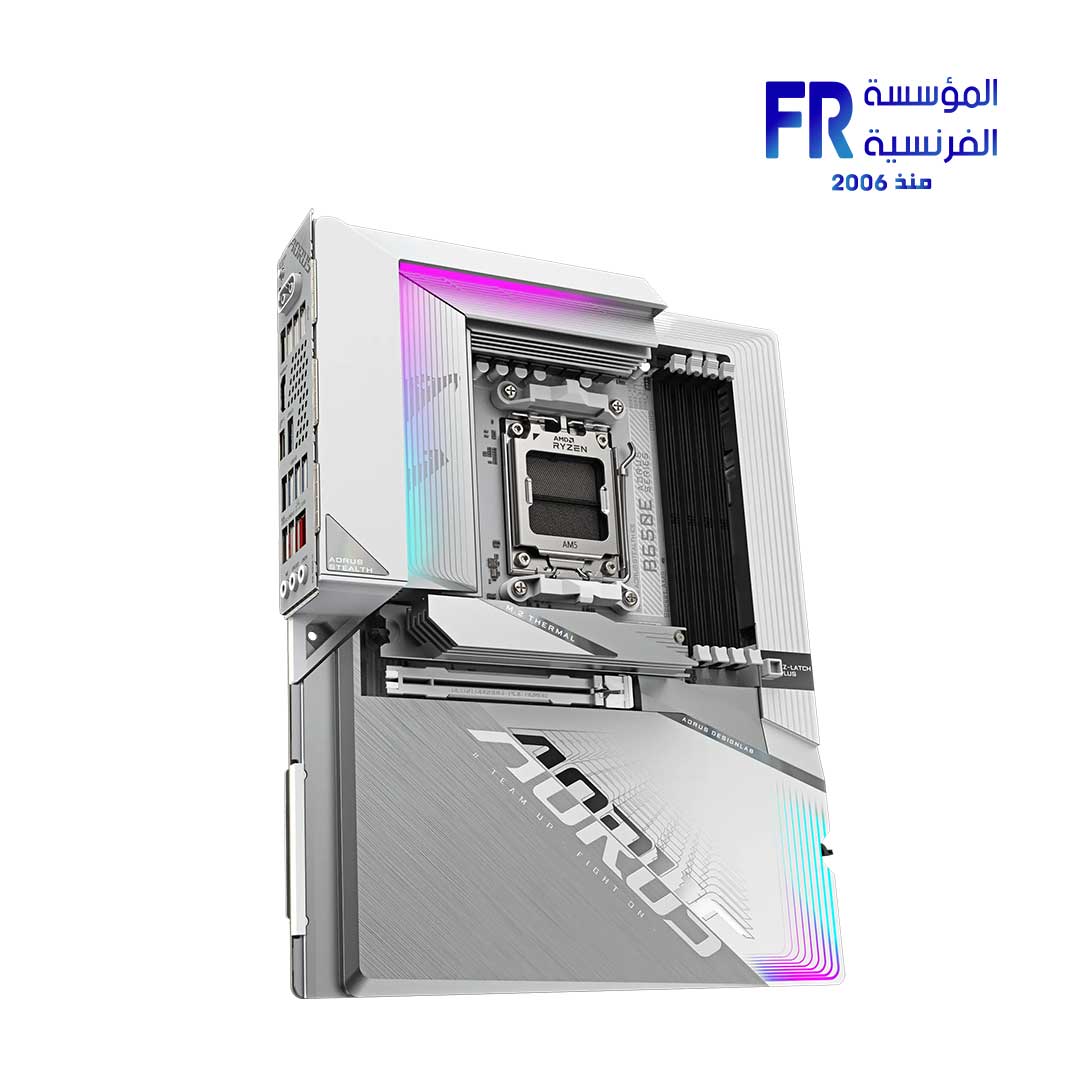

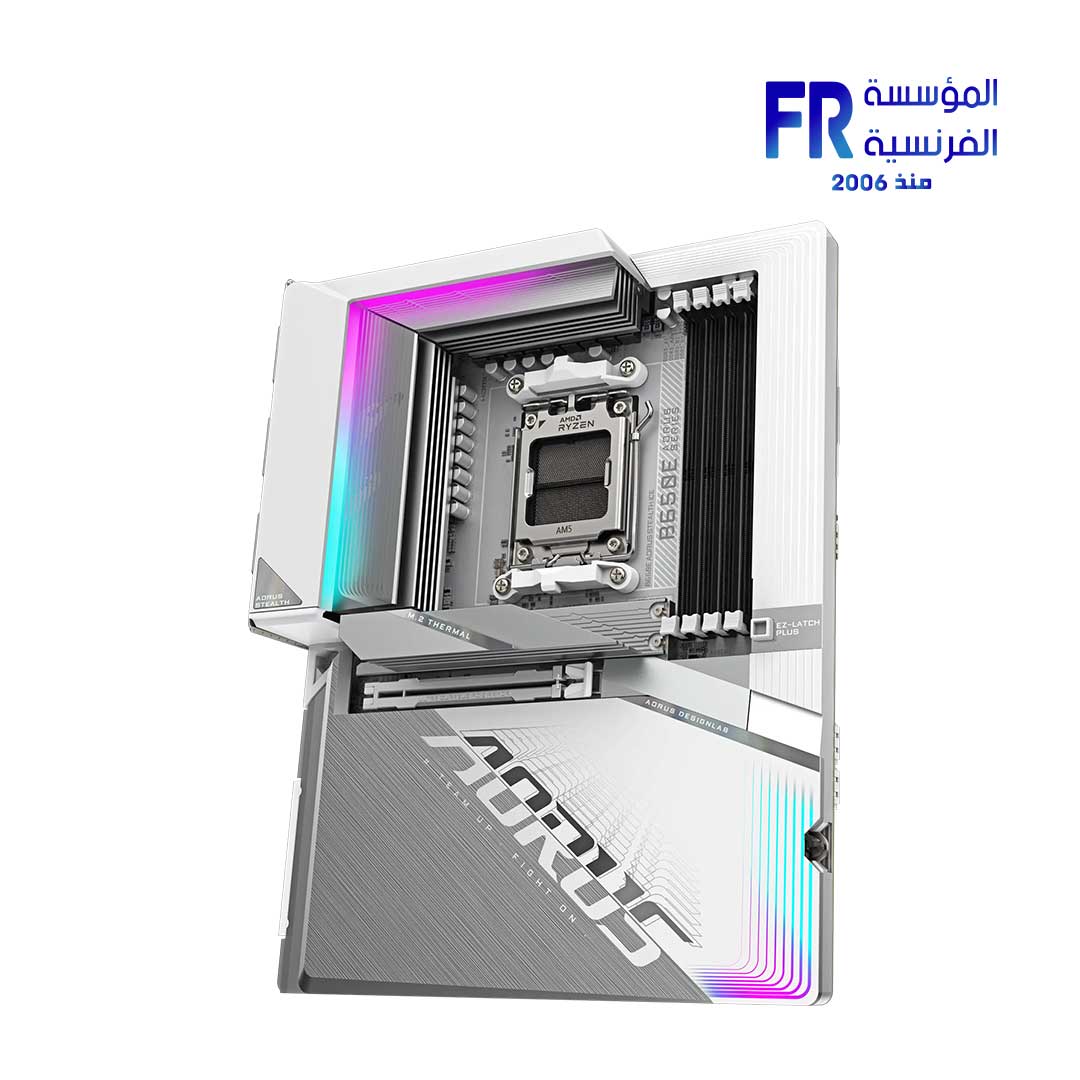

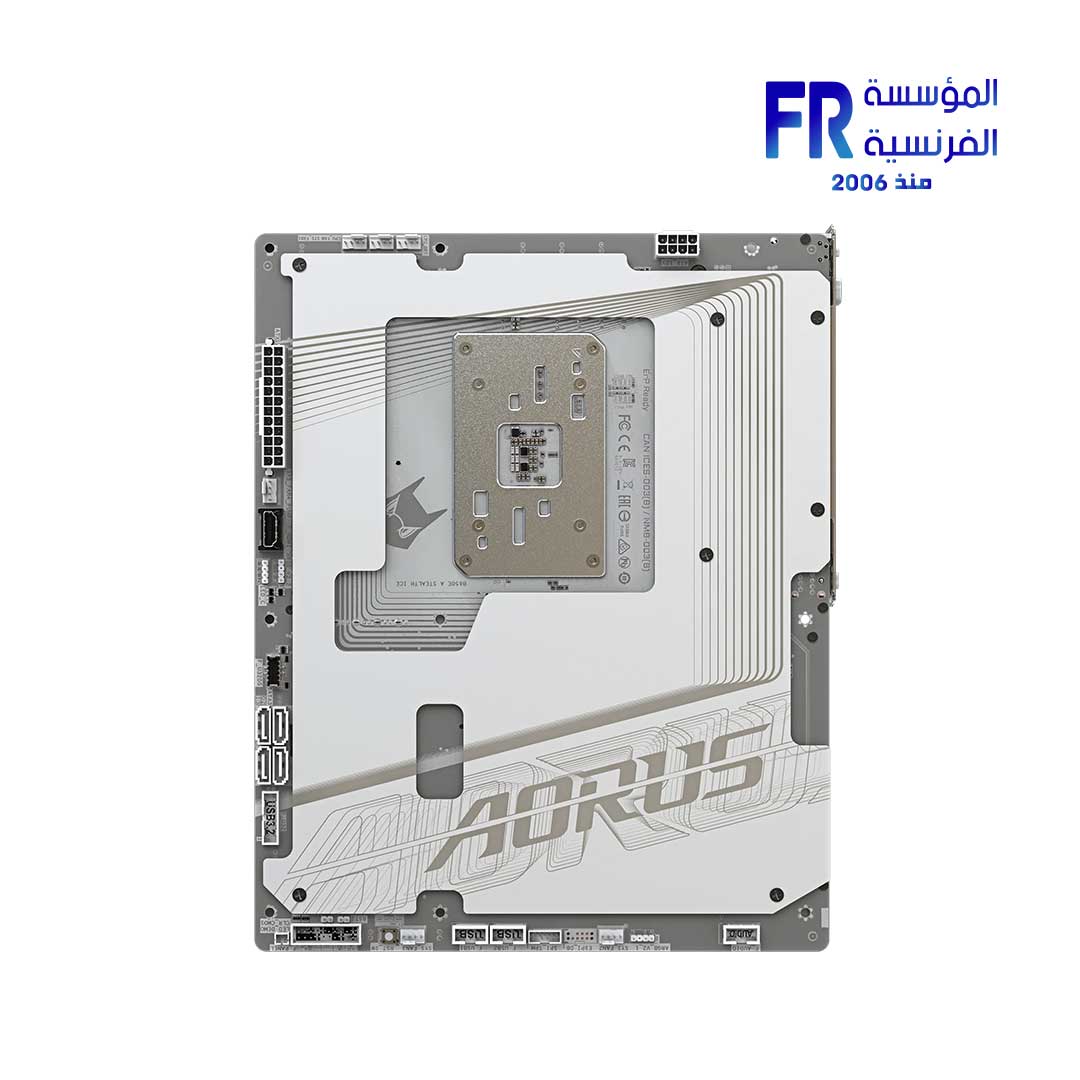

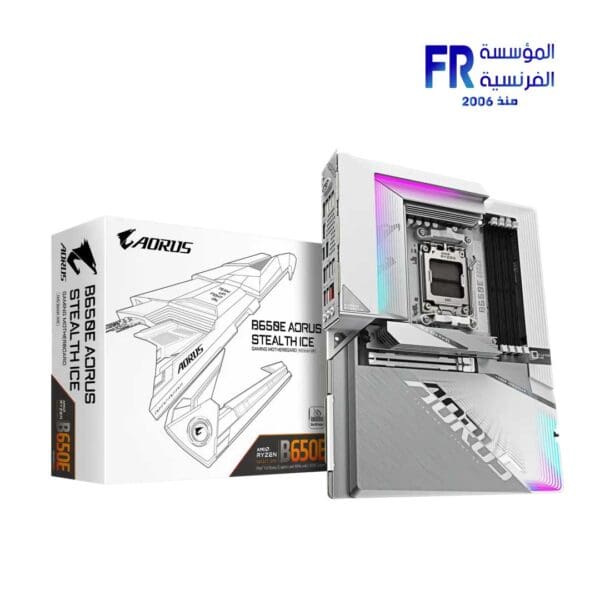

Gigabyte B650E Aorus Stealyh ICE DDR5 Motherboard
15400 EGP
- AMD Socket AM5：Supports AMD Ryzen™ 9000/8000/ 7000 Series Processors
- Digital twin 12+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
- PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Plus：M.2 slots with Quick Release & Screwless Design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- UC BIOS：User-Centred intuitive UX with Quick Access function
- Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x4
- Fast Networking：2.5GbE LAN & Wi-Fi 7 with Ultra-high gain directional antenna
| MODEL | |
|---|---|
| CHIPSET MANUFACTURERS | |
| CPU SOCKET | |
| Motherboard Type | |
| CPU SERIES | AMD Ryzen 7000 Series & Ryzen 8000 & Ryzen 9000 Series Processors |
| Technology | |
| Memory Speed | 4400 MHz, 4600 MHz, 4800 MHZ, 4866 MHz, 5000 MHz, 5066, 5066 MHz, 5200MHZ, 5333, 5333 MHz, 5400Mhz, 5600 MHz, 5800, 6000MHz, 6200MHZ, 6400Mhz, 6600Mhz, 6800Mhz, 7000 MHz, 7200MHZ, 7400MHZ, 7600MHZ, 7800MHZ, 8000MHZ |
| MAX MEMORY SIZE | |
| Memory Slot | |
| PCI-E X16 | |
| PCI-E GEN | |
| PCI-E Slots (M.2) | |
| SATAIII | |
| Communication module | |
| Part Number | |
| Warranty |
Gigabyte B650E Aorus Stealth ICE DDR5 Motherboard
Spesc Gigabyte B650E Aorus Stealth ICE DDR5 Motherboard :
- CPU
- AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
Chipset
AMD B650
Memory
Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memoryDual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support forAMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:
– 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs
and a maximum resolution of 3840×2160@144 Hz - * Support for DisplayPort 1.4 version and HDR.
- – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
-
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports. - – 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz
- * Support for HDMI 1.4 version
-
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel - * You can change the functionality of an audio jack using the audio software.To configure 7.1-channel audio, access the audio software for audio settings.
- LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
MediaTek Wi-Fi 7 MT7925
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.) -
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations. - Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
– AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode - * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
- Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
– AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
– AMD Ryzen™ 8000 Series- Phoenix 1/ Phoenix 2 Processors support PCIe 4.0×4/x2 SSDs - 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
– AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs - 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SS
