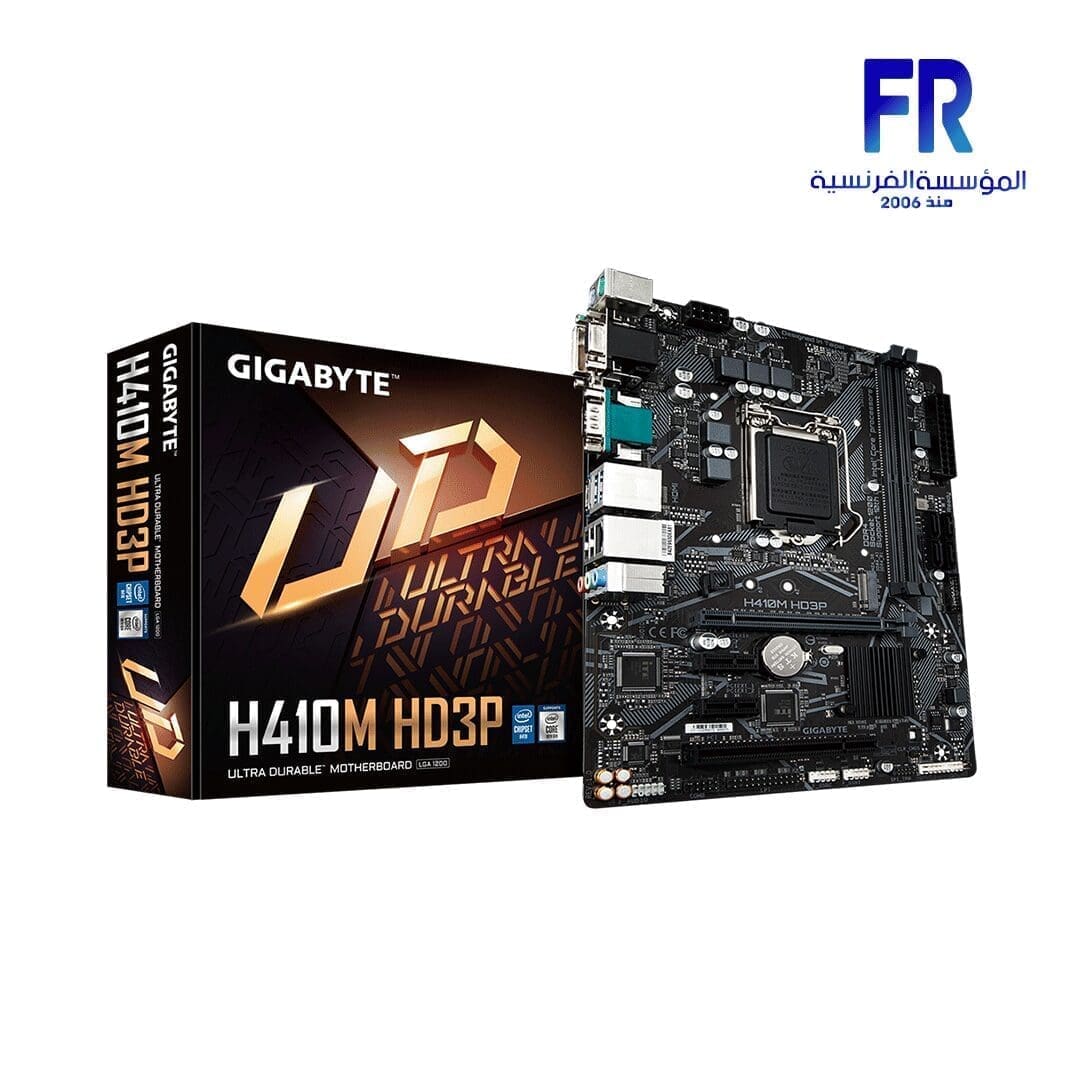

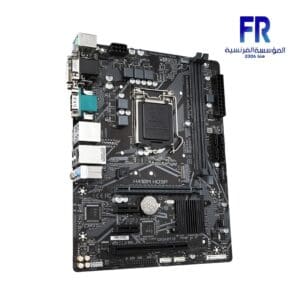

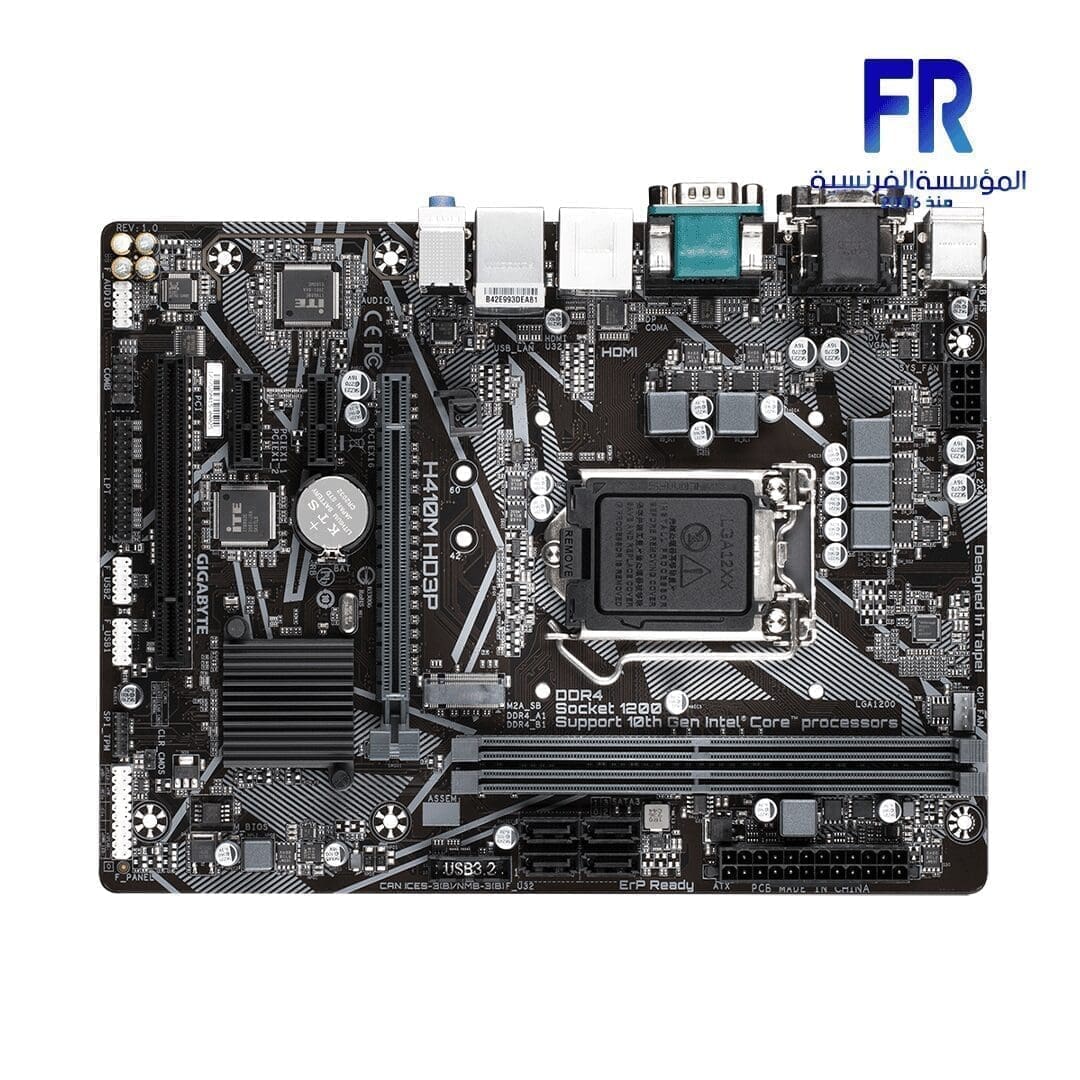

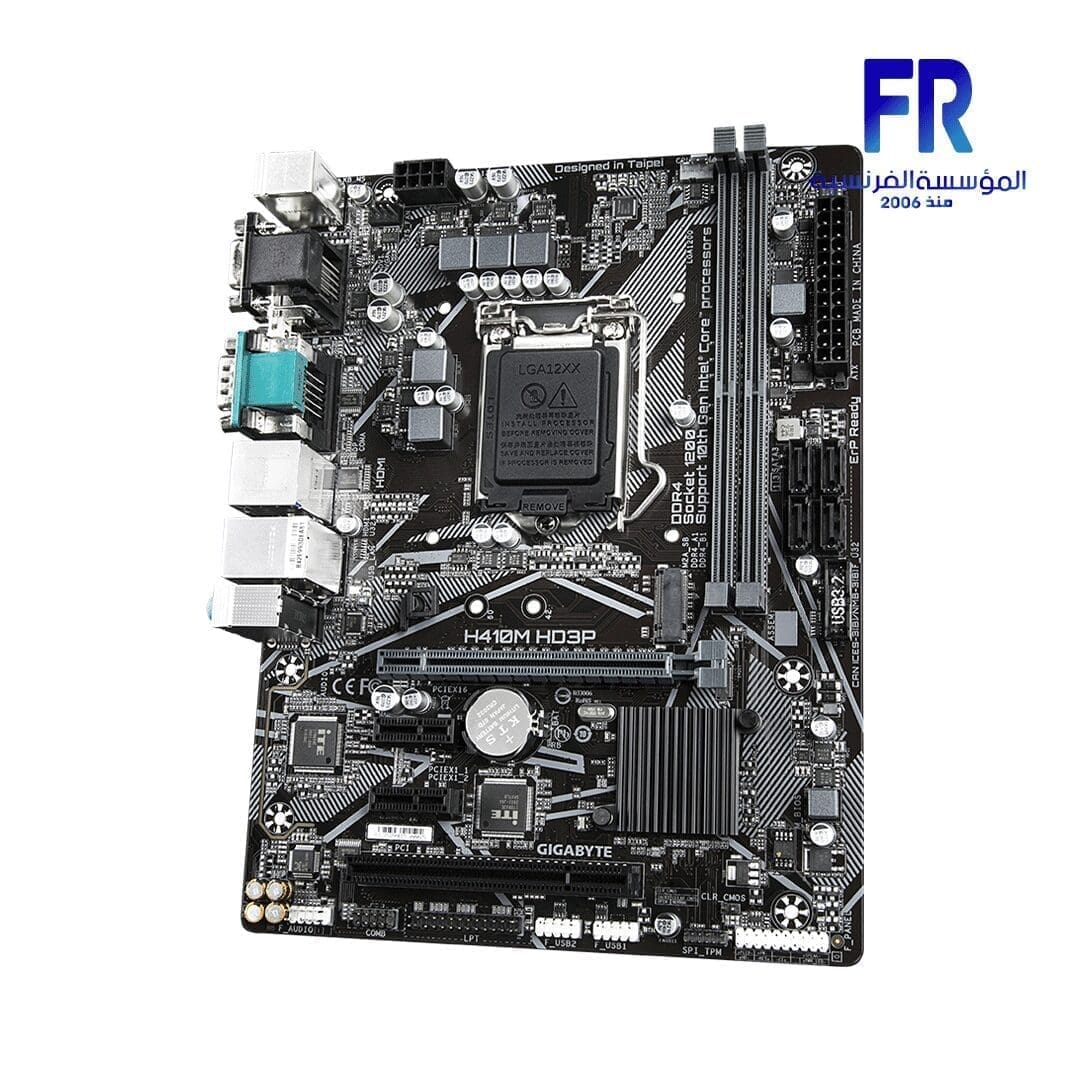

Gigabyte H410M Hd3P Motherboard

1. Support for 10th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1200 package
2. L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)

1. Intel^® H410 Express Chipset

1. Intel^® Core™ i9/i7 processors:
   Support for DDR4 2933/2666/2400/2133 MHz memory modules
2. Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
   Support for DDR4 2666/2400/2133 MHz memory modules
3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

Integrated Graphics Processor-Intel® HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
   * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
   * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
4. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
   * Support for HDMI 1.4 version and HDCP 2.3.

Maximum shared memory of 512 MB

1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.

1. Intel^® GbE LAN chip (1000/100 Mbit)

1. 1 x PCI Express x16 slot, running at x16
2. 2 x PCI Express x1 slots
   * The PCIEX1_1 slot shares bandwidth with the PCI slot. The PCI slot will become unavailable when a PCIEX1_1 expansion card is installed.
   (The PCI Express slots conform to PCI Express 3.0 standard.)
3. 1 x PCI slot

Supports up to ASPM L1.2 power management protocols.

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors
   * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

Chipset:

1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB header)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 4 x SATA 6Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x front panel header
7. 1 x front panel audio header
8. 1 x USB 3.2 Gen 1 header
9. 2 x USB 2.0/1.1 headers
10. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
11. 1 x serial port header
12. 1 x parallel port header
13. 1 x Clear CMOS jumper

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x DVI-D port
5. 1 x DisplayPort
6. 1 x HDMI port
7. 1 x serial port
8. 2 x USB 3.2 Gen 1 ports
9. 2 x USB 2.0/1.1 ports
10. 1 x RJ-45 port
11. 3 x audio jacks

1. iTE^® I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   Ambient LED
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   Smart Backup
   System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install

1. Norton^® Internet Security (OEM version)
2. cFosSpeed

1. Support for Windows 10 64-bit

1. Micro ATX Form Factor; 22.6cm x 18.5cm

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
