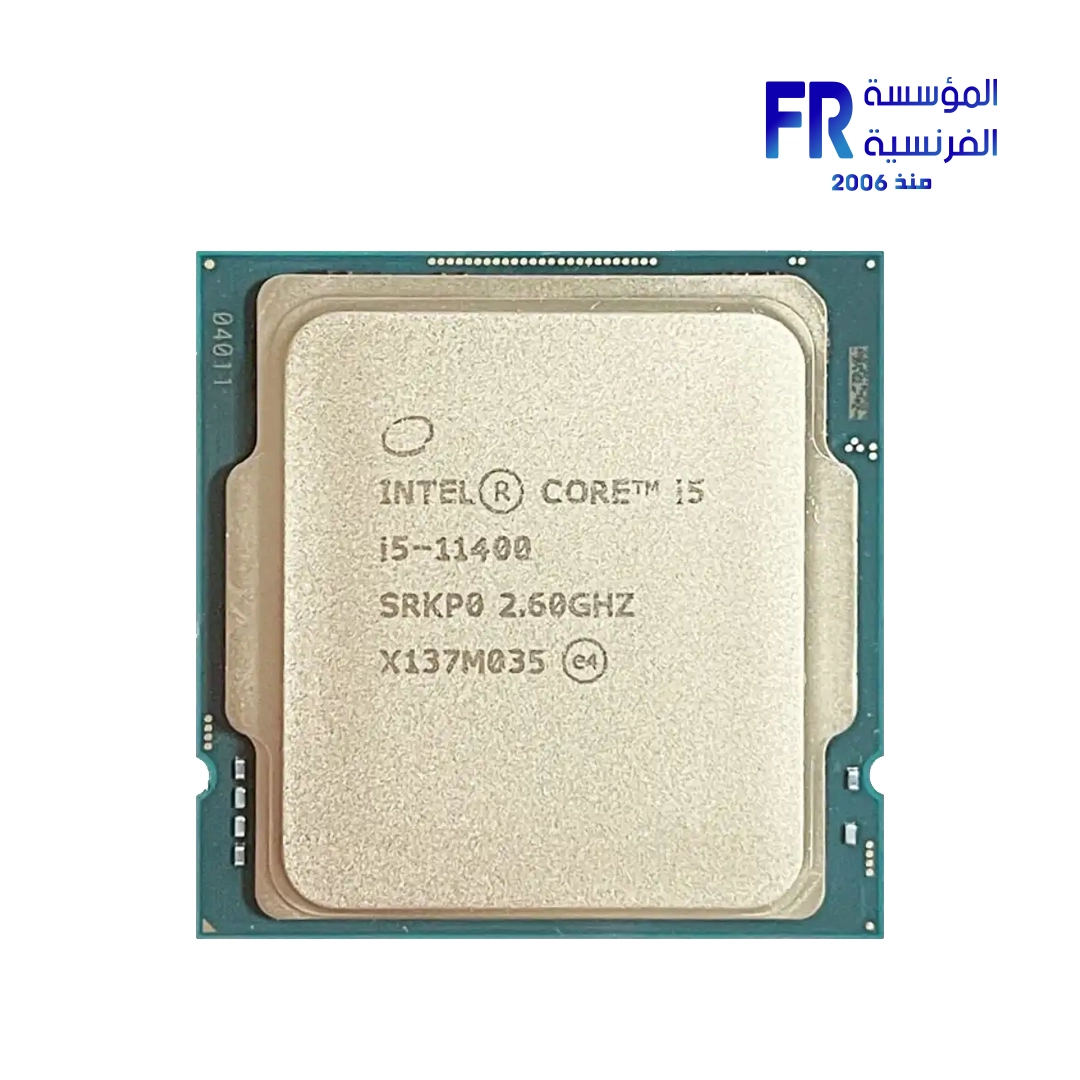

Intel Core I5 11400 Tray Processor

Intel Core I5 11400 Tray Processor:



The Intel Core I5 11400 Tray Processor (11th Generation) delivers a strong balance of performance and value for desktop computing. This **Intel Core i5-11400 Processor** features 6 Cores and 12 Threads, providing efficient multitasking and responsive performance. Built on the 14nm lithography, it offers reliable power. Furthermore, with a Max Turbo Frequency of 4.40 GHz, it boosts performance when needed.

---

Intel Core i5-11400 Processor: Core Performance & Graphics:

This **Intel Core i5-11400 Processor** operates with a Processor Base Frequency of 2.60 GHz. It can reach a Max Turbo Frequency of 4.40 GHz with Intel® Turbo Boost Technology 2.0. Its 6 Cores and 12 Threads efficiently handle various workloads. Specifically, it includes 12 MB Intel® Smart Cache for faster data access. The integrated Intel® UHD Graphics 730 provides solid visual capabilities. It supports up to 3 displays and resolutions up to 4096×2160@60Hz via HDMI or 5120×3200@60Hz via DisplayPort.



Intel Core i5-11400 Processor: Memory & Expansion:

The **Intel Core i5-11400 Processor** supports up to 128 GB of DDR4-3200 memory across 2 memory channels, providing a Max Memory Bandwidth of 50 GB/s. It utilizes the FCLGA1200 socket, ensuring compatibility with a wide range of motherboards. For expansion, it supports PCI Express Revision 4.0 with up to 20 PCI Express Lanes, offering flexible configurations for graphics cards and other peripherals.



Intel Core i5-11400 Processor: Advanced Technologies & Security:

This **Intel Core i5-11400 Processor** incorporates several advanced technologies. These include Intel® Gaussian & Neural Accelerator 2.0, Intel® Deep Learning Boost (Intel® DL Boost) on CPU, and Intel® Optane™ Memory Support. These enhance AI workloads and system responsiveness. Security features like Intel® Secure Key, Intel® AES New Instructions, Intel® OS Guard, and Intel® Boot Guard provide robust protection. It also supports Intel® Virtualization Technology (VT-x) and Intel® Virtualization Technology for Directed I/O (VT-d).

Explore compatible Intel Processors or check Intel Core i5 Products for other options. Find full details on the official Intel Core i5-11400 Processor product page.

---

Specifications:

Essentials:

• Product Collection: 11th Generation Intel® Core™ i5 Processors
• Code Name: Products formerly Rocket Lake
• Vertical Segment: Desktop
• Processor Number: i5-11400
• Lithography: 14 nm

CPU Specifications:

• Total Cores: 6
• Total Threads: 12
• Max Turbo Frequency: 4.40 GHz
• Intel® Turbo Boost Technology 2.0 Frequency: 4.40 GHz
• Processor Base Frequency: 2.60 GHz
• Cache: 12 MB Intel® Smart Cache
• Bus Speed: 8 GT/s
• TDP: 65 W

Memory Specifications:

• Max Memory Size (dependent on memory type): 128 GB
• Memory Types: DDR4-3200
• Max # of Memory Channels: 2
• Max Memory Bandwidth: 50 GB/s
• ECC Memory Supported: No

GPU Specifications:

• GPU Name: Intel® UHD Graphics 730
• Graphics Base Frequency: 350 MHz
• Graphics Max Dynamic Frequency: 1.30 GHz
• Graphics Video Max Memory: 64 GB
• Execution Units: 24
• 4K Support: Yes, at 60Hz
• Max Resolution (HDMI): 4096×2160@60Hz
• Max Resolution (DP): 5120 x 3200 @60Hz
• Max Resolution (eDP – Integrated Flat Panel): 5120 x 3200 @60Hz
• DirectX* Support: 12.1
• OpenGL* Support: 4.5
• OpenCL* Support: 3.0
• # of Displays Supported: 3
• Device ID: 0x4C8B

Expansion Options:

• Scalability: 1S Only
• PCI Express Revision: 4.0
• PCI Express Configurations: Up to 1×16+1×4, 2×8+1×4, 1×8+3×4
• Max # of PCI Express Lanes: 20

Package Specifications:

• Sockets Supported: FCLGA1200
• Max CPU Configuration: 1
• Thermal Solution Specification: PCG 2019C
• TJUNCTION: 100°C
• Package Size: 37.5 mm x 37.5 mm

Advanced Technologies:

• Intel® Gaussian & Neural Accelerator: 2.0
• Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
• Intel® Optane™ Memory Supported: Yes
• Intel® Thermal Velocity Boost: No
• Intel® Turbo Boost Max Technology 3.0: No
• Intel® Turbo Boost Technology: 2.0
• Intel® Hyper-Threading Technology: Yes
• Intel® 64: Yes
• Instruction Set: 64-bit
• Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512
• Idle States: Yes
• Enhanced Intel SpeedStep® Technology: Yes
• Thermal Monitoring Technologies: Yes
• Intel® Identity Protection Technology: Yes

Security & Reliability:

• Intel® Secure Key: Yes
• Intel® AES New Instructions: Yes
• Intel® Software Guard Extensions (Intel® SGX): No
• Intel® OS Guard: Yes
• Intel® Trusted Execution Technology: No
• Execute Disable Bit: Yes
• Intel® Boot Guard: Yes
• Intel® Stable IT Platform Program (SIPP): No
• Intel® Virtualization Technology (VT-x): Yes
• Intel® Virtualization Technology for Directed I/O (VT-d): Yes
• Intel® VT-x with Extended Page Tables (EPT): Yes
