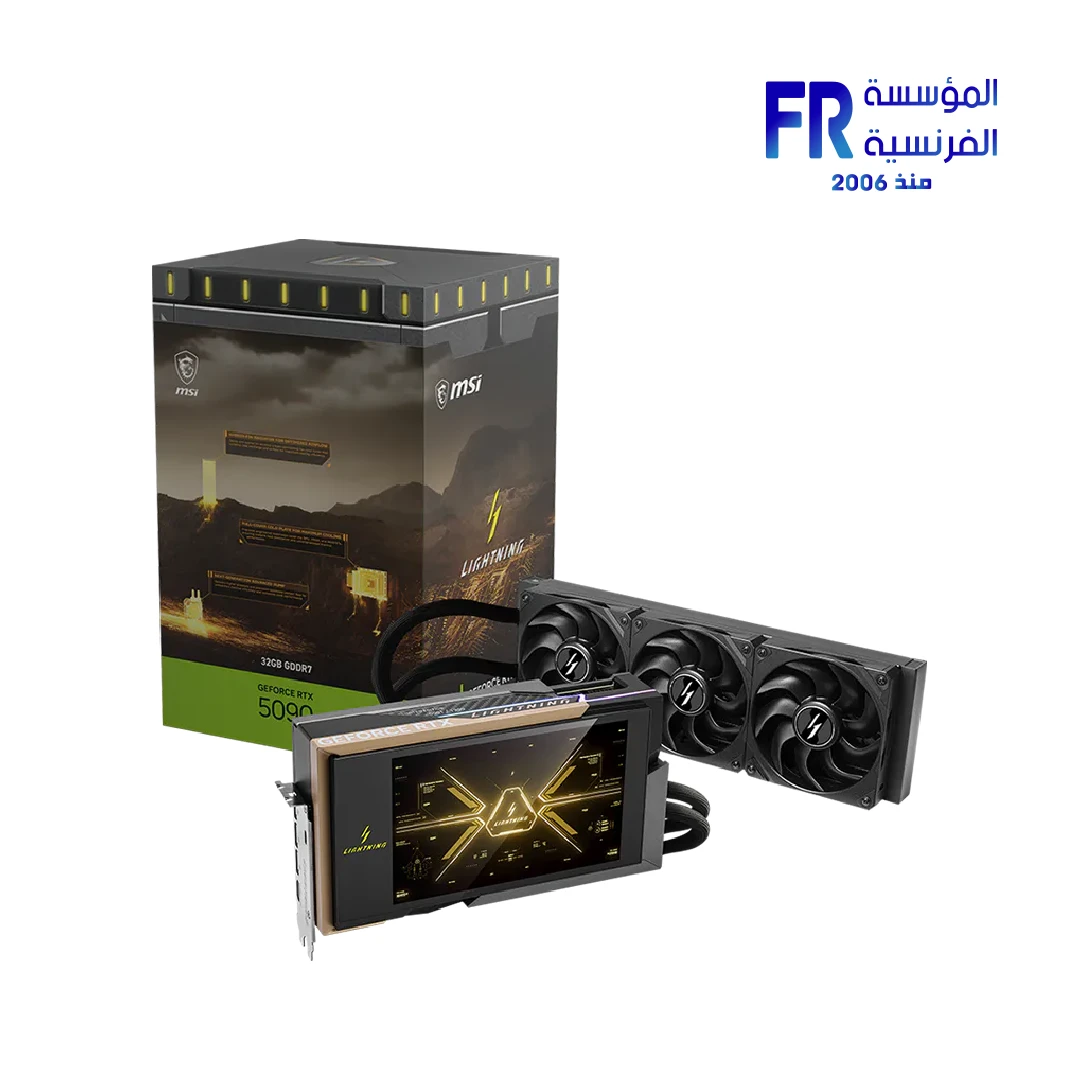

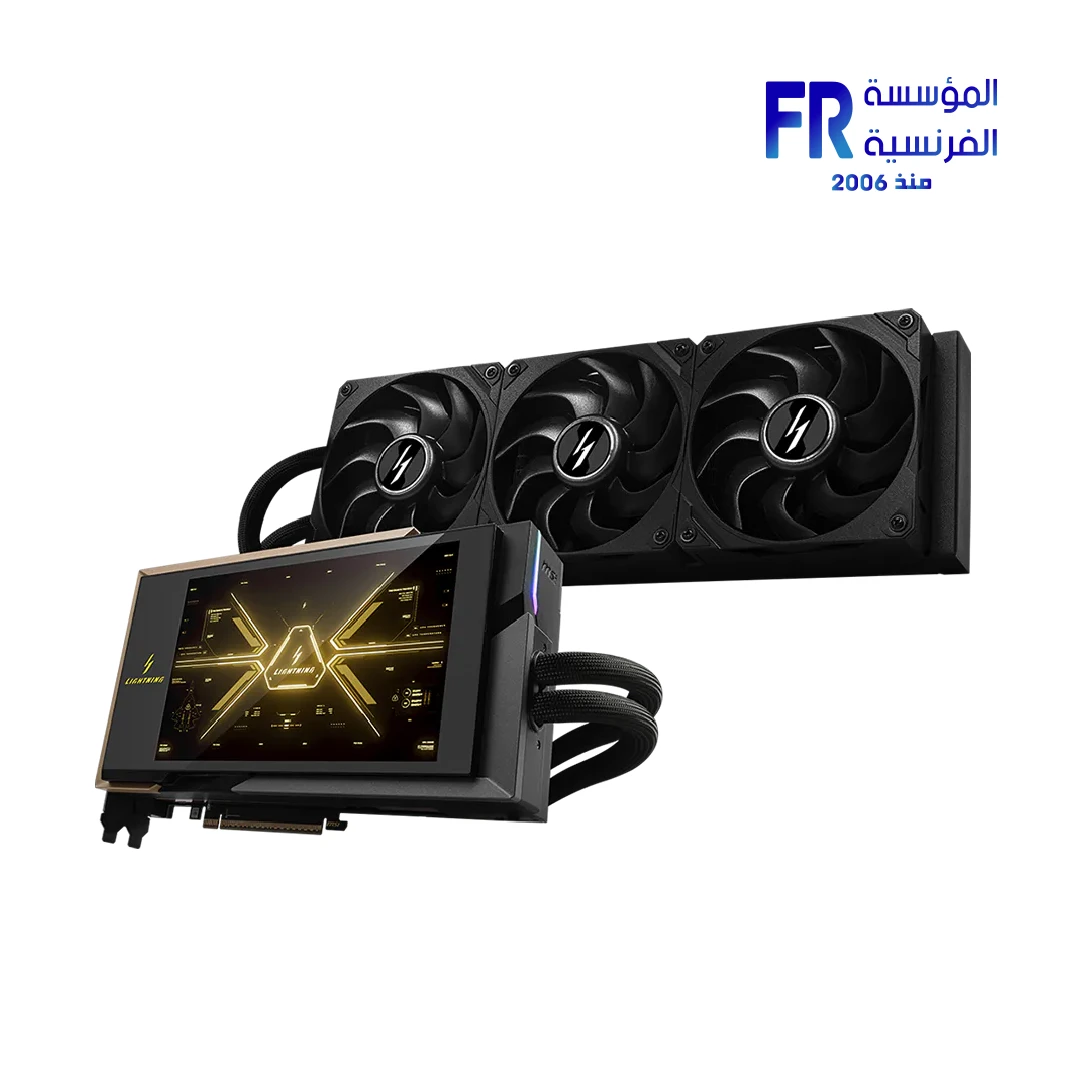

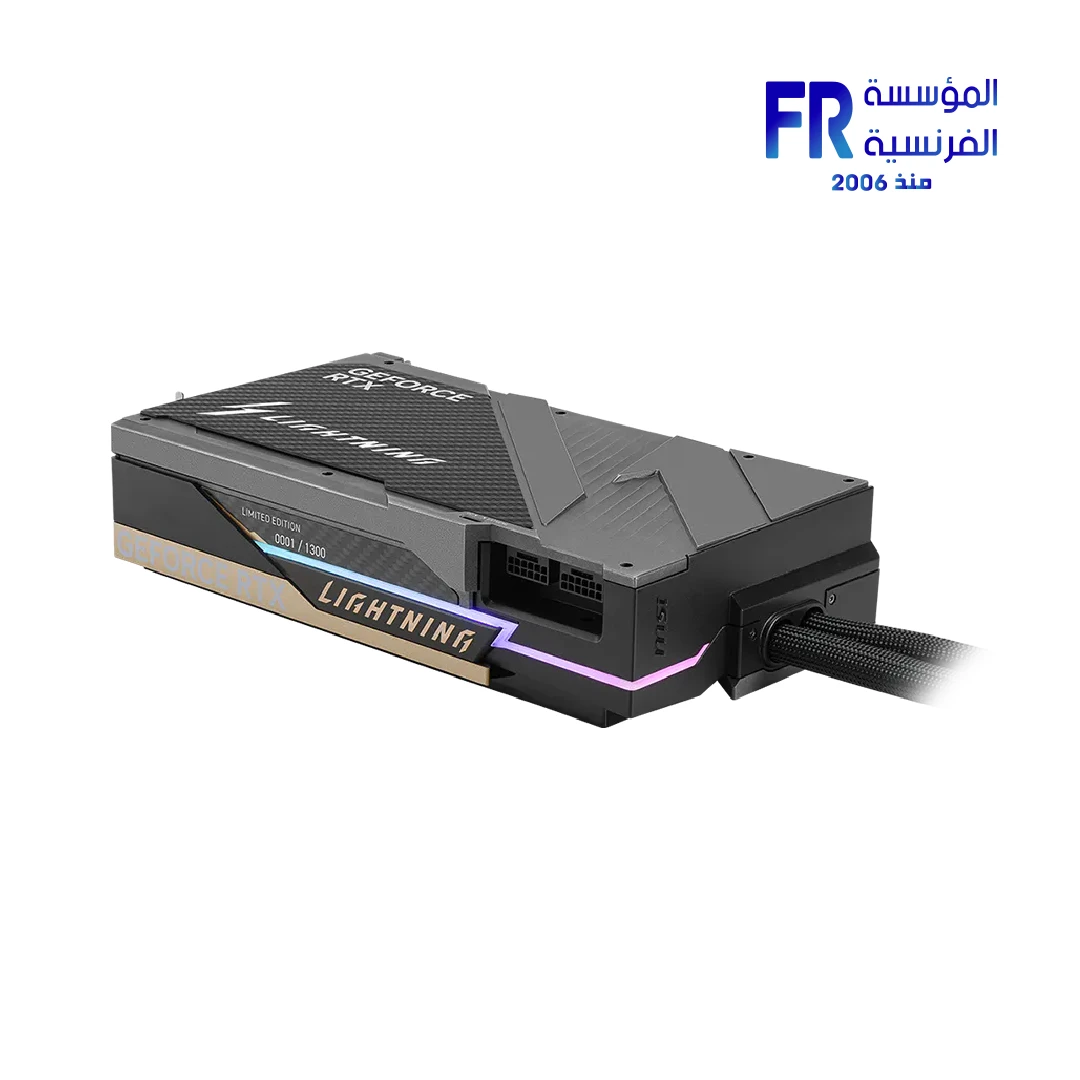

MSI GeForce RTX 5090 Lightning Z 32GB GDDR7 512 Bit Liquid Cooled Graphic Card
0 EGP
- Model Name: MSI GeForce RTX 5090 32G LIGHTNING Z
- Part Number: G5090-32LZ
- GPU & Memory: NVIDIA RTX 5090, 32GB GDDR7, 512-bit Bus
- Clocks & Power: Boost 2730 MHz (Extreme 2775 MHz), 800W-1000W TDP, 2x 16-pin Connectors
- Cooling & Features: Liquid Cooled (AIO), 8-Inch Integrated Display, Carbon Fiber Backplate, Web-based Control Hub
- Outputs & Size: 3x DisplayPort 2.1b, 1x HDMI 2.1b, Card: 260 x 151 x 61 mm / Radiator: 394 x 120 x 56 mm
- Warranty: 3 Years
✅ Authorized MSI Retailer in Egypt | Official Local Warranty | 100% Original Products
MSI GeForce RTX 5090 Lightning Z 32GB Liquid Cooled
GeForce RTX 50 Series – Game Changer! Powered by NVIDIA Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of AI horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.
The legend returns reimagined. The MSI GeForce RTX 5090 Lightning Z stands as MSI’s pinnacle flagship — forged for the extreme. Featuring the world’s first integrated 8-inch GPU display, a full-copper cold plate, and liquid cooling engineered to sustain 1000W loads, this is not just a graphics card. It is perfection made real for elite overclockers and content creators who demand absolute thermal dominance.

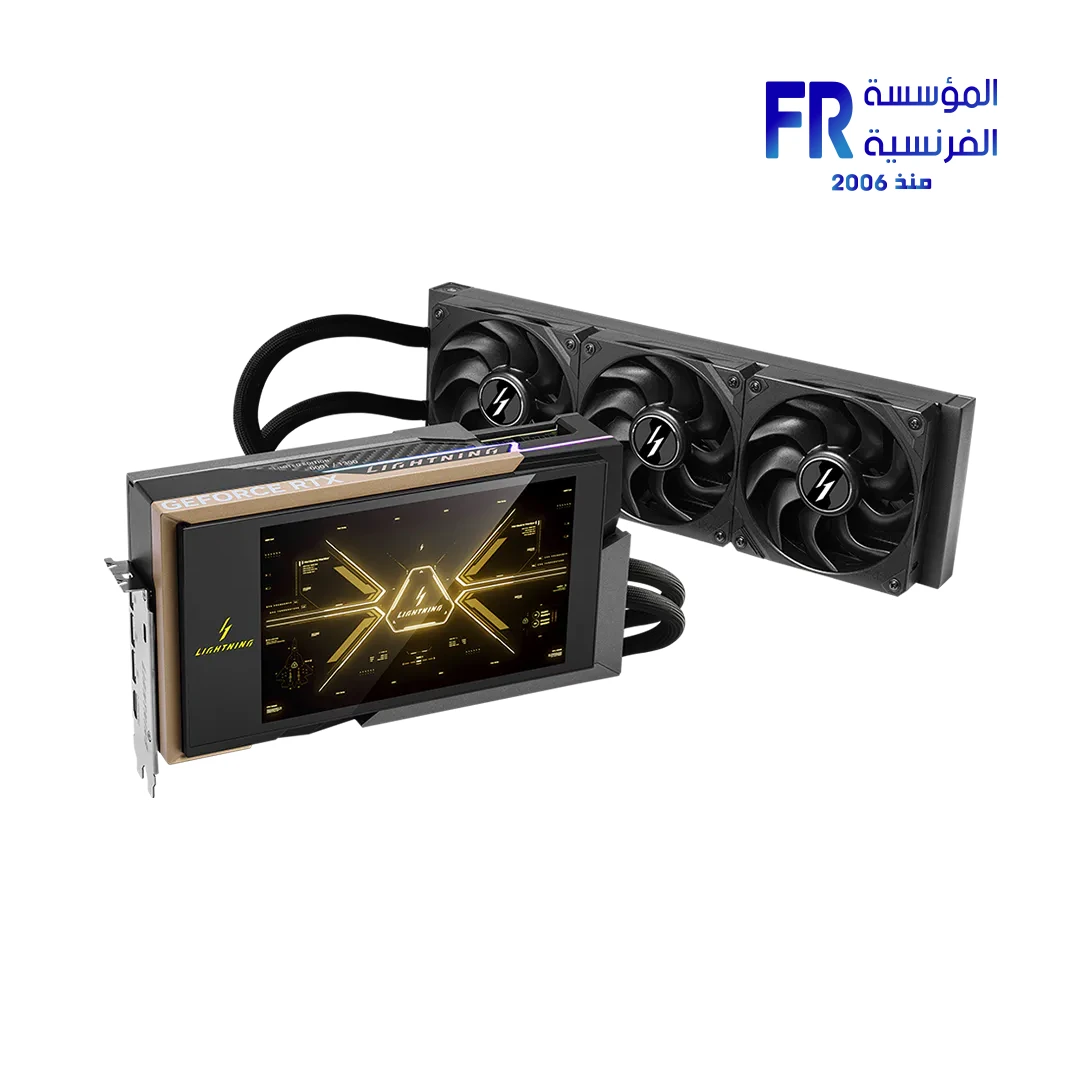

Fully integrated screen merging aesthetics with real-time telemetry and custom visuals.
Precision-engineered waterways cover GPU, VRAM, and MOSFETs for uncompromised thermals.
Validated by elite HWBOT overclockers with dedicated XOC BIOS and voltage measurement points
Technical Specifications
| Model Name | GeForce RTX 5090 32G LIGHTNING Z |
| Part Number (MPN) | G5090-32LZ |
| SKU | G5090-32LZ |
| EAN / UPC | 416330010 |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5090 |
| CUDA® Cores | 21,760 |
| Memory | 32GB GDDR7 |
| Memory Bus | 512-bit |
| Memory Speed | 28 Gbps |
| Core Clocks | Boost: 2730 MHz / Extreme: 2775 MHz |
| Interface | PCI Express® Gen 5 x16 |

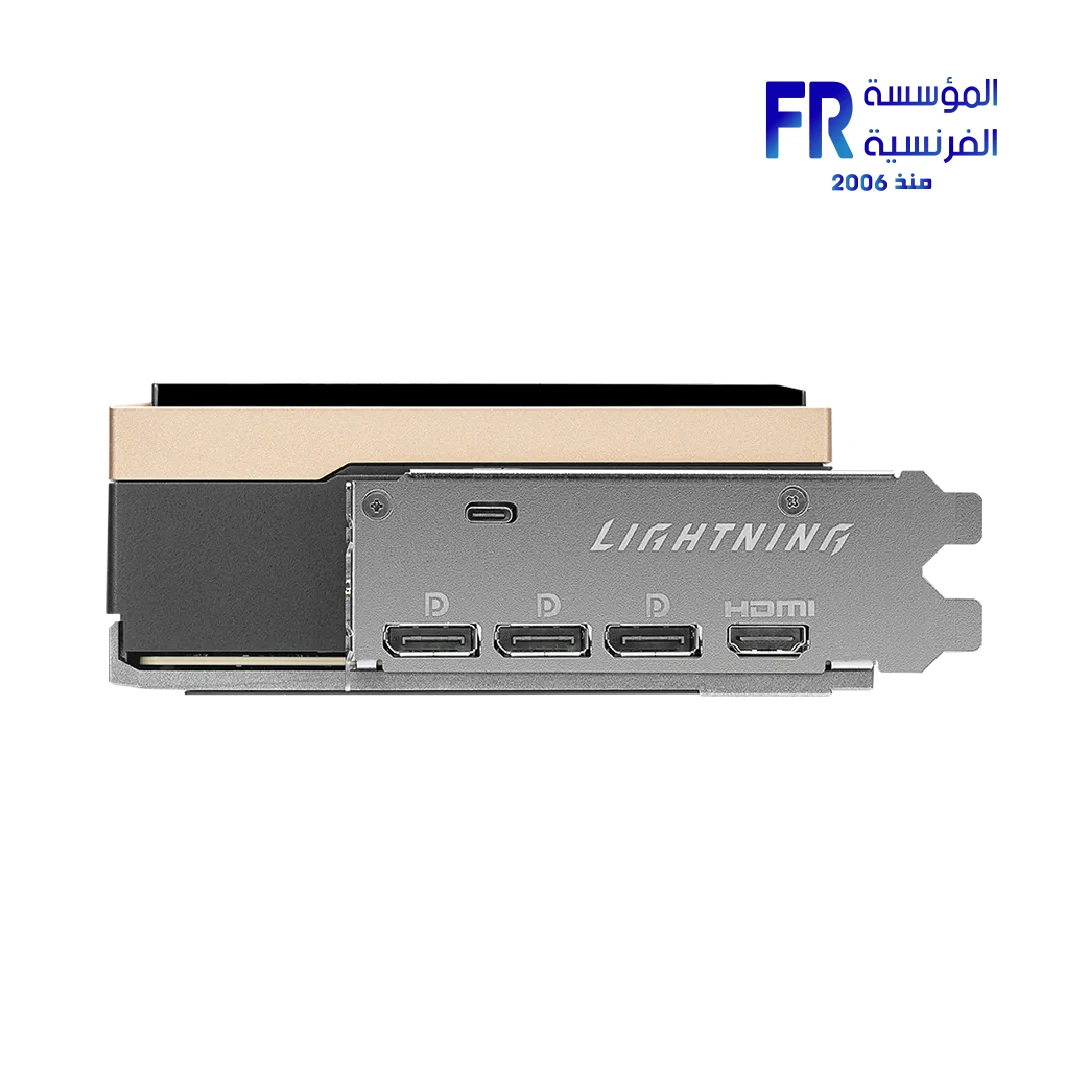

| Output | DisplayPort 2.1b x3, HDMI 2.1b x1, USB Type-C (Lightning Panel) |
| Power Consumption | OC: 800W / Extreme: 1000W |
| Power Connectors | 16-pin x2 (No 1-to-3 dongle support) |
| Recommended PSU | 1500W+ |
| Card Dimensions | 260 x 151 x 61 mm |
| Radiator Dimensions | 394 x 120 x 56 mm |
| DirectX Support | 12 Ultimate |
| OpenGL Support | 4.6 |
| Max Displays | 4 |
| Digital Max Resolution | 7680 x 4320 |
| Warranty | 3 Years Local Warranty |
💡 Pro Tip
This GPU requires dual 16-pin power connectors with no 1-to-3 adapter support. Ensure your PSU has native 16-pin cables and delivers at least 1500W before installation to avoid stability issues during extreme workloads.
Frequently Asked Questions
What makes the Lightning Z different from standard RTX 5090 models?
The Lightning Z features an exclusive full-cover liquid cooling system, world-first 8-inch integrated display, carbon fiber construction, and validated extreme overclocking PCB designed specifically for record-breaking performance.
Can I use my existing 1000W PSU with this GPU?
No. MSI recommends a minimum 1500W PSU due to the 800W-1000W power draw. Using an undersized PSU may cause shutdowns or hardware damage during peak loads.
Is the 8-inch display customizable?
Yes. Through the exclusive LIGHTNING HUB web interface and OVERDRIVE mobile app, you can display real-time telemetry, custom GIFs, animations, and system stats on the integrated screen.
