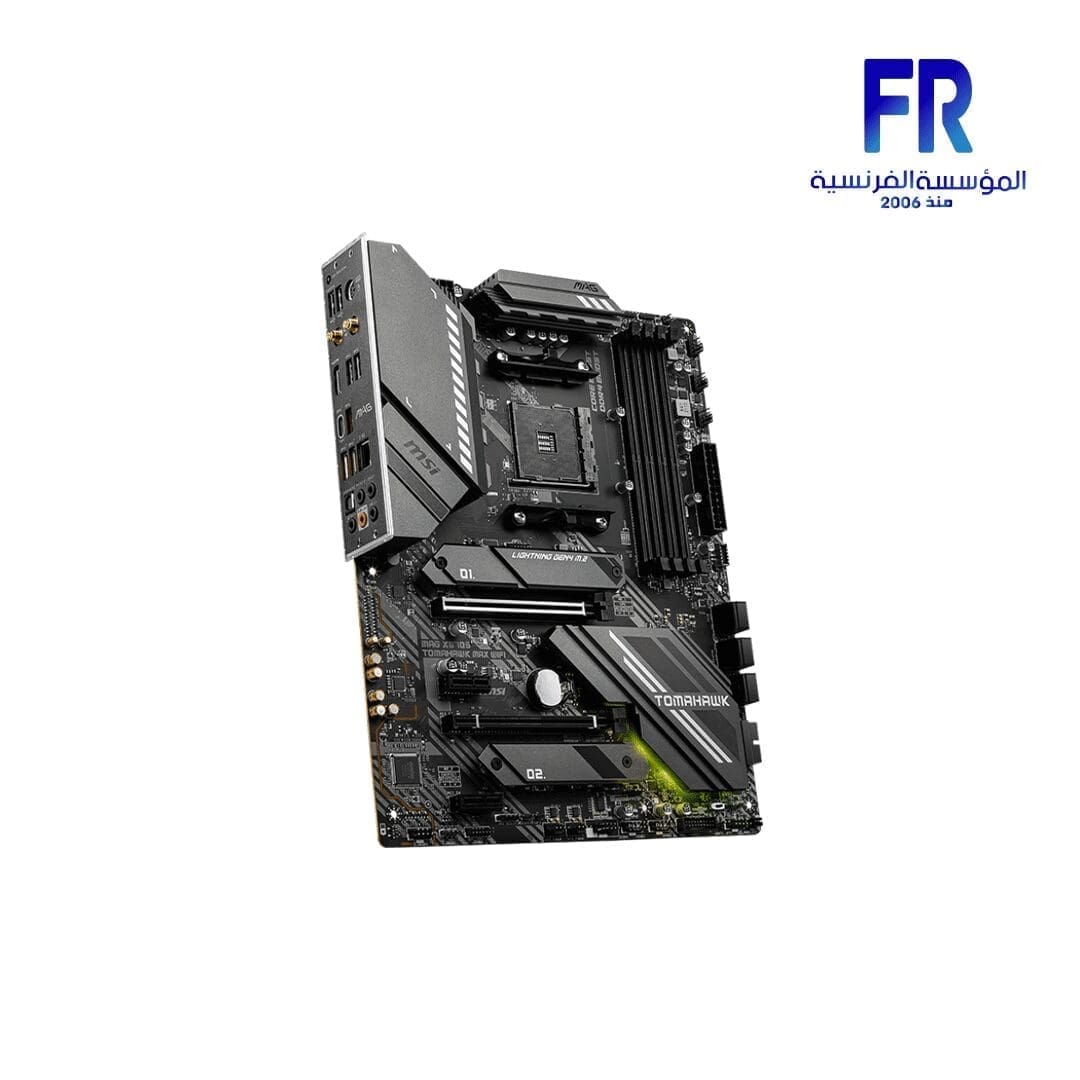

Msi Mag X570S Tomahawk Max Wifi DDR4 Motherboard
8200 EGP
- Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
- Supports DDR4 Memory, up to 5100(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
Views: 687
Out Of Stock.
SKU: 824142262771
Categories: AMD Motherboards, MOTHERBOARD
Tags: 911-7D54-011, MOTHERBOARD MSI, MOTHERBOARD X570S, MSI MAG X570S TOMAHAWK MAX WIFI DDR4 MOTHERBOARD, X570S
CPU
CPU Socket | Socket AM4 |
CPU Brand | AMD |
Installed Processors (Max) | 0 (1) |
Supported Processor Manufacturer | AMD |
Supported Processors | AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors |
64-bit Support | Yes |
Socket | AM4 |
Rear Panel I/O Ports
USB Ports | 1 x USB 3.1 Type-C 3 x USB 3.1 2 x USB 3.0 2 x USB 2.0 |
HDMI Port | 1 x HDMI 2.1 |
Keyboard/Mouse Combo Port | 1 x PS/2 |
RJ-45 Ports | 1 x RJ-45 |
Audio Line In Ports | 1 x 3.5mm Jack |
Audio Line Out Ports | 3 x 3.5mm Jacks |
Microphone In Port | 1 x 3.5mm Jack |
S/PDIF Port | 1 x S/PDIF Optical Out |
Antenna Connector(s) | 2 x SMA Antennas |
Internal I/O Connectors
SATA Connectors | 6 x SATA III |
USB Connectors | 1 x USB 3.1 Type-C header (supports 1 port) 2 x USB 3.0 headers (supports 4 ports) 2 x USB 2.0 headers (supports 4 ports) |
Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
Cooling Fan Support | 1 x CPU fan header 1 x Water Pump header 4 x System fan headers |
Serial Connectors | 1 x COM header |
Chassis Intrusion Connector | 1 x Chassis Intrusion header |
TPM Header | 1 x TPM header |
Power Connector Port | 1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS |
Other Connectors | 1 x M.2 slot, Key M, Type 2280/22110 (PCIe 4.0, PCIe 3.0 or SATA) 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe 4.0, PCIe 3.0 or SATA) 2 x 3-pin ARGB LED headers 2 x 4-pin ARGB LED headers |
Memory
Memory Bus Speed | Up to 5100 MHz |
Memory Type | DDR4 |
Maximum RAM | 128 GB |
Memory Slot | 4 x DIMM |
Motherboard
Chipset Manufacturer | AMD |
Northbridge | X570 |
RAID Supported | Yes |
RAID Format | RAID 0, 1, 10 |
SATA Supported | Yes |
Expansion
Number of PCI Express Slots | 2 x PCI Express 4.0 x16 slots (@ x16/x4) 2 x PCI Express 3.0 x1 slots |
Graphics Device
Integrated Graphics Supported | Yes |
Sound
Integrated Sound | Realtek ALC4080 |
Warranty
Warranty | 3 Years |
Network
Integrated Network | Realtek 8125B |
Network Speeds Supported | Up to 2.5 Gbps |
Wireless LAN | Yes (Wi-Fi 6) |
Wireless Network Speed | Up to 2.4 Gbps |
Bluetooth | Yes |
Bluetooth Version | 5.2 |
System Requirements
Operating Systems Supported | Microsoft Windows 10 64-bit |
System
Software Included (may be trial or restricted) | Yes |
Drivers | Yes |
SLi/Crossfire Features | Supports AMD CrossFire Technology |
Physical
Form Factor | ATX Motherboard |
In The Box | Motherboard User Manual Quick Installation Guide Wi-Fi Antenna 2 x SATA Cables M.2 Screw/Standoff Sets USB Drive MSI Case Badge MAG Stickers Reward Program/Shout Out Flyer MSI Product Catalog Product Registration Card |
Width | 305 mm |
Length | 244 mm |
Key Features
USB 3.1 Support | Yes |
Internal USB3.0 Header | Yes |
M.2 Support | Yes |
On-board RGB Control | MSI Mystic Sync |
Memory Speed | 5100 MHz |
RGB Header Type | 3-Pin ARGB |
Addressable RGB | Yes |
Internal USB Type-C Header | Yes |
Power Requirement (auto) | 70 W |
Max Memory Speed Supported (Non-overclocked) | 3200 MHz |
Max Memory Speed Supported (overclocked) | 5100 MHz |
CPU Power Pins (female) | 16 |
Total M.2 Slots | 2 |
Maximum NVMe M.2 ports | 2 |
Maximum SATA M.2 ports | 2 |
SATA ports | 6 |
USB2.0 headers | 4 |
USB3.0 headers | 2 |
USB-C headers | 1 |
Firewire | No |
Wireless Network | Yes |
Memory Channel | Dual |
On-board Audio Type | 7.1 |
Number of SATA Ports | 6 port(s) |
Number of USB Ports | 8 port(s) |
SATA III Support | Yes |
USB 3.0 Support | Yes |
Multi GPU Support | ATi CrossFire |
VGA Connection | No |
DVI Connection | No |
HDMI Connection | Yes |
DisplayPort Connection | No |
Motherboard Form Factor | ATX |
Motherboard Power Connectors | 4 + 8-Pin |
Motherboard Chipset | AMD X570 |
Thunderbolt | No |
Motherboard Model | MSI MAG X570S TOMAHAWK MAX WIFI |
WiFi Speed | 2400 Mbps |
Item Details
Manufacturer | MSI |
Manufacturer Code | MAG X570S TOMAHAWK MAX WIFI |
EAN | 4719072864217 |
UPC | 824142262771 |
Condition | New |
