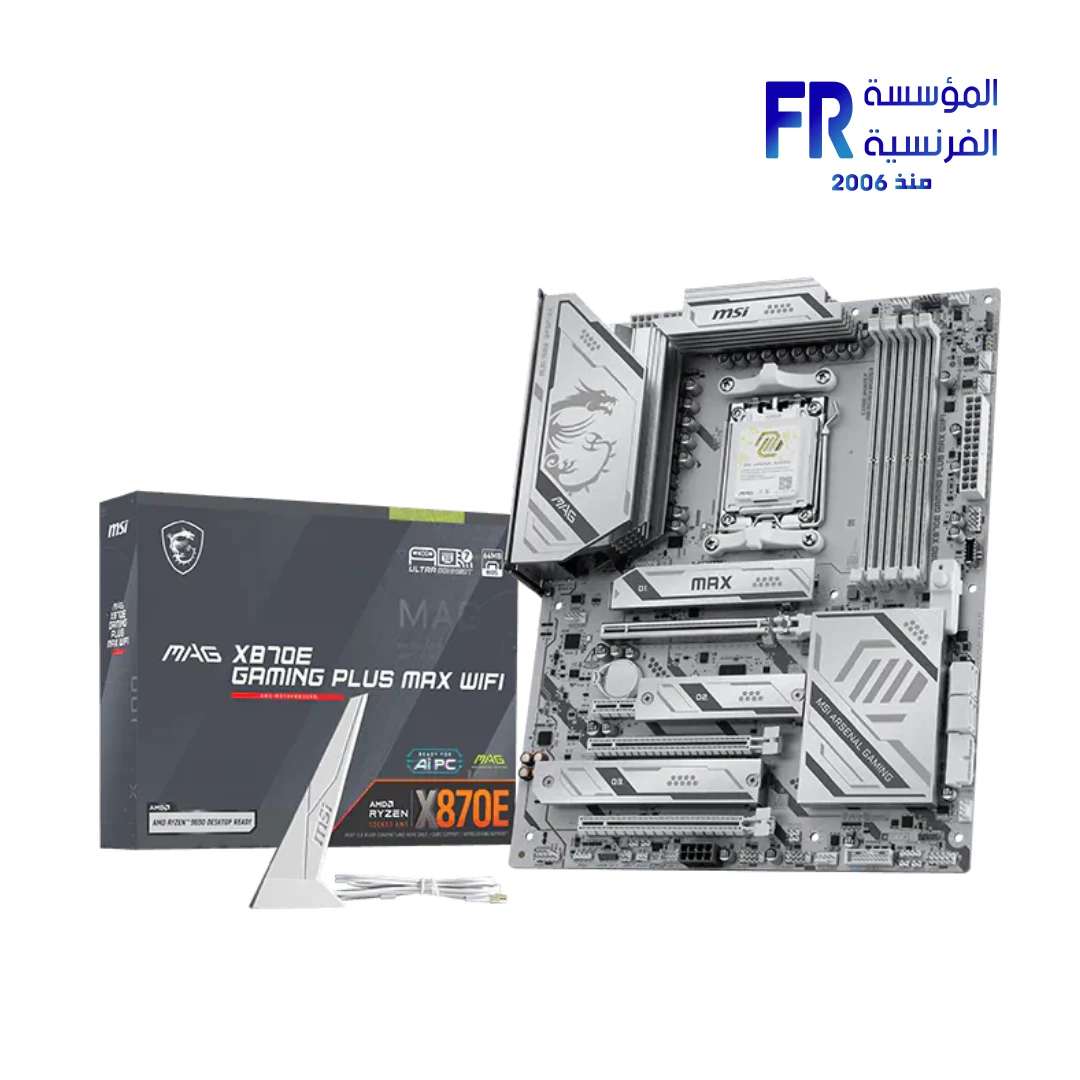

Msi Mag X870E Gaming Plus Max WIFI AM5 ATX Motherboard
14800 EGP
- Part Number: 911-7E70-016
- Chipset: AMD X870E
- CPU Support: AMD Socket AM5 (Ryzen™ 9000 / 8000 / 7000 Series)
- Memory: 4x DDR5 UDIMM (Up to 256GB), Supports 8200+ MT/s (OC)
- Expansion Slots: 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (SB), 2x PCIe 3.0 x1 (SB)
- Storage Interface: 1x M.2 PCIe 5.0 x4 (CPU), 2x M.2 PCIe 4.0 x4 (SB), 4x SATA 6Gb/s
- Networking: Wi-Fi 7 (Up to 5.8Gbps), Bluetooth 5.4, Realtek® 5G LAN
- High-Speed I/O: 1x USB4® 40Gbps (Type-C), 1x USB 20Gbps (Type-C), 2x USB 10Gbps (Type-A)
- Power Design: 14+2+1 Phase 60A SPS Duet Rail Power System
- DIY Features: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ Antenna, Pre-installed I/O Shield
- Warranty: 3 Years
MAG X870E GAMING PLUS MAX WIFI: The Apex of AM5 DIY Stability
In short, the MAG X870E GAMING PLUS MAX WIFI technically facilitates a stable, durable, and DIY-friendly foundation for your most ambitious PC builds. Notably, this architecture epitomizes industrial resilience, being built to withstand the most intense gaming sessions through its robust metallic construction. Specifically, the integration of 5G LAN and full-speed Wi-Fi 7 effectively ensures that your networking performance transitions remain seamless near-instantaneously.
Furthermore, the 14+2+1 Duet Rail Power System with 60A SPS ensures industrial-grade stability for the latest AMD Ryzen™ 9000 Series processors. Because the frame supports USB4 40Gbps and PCIe 5.0 solutions, it technically facilitates elite data excursions without space compromise. Consequently, the X870E delivers a disciplined performance presence that blends premium cooling logic with 8-layer server-grade PCB fabric. As a result, you receive a visually perfect and technically superior centerpiece for your high-performance workstation.
EZ DIY Intelligence & Frozr Thermal Sync
One-Finger EZ DIY Experience
Notably, the MAG X870E architecture specifically utilizes the EZ PCIe Release and EZ M.2 Shield Frozr II. This technically allows for tool-free component swapping while effectively protecting your PCB from accidental damage. Consequently, your technical presence remains focused on performance during high-load competitive iterations.
Supplemental AI Power Delivery
Moreover, the integrated Supplemental PCIe Power connector effectively supports extreme performance for modern power-hungry GPUs used in AI computing. This architecture ensure your high-performance hardware transitions remain stable while maintaining structural synchronization for enthusiast builds.
💡 Pro-Builder Tip: Latency Killer Optimization
To clarify, the MSI BIOS technically facilitates a “Latency Killer” feature to effectively reduce memory latency by up to 12%. Specifically, ensure you utilize high-frequency EXPO or A-XMP profiles to effectively maintain signal stability. Furthermore, ensure you utilize the EZ Antenna magnetic stand to maintain maximum Wi-Fi 7 thermal efficiency.
Technical Matrix
| Hardware Feature | Detailed Specification |
|---|---|
| Model Name | MAG X870E GAMING PLUS MAX WIFI |
| SKU | 911-7E70-016 |
| Part Number | 911-7E70-016 |
| UPC | 824142448571 |
| EAN | 4711377248571 |
| Chipset | AMD X870E |
| CPU Support | AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors | Socket AM5 |
| Memory Support | 4x DDR5 UDIMM, Max 256GB | DDR5 8200+ (OC) MT/s |
| Onboard Graphics | 1x HDMI 2.1 (4K 60Hz), 1x USB4 Type-C (4K 120Hz) |
| Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 3.0 x1, 1x PCIe 4.0 x4, 1x PCIe 3.0 x1 |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Storage | 3x M.2 Slots (1x PCIe 5.0 x4, 2x PCIe 4.0 x4), 4x SATA 6G |
| RAID Support | SATA RAID 0/1/10 | NVMe RAID 0/1/5 (RAID 5 requires Ryzen 9000) |
| USB Connectivity | 1x USB4 40Gbps (Rear), 1x USB 20Gbps (Rear), 1x USB 10Gbps Type-C (Front) |
| Networking (LAN) | 1x Realtek® 8126 5G LAN |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), Bluetooth 5.4 |
| Internal I/O | 1x PCIE_PWR 8pin, 1x CPU Fan, 1x Pump_Sys Fan, 6x Sys Fan, 1x JAF_1 |
| LED Features | EZ Debug LED, EZ Memory Detection LED, JARGB_V2 |
| Form Factor | ATX (243.84mm x 304.8mm) |
| Warranty | 3 Years Local Agent Warranty |
What’s In The Box
Frequently Asked Questions
What is the benefit of the 8-layer PCB on the X870E?
Notably, the MAG X870E technically utilizes a server-grade 8-layer PCB with thickened copper. Specifically, this enhances impedance control and effectively improves thermal stability. Consequently, your system maintains industrial-grade reliability during extreme performance iterations.
Does the USB4 port support DisplayPort output?
Yes, the USB4 Type-C port technically facilitates DisplayPort 1.4 output at 4K 120Hz. Furthermore, it supports 40Gbps data transfer. Therefore, you can effectively drive high-resolution displays near-instantaneously without sacrificing structural synchronization.
Is the MAG X870E compatible with the Ryzen 9800X3D?
Specifically, this board is fully ready for the Ryzen™ 9000 series, including the 9800X3D. Notably, the OC Engine provides independent BCLK control. Consequently, this protects your hardware transitions from industrial-grade instability during peak gaming iterations.
*MSI, MAG, and the dragon logo are registered trademarks of Micro-Star International Co., Ltd. AMD, Ryzen, and Radeon are trademarks of Advanced Micro Devices, Inc. Technical specifications are based on official documentation provided at the time of publication.
Help us maintain data accuracy via our Technical Feedback Form.
