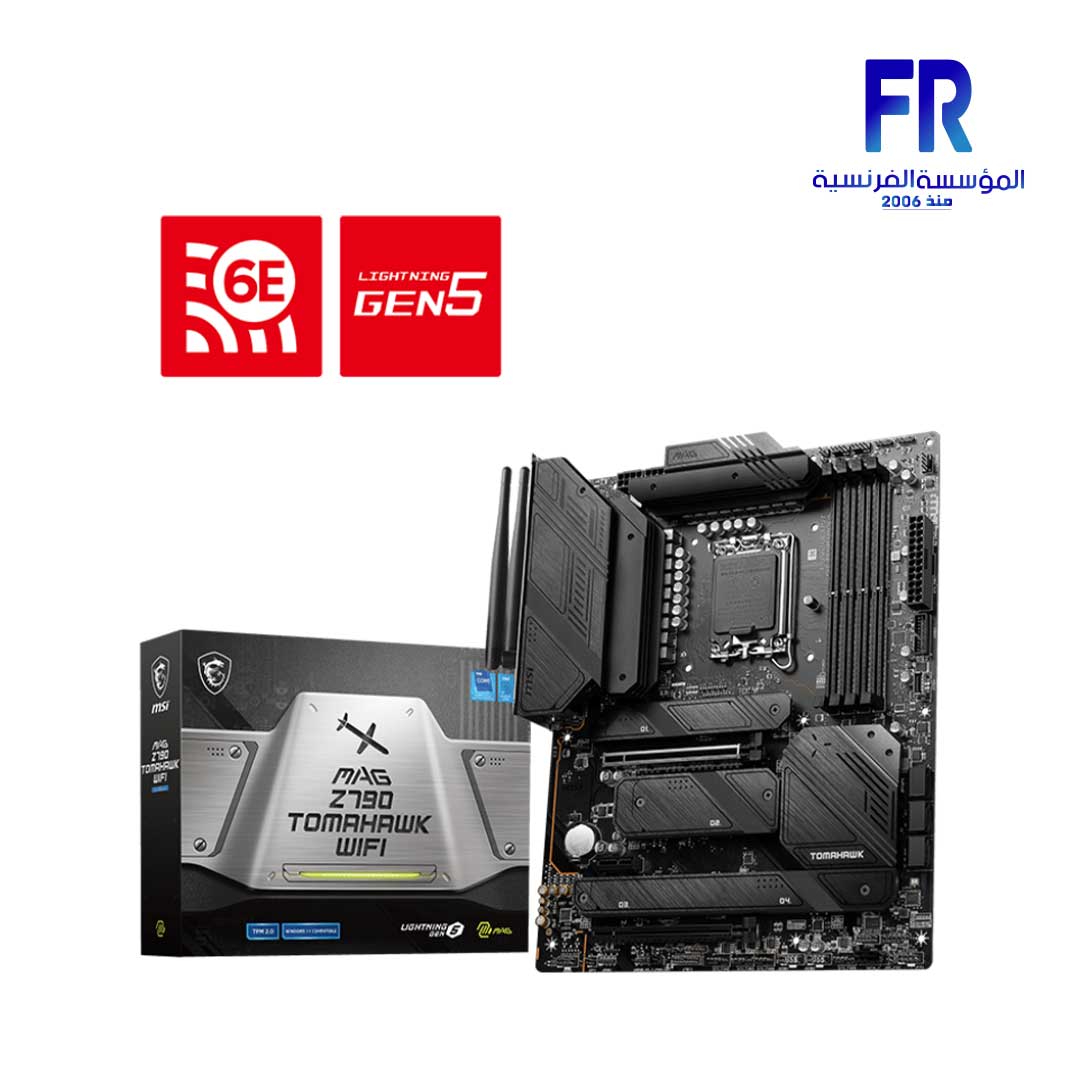

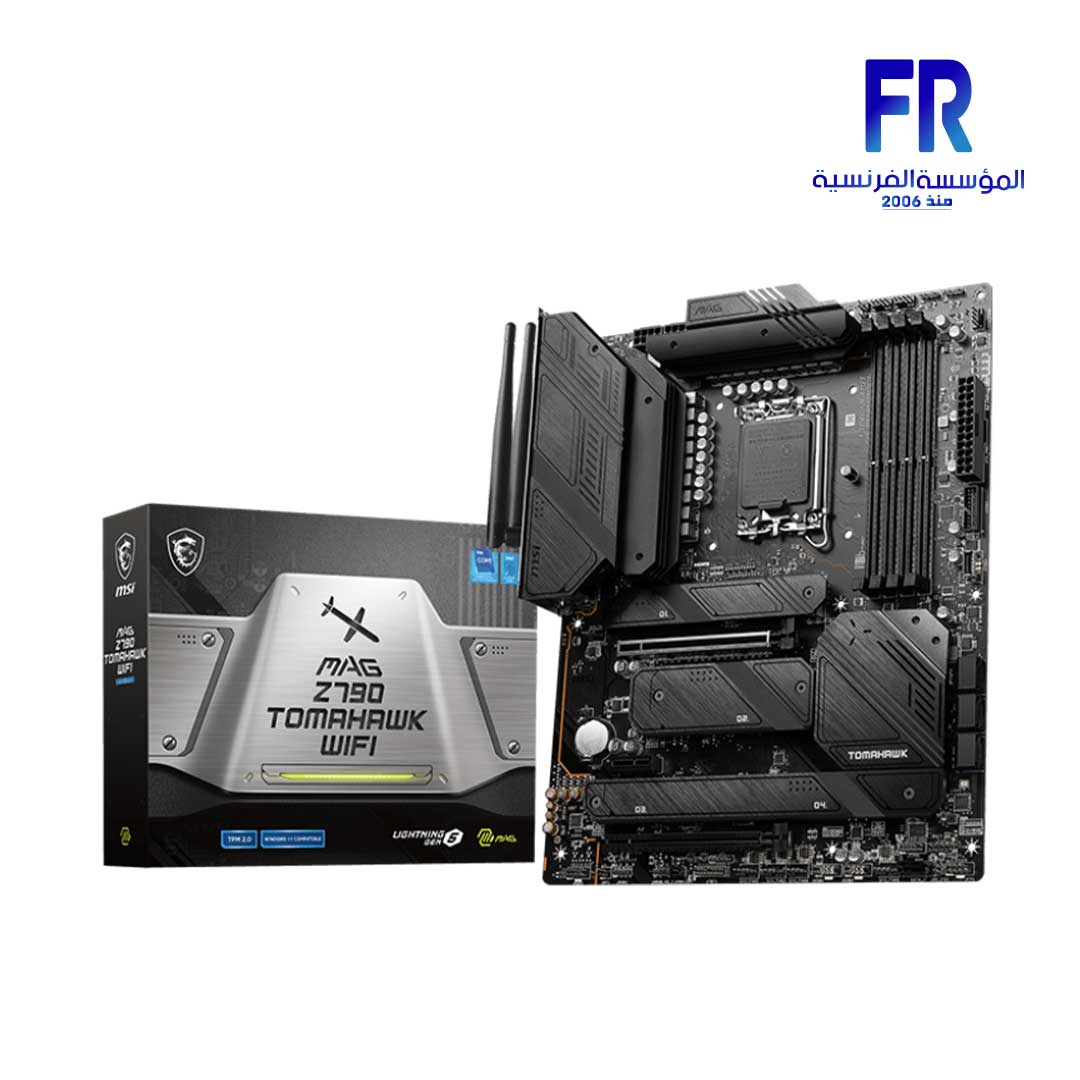

Msi MAG Z790 Tomahawk Wifi Motherboard

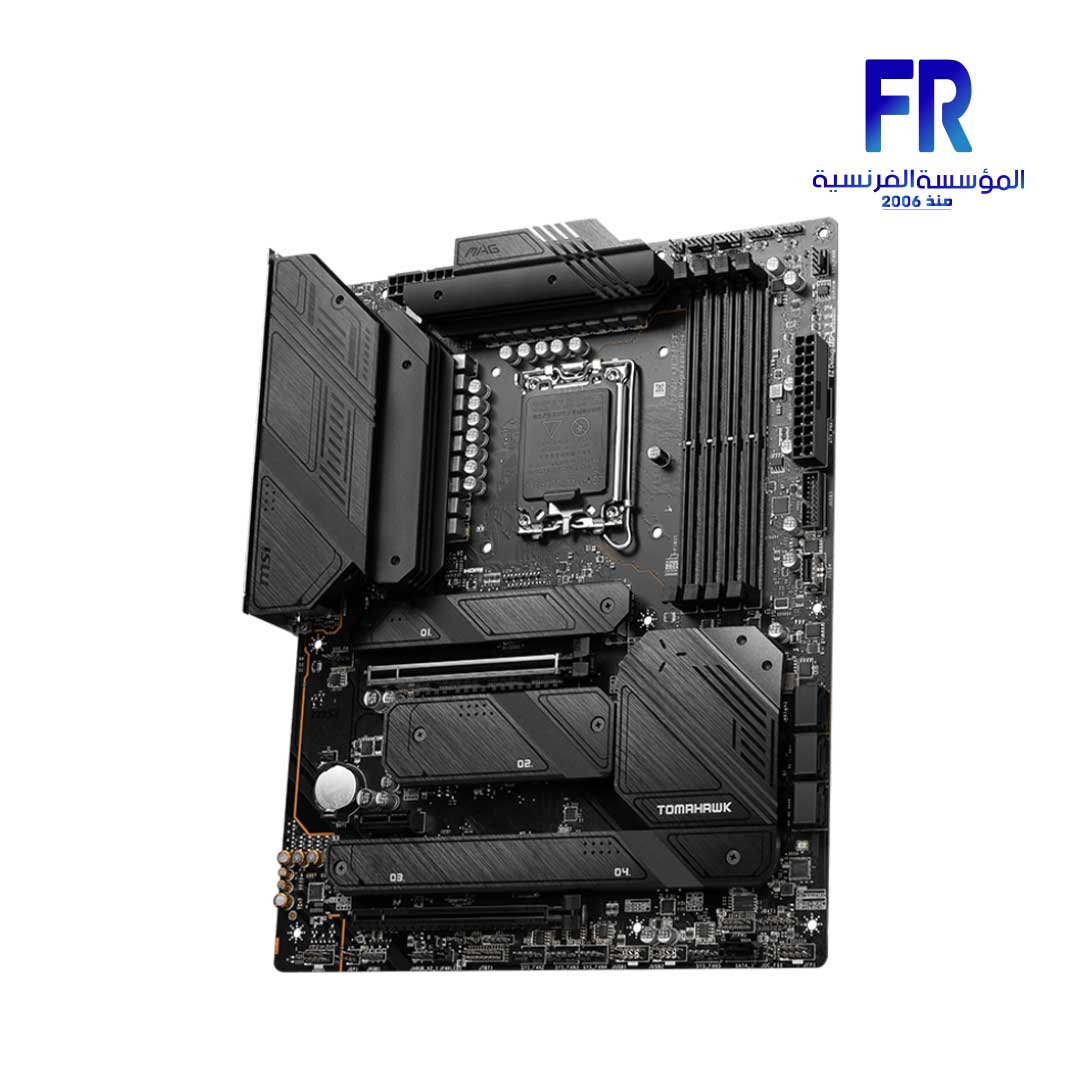

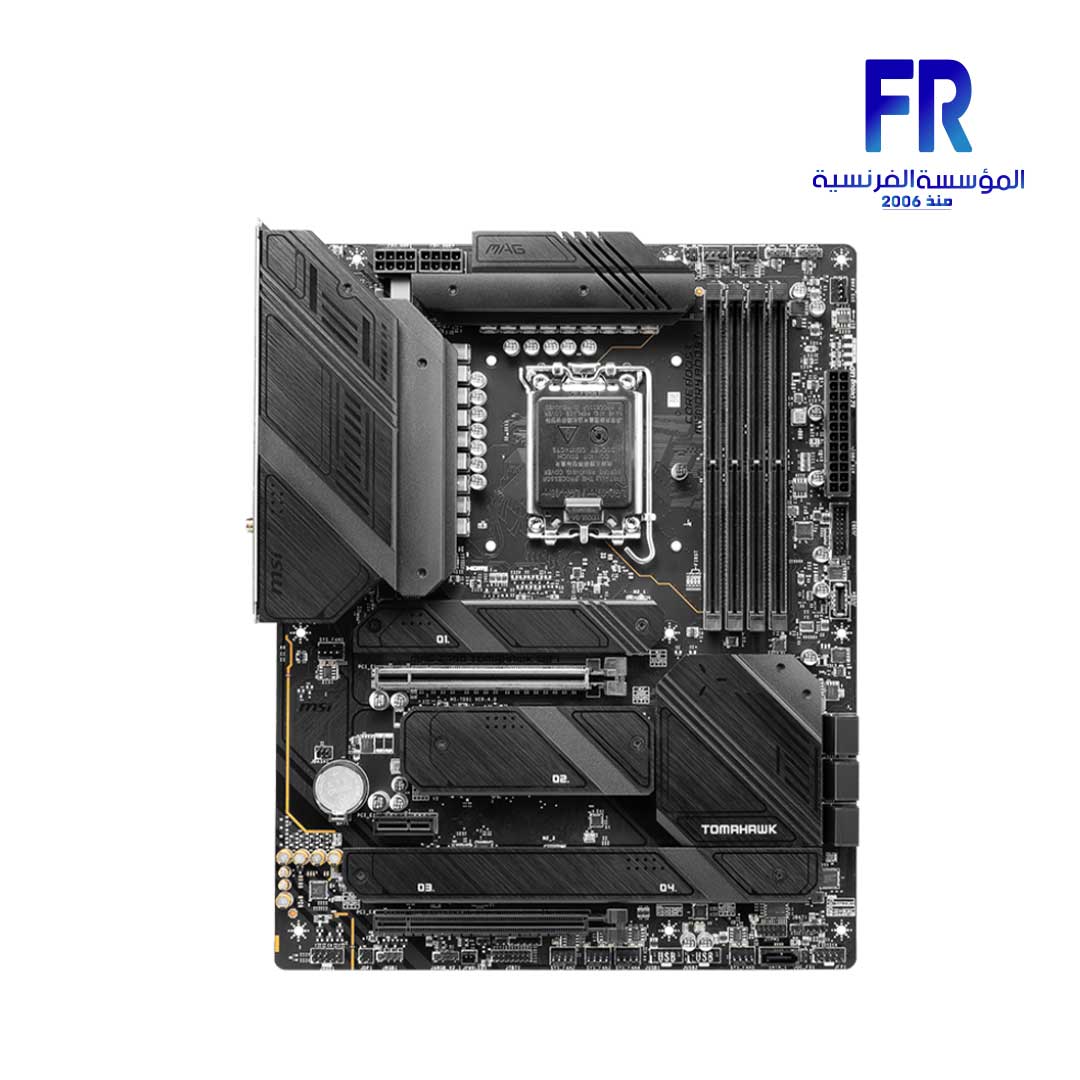

Msi MAG Z790 Tomahawk Wifi Motherboard - Image 2
Msi MAG Z790 Tomahawk Wifi Motherboard - Image 3
Msi MAG Z790 Tomahawk Wifi Motherboard - Image 4
Msi MAG Z790 Tomahawk Wifi Motherboard - Image 5
Msi MAG Z790 Tomahawk Wifi Motherboard - Image 6
Msi MAG Z790 Tomahawk Wifi Motherboard
Msi MAG Z790 Tomahawk Wifi Motherboard - Image 2
Msi MAG Z790 Tomahawk Wifi Motherboard - Image 3
Msi MAG Z790 Tomahawk Wifi Motherboard - Image 4
Msi MAG Z790 Tomahawk Wifi Motherboard - Image 5
Msi MAG Z790 Tomahawk Wifi Motherboard - Image 6
MSI

Msi MAG Z790 Tomahawk Wifi Motherboard

17686 EGP

  • Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7200 plus(OC) MHz
  • Enhanced Power Design: 16 plus1 plus1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

Only 2 left in stock

Compare
Price Match Guarantee
SKU: 824142305690 Categories: , Tags: , , , , Brand:

Msi MEG Z790 Tomahawk Wifi Motherboard

  • CHIPSET
  • INTEL Z790

  • CPU SUPPORT
  • Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

  • MEMORY
  • 4x DDR5, Maximum Memory Capacity 192GB
  • Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
  • Max. overclocking frequency:
  • • 1DPC 1R Max speed up to 7200+ MHz
  • • 1DPC 2R Max speed up to 6600+ MHz
  • • 2DPC 1R Max speed up to 6400+ MHz
  • • 2DPC 2R Max speed up to 5600+ MHz
  • Supports Intel® XMP3.0 OC
  • Supports Dual-Controller Dual-Channel mode
  • Supports non-ECC, un-buffered memory

  • ONBOARD GRAPHICS
  • 1x HDMI™
  • Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
  • 1x DisplayPort
  • Support DP 1.4, maximum resolution of 8K 60Hz*
  • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

  • EXPANSION SLOT
  • 2x PCI-E x16 slot
  • Supports x16/x4
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

  • STORAGE
  • 4x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  • 7x SATA 6G

  • RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
  • * SATA_A1_A2 do not support RAID function.

  • USB
  • 4x USB 2.0 (Front)
  • 4x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
  • 4x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
  • 1x USB 3.2 Gen2x2 Type C (Rear)

  • LAN
  • Intel® 2.5Gbps LAN

  • WIRELESS / BLUETOOTH
  • Intel® Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.3, FIPS, FISMA
  • * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

  • AUDIO
  • Realtek® ALC4080 Codec
  • 7.1-Channel USB High Performance Audio
  • Supports S/PDIF output
  • Supports up to 32-Bit/384 kHz playback on front panel

  • INTERNAL I/O
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 6x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x TBT connector (JTBT, supports RTD3)
  • 1x Tuning Controller connector(JDASH)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
  • 1x USB 3.2 Gen2 Type C ports

  • LED FEATURE
  • 4x EZ Debug LED

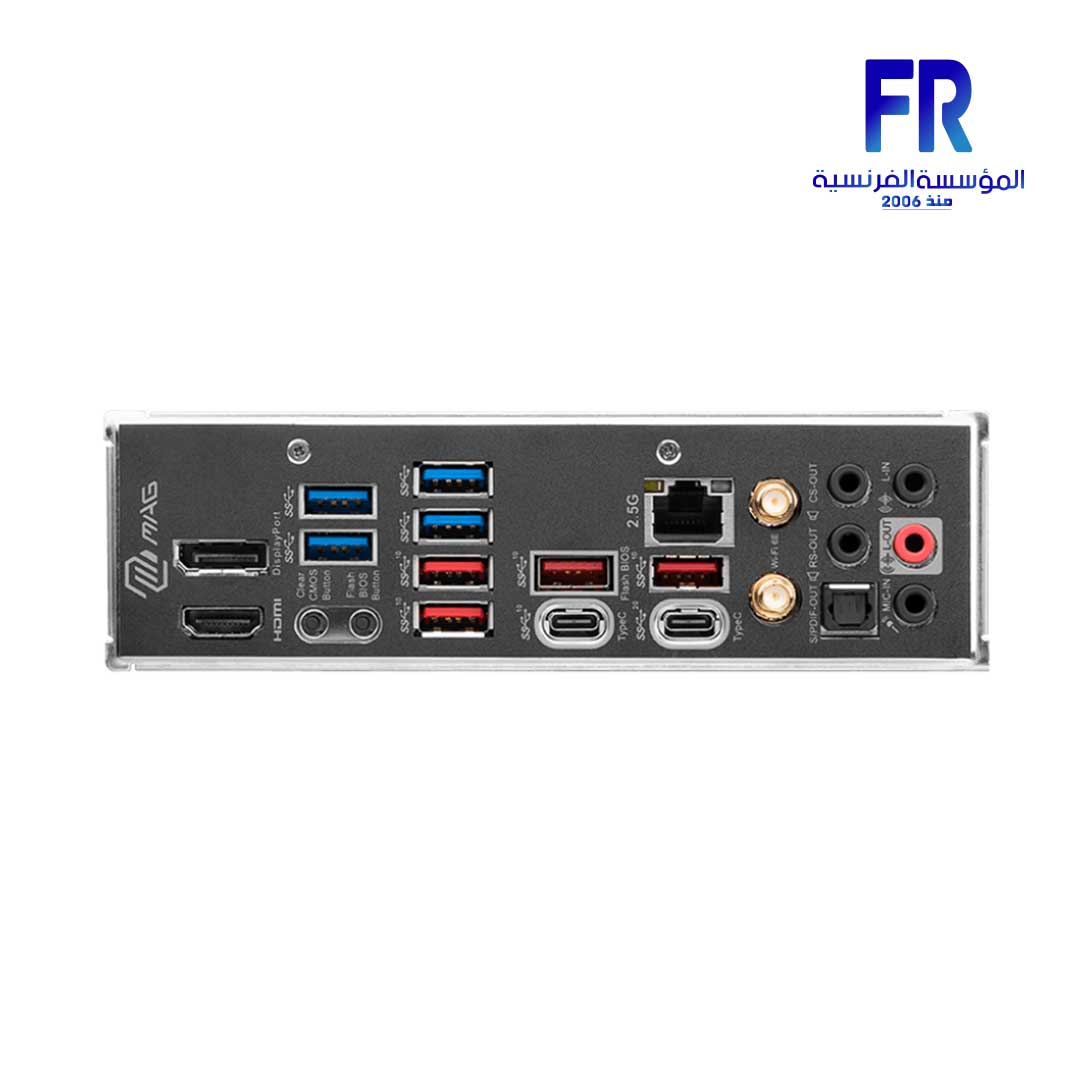

  • BACK PANEL PORTS

  1. DisplayPort 1.4
  2. USB 3.2 Gen 1 5Gbps Type-A
  3. USB 3.2 Gen 2 10Gbps Type-A
  4. 2.5G LAN Port,
  5. HD Audio Connectors
  6. HDMI™ 2.1 Port
  7. Clear CMOS Button
  8. Flash BIOS Button
  9. USB 3.2 Gen 2 10Gbps Type-C
  10. USB 3.2 Gen 2×2 20Gbps Type-C
  11. Wi-Fi / Bluetooth Antenna
  12. Optical S/PDIF OUT

  • OPERATING SYSTEM
  • Support for Windows® 11 64-bit, Windows® 10 64-bit
  • PCB DIMENSION (W × L)
  • ATX
  • 243.84mmx304.8mm

Msi MEG Z790 Tomahawk Wifi Motherboard

MAG Z790 TOMAHAWK WIFI
Z790 Chipset, 16 Duet Rail Power System, Smart Cooling, DDR5 Memory Boost
PCI-e 5.0 x16 Slot, Premium Storage Performance, Wi-Fi 6E Connectivity
MOTHERBOARD
MODEL

CHIPSET MANUFACTURERS

CPU Socket

Motherboard Chipset

Motherboard Type

CPU SERIES

Technology

Memory Speed

, , , , , , ,

Max Memory Size

Memory Slot

PCI-E X16

PCI-E GEN

PCIe 5.0
PCI-E Slots (M.2)

SATAIII

Communication module

,

Part Number

Warranty
