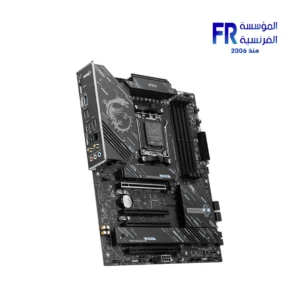

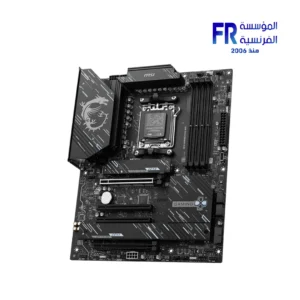

Msi X870 Gaming Plus WIFI Motherboard

MSI X870 Gaming Plus WIFI Motherboard:

The MSI X870 Gaming Plus WIFI Motherboard provides a robust and future-proof foundation for your high-performance AMD Ryzen™ system. This motherboard supports the latest AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors on the AM5 socket. It is engineered for an exceptional gaming experience. The motherboard features cutting-edge DDR5 memory support, enabling speeds up to 8200+ MT/s (OC). Thus, it ensures lightning-fast data processing for demanding applications and games. Moreover, its comprehensive connectivity options, including Wi-Fi 7 and 5G LAN, deliver secure, stable, and high-speed networking.

Next-Gen Connectivity & Cooling Solutions:

High-Speed PCIe & Storage:

The MSI X870 Gaming Plus WIFI Motherboard offers an impressive array of connectivity. It includes a PCI-E 5.0 x16 slot directly from the CPU. This provides maximum bandwidth for the latest graphics cards. It also features three M.2 slots. The primary slot, in particular, supports PCIe 5.0 x4 for ultra-fast NVMe SSDs. This is crucial for rapid game loading and large file transfers. Furthermore, its onboard graphics capabilities include HDMI™ 2.1 and a USB4® Type-C DisplayPort. These support resolutions up to 4K 60Hz on compatible processors with integrated graphics.

Advanced Thermal Management:

For superior thermal performance, this MSI motherboard incorporates extended heatsink designs and optimized thermal pads. These ensure stable operation even under heavy loads. Its 14+2+1 Duet Rail Power System with 60A SPS (Smart Power Stage) provides stable and efficient power delivery to the CPU. This power delivery is crucial for overclocking and sustained performance. Additionally, the motherboard includes various fan headers. For example, it offers one CPU fan, one Combo Fan (Pump_Sys Fan), and six system fan headers. These allow for extensive cooling configurations. This design actively dissipates heat, effectively maintaining optimal component temperatures.

Comprehensive USB & User-Friendly Features:

The MSI X870 Gaming Plus WIFI Motherboard provides extensive USB connectivity. It features a high-speed USB 40Gbps Type-C port on the rear. There is also a USB 20Gbps Type-C port. Additionally, multiple USB 10Gbps and 5Gbps Type-A ports are available, both at the rear and front. This ensures broad compatibility with all your peripherals. Its Realtek® ALC897 7.1-Channel High Definition Audio delivers immersive sound experiences. Furthermore, convenient DIY features like EZ Debug LED and a Flash BIOS Button simplify troubleshooting and BIOS updates. Consequently, your build process becomes smoother and more accessible.

Explore compatible Motherboards or check MSI Products for other options. Find full details on the official MSI X870 Gaming Plus WIFI product page.

Specifications:

• Chipset: AMD X870
• CPU Support: AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors (Socket AM5)
• Memory: 4x DDR5 UDIMM, Max 256GB; Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
• Onboard Graphics: 1x HDMI™ (4K 60Hz), 1x Type-C DisplayPort (USB4® 4K 60Hz)
• PCI-E Slots: 4x PCI-E x16 slot (PCI_E1 Gen PCIe 5.0 x16 from CPU)
• Audio: Realtek® ALC897, 7.1-Channel High Definition Audio
• Storage: 3x M.2 (M.2_1 PCIe 5.0 x4 from CPU), 4x SATA 6G
• RAID Support: RAID 0, RAID 1, RAID 5 for M.2 NVMe devices (RAID 5 for Ryzen™ 9000 series only)

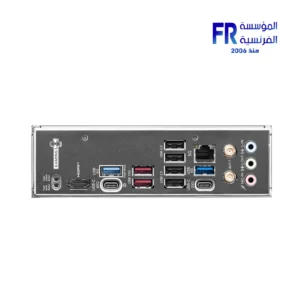

• USB (Rear): 4x USB 2.0, 2x USB 5Gbps Type A, 2x USB 10Gbps Type A, 1x USB 20Gbps Type C, 1x USB 40Gbps Type C
• USB (Front Internal): 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 10Gbps Type C
• LAN: Realtek® 8126VB 5G LAN
• Wireless LAN & Bluetooth: Wi-Fi 7 (up to 5.8Gbps), Bluetooth® 5.4
• LED Feature: 4x EZ Debug LED
• Operating System Support: Windows® 11 64-bit
• PCB Info: ATX (243.84mm x 304.8mm)
• Model Number/SKU: 911-7E47-005
• EAN/UPC: 824142390528
